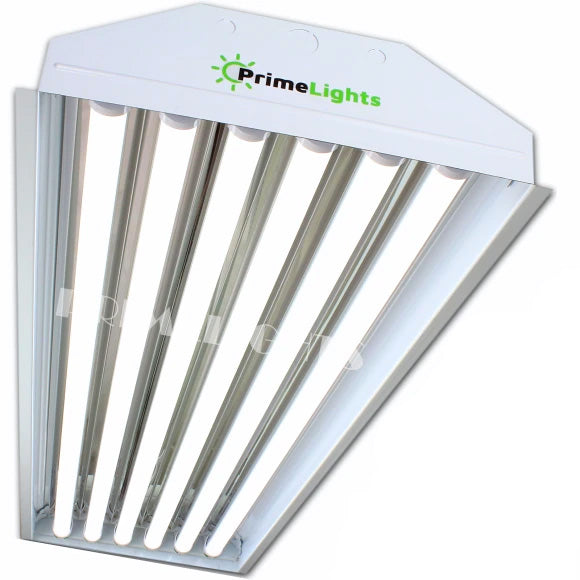

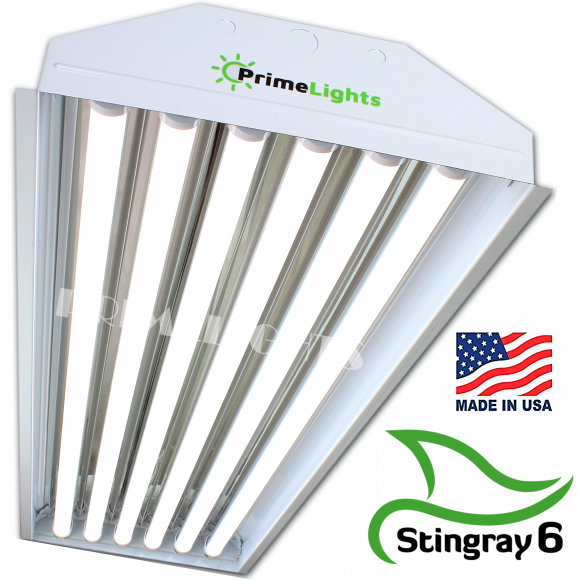

LED 6 Lamp T8 STINGRAY 6XL Highbay Fixture 132 Watts

FREE SHIPPING ON ALL QUANTITIES

LED 6 LAMP T8 - 132 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE

FIXTURE MADE IN USA

THE STINGRAY 6XL 132W LED HIGHBAY

New, never used, in manufacturer packaging.

Shipping: FREE, In Stock

Certifications: UL Listed, CSA Certified, NSF, Shatterproof, Contact for Rebate Info

Warranty: 5 years on complete fixture including LED lamps

Specifications:

-110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector.  LED Tubes have their own internal drivers - no external drivers or ballasts to worry about.  You will never have to change anything inside the fixture. This is the last fixture you will ever have to buy or maintenance.

See Product Spec Sheet

Input Wattage: 132W

LED Lumens: 17,100

Equivalent Lumens: 32,490

Life: 50,000 Hours +

Color Temperature: 4000K or 5000K Daylight White

CRI: 80+

Amperage @ 120V: 1.2A

Amperage @ 277V: 0.49A

Voltage: 120-277V

Base Type: G13 Medium B-Pin

Type: Outdoor type 1 HL

Sound Rating: A

Class: P

Minimum Start Temp: -4° F

Maximum Start Temp: 140° F

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Mounting Options:

-Surface mountable

-Chain hang (hardware not included)

*Energy Usage: Approx. 40% Less than T8 Fluorescent

Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.

Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.

Unboxing Instructions

Cord & Plug Installation

Cable Hanger Installation

Occupancy Sensor Installation

Wire Guard Installation

Stingray Comparison
