What Is Auto Shop LED Lighting?

Auto shop LED lighting encompasses the high-performance, commercial-grade fixtures engineered specifically for automotive repair, restoration, detailing, and body work environments — where the ability to see clearly isn't just a convenience, it's the difference between a correct diagnosis and a missed problem, a flawless paint match and a costly redo, and a safe repair and a dangerous oversight.

Automotive work demands more from lighting than almost any other trade. Mechanics peer into dark engine bays, inspect undercarriages on lifts, match paint colors down to the exact shade, read torque specs on tiny labels, and spot hairline cracks that could mean the difference between a safe vehicle and a liability. Standard lighting doesn't cut it. Auto shop lighting has to be bright, color-accurate, shadow-free, durable, and reliable — hour after hour, shift after shift.

PrimeLights offers a complete selection of commercial LED lighting solutions trusted by independent repair shops, multi-bay dealerships, collision centers, tire shops, quick-lube operations, and restoration garages across the country. Our fixtures are built for the real conditions of automotive work — and backed by the expertise to help you light your shop right.

Why LED Lighting Is Dominating Auto Shops in 2026

The automotive aftermarket and repair industry has embraced LED lighting faster than almost any other sector, and the reasons go beyond energy savings. In an auto shop, lighting quality directly impacts diagnostic accuracy, repair quality, customer satisfaction, and technician retention.

Shops that have upgraded to LED consistently report dramatically improved diagnostic accuracy due to better visibility in engine bays and under vehicles, significant reductions in paint matching errors and rework at body shops, lower technician eye strain and fatigue during long shifts, energy cost reductions of 50-75%, and near-total elimination of maintenance costs from relamping.

In an industry where skilled technicians are increasingly hard to find and retain, shop environment matters. A bright, well-lit shop signals professionalism — to both customers and employees.

Why Traditional Auto Shop Lighting Falls Short

Most auto shops were built with lighting technology that was already outdated a decade ago. The limitations of legacy fixtures directly impact the quality of work performed under them.

Auto Shop Lighting Technology Comparison

TechnologyLifespanEnergy UseWarm-Up TimeColor Rendering (CRI)Flicker/BuzzFluorescent T8/T1210,000-15,000 hrsModerate1-3 min62-82 CRIYesMetal Halide6,000-15,000 hrsHigh5-15 min65-80 CRIModerateHigh Pressure Sodium10,000-24,000 hrsHigh3-10 min20-30 CRIModerateIncandescent / Halogen1,000-2,000 hrsVery HighInstant95-100 CRINoLED Auto Shop Lighting50,000-100,000 hrsVery LowInstant80-95+ CRINo

Fluorescent: The Flickering, Buzzing Standard. Walk into most independent shops and you'll find rows of aging T8 or T12 fluorescent tubes — many of them with dead tubes, flickering lamps, and that incessant ballast buzz that technicians learn to tune out but that contributes to fatigue all day long. Fluorescent fixtures deliver mediocre color rendering (CRI 62-82), making it harder to match paint colors, spot fluid leaks by color, or identify subtle discoloration that indicates heat damage or corrosion. In colder months, they take minutes to reach full brightness and may not start at all in unheated shops below 50°F.

Metal Halide: Bright But Blind. Some larger shops and dealership service departments use metal halide high bays for their raw brightness. But the 5-15 minute warm-up time means the lights stay on all day whether work is happening or not — there's no cycling them on and off. Any power interruption leaves the entire shop in darkness while fixtures restrike, a serious safety hazard when vehicles are on lifts and technicians are working underneath them. Metal halide also loses 30-40% of its output over its lifespan, meaning your shop gets progressively dimmer between expensive relamping sessions.

HPS: The Yellow Fog. High pressure sodium fixtures produce a yellow-orange light that makes accurate color work impossible. Any shop performing body work, paint, detailing, or even basic fluid identification cannot function under HPS lighting. It's the worst possible choice for automotive environments, yet it persists in shops that prioritized energy over visibility decades ago.

Halogen Work Lights: Hot, Fragile, and Temporary. Portable halogen work lights deliver excellent color rendering but run dangerously hot — a burn hazard and a fire risk around solvents, brake cleaner, and other flammable chemicals found in every shop. They consume enormous energy, burn out quickly, and are easily broken. They remain common only because shops haven't upgraded their overhead lighting enough to eliminate the need for supplemental portable lights.

Key Advantages of LED Lighting for Auto Shops

1. Superior Color Rendering for Accurate Automotive Work

This is the single most important advantage for auto shops. LED fixtures deliver CRI values of 80-95+, meaning colors appear accurate and true to life under artificial light. For automotive work, this translates to accurate paint color matching in body and collision shops, ability to identify fluid types by color (coolant vs. transmission fluid vs. brake fluid vs. oil), spotting heat discoloration on brake rotors, exhaust components, and wiring, detecting rust and corrosion in early stages, reading color-coded wiring diagrams and connectors accurately, and performing quality inspections under lighting that represents real-world viewing conditions.

For collision centers and paint shops, CRI 90+ is not optional — it's essential. A $500 paint job that doesn't match because the mixing room was lit with low-CRI fluorescents costs far more in rework and customer dissatisfaction than the lighting upgrade.

2. Shadow-Free Illumination Where It Matters Most

Auto technicians work in the most shadow-prone environments imaginable — reaching into engine bays, working under lifts, inspecting wheel wells, and peering into tight spaces where a shadow can hide a cracked hose, a leaking seal, or a worn component. Properly designed LED shop lighting delivers uniform, multi-directional illumination that minimizes shadows across the shop floor. High-output overhead fixtures reduce the need for handheld drop lights and supplemental task lighting, keeping technicians' hands free for actual work.

3. Dramatic Energy Savings

Auto shops run lights for 10-14 hours per day, five to six days a week. LED fixtures consume 50-75% less electricity than the fluorescent and metal halide fixtures they replace.

Annual Energy Cost Comparison (per fixture, 12 hrs/day, 6 days/week)

Fixture TypeWattageAnnual kWhAnnual Cost @ $0.12/kWhT8 Fluorescent (4-lamp, 128W)128W478 kWh$57.40Metal Halide High Bay (400W)400W1,498 kWh$179.71LED Shop Light (Equivalent to 4-lamp T8)40-50W175 kWh$21.02LED High Bay (Equivalent to MH)150W562 kWh$67.39Savings vs. Fluorescent (per fixture)303 kWh$36.38Savings vs. Metal Halide (per fixture)936 kWh$112.32

A 20-fixture shop replacing fluorescents saves roughly $730/year in energy. A larger facility replacing metal halide high bays saves over $2,200/year — and that's before maintenance savings.

4. Extended Lifespan Ends the Relamping Cycle

Quality LED fixtures last 50,000-100,000 hours. At 12 hours per day, 6 days per week, a 50,000-hour fixture lasts over 13 years. No more climbing ladders over parked vehicles, no more dead tubes creating dark spots over bays, no more emergency runs to the supply house when half a bank of fluorescents fails on a Monday morning. The lights just work — for years.

5. Instant-On, Full Brightness

LED fixtures reach 100% output the instant they're switched on. This enables practical energy management — lights in unused bays or storage areas can be switched off or put on occupancy sensors without any warm-up penalty. It also means no dangerous darkness gaps during power flickers, keeping technicians safe when they're under vehicles on lifts.

6. No Flicker, No Buzz, No Headaches

Fluorescent fixtures flicker at frequencies that cause eye strain, headaches, and fatigue — particularly noticeable during close-up diagnostic and inspection work. The ballast buzz adds to the ambient noise level, compounding technician fatigue over a full shift. LED fixtures produce zero flicker and zero audible noise, creating a measurably more comfortable work environment.

7. Cold Weather Performance

Shops in northern climates that aren't fully heated know the frustration of fluorescent tubes that barely glow on a January morning. LED fixtures deliver full output instantly regardless of temperature, maintaining consistent illumination in unheated bays, cold storage areas, and outdoor work spaces.

8. Durability for the Shop Environment

Auto shops are tough on lighting. Vibration from impact tools and lifts, occasional contact from extended components on a lift, exposure to chemical vapors, and the general abuse of a busy commercial environment all take a toll. LED fixtures have no fragile filaments or glass tubes — they're solid-state and built to resist the vibration and impacts common in automotive environments.

Types of LED Fixtures for Auto Shop Applications

4-Foot LED Shop Lights (Linear LED Fixtures)

Best For: Standard service bays, general repair areas, tire shops, oil change bays, parts rooms, break rooms

The backbone of auto shop lighting. 4-foot LED shop lights deliver broad, even illumination for standard 10-14 foot ceiling heights found in most independent shops and quick-service facilities. Producing 4,000-7,000+ lumens per fixture, they provide the high-output, uniform coverage that automotive work demands.

Key features to look for: linkable designs for simplified wiring, high CRI (80+, ideally 90+), 5000K color temperature, and mounting options for both flush-mount and suspended installation. Plan 2-3 fixtures per bay for standard service work, more for detailed inspection areas.

8-Foot LED Shop Lights

Best For: Large service bays, alignment bays, frame straightening areas, multi-post lift zones

8-foot fixtures provide extended coverage with fewer fixtures and fewer gaps between lights. They're ideal for the wider bays found in dealership service departments, alignment shops, and collision repair facilities. The longer fixture format also reduces the dark spots that can occur between 4-foot fixtures when spacing is too wide.

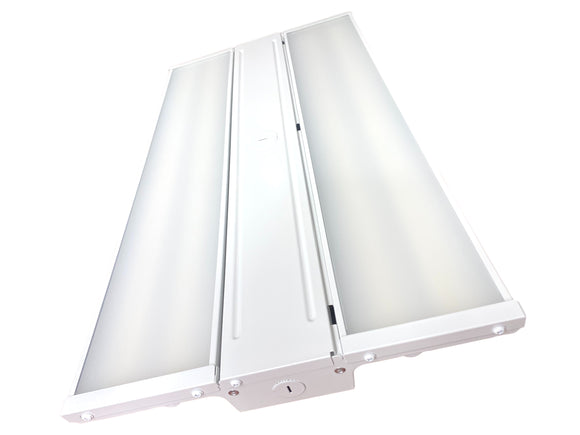

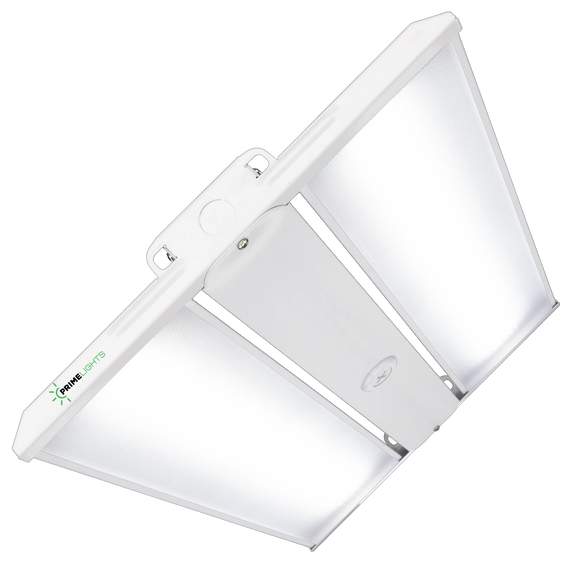

LED High Bay Lights (UFO and Linear)

Best For: Dealership service departments, large multi-bay shops, tire warehouses, fleet maintenance facilities, shops with 20+ foot ceilings

Shops with higher ceilings — particularly dealership service departments, fleet maintenance garages, and converted warehouse spaces — need high bay output to deliver adequate light at floor level. UFO high bays provide concentrated downward illumination ideal for open floor areas, while linear high bays distribute light along their length for row-based bay layouts.

LED Vapor Tight Fixtures

Best For: Wash bays, detail bays, car wash tunnels, outdoor covered service areas, any wet environment

Auto shops with dedicated wash bays, detail departments, or exterior service areas need fixtures that handle direct water exposure. Vapor tight LED fixtures rated IP65 or higher are sealed against moisture and spray, providing reliable illumination in the wettest areas of the shop.

LED Wraparound Lights

Best For: Customer waiting areas, offices, parts counters, restrooms, break rooms

The customer-facing and administrative areas of an auto shop benefit from the clean, diffused illumination of LED wraparound fixtures. Their slim profile and prismatic lens deliver wide, glare-free light that creates a more professional, comfortable environment for customers and staff.

LED Panel and Troffer Lights

Best For: Offices, customer lounges, conference rooms, training rooms, drop-ceiling spaces

For any drop-ceiling space within the facility, LED panels and troffers provide the uniform, professional-quality illumination expected in commercial interiors. Available in standard 2x2 and 2x4 configurations for seamless integration with existing ceiling grids.

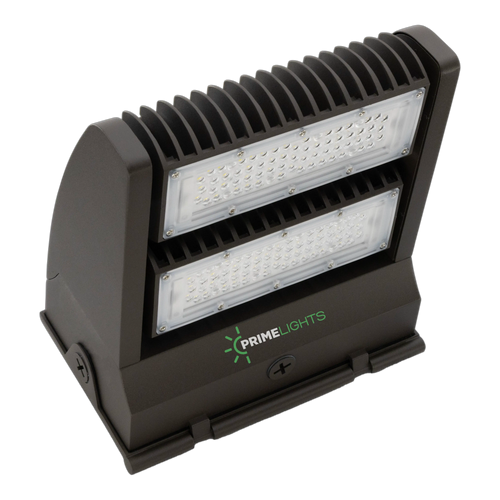

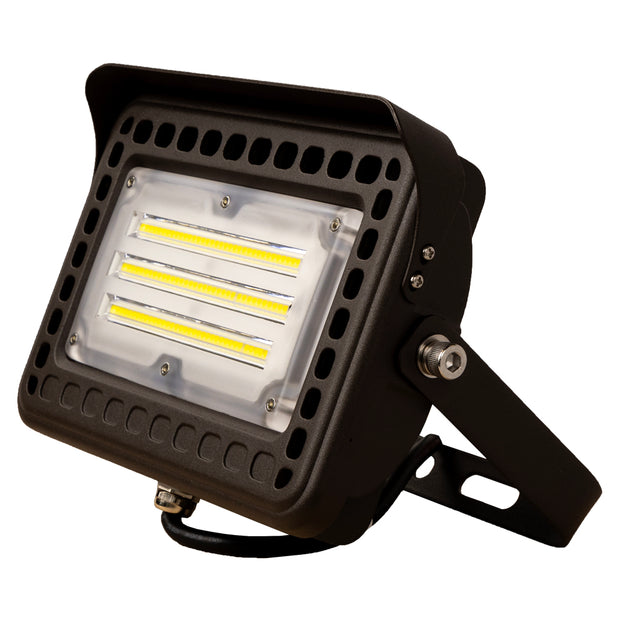

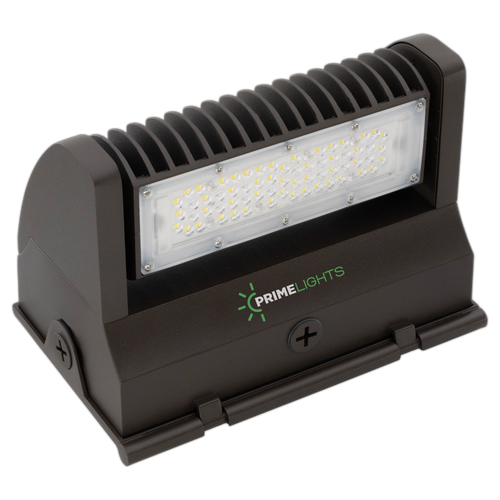

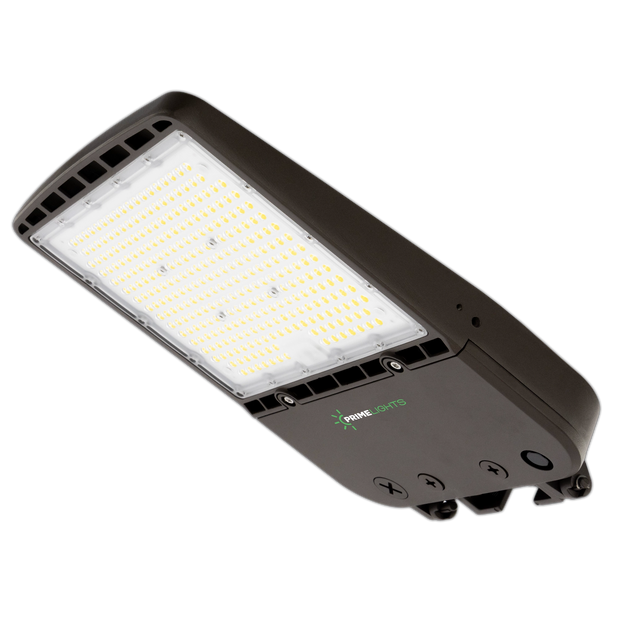

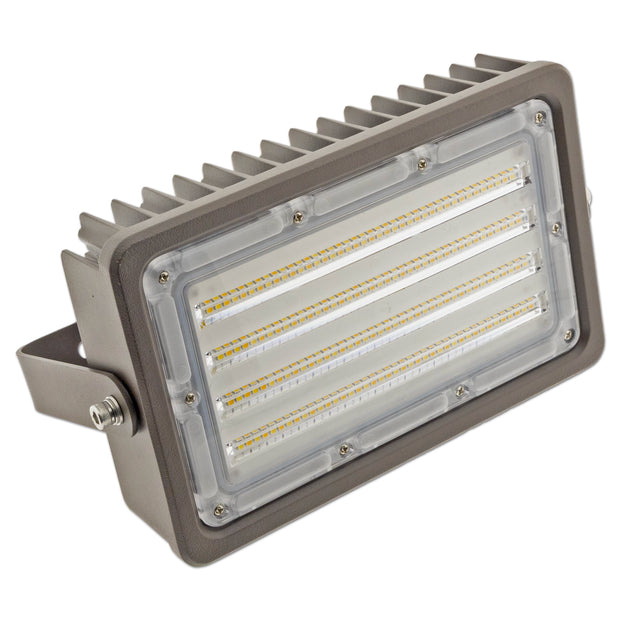

LED Flood Lights and Wall Packs

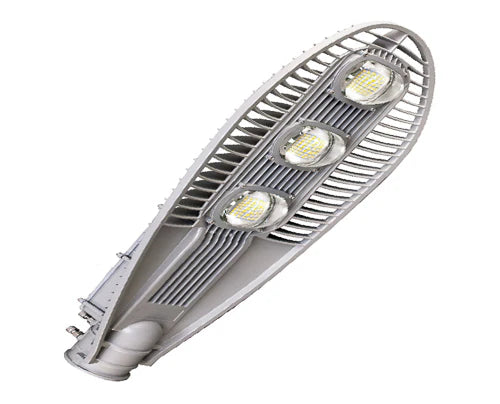

Best For: Parking lots, building exteriors, signage illumination, lot lighting for dealerships, overnight security

Exterior lighting serves multiple purposes for auto shops — customer visibility from the road, safe navigation of the parking lot, security for vehicles left overnight, and professional appearance. LED wall packs and flood lights deliver bright, energy-efficient exterior illumination with minimal ongoing maintenance.

Paint Booth / Explosion Proof LED Lighting

Best For: Spray booths, paint mixing rooms, solvent storage, any area with flammable vapors or combustible dust

Paint spray booths and mixing rooms contain flammable vapors that require explosion-proof lighting rated for NEC Class I, Division 1 or 2 hazardous locations. These specialized fixtures prevent ignition of solvent vapors while delivering the high-CRI, high-output illumination essential for paint work. CRI 90+ is critical in these environments — the entire purpose of the paint booth is achieving a perfect color match, and the lighting must support that goal.

LED Security Lights

Best For: Entrances, service doors, lot perimeter, equipment and parts storage areas

Motion-activated LED security lights protect inventory, vehicles, and equipment after hours. Instant-on capability means full brightness the moment motion is detected, with minimal energy use during inactive periods.

Emergency and Exit Lighting

Best For: All areas — required by building code

Emergency egress lighting and illuminated exit signs are code-required in all commercial auto shop facilities. LED emergency fixtures with battery backup ensure safe evacuation during power failures.

How to Choose the Right LED Fixture for Your Auto Shop: Technical Specifications Explained

Understanding Lumens: How Much Light Does Your Shop Need?

Automotive work generally requires higher light levels than many other commercial applications because of the detailed, close-up nature of the work and the shadow-prone environments where it takes place.

Shop AreaRecommended Lumens per Sq FtIES Recommended Foot-CandlesGeneral service bays70-100 lumens/sq ft50-75 fcDetail / inspection bays100-125 lumens/sq ft75-100 fcCollision / body repair bays75-100 lumens/sq ft50-75 fcPaint spray booth100-150 lumens/sq ft75-100+ fcPaint mixing room100-150 lumens/sq ft75-100+ fcAlignment / diagnostic bays75-100 lumens/sq ft50-75 fcTire / quick-lube bays50-75 lumens/sq ft30-50 fcParts room / storage30-50 lumens/sq ft20-30 fcCustomer waiting area30-50 lumens/sq ft20-30 fcOffice areas40-60 lumens/sq ft30-50 fcWash bay / detail bay50-75 lumens/sq ft30-50 fc

Color Temperature (Kelvin): The Critical Choice for Automotive Work

Color temperature selection is more important in auto shops than in almost any other lighting application because so much of the work is color-dependent.

4000K (Neutral White): Balanced white light. Sometimes preferred in customer waiting areas and offices for a warmer, more comfortable feel. Not recommended for service bays or any area where color accuracy matters.

5000K (Daylight): The gold standard for auto shops. Closely replicates natural daylight, providing the crisp, clear illumination that technicians need for diagnostic work, color identification, and detailed inspection. This is the most popular color temperature across all types of automotive facilities and the recommended choice for service bays, body shops, and detail areas.

6000K-6500K (Cool Daylight): Maximum brightness and contrast. Some shops prefer this range for inspection and quality control areas. Can feel harsh for all-day work but provides the highest visual acuity for detail-oriented tasks.

Expert Recommendation: 5000K across the entire service area, with optional 6500K in dedicated inspection and paint matching areas. PrimeLights fixtures with selectable color temperature (CCT) give you the flexibility to fine-tune after installation.

CRI (Color Rendering Index): Why This Is Non-Negotiable for Auto Shops

CRI is arguably the most important lighting specification for automotive work. It measures how accurately colors appear under artificial light compared to natural sunlight (CRI 100). In an auto shop, CRI directly impacts your technicians' ability to:

• Match paint colors accurately (body shops and collision centers)
• Identify fluid types by color — distinguishing green coolant from red transmission fluid from amber brake fluid from dark oil
• Spot heat discoloration on rotors, exhaust manifolds, and electrical connectors
• Detect early-stage rust and corrosion
• Read color-coded wiring, connectors, and schematics
• Assess finish quality on paint, polish, and detail work
• Identify contamination in fluids and filters

CRI 80-84: Acceptable minimum for general service bays where detailed color work is not the primary activity. Colors appear reasonably accurate but subtle distinctions may be lost.

CRI 85-89: Good quality. Recommended standard for most service bays, tire shops, and quick-lube operations. Color accuracy is solid for general automotive diagnosis and repair.

CRI 90-95+: Excellent quality. Essential for collision repair, paint shops, paint mixing rooms, detail bays, and inspection areas. This is the standard for any area where color matching or color-dependent diagnosis is performed. If your shop does body work, paint, or detailing, CRI 90+ is not optional.

Ceiling Height and Fixture Selection for Auto Shops

Auto shop ceiling heights vary significantly based on the type of facility and the lifts installed:

Ceiling HeightTypical Shop TypeRecommended FixtureLumen Output per Fixture10-12 ftQuick-lube, tire shops, small independents4-ft LED shop lights5,000-7,000 lumens12-16 ftStandard service bays, most independents4-ft or 8-ft LED shop lights7,000-12,000 lumens16-20 ftDealership service, fleet maintenance, large shopsHigh-output shop lights or low bays12,000-20,000 lumens20-30 ftLarge dealership service, truck/fleet baysUFO or linear high bays20,000-36,000 lumens30+ ftHeavy equipment, truck service centersHigh-output high bays30,000-50,000+ lumens

Auto Shop LED Lighting Applications: Area-by-Area Guide

General Service Bays

The service bay is the heart of any auto shop, and it demands the most from your lighting. Each bay needs bright, uniform illumination that minimizes shadows across the full working area — including under the vehicle when it's on a lift. Plan for 70-100 lumens per square foot at 5000K with CRI 80+.

For a standard 12' x 24' service bay (288 sq ft) with 12-14 foot ceilings, plan for 3-4 four-foot LED shop lights producing 5,000-7,000 lumens each, positioned to provide overlapping coverage across the bay. The goal is zero dark spots — when a technician looks up from an engine bay or rolls under a vehicle on a creeper, they should have consistent, bright illumination from every angle.

Collision and Body Repair Bays

Collision repair demands high-output lighting with the best possible color rendering. Body technicians need to assess damage accurately, match paint to existing finishes, check alignment and fitment with precision, and inspect repair quality under light that represents real-world viewing conditions. Specify CRI 90+ at 75-100 lumens per square foot. Fixture positioning should account for the fact that body work happens at all heights — from floor-level rocker panel work to roof repairs — and lighting needs to illuminate the full vehicle surface evenly.

Paint Spray Booths

Paint booth lighting is a specialized application that requires both explosion-proof construction (NEC Class I, Division 1 or 2 rated) and the highest color rendering available (CRI 90-95+). The entire purpose of a paint booth is producing a perfect finish, and the lighting must enable the painter to see exactly what they're spraying.

Fixtures should be positioned to illuminate the vehicle from multiple angles, minimizing glare and reflections on wet paint while providing even, shadow-free coverage. Most booth lighting specifications call for 75-100+ foot-candles at the vehicle surface. Fixtures must be rated for the temperature cycling common in paint booths with bake cycles.

Paint Mixing Rooms

The mixing room may be the single most color-critical space in any automotive facility. Paint technicians mix custom colors by comparing samples under the mixing room lights — if those lights don't render colors accurately, the mix will look correct in the room but wrong on the vehicle in daylight. CRI 93-95+ is the standard for mixing rooms, and 5000K-6500K color temperature provides the closest approximation to the daylight conditions under which the customer will view the finished vehicle.

Alignment and Diagnostic Bays

Alignment bays require uniform, shadow-free lighting for technicians reading alignment displays and inspecting suspension components. Diagnostic bays benefit from high-output lighting that helps technicians visually inspect components, read diagnostic screens, and identify issues during road-test follow-up inspections. Plan for 75-100 lumens per square foot with 5000K color temperature.

Tire and Quick-Lube Bays

These high-throughput bays prioritize fast, efficient work with good general visibility. Lighting requirements are slightly lower than full service bays (50-75 lumens/sq ft) but should still provide bright, even illumination for mounting, balancing, and fluid service work. Linkable 4-foot shop lights are the most cost-effective solution for these applications.

Wash and Detail Bays

Detail work requires excellent lighting to see swirl marks, scratches, paint defects, and finish quality. Wash bays require vapor tight fixtures (IP65+) that resist direct water spray. For detail bays, high CRI (85-90+) is important for assessing finish quality under artificial light. Position fixtures to minimize glare on wet or polished surfaces — offset fixture placement rather than directly above the vehicle can reduce reflective glare during detail work.

Parts Department and Storage

Parts rooms need sufficient light for reading part numbers, identifying components, and navigating shelving — but at lower intensity than service bays. Plan for 30-50 lumens per square foot. LED shop lights or strip fixtures on standard spacing provide efficient coverage. For larger parts warehouses with tall shelving, consider the aisle-lighting principles used in warehouse applications — linear fixtures above each aisle for targeted illumination.

Customer Waiting Area and Front Office

These customer-facing spaces set the tone for your entire business. Clean, professional LED panel or wraparound fixtures at 30-50 lumens per square foot create a welcoming, modern environment. Consider 4000K color temperature in waiting areas for a warmer, more comfortable feel while keeping 5000K in the service write-up area where technicians and advisors review vehicle conditions with customers.

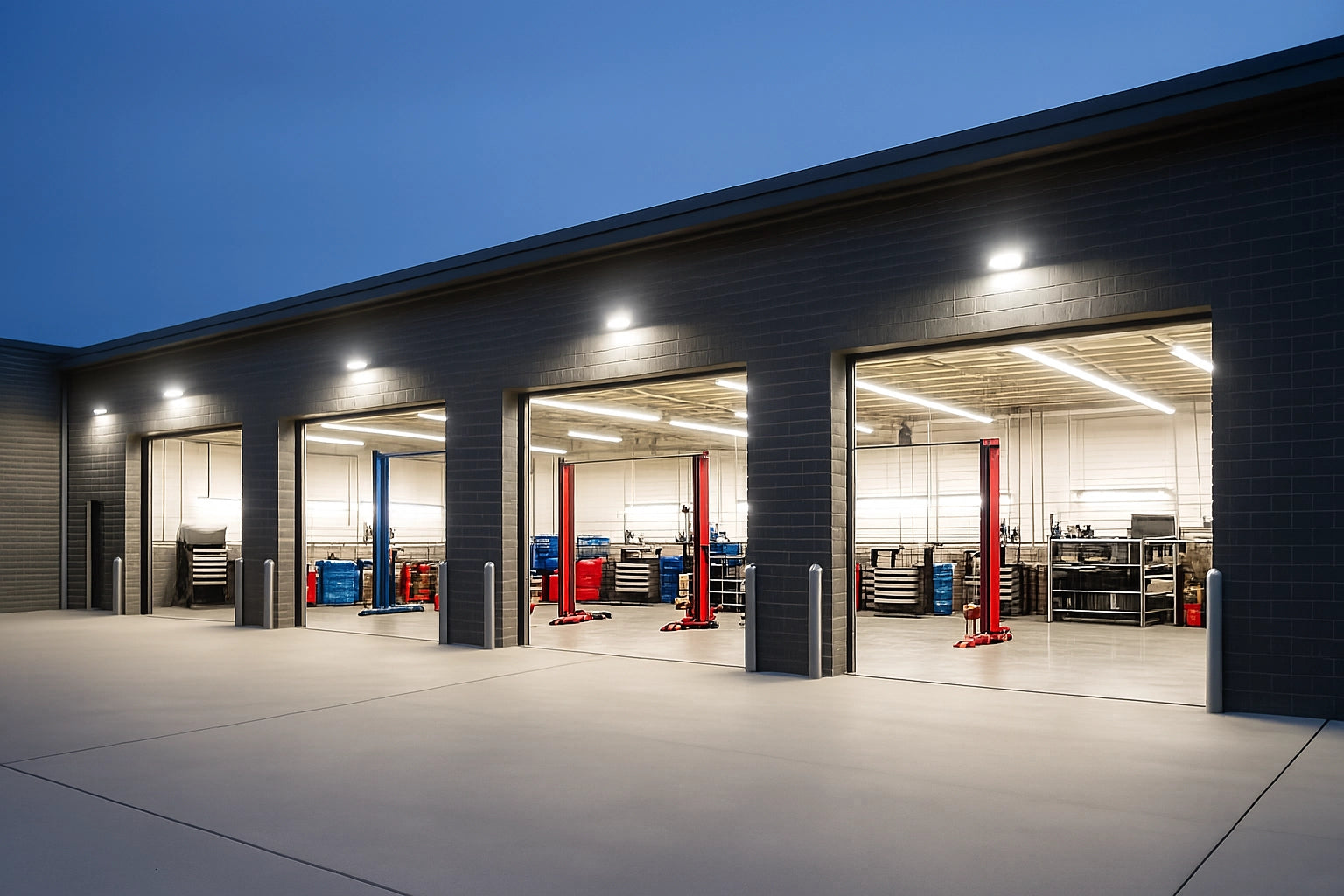

Exterior and Lot Lighting

For repair shops, well-lit exterior areas signal professionalism and security. For dealership service departments, lot lighting affects the customer's first impression. LED wall packs on the building perimeter, flood lights for signage, and pole-mounted area lights for the parking lot provide complete exterior coverage. Photocell controls automate dusk-to-dawn operation, and motion sensors can boost output in specific zones when activity is detected.

Lighting for Specific Auto Shop Types

Independent Repair Shops

The typical independent shop (3-8 bays, 10-14 foot ceilings) represents the most straightforward LED upgrade. 4-foot linkable LED shop lights at 5,000-7,000 lumens each, spaced 2-3 per bay at 5000K with CRI 80+, deliver a transformative improvement over aging fluorescents. Most independent shops can complete a full lighting upgrade in a single day with minimal disruption to operations.

Dealership Service Departments

Dealership service facilities typically feature higher ceilings (16-25+ feet), more bays (10-30+), and a need for both high performance and professional appearance that reflects the brand. High bay fixtures or high-output linear shop lights provide the output needed for taller ceilings, while consistent fixture selection and layout create the clean, organized look that dealership customers expect. Many dealerships also light the drive-up service lane and exterior customer areas to brand standards.

Collision Centers and Body Shops

Collision facilities need the highest CRI available across all production areas, with explosion-proof fixtures in spray booths and mixing rooms. The investment in CRI 90+ lighting pays for itself quickly through reduced paint rework, fewer color-match callbacks, and higher customer satisfaction. Many collision centers also invest in supplemental color-correct portable lighting for final inspection and color verification.

Fleet Maintenance Facilities

Fleet shops handle everything from passenger vehicles to heavy trucks and equipment, often in large bays with high ceilings and oversized doors. High bay LED fixtures accommodate the taller ceiling heights, while fixtures need to handle the temperature fluctuations common in facilities with frequently opening bay doors. Volume and reliability are the priorities — fleet shops need consistent, dependable illumination across many bays with minimal maintenance.

Tire Shops and Quick-Service Centers

These high-volume operations prioritize speed and efficiency. Bright, uniform lighting enables fast, accurate work, and linkable LED shop lights provide the simplest and most cost-effective solution. The relatively straightforward lighting requirements make tire shops and quick-service centers some of the easiest and fastest LED conversion projects.

Restoration and Custom Shops

Restoration and custom shops often do the most meticulous work of any automotive facility — hand-fitting panels, matching vintage colors, assessing surface quality at the highest level. These shops benefit from the highest CRI available (93-95+) and the flexibility of selectable color temperature fixtures that allow the builder to evaluate work under both warm and cool light conditions. Supplemental task lighting at workbench and assembly stations provides additional focused illumination for the most detailed work.

Installation Planning for Auto Shop LED Lighting

Calculating Your Lighting Needs

Before purchasing fixtures, calculate requirements for each area of your shop:

1. Measure the total square footage of each zone (service bays, body bays, paint booth, parts room, office, waiting area, exterior).
2. Determine required lumens per square foot based on the work performed in each zone (see tables above).
3. Divide total lumens needed by the output of your chosen fixture to get fixture count.
4. Plan fixture layout to maximize uniform coverage and minimize shadows across each bay.

Example: A 6-bay independent shop with bays measuring 12' x 24' each (1,728 sq ft total bay area) requiring 80 lumens/sq ft needs 138,240 total lumens in the bay area. Using 6,900-lumen shop lights: 138,240 ÷ 6,900 = 20 fixtures, approximately 3-4 per bay distributed for even coverage.

Optimal Fixture Placement for Service Bays

Fixture layout in service bays matters more than in most applications because of the shadow problem. Best practices:

Offset from lifts: Position fixtures so they're not directly blocked by vehicle rooflines when cars are on lifts. Staggered or offset placement ensures light reaches under the vehicle from multiple angles.

Multiple fixtures per bay: A single high-output fixture creates harsh shadows. Multiple lower-output fixtures from different positions provide the overlapping, multi-directional illumination that minimizes shadows.

Front-to-back orientation: In drive-through bays, orient linear fixtures perpendicular to the vehicle length to provide consistent illumination from the front of the vehicle to the rear.

Electrical Considerations

Most auto shops operate on standard 120V or 277V single-phase power. Key considerations:

Existing wiring: Many fluorescent-to-LED upgrades can reuse existing junction boxes and wiring, significantly simplifying installation. Verify wire gauge and circuit capacity before connecting new fixtures.

Plug-in vs. hardwired: Plug-in LED shop lights offer the simplest installation — ideal for shops where adding new electrical circuits is impractical. Hardwired fixtures provide a cleaner installation and can connect to wall switches, dimmers, and occupancy sensors.

Paint booth circuits: Explosion-proof fixtures in paint booths and mixing rooms require dedicated circuits installed by licensed electricians in accordance with NEC Article 516 (Spray Application, Dipping, Coating, and Printing Processes).

Exterior circuits: Outdoor fixtures typically require weatherproof junction boxes and may need dedicated circuits with GFCI protection.

Safety Note: All permanent electrical installations should be performed by qualified electricians in accordance with NEC and local codes. Paint booth lighting installations require compliance with NEC Article 516 and NFPA 33.

Retrofit Considerations for Existing Shops

Most auto shop LED upgrades are straightforward retrofits:

One-for-one replacement: Remove old fluorescent fixtures, install new LED fixtures on the same mounting points. This is the most common approach and typically takes less than a day for a standard shop.

Reuse existing mounting: Many LED shop lights are designed to mount using the same hole patterns and hardware as standard fluorescent fixtures, minimizing ceiling modification.

Phased upgrades: Shops on tight budgets can upgrade bay-by-bay or zone-by-zone, starting with the areas where improved lighting has the most impact — typically paint and body areas first, then service bays, then support areas.

The ROI of Auto Shop LED Lighting

Direct Savings

Energy reduction: 50-75% lower electricity consumption per fixture, multiplied across the entire shop and operating hours.

Maintenance elimination: No relamping, no ballast replacement, no emergency trips for dead tubes. For a typical 20-fixture shop, this eliminates $300-$500 per year in lamp and ballast costs plus labor.

Reduced rework (body shops): CRI 90+ lighting reduces paint matching errors and rework. A single avoided paint redo can save $500-$1,500 or more — one or two avoided callbacks per year pays for a significant portion of the lighting upgrade.

Indirect Benefits

Technician productivity: Better visibility means faster, more accurate diagnosis and repair. Reduced eye strain and fatigue means technicians maintain focus later into the shift.

Technician recruitment and retention: Shop environment directly influences where skilled technicians choose to work. A bright, modern, well-equipped shop attracts and keeps better talent.

Customer perception: Customers who can see a bright, clean, professional shop from the waiting area or write-up lane have more confidence in the quality of work being performed on their vehicle.

Reduced liability: Better lighting reduces the chance of missed damage, incorrect diagnosis, or safety-related repair errors that could result in liability claims.

Typical Payback Period

A standard independent auto shop LED conversion typically pays for itself in 18-30 months through combined energy and maintenance savings. Shops that also avoid body/paint rework through improved CRI often see effective payback in under 12 months. Utility rebates, where available, can further shorten payback by 20-40%.

The Future of Auto Shop LED Lighting: 2026 and Beyond

Auto shop lighting continues to evolve alongside the automotive industry itself:

Color-Tunable Fixtures: Adjustable color temperature and CRI on the fly, allowing paint technicians to evaluate work under multiple light conditions without leaving the booth — simulating daylight, overcast, and artificial light environments.

Integrated Camera and Sensor Systems: LED fixtures with built-in cameras and sensors that support AI-assisted vehicle inspection, condition documentation, and quality control — turning the lighting infrastructure into a diagnostic tool.

Connected Shop Management: Fixtures linked to shop management systems that automatically adjust lighting based on bay occupancy, work order type, and shift schedules — optimizing energy use without manual intervention.

EV-Ready Lighting Design: As electric vehicle service grows, shop lighting designs are adapting to accommodate the new workflows, safety requirements, and high-voltage work areas specific to EV repair.

Enhanced Efficiency: LED technology continues to improve above 200 lumens per watt, meaning future fixture upgrades will deliver the same or better output at even lower wattage.

Frequently Asked Questions About Auto Shop LED Lighting

What are the best LED lights for an auto repair shop?

For most auto repair shops with 10-14 foot ceilings, 4-foot LED shop lights producing 5,000-7,000 lumens each are the standard. Specify 5000K color temperature for bright, daylight-quality illumination and CRI 80+ minimum (CRI 90+ for body and paint work). Plan for 3-4 fixtures per standard service bay for uniform, shadow-minimized coverage.

How many lumens do I need per bay?

A standard 12' x 24' service bay (288 sq ft) needs approximately 20,000-29,000 lumens (at 70-100 lumens/sq ft). This is typically achieved with 3-4 LED shop lights at 5,000-7,000 lumens each. Body repair and paint inspection bays should be at the higher end of this range.

What CRI do I need for paint and body work?

CRI 90+ is the standard for collision repair, paint spray booths, paint mixing rooms, and detail bays. For paint mixing rooms where color formulation is performed, CRI 93-95+ provides the most accurate color rendering. The investment in high-CRI lighting pays for itself quickly through reduced paint rework and color-match callbacks.

Can LED lights be used in paint spray booths?

Yes, but paint booth fixtures must be explosion-proof rated for NEC Class I, Division 1 or 2 hazardous locations to prevent ignition of flammable solvent vapors. Standard LED fixtures — even enclosed ones — are not rated for this application. PrimeLights offers explosion-proof LED fixtures specifically designed for spray booth environments with the high CRI output that paint work demands.

How do I reduce shadows in my service bays?

Use multiple fixtures per bay rather than one or two high-output fixtures. Position fixtures in offset or staggered patterns that provide overlapping light from different angles. Avoid placing fixtures directly above the lift centerline where the vehicle roof will block downward light when the car is raised. The goal is multi-directional illumination that fills in shadows from every angle.

Are LED shop lights dimmable?

Many LED shop lights offer dimming capability — check specifications for dimming type (0-10V is the most common for commercial fixtures). Some fixtures also offer wattage-selectable settings that let you set brightness at installation. Dimmable fixtures are particularly useful in customer areas and offices where adjustable ambiance is desired.

Do LED lights work in unheated shops?

Yes. LED fixtures deliver full output instantly at temperatures well below freezing, unlike fluorescent tubes that dim or fail to start below 50°F. This makes LEDs the ideal choice for shops in colder climates, unheated storage bays, and outdoor covered service areas.

How long does it take to retrofit an auto shop with LED?

A typical independent shop (6-10 bays) can be fully converted in one day with minimal disruption. Larger dealership service departments may take 2-3 days. Most retrofits can reuse existing mounting points and wiring, simplifying the installation. Many shops schedule the conversion over a weekend or during a planned closure.

What about lighting for vehicle inspection areas?

Dedicated inspection areas benefit from the highest light levels in the shop (100-125 lumens/sq ft) with CRI 90+ and 5000K-6500K color temperature. The goal is to replicate daylight conditions so that any defect, color mismatch, or quality issue visible in natural light is also visible during the inspection. Supplemental adjustable task lighting can provide additional focused illumination for final quality checks.

Can I upgrade my shop lighting in phases?

Absolutely. Many shops upgrade zone by zone as budget allows. The recommended priority order: paint booth and mixing room first (highest ROI from reduced rework), then body bays, then service bays, then support areas (parts, office, waiting area), and finally exterior lighting. Each phase delivers immediate improvement in that zone.

Why Choose PrimeLights for Your Auto Shop LED Lighting

PrimeLights has been a trusted name in commercial and industrial LED lighting since 2010, with over 150,000 satisfied customers across every type of demanding work environment — including thousands of automotive repair shops, dealership service departments, collision centers, and specialty facilities.

Built for Automotive Demands: Our fixtures deliver the high CRI, high output, and durability that automotive work requires. We understand the difference between a fixture that lights a room and one that lights a service bay properly.

Complete Auto Shop Product Range: From 4-foot shop lights for independent bays to explosion-proof paint booth fixtures to exterior lot lighting — we provide every fixture type an automotive facility needs from a single trusted source.

Expert Automotive Lighting Consultation: Our lighting specialists understand auto shop workflows and can help you calculate fixture counts, select the right CRI and color temperature for each zone, and plan layouts that minimize shadows and maximize technician productivity.

Industry-Leading Warranties: We stand behind our products with comprehensive warranties that reflect our confidence in fixture quality and the realities of shop operating conditions.

Competitive Volume Pricing: Whether you're outfitting a 4-bay independent or a 30-bay dealership service center, our pricing makes professional-grade LED lighting accessible for facilities of any size.

Get Started with PrimeLights Auto Shop LED Lighting

Ready to upgrade your auto shop with LED lighting that makes better work possible? Contact the PrimeLights team today for personalized recommendations based on your shop's layout, ceiling heights, work specialties, and budget.

Our lighting experts can help you:

• Calculate optimal fixture count and placement for each bay and zone in your shop
• Select the right fixture type, CRI, lumen output, and color temperature for your specific automotive applications
• Specify explosion-proof fixtures for paint booths and hazardous locations
• Estimate energy and maintenance cost savings versus your current lighting
• Develop phased upgrade plans that prioritize highest-impact areas first
• Provide custom quotes for single-shop or multi-location projects
• Identify available utility rebates and energy incentive programs
