LED 6 Lamp T8 STINGRAY 6XL Highbay Fixture 132 Watts Clear

Rated 4.9 out of 5
Based on 152 reviews
SKU: PL-6SRHBLD132XLFM
$175.00 $160.00
Free Shipping
Made In USA
UL Listed
NSF Certified
CSA Certified
Shatterproof
Ask For Rebates

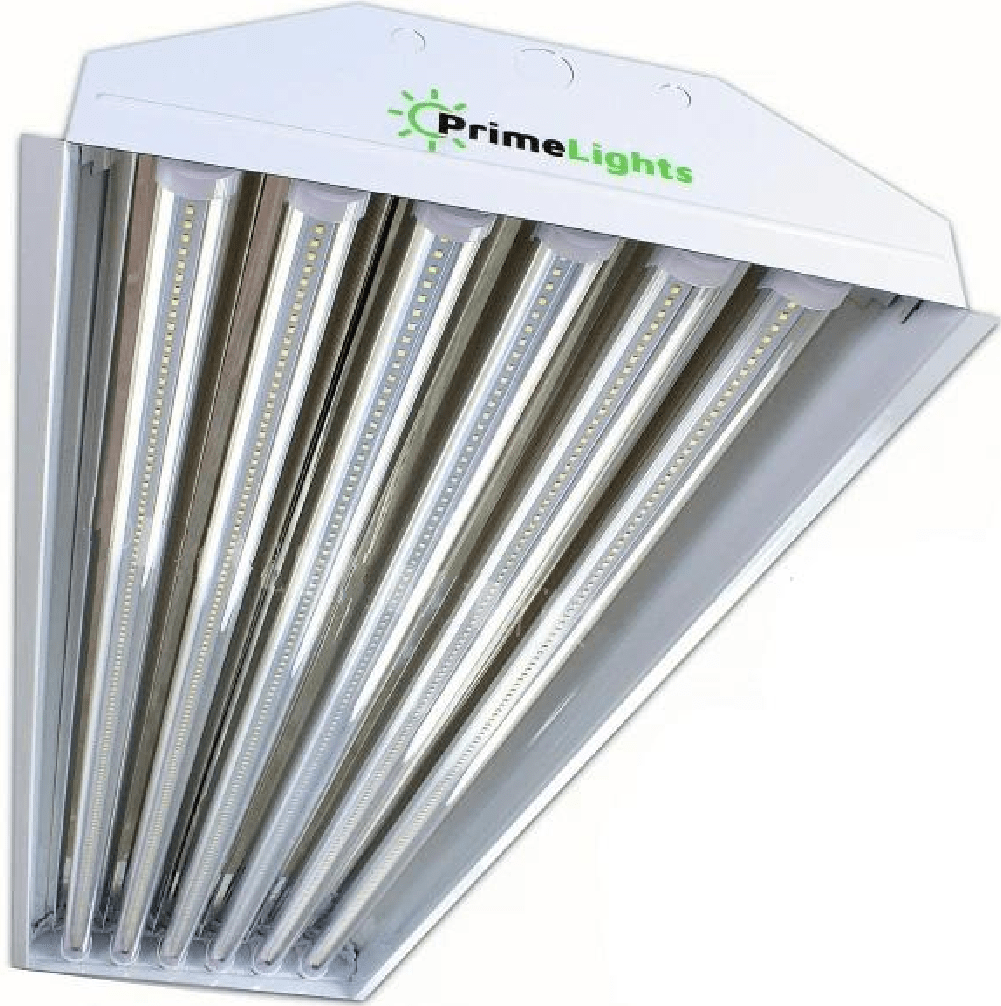

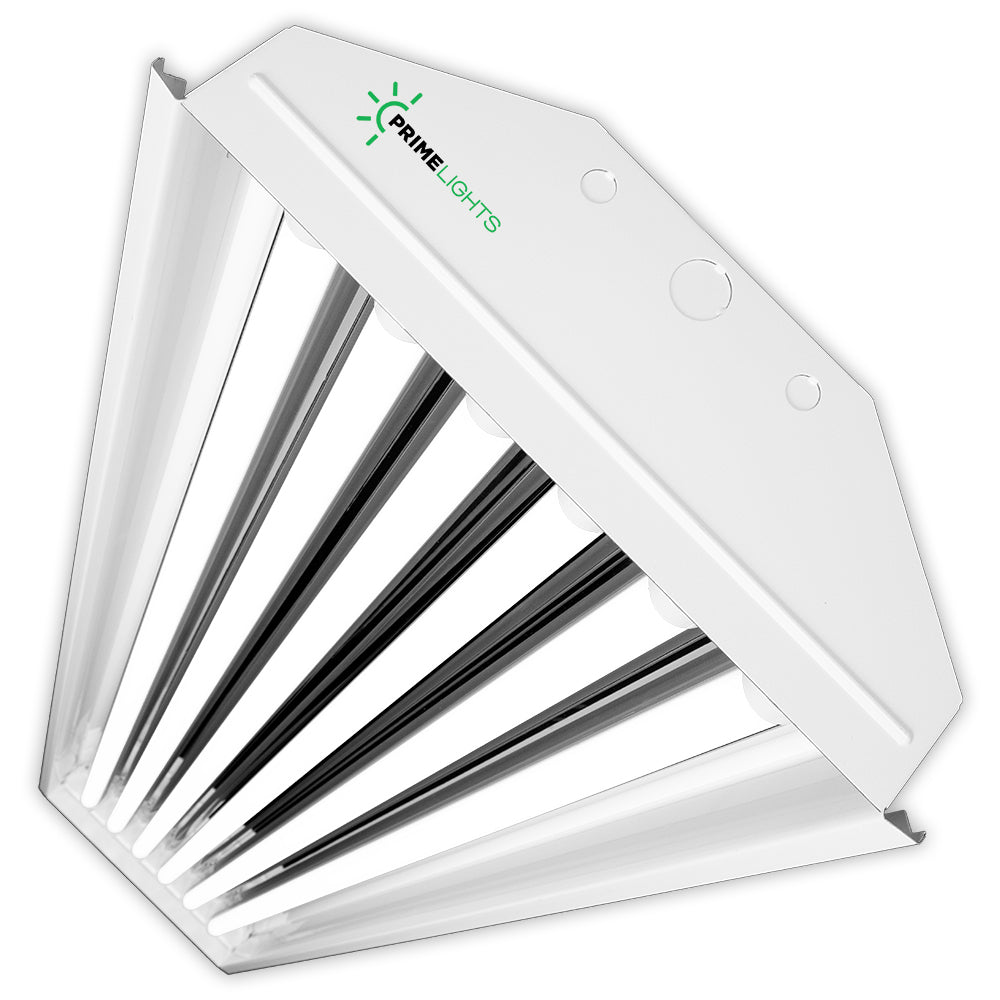

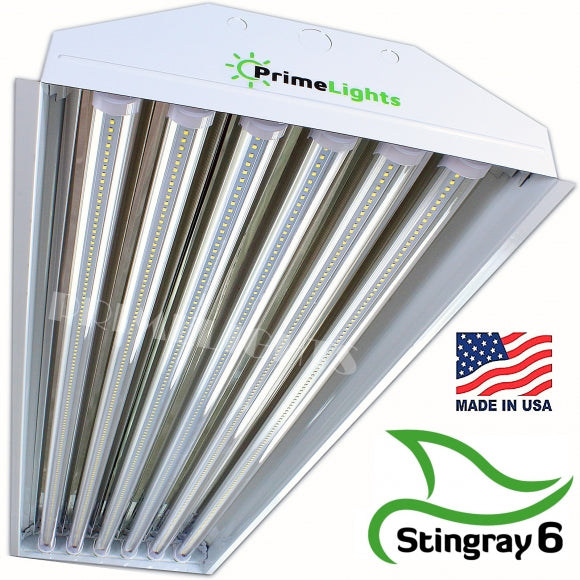

LED 6 Lamp T8 STINGRAY 6XL Highbay Fixture 132 Watts Clear

LED 6 LAMP T8 - 132 WATT COMMERCIAL SPECIFICATION GRADE LED HIGH BAY FIXTURE

Proudly made in the USA of 20 gauge American Steel, the Stingray® 6XL is a robust light fixture that will last a lifetime. With a simple two screw swing away door, wiring and installation is quick and easy. The Stingray® LED High Bay does not require a ballast or external driver to run the fixture, making it virtually maintenance free. The included super durable aluminum and polycarbonate bulbs are instant on and flicker free. PrimeLights warranties every fixture and every bulb for 5 years. The Stingray® LED High Bay is one of the brightest, longest lasting, easiest to install fixtures on the market!

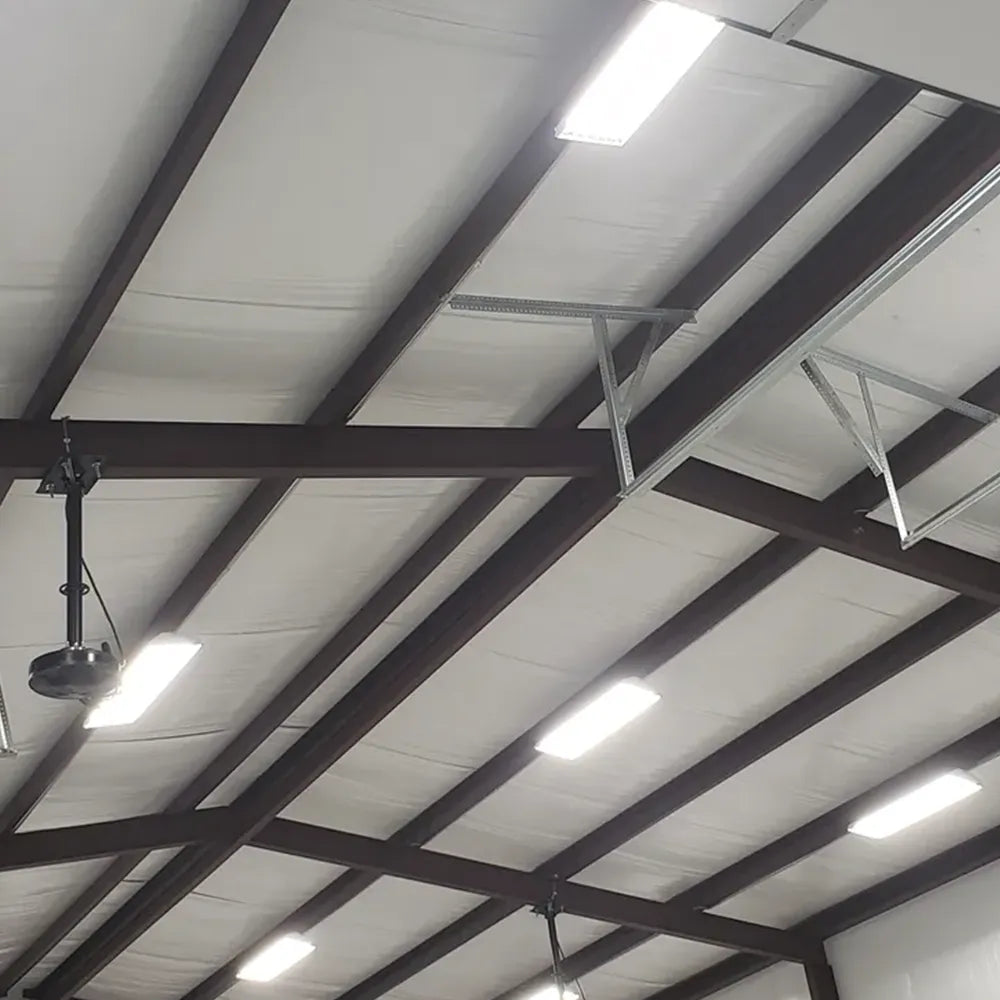

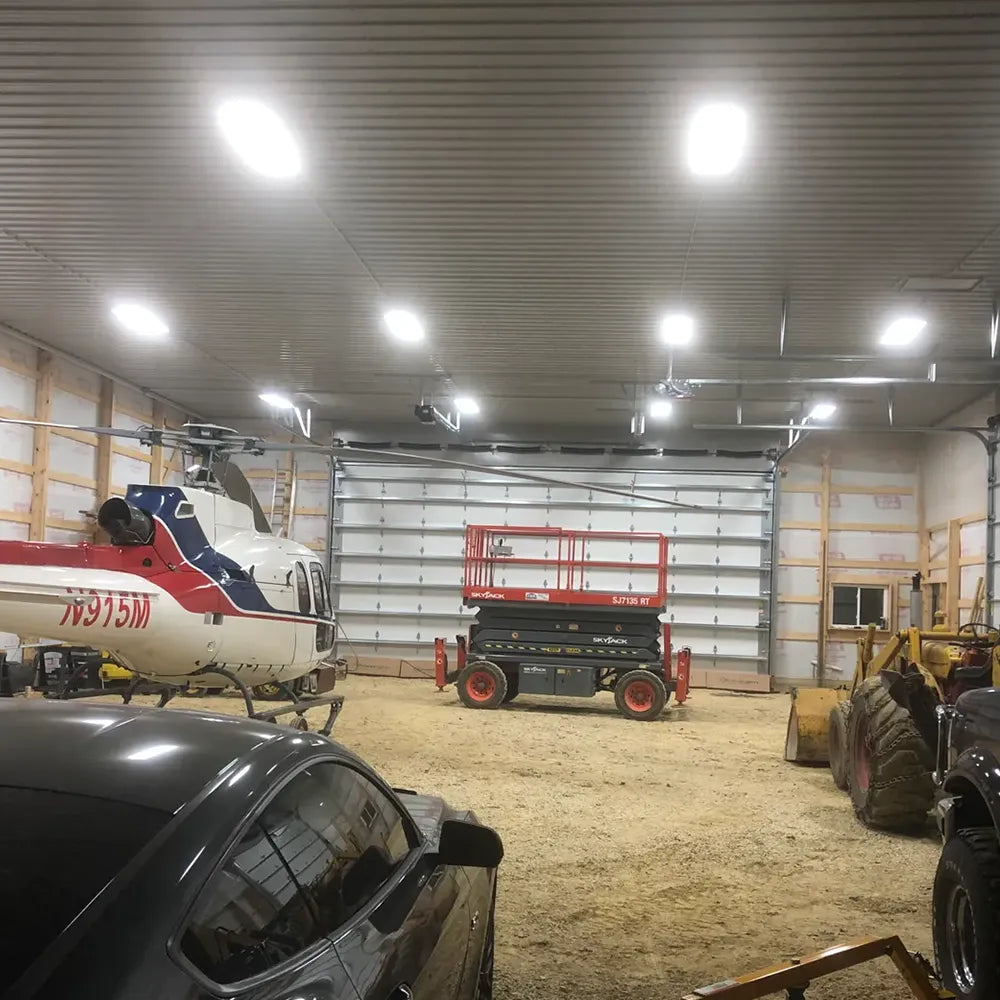

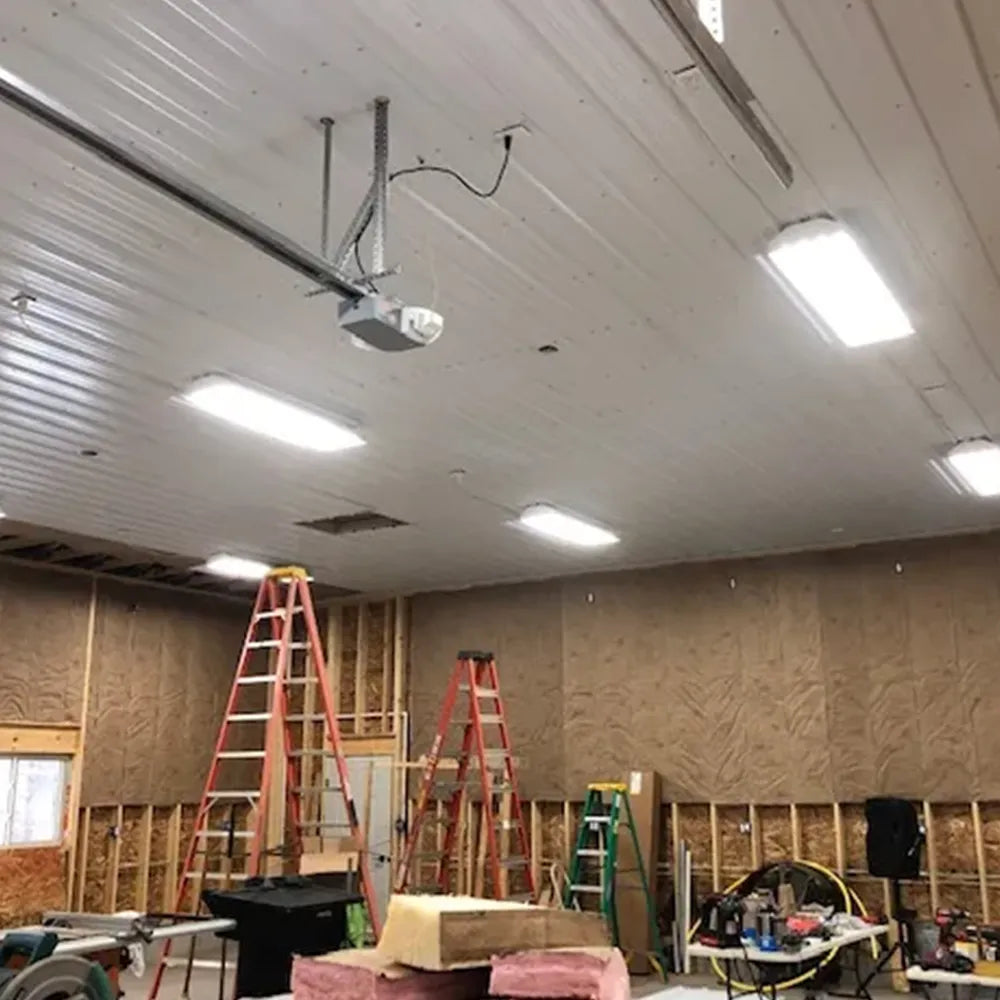

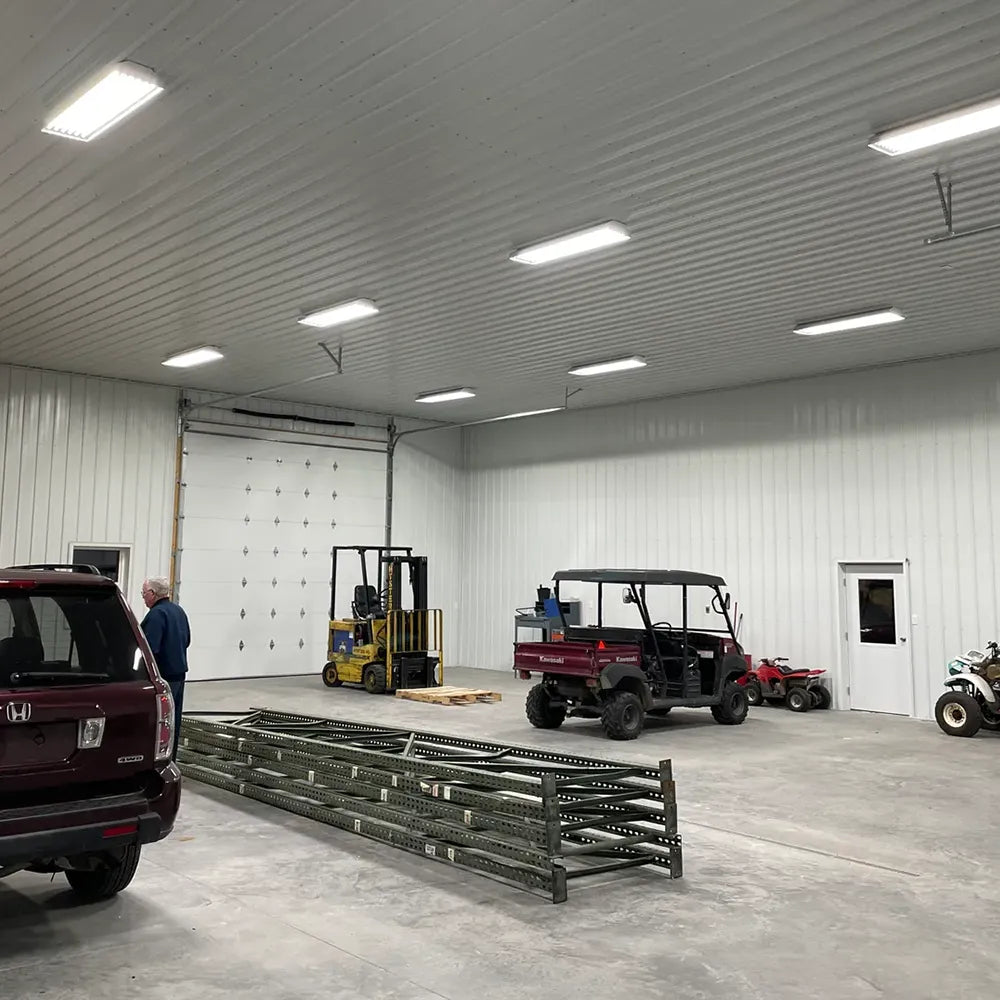

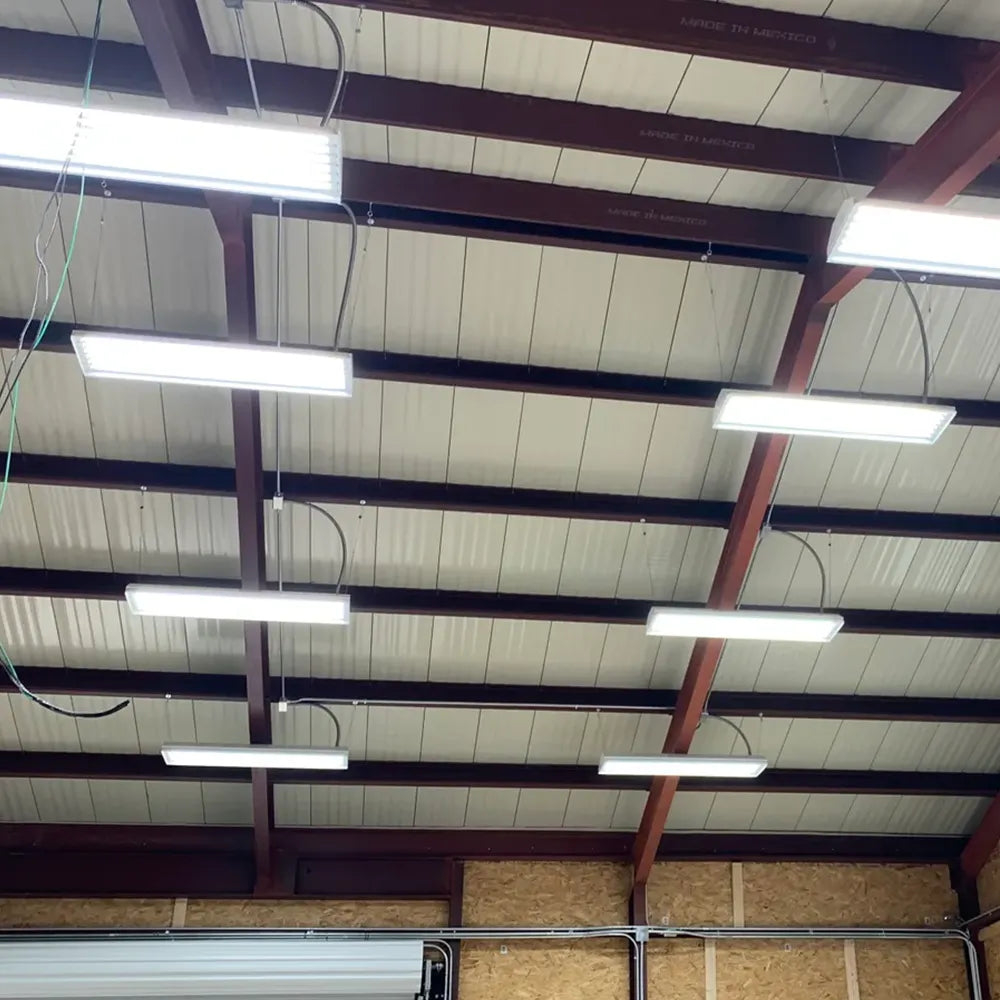

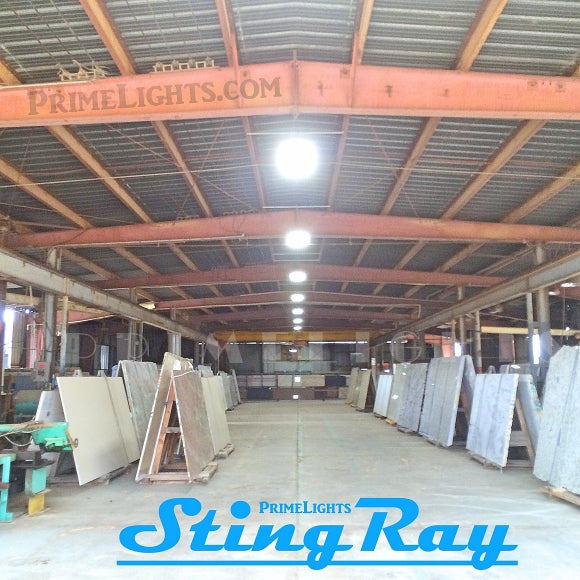

The LED Stingray 6 high bay shop light is a perfect solution for mid to very high ceilings. It brings daylight inside and is designed to be installed in shops, warehouses, metal buildings, arenas, sports facilities, high barns, and garages. The Stingray line has the widest range of coverage of any led fixture today. It has a classic design with the most modern technology. Being 4’ long gives it the capability of lighting a large amount of space. The LED Stingray 6 does not require a ballast nor an internal driver, accompanied by the most efficient LED's that will last decades (no more replacing bulbs). Deeming it the brightest, most dependable, maintenance free light out there.

You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

The LED Stingray 4 & 6 lamps's are manufactured by PrimeLights and only sold by PrimeLights.

ItemPL-6SRHBLD132XL
MountsSurface Mount or Chain Hang (hardware not included)
Mounting Height15’ - 30’ Recommended
Lamp LensClear
Wattage132 watts
Dimensions48” x 14” x 3.5”
Lifespan~70,000 hours
Total Weight12.5 lbs
Warranty5 years on complete fixtures and LED lamps
SpecsDownload Specs Sheet

Specs & Features

  • Voltage: 110v | 120v | 240v | 277v | Call for 480v
  • Amperage: 1.1A @ 120v | 0.48A @ 277v
  • Wattage: 132 watts
  • Energy Usage: Approx. 40% Less than T8 Fluorescent
  • Lumens/Watt: 130+
  • Lumens: 32,300 equivalent lumens (fluorescent equiv.)
  • LED Lumens: 17,995
  • Color: 5000K daylight white
  • Operating Temp: -30° to 50° C Recommended
  • Beam Angle: 120°
  • Base Type: G13 Medium B-Pin
  • Damp Rating: 85+ CRI

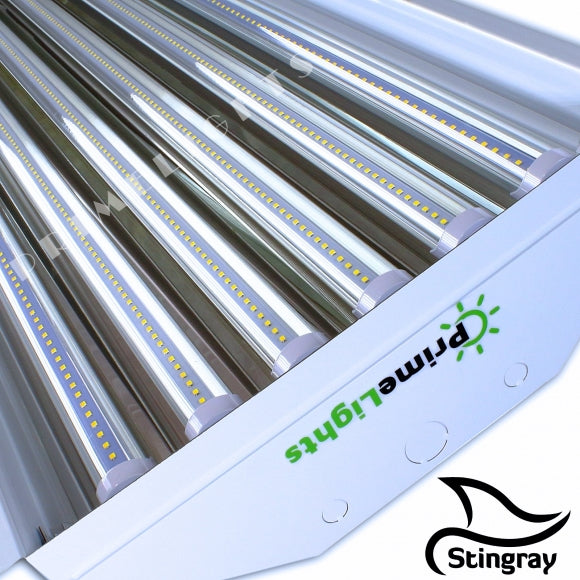

  • Bulbs: (6) Clear flicker-free, shatterproof polycarbonate LED bulbs with internal drivers - no external drivers or ballasts to maintain (imported)
  • Connection: Luminaire disconnect with 4 connection points for easy daisy chain
  • Conduit Knockouts: 7/8'' knockouts on both ends and top
  • Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)
  • Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available in accessories)
  • Material: 20-Gauge cold rolled steel in baked white enamel
  • Included: Wired lamp holders & quick disconnect/premium mirrored aluminum reflector

Product Options

  • 10’ adjustable aircraft cable hangers
  • Occupancy sensor with ambient light sensor
  • 6’ standard plug & cord installed
  • Wire guard

Perfect For Numerous Applications!

  • Warehouse
  • Machine/Fab Shop
  • Farm/Ranch Barn
  • Factory
  • Auto Body & Repair
  • Woodworking Shop
  • Manufacturing Plant
  • Detailing
  • Metal Building
  • Airplane Hangar
  • Garage
  • Storage Facility
  • And More!

Lighting Layouts

As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building.

Get Layout Help
average rating 4.9 out of 5
Based on 152 reviews
  • 5 Stars
    140 Reviews
  • 4 Stars
    7 Reviews
  • 3 Stars
    2 Reviews
  • 2 Stars
    3 Reviews
  • 1 Star
    0 Reviews
99% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Brightness
Rated 4 out of 5
Ease of Installation
Rated 4 out of 5
Customer photos and videos
152 Reviews
Reviewed by Robert L., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
  • Personal Hobby Shop
  • Automotive Garage

Perfect amount of lighting.

So have a 60’ x 40’ shop with a 12’ 6” ceiling. Had to gut the shop due smoke damage. I searched the web and looked at local led options and found Prime Lights. They have a good sales pitch and this can be skeptical at times since car sales men do some of the best sales pitches for a product that not always good and the sales pitch is their only saving grace. But I am glad I went with Prime Lights. There may be others out there that are just as good or better but I am not in the market to go and test all the options.

I am here to say this is a great choice. Great packaging and design from a Texas owned company.

I was originally going to purchase 24 lights since the previous 24 led lights I had (4’ Lowe’s led lights) did a great job and I wanted to have the same amount of lighting. After talking with Prime about my needs they suggested I only needed 12 as well as their online calculator. My ignorance thinking I new better. After the lights were installed to my surprise, the 12 lights were just as bright if not brighter. The walls and ceiling now are a very light grey verses the eggshell white before.

I did opt to add an additional light in the far corner for a welding area for even more light.

If I need the option for more light I have the ability to add to the system very easily, but there is more then enough light for an task in the shop.

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
Was this helpful?
Reviewed by Tim P., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
  • Farm/Barn/Ranch

Tightwad

Seemed a little expensive at first when I bought ten of the four lamp fixtures six mo. ago but after installing them was pleasantly surprised how bright they are and less than eight amps for all ten! I like the adjustable aircraft cable hangers also. Really made installation easy. Those are extra though but worth it. It was recommended I needed fourteen of the four lamp fixtures for my application but with free shipping on three or more I decided to start with ten to see if I liked them or not. Yep, so I decided to try three of the six lamp fixtures to replace some fluorescents I had planned to keep. Love them, instant on full bright, and I don't have to worry about how much they cost to operate. One fifteen amp breaker and fourteen gauge wire powers all of them with ease. The six lamp lights are a little less cost on a per lamp basis. It's nice. Walk in the dark shop, flip the switch and instant daylight! When I first received the four lamp fixtures I was having a little buyers remorse. When I called Prime Lights about maybe returning them they were very polite, wiling to do whatever I wanted to do. They're excellent customer service and willingness to help put my mind at ease so I decided to go ahead and install them. Glad I did! If I need a replacement lamp within five years, call them and it's in the mail, no charge. The lamps are super easy to remove and install in the fixture. Positive click in, click out. So much better than fluorescent's vague positioning. They also…

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
Was this helpful?
Reviewed by Edward F., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
  • Home Garage

Led T8 Stingray 132 watts

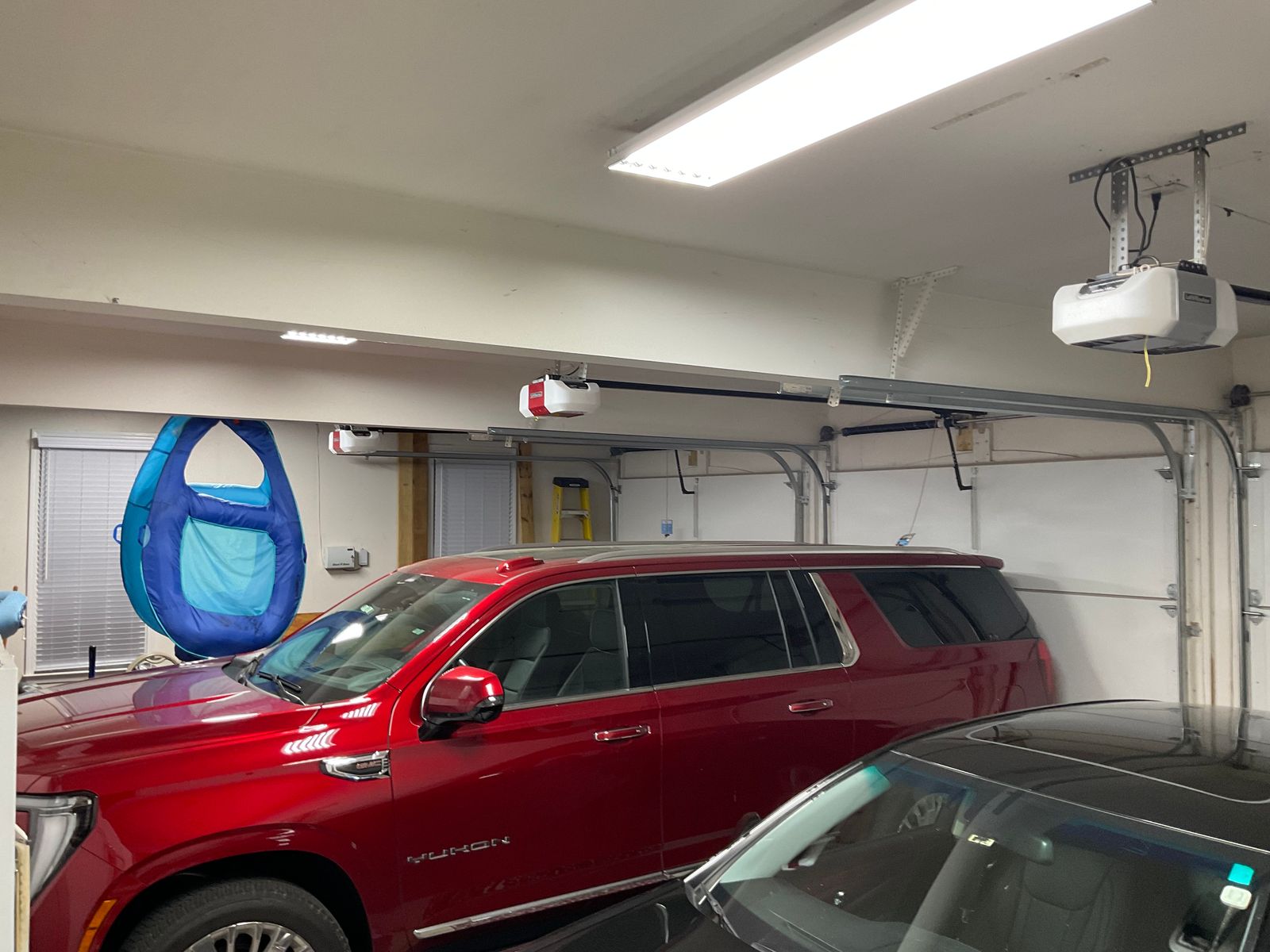

The lights are very good! I just installed my second one in my garage. I have two more to go maybe three, depending on how bright it lights up one side of the garage. The lights are made well and are easy to install. The only thing that I would say is I thought that they would be a little brighter then they are. My garage is 20’x19’ and it looks like I’m going to need five. Other than that no issues.
