LED 6 LAMP T8 - 108 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE
FIXTURE MADE IN USA

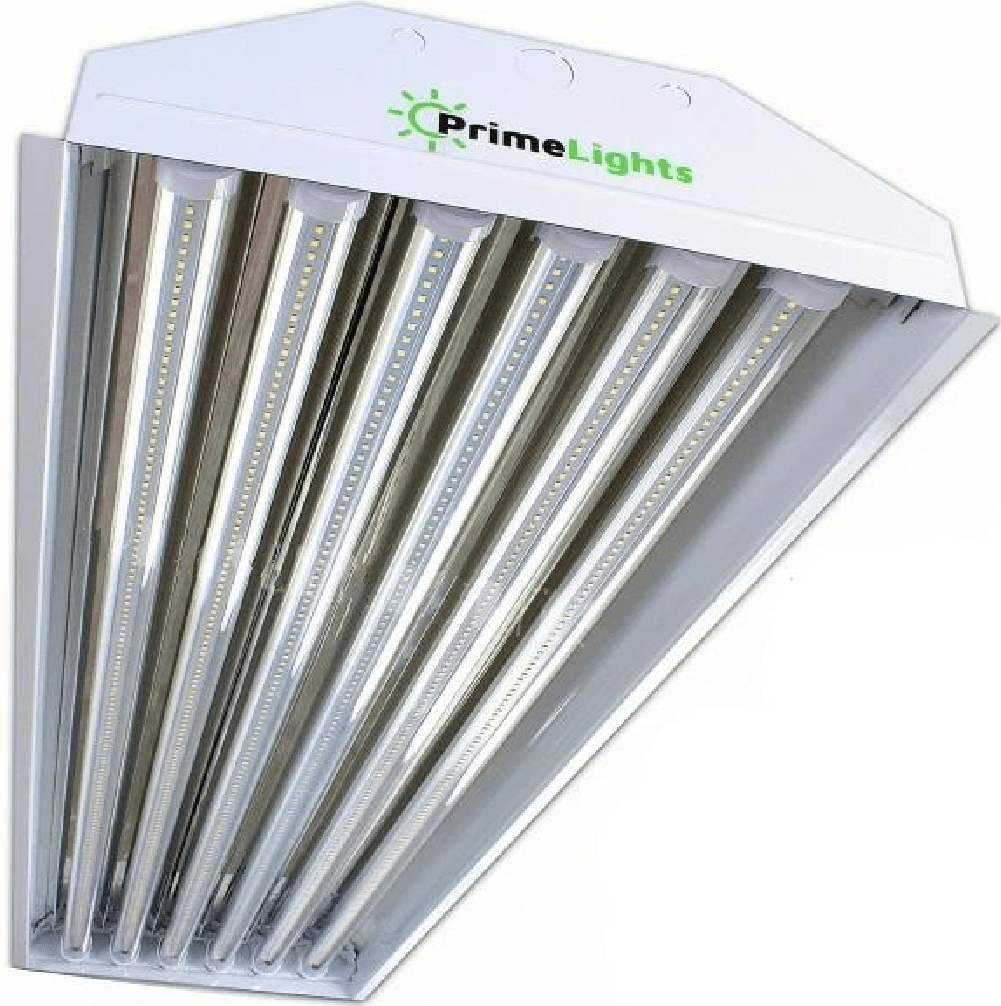

THE STINGRAY 6 108W LED HIGHBAY
New, never used, in manufacturer packaging.
Shipping: FREE, In Stock
Certifications: UL Listed, CSA Certified, NSF, Shatterproof, Contact for Rebate Info
Warranty: 5 years on complete fixture including LED lamps
Specifications:
-110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector. LED Tubes have their own internal drivers - no external drivers or ballasts to worry about. You will never have to change anything inside the fixture. This is the last fixture you will ever have to buy or maintain.
Input Wattage: 108W
LED Lumens: 12,960
Equivalent Lumens: 24,624
Life: 50,000 Hours +
Color Temperature: 5000K (call for others)
CRI: 80+
Amperage @ 120V: 0.92A
Amperage @ 277V: 0.39A
Voltage: 120-277V
Base Type: G13 Medium B-Pin
Type: Outdoor type 1 HL
Sound Rating: A
Class: P
Minimum Start Temp: -4° F
Maximum Start Temp: 140° F
Length: 48.0" Width: 14.0" Depth: 3.5"
Mounting Options:
-Surface mountable
-Chain hang (hardware not included)
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
Unboxing Instructions
Cord & Plug Installation
Cable Hanger Installation
Occupancy Sensor Installation
Wire Guard Installation
Stingray Comparison
| Quality |
Rated 5 out of 5
|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Great lights, quick and easy
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
I purchased two of these to install in garage/workshop with 10' ceilings. Each is on on a separate switch and each fixture is installed over a worktable. I need approximately 150 foot-candles on the surface of the worktable, and these fixtures meet that requirement. The construction of the fixtures is USA quality, they were easy to install, and the bulbs are warranted for five years. Outstanding!!!
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Excellent product
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Exactly what I wanted. Ordered two of the 6 Bulb fixtures and after flipping the switch I immediately ordered a third unit. My workshop is lit like an operating room . Great product great service easy to install.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
These lights are outstanding. We built a 2800 sq ft shop and these lights were exactly what we wanted. They provide ample crisp led lighting. We can keep half of them off and still have plenty of light or turn them all on when needed.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
