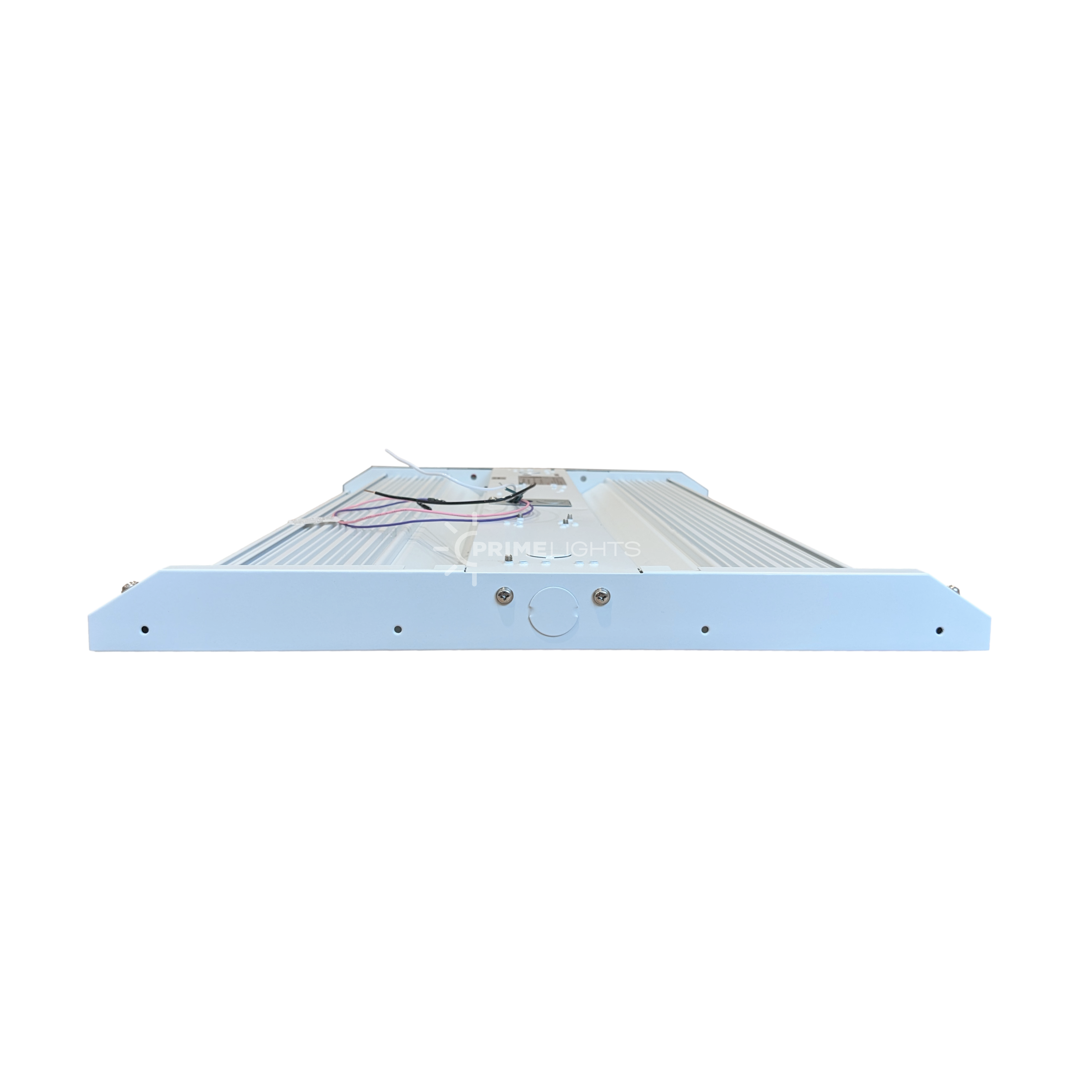

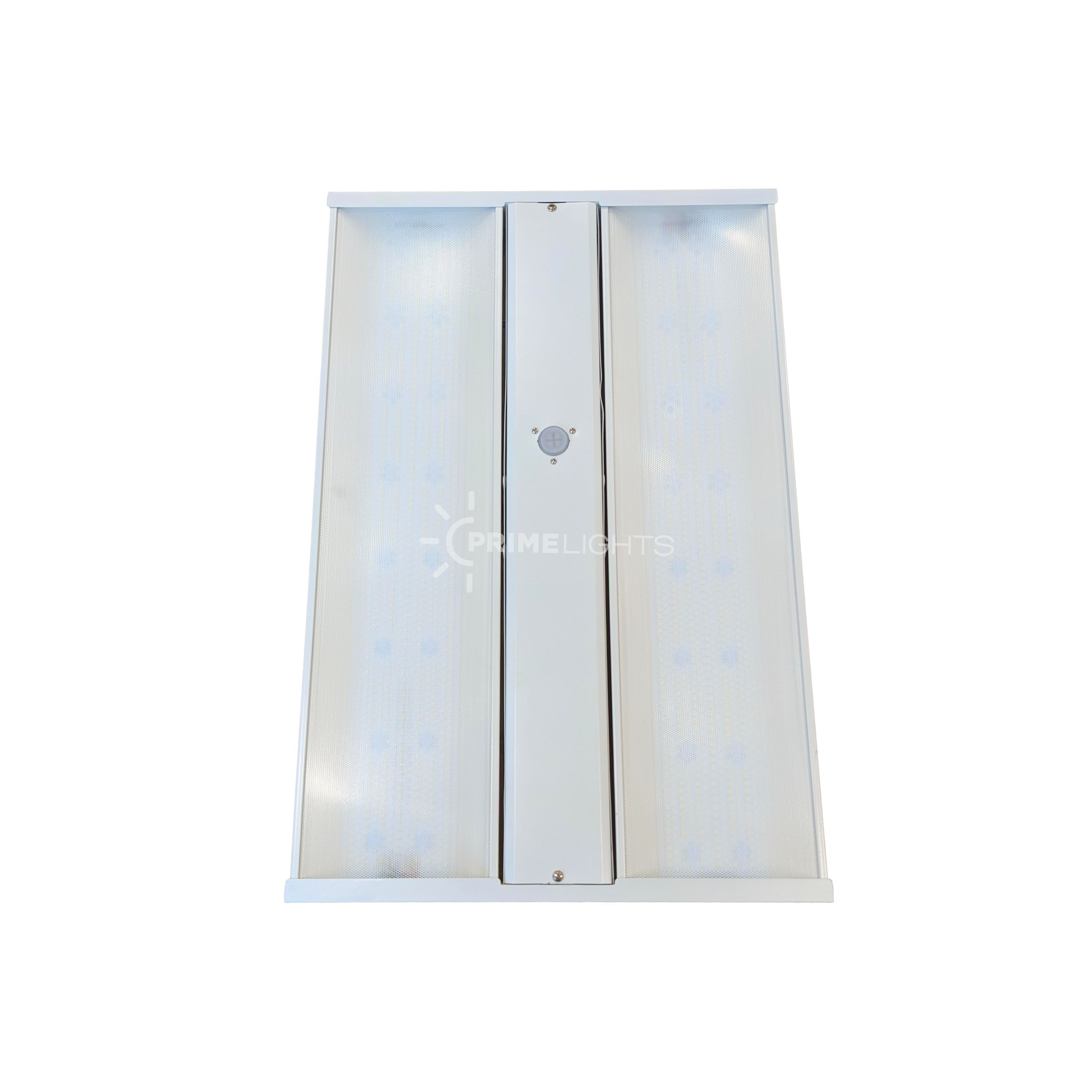

LED 4' WILDCAT 225 Bay Shop Light 29,550 Lumens

FREE SHIPPING ON ALL QUANTITIES

LED WILDCAT 225 BAY LIGHT - Shop Lighting - 110V-277V COMMERCIAL SPECIFICATION GRADE

Shipping: FREE, In Stock

Certifications: UL Listed, Qualified for most rebate programs (call for details)

Dimming: YES 0-10V LED dimming Capable

Warranty: 5 years on complete fixture

Specifications:

Input Wattage: 225W

LED Lumens: 29,550

Equivalent Lumens: 56,000 (when compared to HID and Fluorescent)

Life: 50,000 Hours +

Color Temperature: 5000K Daylight White

CRI: 80+

Amperage @ 120V: 1.9A

Amperage @ 277V: 1.2A

Voltage: 120-277V

Type: integrated LED

Sound Rating: A

Class: P

Optimal Minimum Temp: -4° F

Optimal Maximum Temp: 104° F  (Life span lowered when operated outside optimal temp ranges)

Length: 46"  Width: 12.8"  Depth: 2.2"

Part Number:PL-WCHBLD-225M

Mounting Options:

-Chain hang (hardware included)

*Energy Usage: Approx. 68% Less than T5 Fluorescent

Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.

Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.
