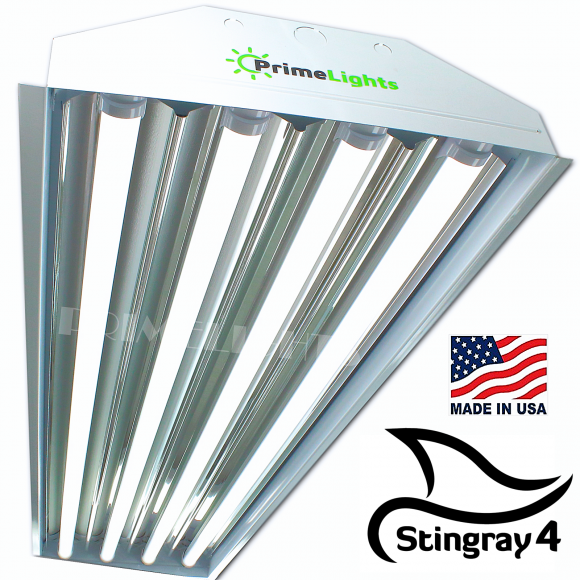

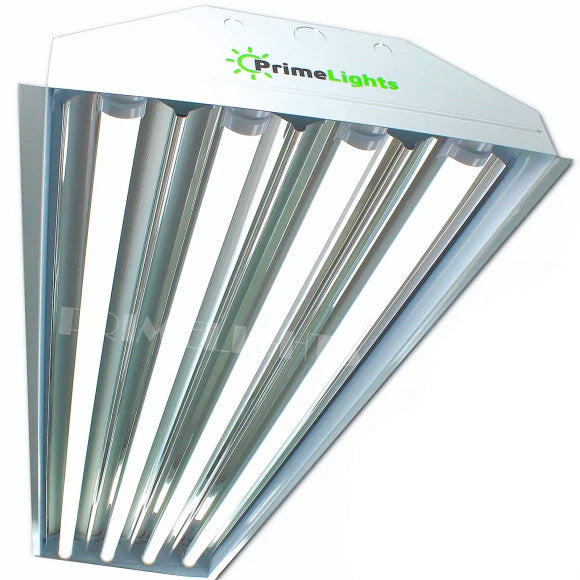

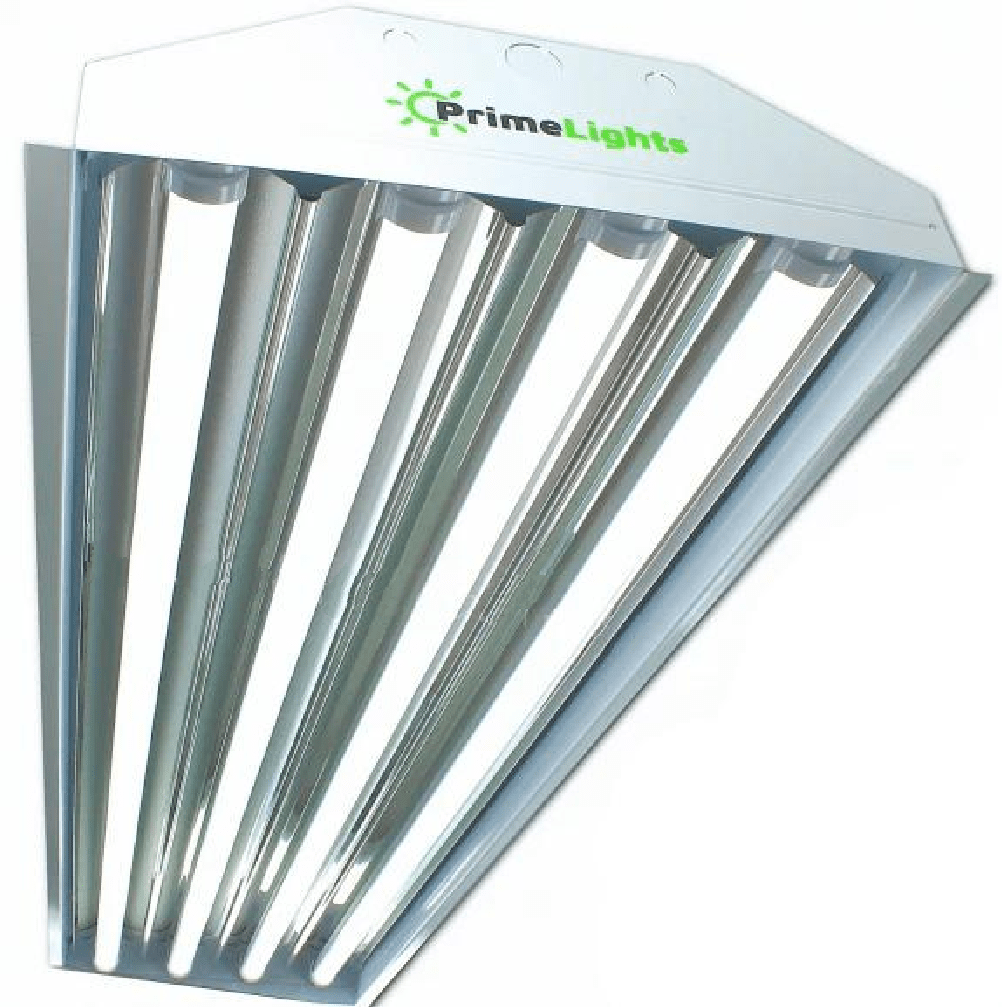

LED 4 Lamp T8 STINGRAY 4XL Highbay Fixture 88 Watt Frosted

FIXTURE MADE IN USA!

COMMERCIAL SPECIFICATION GRADE

Shipping: FREE, In Stock

Certifications: UL Listed (fixture and lamps), NSF, Shatterproof, Contact for Rebate Info

Warranty: 5 years on complete fixture including LED lamps

Included Lamps: (4) Frosted flicker-free, shatterproof polycarbonate (imported)

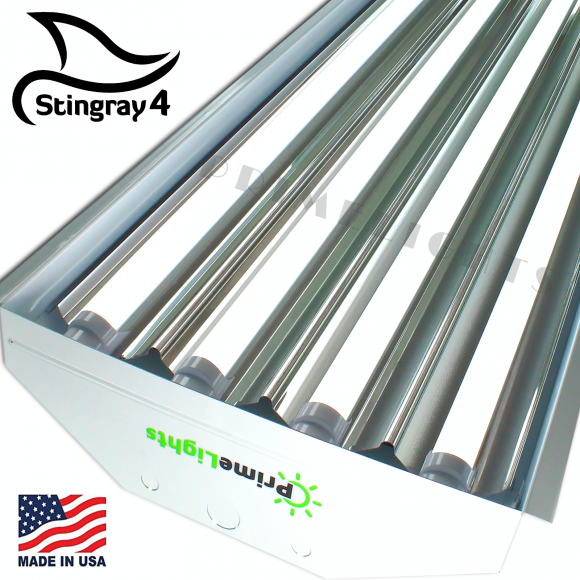

Specifications:  Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

Input Wattage: 88W

Voltage: 110-277V (please call for 480v)

LED Lumens: 12,400

Lumens per watt: 155+

Color Temperature: 4000k or 5000k

CRI: 85+

Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 24,660 (fluorescent equiv.)

Lamp Lens: Frosted

Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)

Dimming: No (LED with replaceable lamps cannot be installed with dimmer)

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Flush mount Install weight (without reflector and lamps): 7.5 lbs

Total weight: 11.25 lbs

Part Number: PL-4SRHBLD88FR

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available in accessories)

Mounting Options (Hardware not included)

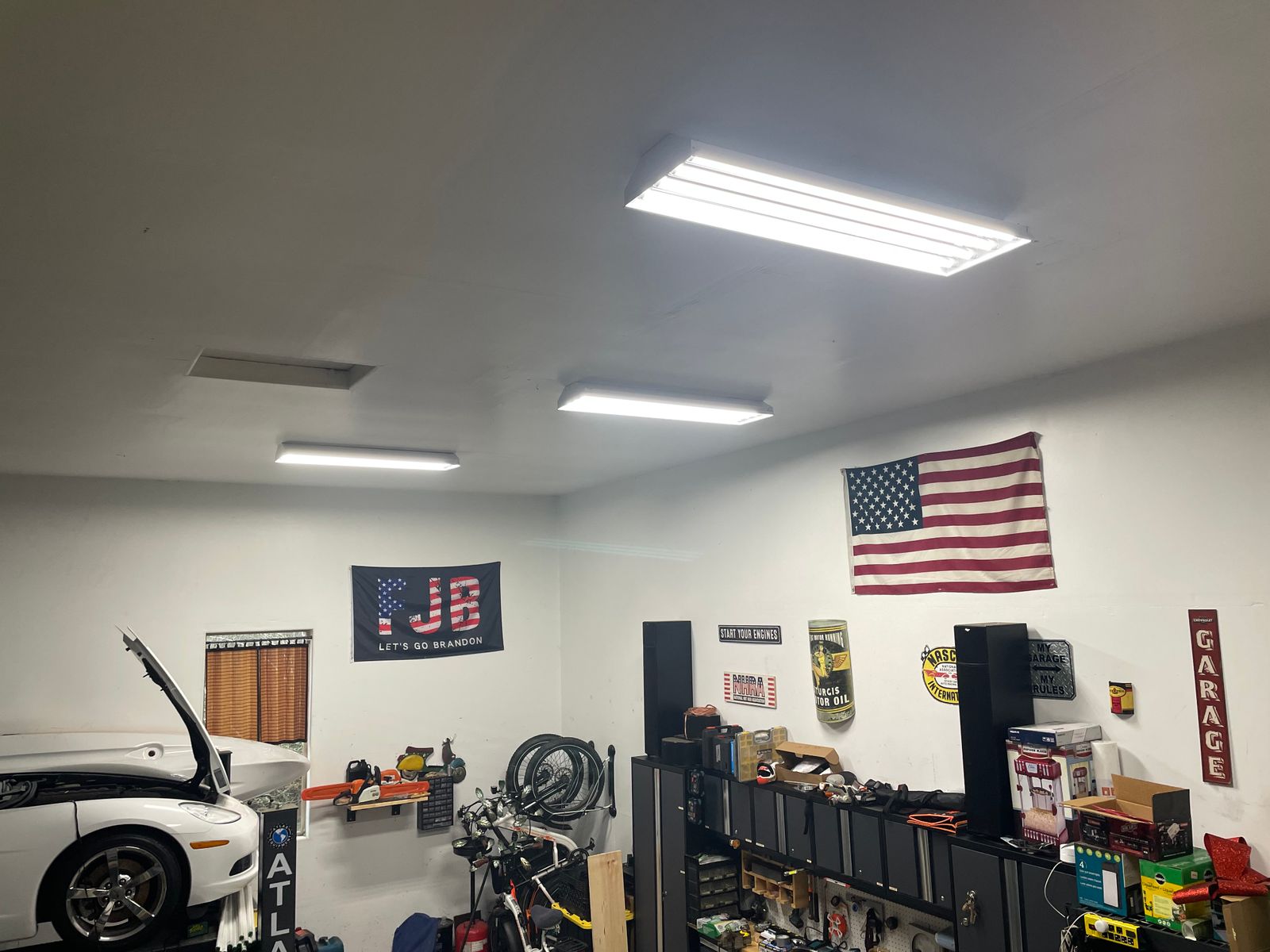

-Surface mountable (most common): Use screws best for mounting material or toggle bolts

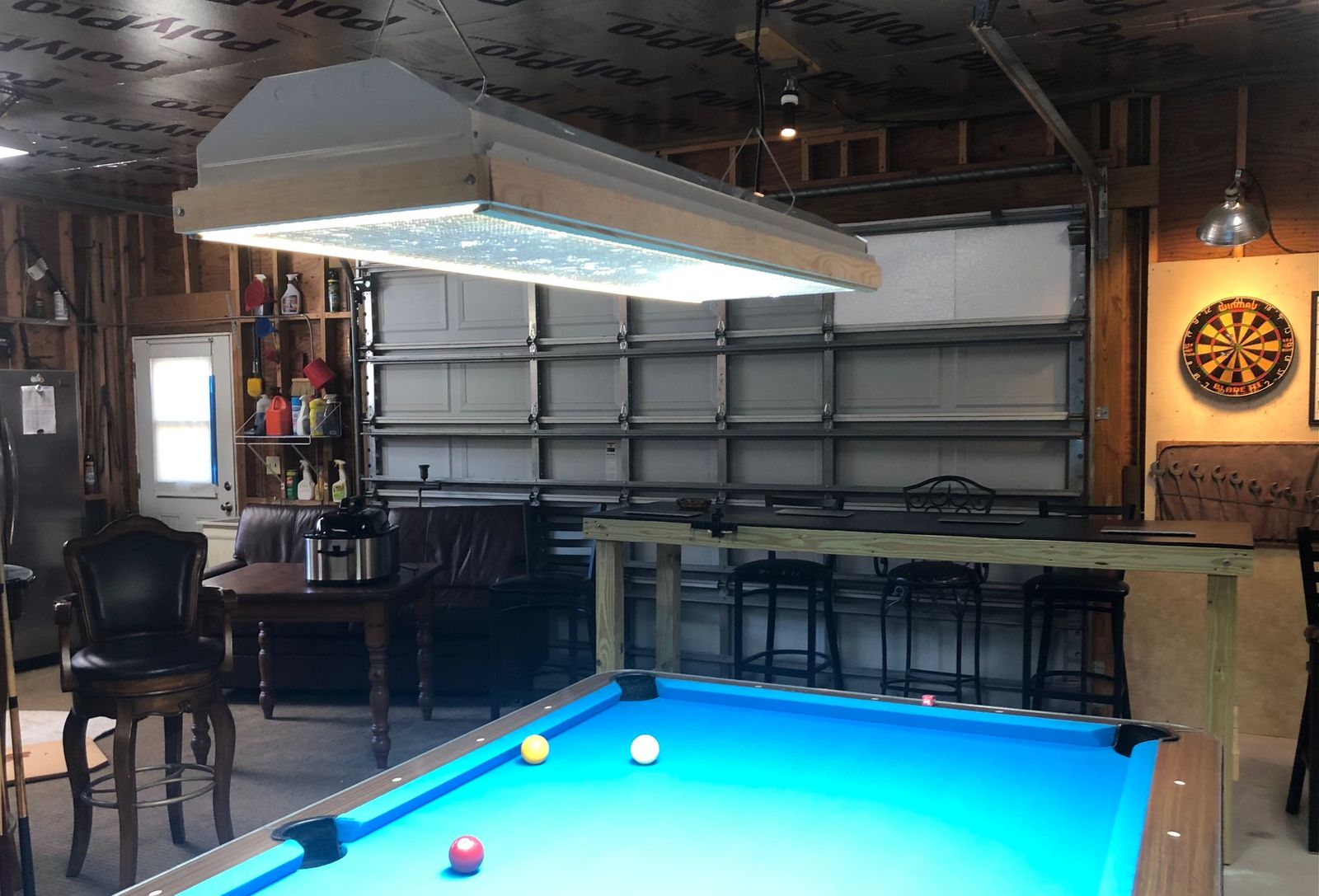

-Hang: Aircraft Cable Hangers available in accessories or use any chain with “s” hooks

*Energy Usage: Approx. 40% Less than T8 Fluorescent

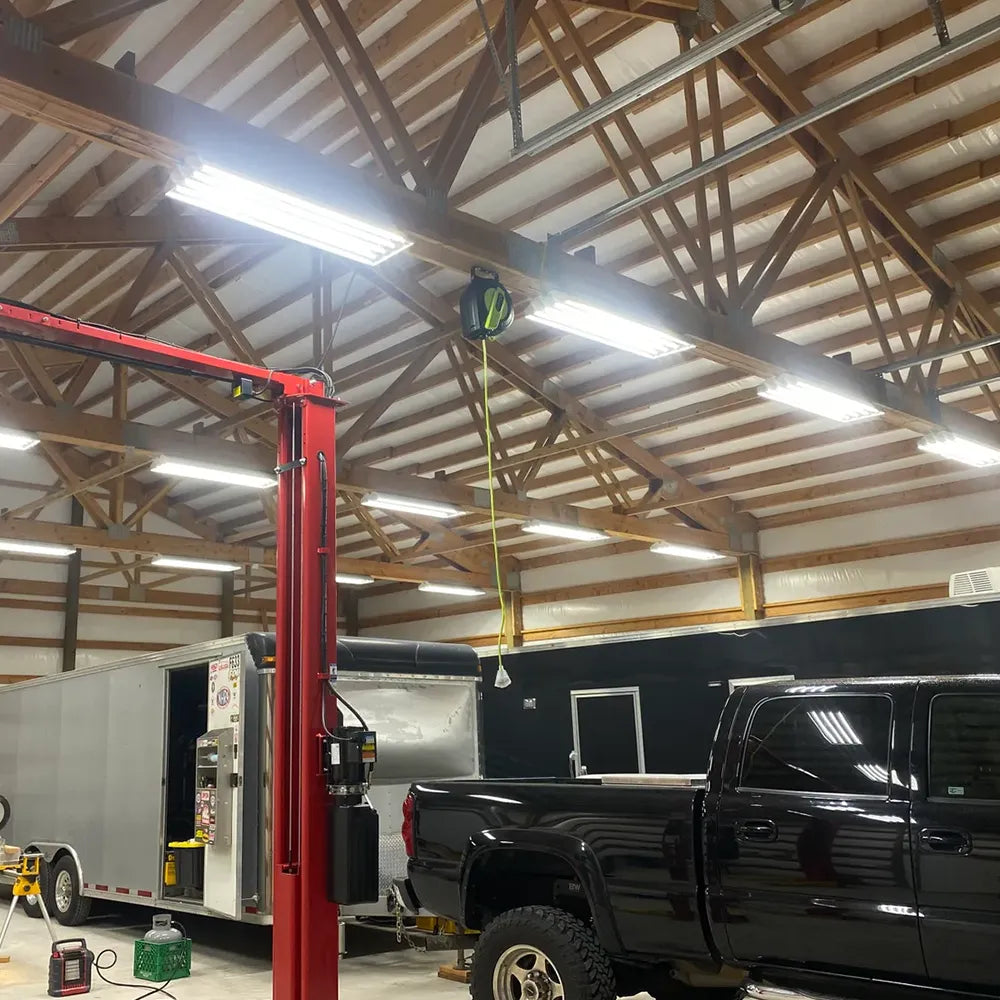

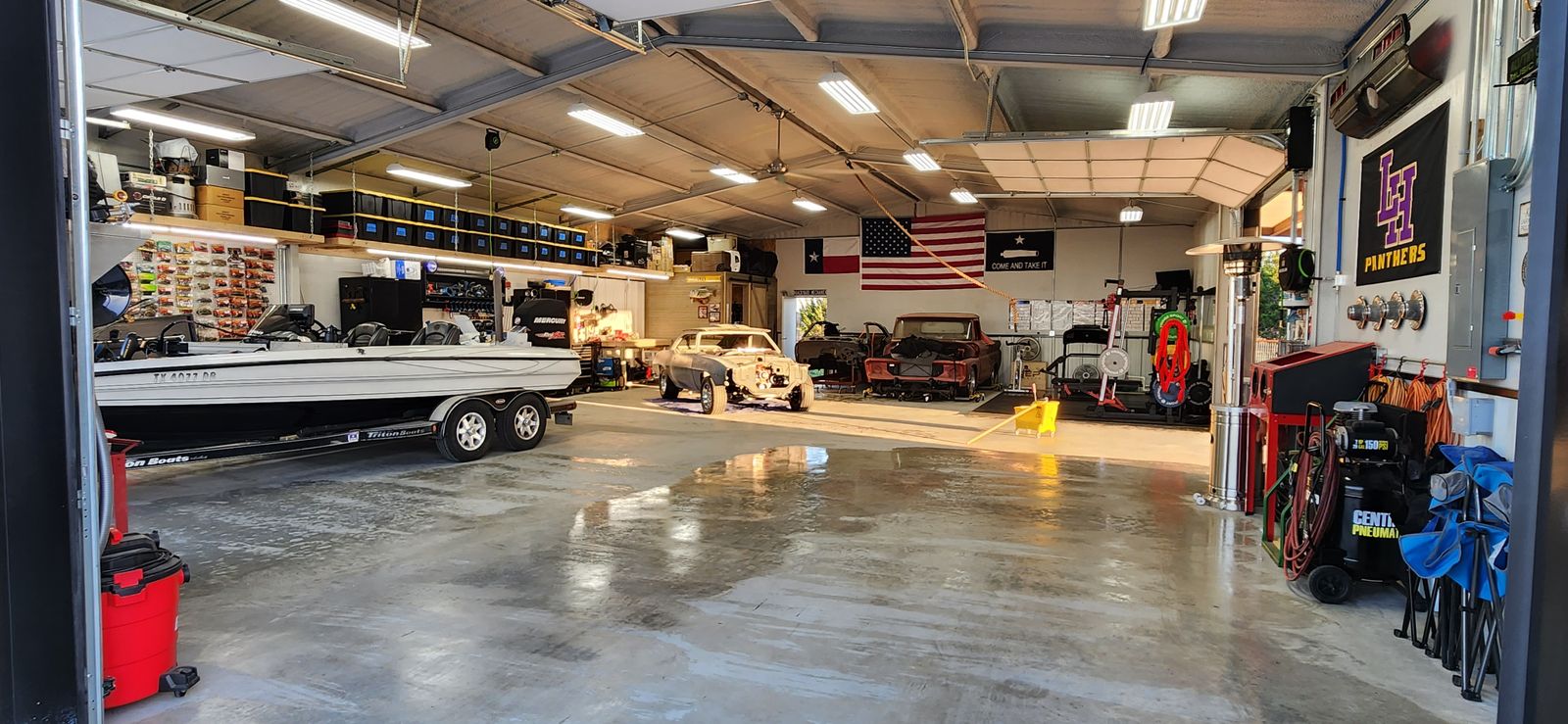

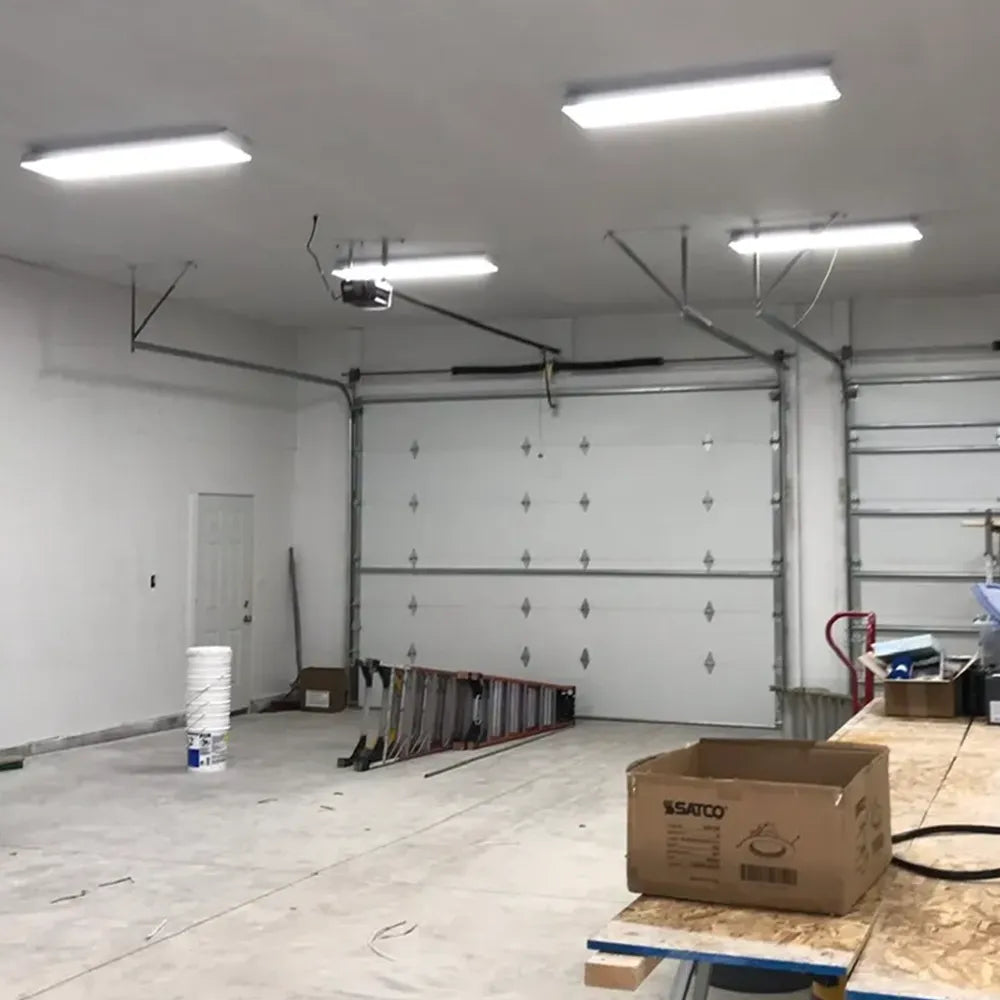

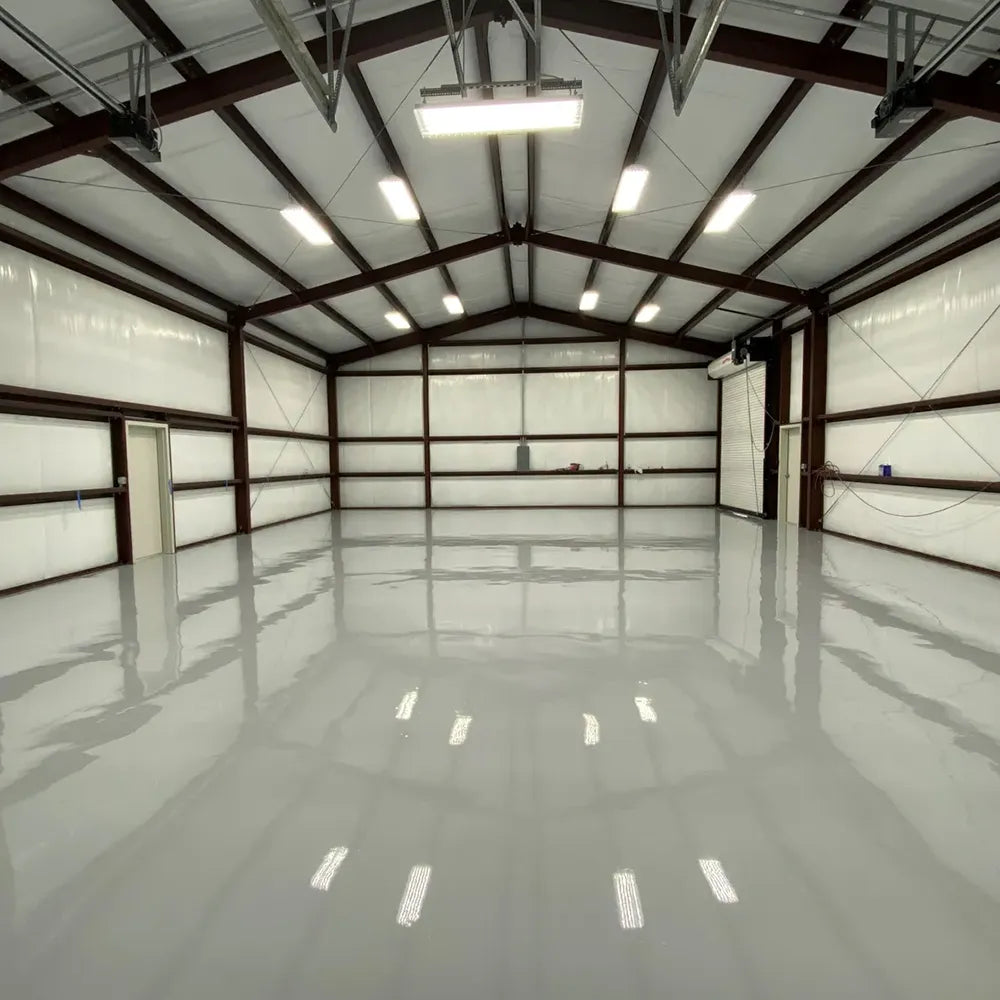

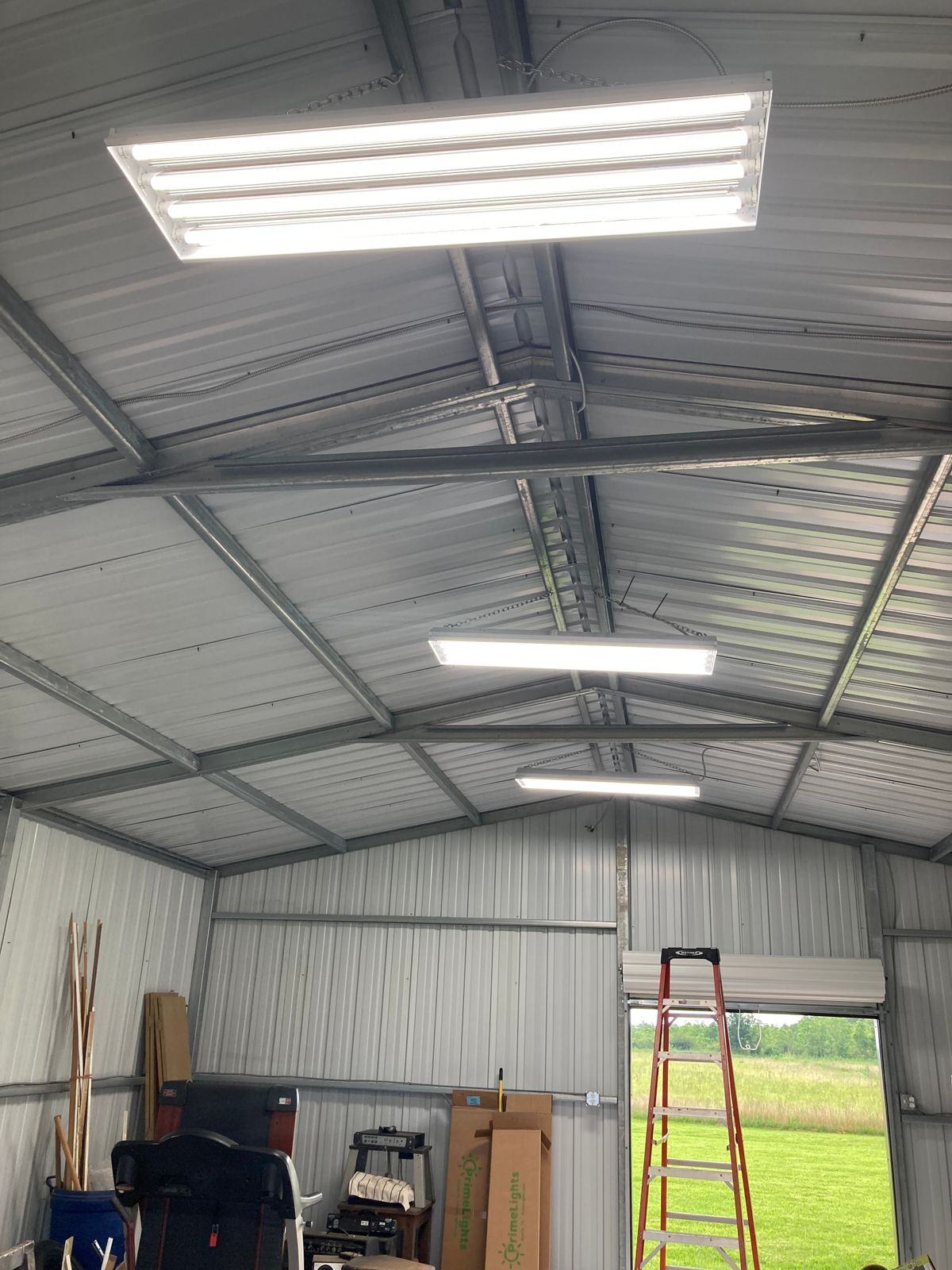

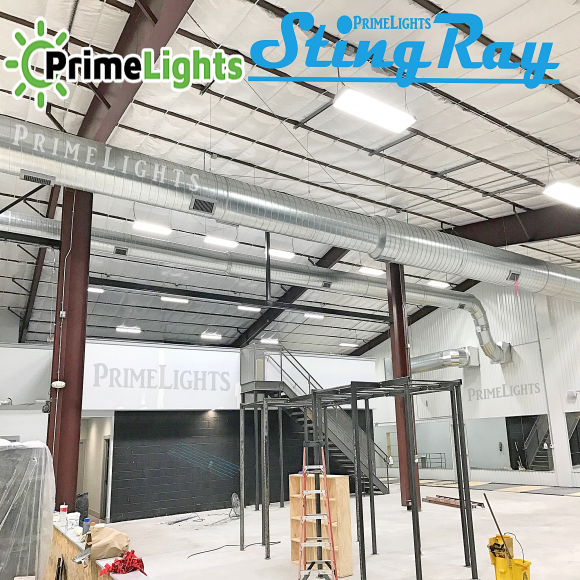

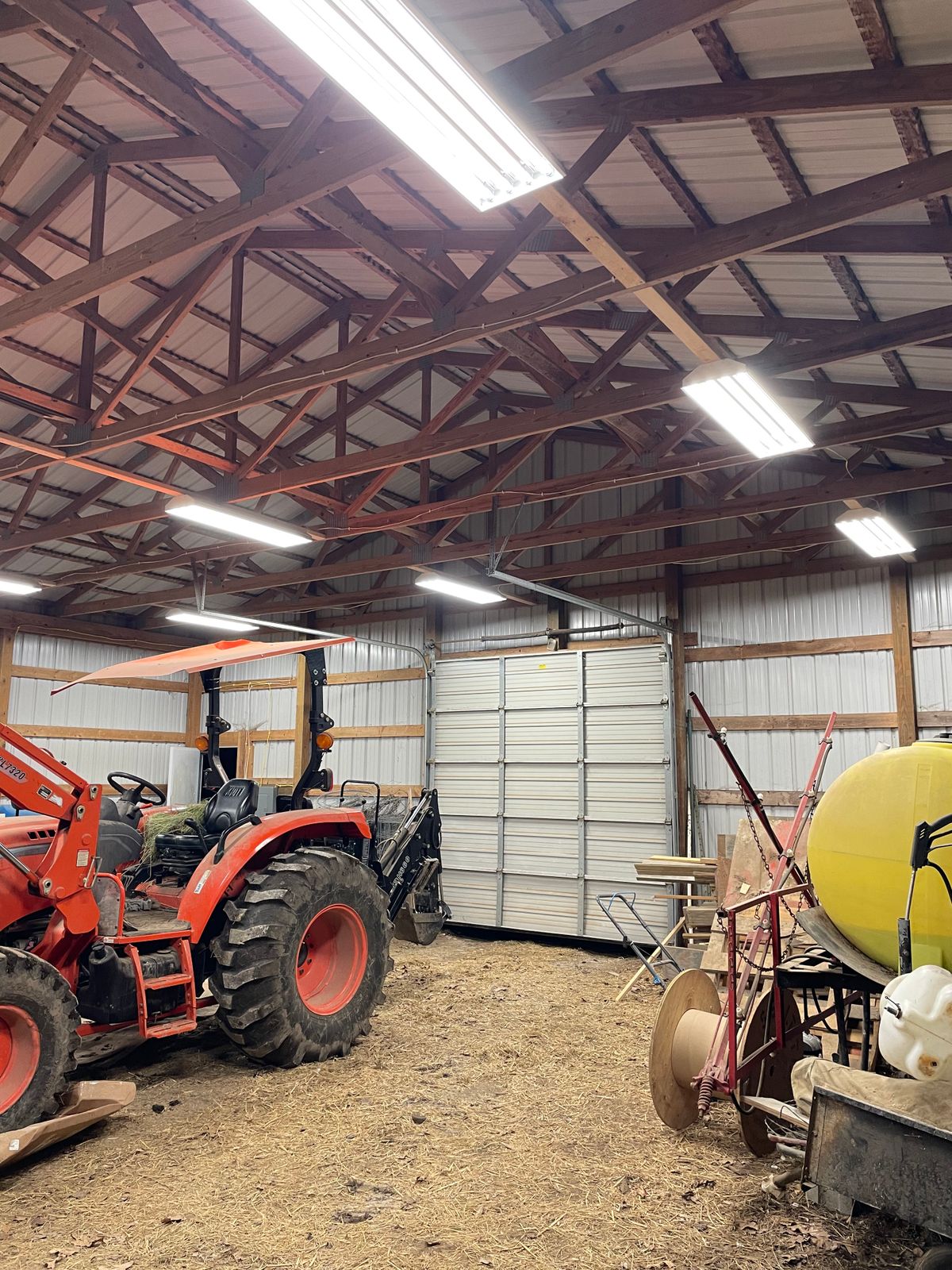

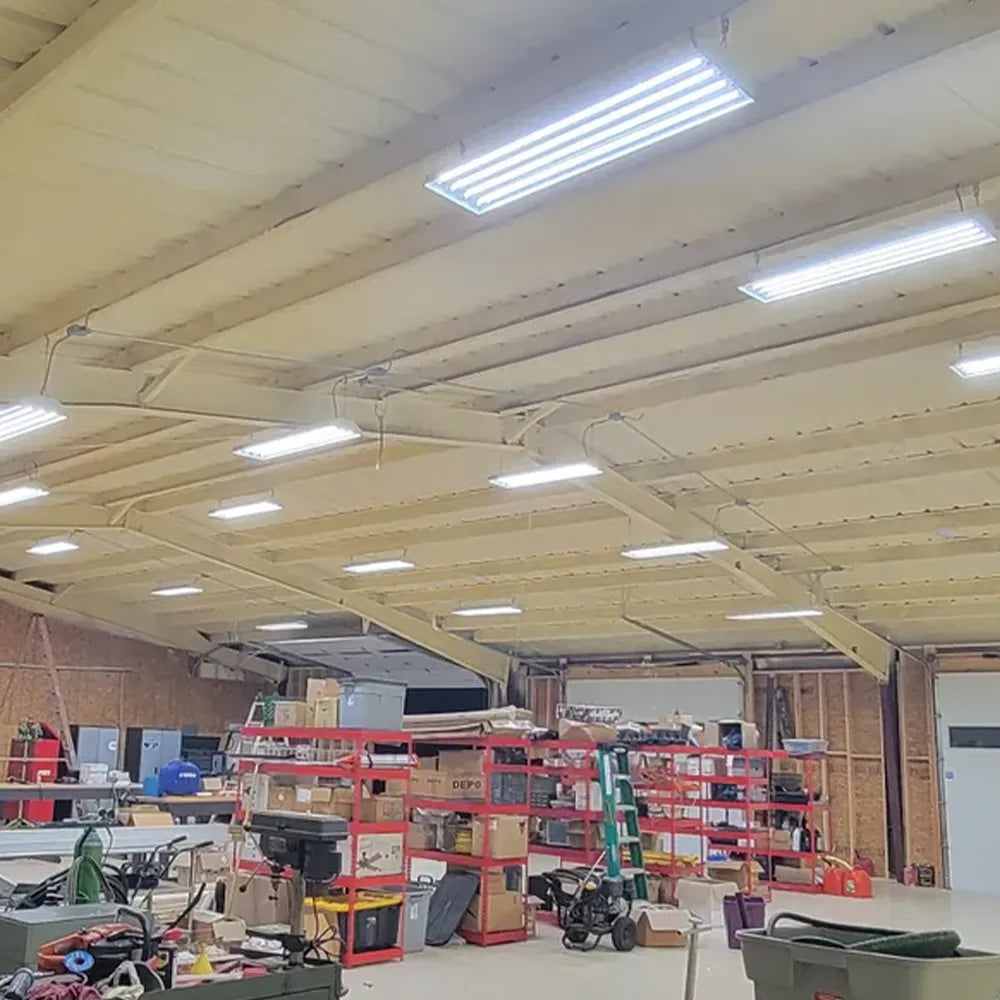

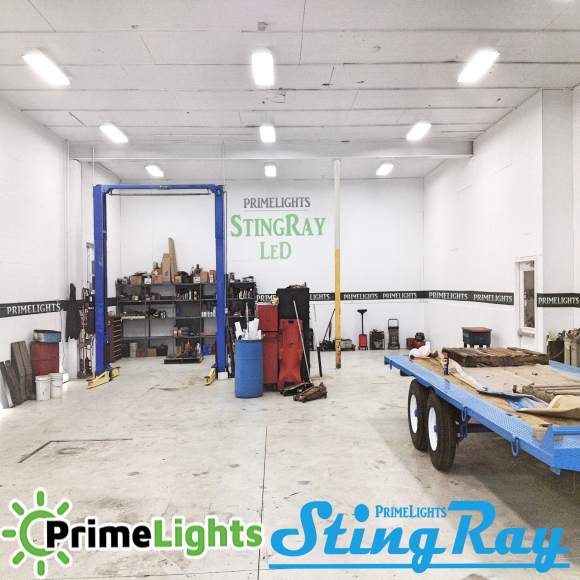

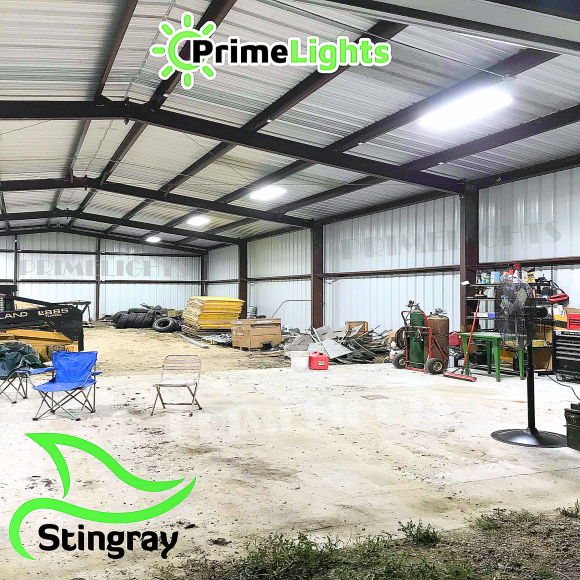

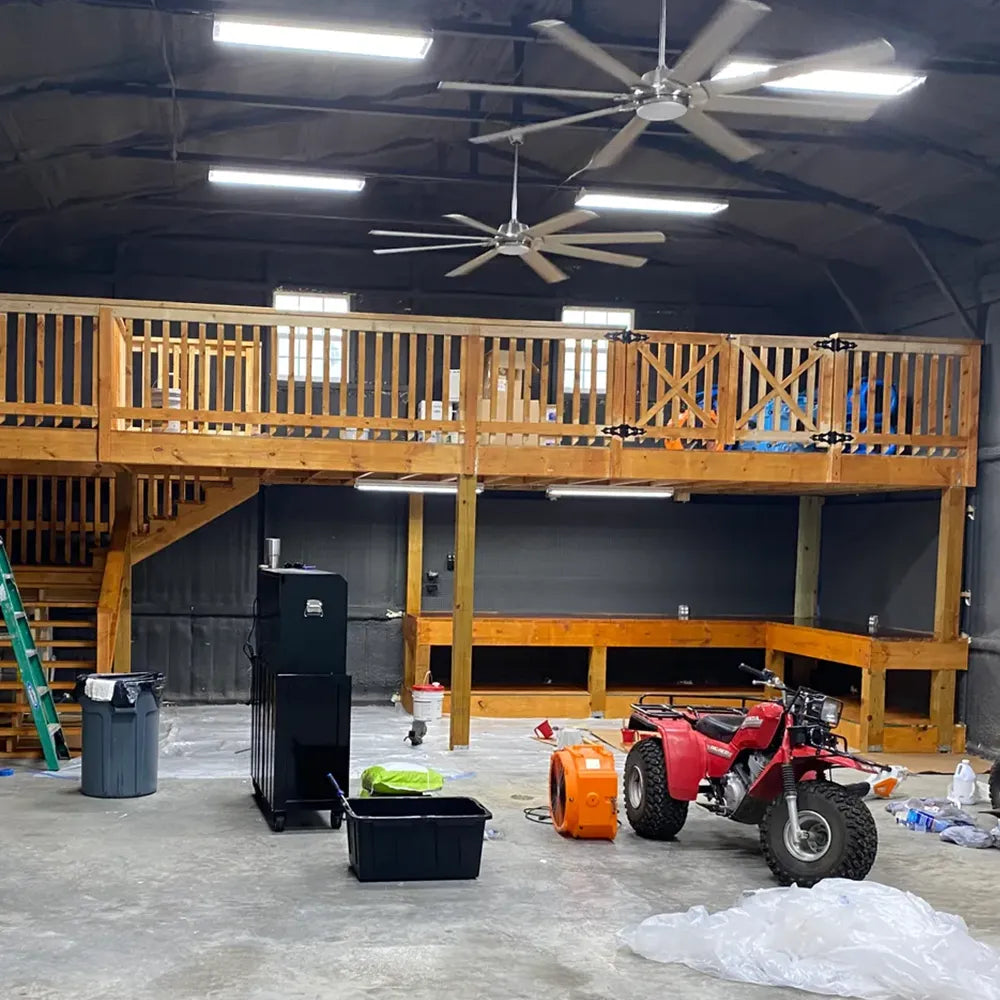

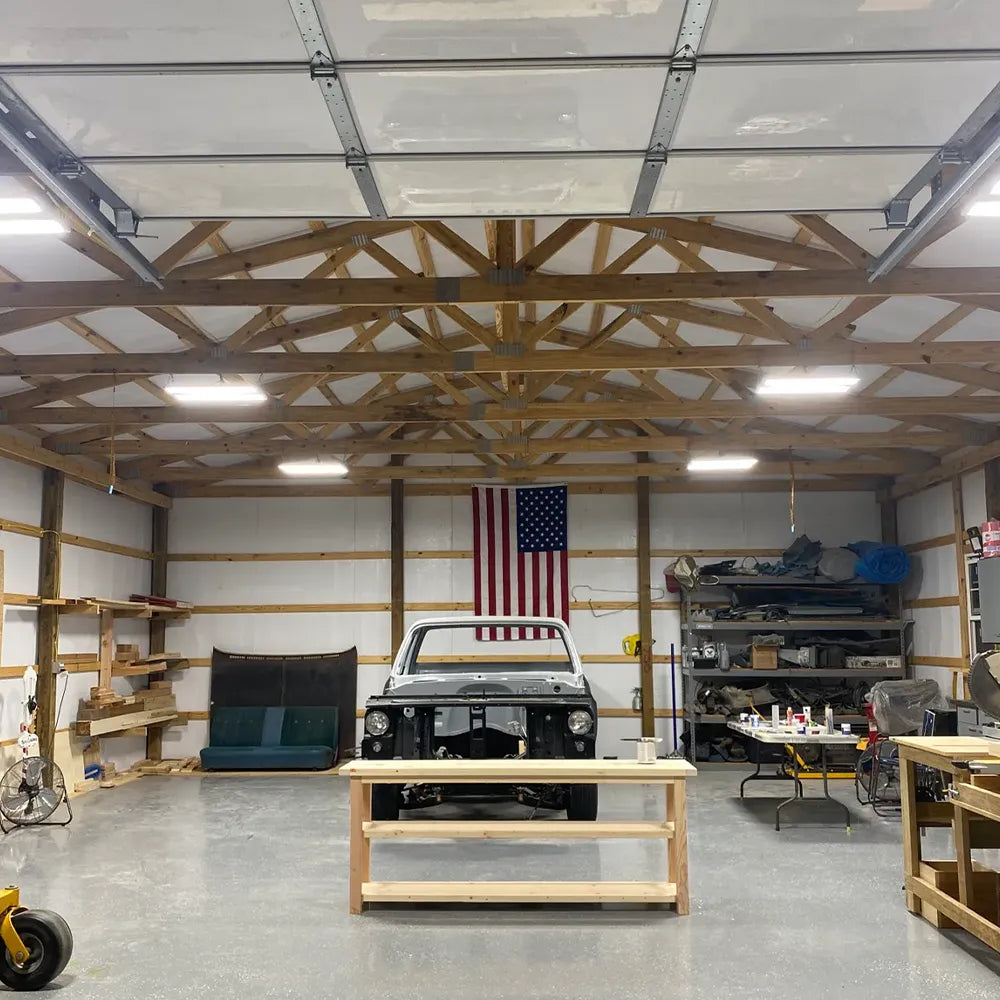

Applications:  The PrimeLights® LED Stingray® 4 is the ideal fixture for ceiling heights ranging up to about 15’.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamp provides reduced glare when compared to clear.  For higher ceilings please see our PrimeLights® LED Stingray® 6.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 225sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.

•  Item #: PL-4SR4HB-88N

THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD SOLELY BY PRIMELIGHTS®
