What Is Gym & Sports Facility LED Lighting?

Gym and sports facility LED lighting encompasses the high-output, commercial-grade fixtures engineered for the unique demands of athletic environments — from commercial gyms and fitness centers to school gymnasiums, recreation centers, indoor sports courts, CrossFit boxes, martial arts studios, climbing gyms, natatoriums, and multi-purpose athletic complexes. These spaces ask more from their lighting than almost any other indoor environment: massive ceiling heights, enormous floor areas, fast-moving objects that must be tracked visually, athletes performing at speed with safety on the line, and the constant abuse of impacts, vibration, and — in many facilities — extreme humidity and temperature.

Athletic lighting isn't just about brightness. It's about visual clarity at speed — the ability to track a basketball in flight, see a barbell path during a heavy lift, read the spin on a tennis ball, judge distance on a climbing wall, and react to another player's movement in a fraction of a second. It's about uniformity — eliminating the dark spots and bright patches that create visual confusion and hide obstacles on a playing surface. And it's about glare control — preventing the blinding flash of a badly positioned fixture from causing a missed catch, a misjudged step, or a collision.

When the lighting is right, athletes perform better, facilities look professional, and operators save thousands annually in energy and maintenance. When it's wrong, people get hurt.

PrimeLights offers a complete range of commercial and industrial LED fixtures trusted by gym owners, school districts, recreation departments, sports facility operators, and athletic program directors who understand that what's above the court matters as much as what's on it.

Why LED Lighting Is Dominating Athletic Facilities in 2026

The transition to LED in gyms and sports facilities has accelerated dramatically as facility operators discover that the upgrade isn't just about energy savings — it's about a fundamentally better experience for athletes, members, spectators, and staff.

Facilities that have converted to LED consistently report dramatically improved visual clarity on courts and playing surfaces, elimination of the warm-up delays that leave facilities in dim, half-lit conditions for the first 15 minutes of operation, 50-75% reduction in lighting energy costs — often the second-largest utility expense after HVAC, near-total elimination of the dangerous and expensive maintenance cycle of changing lamps at gymnasium ceiling heights, reduced glare complaints from athletes and members, and a brighter, more modern, more professional facility appearance that directly impacts membership and enrollment.

Why Traditional Gym and Sports Lighting Falls Short

Most existing gym lighting was installed with technology that was the only viable option for high-ceiling, high-output applications at the time. It was adequate for its era. It is not adequate for modern athletic expectations.

Gym & Sports Facility Lighting Technology Comparison

TechnologyLifespanWarm-Up TimeLumen DepreciationFlickerRestrike DelayImpact ResistanceMetal Halide6,000-15,000 hrs5-15 minSevere (30-40%)Moderate10-20 minPoor (glass envelope)High Pressure Sodium12,000-24,000 hrs3-10 minModerate (25-30%)Moderate3-10 minPoorFluorescent T5HO20,000-25,000 hrs1-3 minModerate (15-20%)Yes (high frequency)InstantVery Poor (glass tubes)LED Gym Fixtures50,000-100,000 hrsInstantMinimal (10-15% at L70)NoneInstantExcellent (solid state)

Metal Halide: The Gymnasium Standard That Shouldn't Be. Metal halide high bays have been the default gymnasium fixture for decades — and they're deeply flawed for athletic use. The 5-15 minute warm-up time means the gym sits in dim, greenish-white light for the first portion of every practice, game, or class. If power flickers during a game — from a storm, a breaker trip, or a generator test — the 10-20 minute restrike delay leaves the entire gym in darkness, forcing evacuation of players and spectators. Lumen depreciation of 30-40% means the gym gets progressively dimmer between expensive relamping cycles, and because the depreciation is gradual, facility staff often don't notice until the space has fallen well below adequate levels. Metal halide also shifts color as it ages, producing an inconsistent, patchy appearance across the ceiling.

HPS: The Wrong Color for Sports. High pressure sodium's yellow-orange light distorts colors on every surface — court lines become indistinguishable, team uniform colors are unreadable, and the overall environment feels dingy and institutional. The warm-up and restrike problems are the same as metal halide. HPS has no place in any facility where visual quality matters.

Fluorescent T5HO: Fragile and Limited. Some lower-ceiling facilities use T5 high-output fluorescents. While they provide reasonable light quality, the glass tubes are extremely vulnerable to ball impacts — a single errant basketball or volleyball can shatter a tube, showering the court with glass. This is a serious safety liability in any athletic environment. T5HO fixtures also struggle to project adequate light at mounting heights above 20 feet, limiting their usefulness in full-height gymnasiums.

Key Advantages of LED Lighting for Gyms and Sports Facilities

1. Instant-On, Full Brightness — Every Time

LED fixtures reach 100% output the instant they're switched on. No warm-up period. No dim, greenish first-15-minutes. No 20-minute restrike darkness during power interruptions. The gym is fully lit from the first second — ready for practice, games, classes, or events without delay.

For facilities that rent court time by the hour, this means every paid minute is usable. For schools running back-to-back practices and games, there's no dead time waiting for lights. For events with spectators, there's no embarrassing half-lit warm-up period. And during storms or power flickers, the lights come back instantly — no evacuation, no delay, no safety incident.

2. Superior Visual Clarity for Athletic Performance

LED fixtures deliver high CRI (80-90+) and consistent color temperature across every fixture, producing bright, uniform, color-accurate illumination that helps athletes track fast-moving objects, judge distances, read court lines, and react to movement. The absence of flicker — a significant issue with aging metal halide and fluorescent fixtures — eliminates the subtle visual disruption that can cause eye fatigue, reduce reaction time, and create the perception of "strobing" on fast-moving objects.

For sports like basketball, volleyball, badminton, tennis, and racquetball — where a moving ball must be tracked against the ceiling and lighting background — flicker-free LED illumination with controlled glare provides a measurably better visual environment.

3. Glare Control for Player Safety

Glare — the blinding brightness of a fixture in an athlete's field of vision — is a safety issue in gyms. A basketball player looking up to track a rebound, a volleyball player tracking a serve, or a climber looking toward the ceiling can be momentarily blinded by a poorly positioned or poorly shielded fixture. LED fixtures with optical diffusers, prismatic lenses, and anti-glare designs spread light evenly without creating the intense bright spots that cause glare. Proper fixture selection and placement dramatically reduce glare-related safety incidents.

4. Impact Resistance — No More Glass on the Court

LED fixtures are solid-state — no glass tubes, no fragile envelopes, no filaments. A ball striking a quality LED high bay doesn't produce a shower of broken glass across the playing surface. Many LED gym fixtures are available with polycarbonate lenses and wire guards that provide additional protection against direct ball impact. For any facility where balls, shuttlecocks, or other projectiles routinely reach ceiling height, the elimination of glass breakage risk is a fundamental safety improvement.

5. Massive Energy Savings

Gymnasiums and sports facilities have enormous lighting loads — high-output fixtures across large floor areas, often running 10-16+ hours per day. LED's 50-75% energy reduction produces some of the largest dollar savings in the building.

Annual Energy Cost Comparison (per fixture, 12 hrs/day, 300 days/year)

Fixture TypeWattageAnnual kWhAnnual Cost @ $0.12/kWhMetal Halide High Bay (400W)400W1,440 kWh$172.80Metal Halide High Bay (1000W)1000W3,600 kWh$432.00LED High Bay (400W MH equivalent)150W540 kWh$64.80LED High Bay (1000W MH equivalent)300-400W1,260 kWh$151.20Savings vs. 400W MH (per fixture)900 kWh$108.00Savings vs. 1000W MH (per fixture)2,340 kWh$280.80

A gymnasium with 30 metal halide fixtures saves $3,000-$8,400+ per year depending on the fixtures replaced. Larger multi-court and multi-gym facilities save proportionally more. For school districts operating dozens of gymnasiums, the district-wide savings can reach six figures annually.

6. Maintenance Elimination at Dangerous Heights

Changing lamps in a gymnasium is one of the most expensive and disruptive maintenance tasks in any building. Gymnasiums have 25-40+ foot ceilings. The floor is a finished athletic surface that can be damaged by lift equipment. Accessing fixtures requires scissor lifts or scaffolding on the gym floor — which means the gym is closed during maintenance. In schools, this must be scheduled around athletics, physical education, events, and assembly use. In commercial gyms, it means lost revenue.

LED fixtures rated for 50,000-100,000 hours eliminate this cycle. At 12 hours per day, 300 days per year, a 50,000-hour fixture lasts nearly 14 years. The gym stays operational. The floor stays protected. The maintenance budget goes elsewhere.

7. Dimming and Multi-Use Flexibility

Gymnasiums and sports facilities are rarely single-purpose spaces. They host athletic events at full brightness, PE classes at moderate levels, assemblies and presentations at reduced levels, and community events with varied lighting needs. LED fixtures with dimming capability (0-10V is standard) allow facility operators to adjust output for each use — saving energy during lower-demand activities and providing the flexibility that multi-use spaces require.

8. Reduced Heat Load

High-ceiling gymnasiums are notoriously difficult and expensive to cool. Metal halide fixtures at 400-1000W each pump enormous heat into the upper volume of the space, increasing HVAC load and raising temperatures at the playing surface. LED fixtures produce dramatically less heat — reducing cooling requirements and improving athlete comfort during warm-weather months.

Types of LED Fixtures for Gyms and Sports Facilities

UFO High Bay LED Lights

Best For: Full-size gymnasiums, multi-purpose courts, open floor fitness areas, indoor tracks, climbing gyms, large CrossFit boxes

The most popular fixture for gymnasium applications. UFO high bays deliver powerful, concentrated downward illumination from mounting heights of 20-45+ feet. Their compact, round profile is unobtrusive against gymnasium ceilings, and the focused beam design pushes light to the playing surface efficiently.

For gymnasiums, specify UFO high bays with anti-glare optics, polycarbonate lenses (not glass), and optional wire guards for ball impact protection. Output ranges from 15,000 to 50,000+ lumens per fixture depending on the application and mounting height.

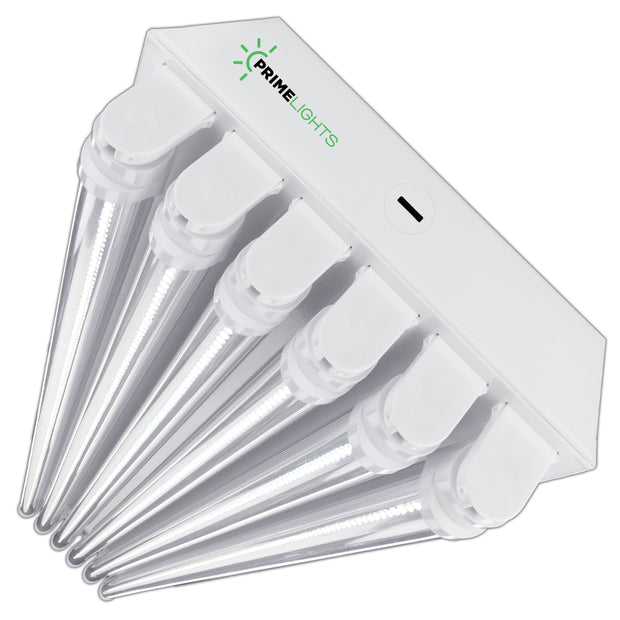

Linear High Bay LED Lights

Best For: Gymnasiums with lower ceilings, natatoriums, indoor tennis facilities, batting cages, long narrow court configurations, volleyball and badminton halls

Linear high bays distribute light along their length, providing elongated coverage ideal for court sports with rectangular playing surfaces. Their spread pattern can produce excellent uniformity along the length of a court with fewer fixtures than UFO high bays in some configurations.

For natatoriums (indoor pools), linear high bays in vapor tight or IP65+ configurations handle the extreme humidity and chlorine-laden air that destroys unprotected fixtures.

LED Vapor Tight Fixtures

Best For: Natatoriums, indoor pools, locker rooms, shower areas, ice rinks, any high-humidity athletic environment

Indoor pool environments are among the most corrosive and demanding in all of commercial lighting. Chlorine-saturated humid air attacks unprotected metals, degrades seals, and shorts out electrical connections. Vapor tight LED fixtures rated IP65 or higher — with housings specifically designed for corrosive atmospheres — are the only appropriate choice for natatoriums and similar environments.

Ice rink facilities present a different but equally challenging environment — cold temperatures, high humidity, and condensation. Vapor tight LEDs handle all three without the cold-start failures of fluorescent alternatives.

LED Panel and Troffer Lights

Best For: Weight rooms, yoga studios, Pilates rooms, spin studios, dance studios, offices, lobby and reception areas, locker room ceilings

Not every space in a sports facility has 30-foot ceilings. Weight rooms, group fitness studios, and administrative areas use the same LED flat panels and troffers found in commercial office applications — providing uniform, glare-free illumination at standard ceiling heights.

For weight rooms, specify higher output (50-75 lumens/sq ft) and 5000K for a bright, energizing environment. For yoga and Pilates studios, dimmable fixtures at 3500K-4000K allow the warmer, calmer atmosphere these activities call for.

LED Wall Packs and Flood Lights

Best For: Outdoor court lighting, building exteriors, parking areas, outdoor track lighting, stadium perimeter, outdoor fitness areas

Exterior athletic lighting — outdoor basketball and tennis courts, running tracks, and fitness areas — uses high-output flood lights and area lights mounted on poles or building walls. LED's directional control, instant-on capability, and energy efficiency make it the clear choice for outdoor athletic applications where fixtures may run 4-8 hours nightly.

LED Wraparound and Strip Fixtures

Best For: Locker rooms, hallways, storage rooms, equipment rooms, mechanical rooms

Secondary spaces throughout the facility use wraparound and strip fixtures for functional illumination at moderate levels. Locker rooms benefit from bright, clean lighting (40-60 lumens/sq ft) with IP44+ ratings in areas subject to moisture.

LED Emergency and Exit Lighting

Best For: All gymnasium and sports facility areas — required by building code

Emergency egress lighting and illuminated exit signage are code-required in all public assembly spaces, including gymnasiums and sports facilities. LED emergency fixtures with battery backup provide automatic illumination during power failures — critical in spaces where large numbers of people may need to evacuate safely in darkness.

How to Choose the Right LED Fixture for Your Gym or Sports Facility

Understanding Illumination Standards for Athletics

Athletic lighting standards are defined by the Illuminating Engineering Society (IES) and sport-specific governing bodies. Requirements vary significantly based on the sport, the level of play, and whether the facility hosts spectators or broadcast cameras.

Indoor Athletic Lighting Recommendations

Facility / ActivityRecommended Foot-CandlesNotesRecreational / intramural play30-50 fcCommunity rec centers, casual play, PE classesHigh school competition50-75 fcStandard for most school gymnasium competitionCollege / club competition75-100 fcNCAA and conference requirements vary by sportProfessional / broadcast100-200+ fcBroadcast cameras require significantly higher levels and strict uniformityGeneral fitness / weight room30-50 fcOpen floor areas, cardio zones, free weight areasGroup fitness studios20-40 fcDimmable preferred for varied activitiesIndoor swimming pools30-50 fcWater surface illumination; higher for competitionClimbing gyms30-50 fcMust illuminate wall face and holds, not just floorIndoor tennis50-75 fcRecreational; 75-125+ fc for competitionMartial arts / wrestling50-75 fcEven floor illumination critical for ground-based sportsRacquetball / squash30-50 fcWall illumination as important as floorIndoor track30-50 fcUniform illumination around the full circuitGymnastics50-75 fcApparatus and landing areas require enhanced levels

Critical: Uniformity matters as much as intensity. The uniformity ratio — the relationship between the brightest and dimmest points on the playing surface — directly impacts visual comfort and athletic performance. A court that's bright under the fixtures and dark between them creates a visual adaptation problem that slows reaction time and increases error rates. Target a maximum-to-minimum uniformity ratio of 2:1 or better for competitive play, 3:1 for recreational use.

Color Temperature (Kelvin): Setting the Right Athletic Environment

3500K-4000K (Warm to Neutral White): Preferred for yoga, Pilates, dance, and mind-body studios where a calming, warm atmosphere supports the activity. Some high-end fitness facilities use 4000K throughout for a premium, boutique feel.

5000K (Daylight): The standard for gymnasiums, courts, and competition spaces. Crisp, bright, natural-looking white light that maximizes visual acuity, contrast, and color accuracy. Athletes can track fast-moving objects more effectively under 5000K than under warmer temperatures. This is what the majority of school gymnasiums, recreation centers, and sports facilities specify.

5000K-6500K (Cool Daylight): Maximum contrast and visual acuity. Some competition facilities and broadcast-ready venues specify 5700K-6500K for the highest visual clarity, though this can feel harsh in facilities used for extended periods.

Recommendation: 5000K for all primary athletic spaces (courts, gyms, pools, fitness floors). Use 3500K-4000K for studios, lobbies, and relaxation areas. Selectable CCT fixtures provide flexibility for multi-use spaces.

CRI: Color Accuracy in Athletic Environments

CRI 80: The minimum standard for gymnasium and general athletic use. Court lines are clearly visible, team colors are distinguishable, and the overall visual environment is good. Adequate for most recreational and school applications.

CRI 85-90+: Recommended for competition venues, facilities that host events with photography or video, and any space where the quality of the visual environment is part of the brand (boutique fitness, premium sports clubs). Higher CRI makes everything in the space look sharper, cleaner, and more professional.

Glare Rating: Protecting Athletes' Vision

Glare is a specific and serious concern in athletic environments because athletes routinely look upward — tracking balls, judging heights, spotting climbing routes, and scanning the court. Fixtures should be specified with anti-glare optics, diffusion lenses, or shielding that limits direct view of the LED source from angles below the fixture.

Look for fixtures with UGR < 22 for general athletic use and UGR < 19 for competition facilities where glare could affect play outcomes. Wire guards and polycarbonate lenses provide additional protection against ball impact while diffusing light.

Ceiling Height and Fixture Selection

Ceiling HeightTypical FacilitiesRecommended FixtureOutput per Fixture10-14 ftWeight rooms, studios, small gyms, martial arts4-ft shop lights, wraparounds, panels4,000-10,000 lumens14-20 ftSmall gymnasiums, CrossFit boxes, climbing gyms, dance studiosHigh-output shop lights, low bays10,000-20,000 lumens20-30 ftStandard school gymnasiums, recreation centers, indoor courtsUFO or linear high bays20,000-36,000 lumens30-40 ftLarge gymnasiums, multi-court facilities, fieldhousesHigh-output high bays30,000-50,000 lumens40+ ftFieldhouses, indoor tracks, arena facilitiesMaximum-output high bays40,000-60,000+ lumens

Gym & Sports Facility LED Lighting Applications: Space-by-Space Guide

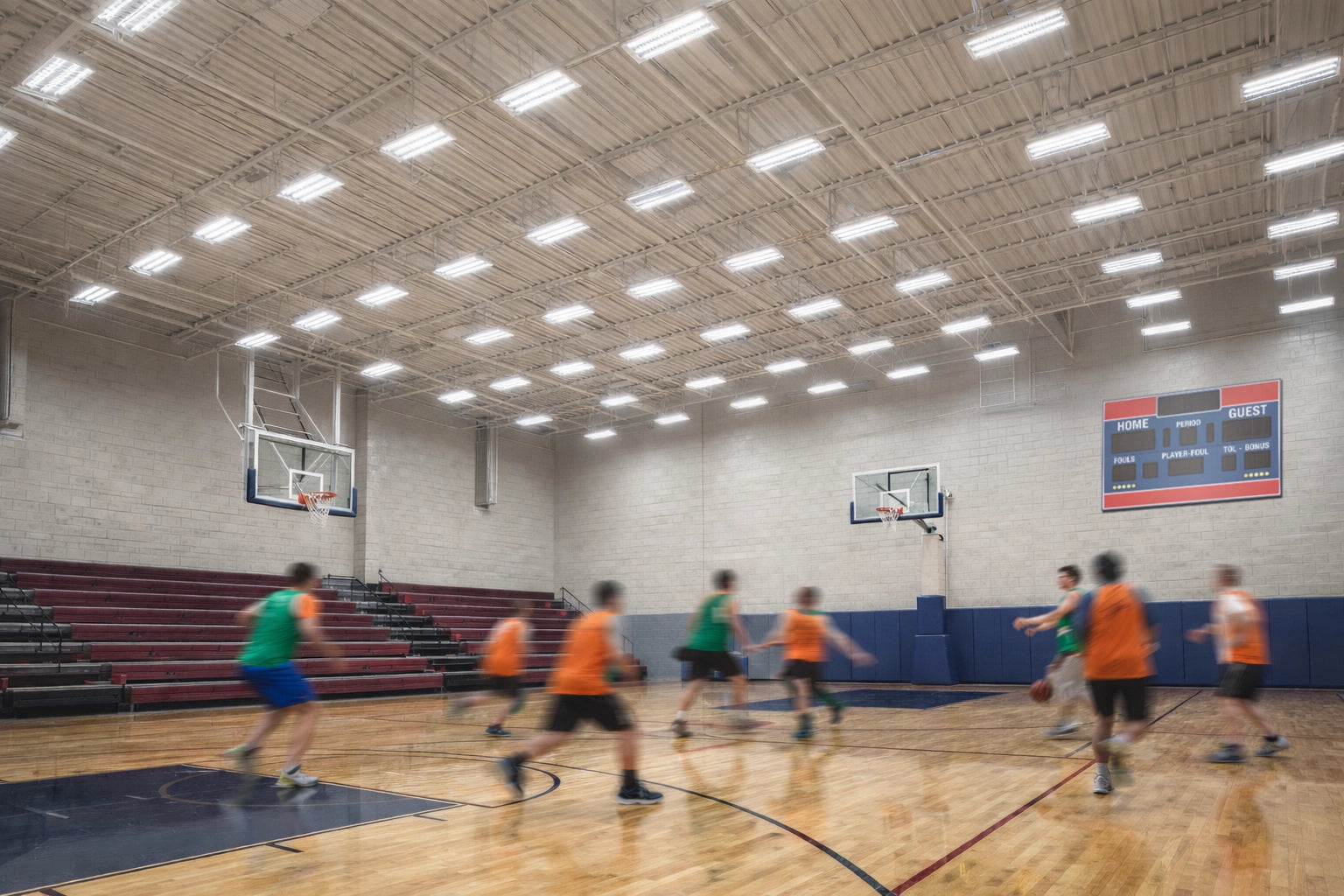

School Gymnasiums

The school gym is the most common athletic lighting project in the country — and one of the most impactful. Most school gyms are lit with aging metal halide fixtures that have depreciated to a fraction of their original output, take 15 minutes to warm up, and can't be cycled on and off for different activities throughout the school day.

The typical school gym: 80' × 100' (8,000 sq ft) with 28-35 foot ceilings, used for PE, competitive basketball and volleyball, assemblies, graduation ceremonies, and community events.

Recommended approach: 20-30 UFO high bay fixtures at 25,000-36,000 lumens each, 5000K, CRI 80+, with polycarbonate lenses and optional wire guards. Dimmable for assembly and event flexibility. At 50 foot-candles average (appropriate for high school competition), this layout provides bright, uniform, glare-controlled illumination across the full court.

The transformation: Instant-on means no more dim warm-up periods between classes. The gym is fully lit for first-period PE, stays lit through back-to-back activities, and can be dimmed for assemblies and events. Energy costs drop 50-70%. The relamping cycle — and its associated gym closures, lift rentals, and floor protection protocols — is eliminated for a decade or more.

Commercial Fitness Centers and Gyms

Commercial gyms demand lighting that supports both athletic performance and brand experience. Members are paying for an environment, and that environment is defined as much by the lighting as by the equipment. Bright, energizing main floors. Moody, motivating studios. Clean, modern locker rooms. The lighting in each zone sets the tone.

Main fitness floor (cardio, free weights, machines): 40-60 lumens/sq ft at 5000K for a bright, high-energy environment. High bays or high-output shop lights depending on ceiling height. Uniform coverage eliminates shadows in mirror zones where members check form.

Group fitness studios: Dimmable fixtures (3500K-5000K selectable) allow instructors to set the atmosphere — bright for high-intensity classes, dim for yoga and stretching, moderate for cycling. The ability to change the room's mood is a feature that members notice and value.

Functional training / CrossFit areas: 50-75 lumens/sq ft at 5000K. These high-intensity zones need bright, even illumination for safe performance of complex movements — overhead lifts, rope climbs, box jumps — where spatial awareness and visual clarity prevent injuries.

Recreation Centers and Multi-Purpose Facilities

Community recreation centers serve the widest range of activities — basketball leagues, pickle ball, volleyball, badminton, dance, martial arts, community events, voting, craft fairs. The lighting must accommodate all of them.

Dimmable high bay fixtures are the essential specification. Full output for competitive court sports, moderate output for recreational play and fitness, reduced output for events, assemblies, and social functions. 5000K with CRI 80+ handles the full range of activities. Multi-court divider curtains create independently-lit zones when fixtures are grouped on separate circuits or smart controls.

Indoor Swimming Pools and Natatoriums

Natatoriums are the most demanding indoor athletic lighting environment. Chlorine-laden humid air corrodes unprotected metals within months. Condensation drips from every ceiling surface. Temperatures range from warm pool-deck air to cold outdoor-influenced roof conditions. And the lighting must illuminate the water surface — not just the deck — for swimmer safety, lane visibility, and lifeguard surveillance.

Fixture requirements: IP65 or higher vapor tight construction with marine-grade or chlorine-resistant housings. All mounting hardware in stainless steel. Sealed electrical connections. Specify fixtures explicitly rated for natatorium/pool environments — standard industrial vapor tight fixtures may not resist chlorine corrosion.

Illumination: 30-50 fc at the water surface for recreational swimming; 50-75+ fc for competition. Minimize glare on the water surface — fixtures positioned to avoid direct reflection off the water into lifeguard sightlines.

Indoor Tennis and Racquet Sports

Tennis requires high illumination levels (50-75 fc recreational, 75-125+ fc competition) with exceptional uniformity — a tennis ball travels at speeds exceeding 100 mph, and players must track it against the ceiling and lighting background during serves and lobs. Glare control is critical because players frequently look directly upward.

Recommended approach: Linear high bays mounted parallel to the long axis of the court, positioned to avoid direct glare to players at both ends. Court-by-court switching allows independent lighting for each court, saving energy when not all courts are in use.

Climbing Gyms

Climbing gyms present a unique lighting challenge: the primary work surface is vertical, not horizontal. Lighting must illuminate the wall face and individual holds — not just the floor below. Fixtures aimed to wash the climbing surface from above or at an angle provide the hold visibility that climbers need to identify features, route-find, and climb safely.

Plan for 30-50 fc on the wall surface (not just floor level) with 5000K for maximum contrast between holds and the wall background. Bouldering areas benefit from slightly higher levels since climbers are closer to the ground and falling is expected — good visibility of landing zones is a safety requirement.

Ice Rinks

Indoor ice facilities combine cold temperatures, high humidity, and the need for bright, uniform illumination across a reflective white surface. LED fixtures perform better in cold conditions than any alternative — an inherent advantage in ice rink environments. Vapor tight or IP65+ fixtures handle the humidity and condensation. Glare off the ice surface must be managed through fixture positioning and optics to avoid blinding skaters, players, and spectators.

Outdoor Athletic Facilities

Outdoor courts (basketball, tennis, pickleball), tracks, fields, and fitness areas use pole-mounted or building-mounted LED flood lights. LED's directional control, instant-on capability, and energy efficiency make it the clear choice for outdoor athletic lighting. Shielded, full-cutoff fixtures minimize light trespass onto neighboring properties — a common source of community complaints for outdoor sports facilities.

Installation Planning for Gyms and Sports Facilities

Calculating Your Lighting Needs

1. Determine the target foot-candle level for each space based on the primary activity and level of play (see tables above).
2. Measure total square footage of each zone.
3. Estimate total lumens needed using the lumens-per-square-foot approximation for the specific ceiling height.
4. Select fixture type and output based on ceiling height and application.
5. Calculate fixture count: Total lumens ÷ lumens per fixture = approximate number of fixtures.
6. Verify with photometric layout — especially for competition venues where uniformity ratios must be met.

Example: An 80' × 100' school gymnasium (8,000 sq ft) requiring 50 fc (approximately 65 lumens/sq ft for 30-foot mounting) = 520,000 total lumens. Using 26,000-lumen high bays: 520,000 ÷ 26,000 = 20 fixtures arranged in a grid pattern for uniform coverage.

Fixture Placement for Athletic Spaces

Court sports (basketball, volleyball, tennis): Arrange fixtures in a grid pattern that produces uniform illumination across the full court, including boundary areas. Avoid concentrating fixtures directly over center court while leaving corners dim — uniformity across the entire playing surface is critical.

Avoid direct overhead glare: For sports where athletes look upward (basketball, volleyball, tennis, badminton), position fixtures to minimize direct line-of-sight from typical playing positions to the fixture face. Offset placement, anti-glare optics, and diffusion lenses all contribute to reduced athlete glare.

Multi-court configurations: Plan fixture circuits to allow independent control of each court — full output on courts in use, reduced or off on unoccupied courts. This requires separate switching or smart controls during the design phase.

Spectator seating: If the facility includes bleachers or spectator areas, these zones need adequate illumination (10-20 fc) for safe movement on bleacher steps and aisles — but can be on separate circuits from the court lighting.

Protecting the Gym Floor

LED fixture installation in gymnasiums requires protecting the finished hardwood athletic floor. Lifts and scaffolding must use appropriate floor protection (plywood sheets, Masonite, or floor protection matting) to prevent damage. This is a significant concern during both installation and any future maintenance — and one of the strongest arguments for LED's ultra-long life that eliminates maintenance visits.

Mounting Considerations

Steel truss structures: Most gymnasiums use open steel trusses. Fixtures mount directly to truss bottom chords or purlins using appropriate hardware. Verify structural capacity for the combined weight of fixtures and any wire guards.

Concrete deck ceilings: Some recreation centers and multi-story facilities have concrete ceiling decks. Surface-mount fixtures or threaded rod suspension systems attach to concrete anchors.

Chain or cable suspension: Allows fixtures to hang below the structural deck, bringing light closer to the court in very tall spaces. Adjustable length enables height optimization after installation.

Electrical Considerations

Dimming infrastructure: If specifying dimmable fixtures (strongly recommended for multi-use facilities), plan 0-10V dimming wiring during installation. Retrofit projects should assess whether existing wiring supports dimming or if new low-voltage control wiring is needed.

Circuit zoning: Plan separate circuits for each court, spectator areas, and support spaces. This enables independent control — lights only where you need them, when you need them.

Emergency circuits: Building codes require emergency egress lighting in all public assembly spaces. Connect a portion of the gymnasium lighting to emergency power to maintain safe egress during power failures.

Voltage: Most gymnasium fixtures operate on 120V or 277V. For larger facilities with three-phase power, 277V or 480V fixtures reduce circuit loading and enable longer wiring runs.

The ROI of Gym and Sports Facility LED Lighting

Direct Savings

Energy reduction: 50-75% lower electricity consumption. A 30-fixture gymnasium saves $3,000-$8,400+ per year depending on the fixtures replaced and operating hours. A full-facility conversion (gymnasium, courts, fitness floor, pool, studios, support spaces) multiplies savings across every zone.

Maintenance elimination: No more relamping at 30+ foot heights. No more lift rentals on the gym floor. No more gym closures for lighting maintenance. No more floor protection protocols. For a school gymnasium, eliminating a single relamping event saves $2,000-$5,000+ in lift rental, labor, floor protection, and lamp costs — and that event was happening every 2-4 years.

HVAC reduction: Less heat from LED fixtures means reduced cooling load during warm-weather months — a meaningful secondary savings in gymnasiums where the HVAC system is already fighting to manage a large open volume.

Indirect Benefits

Athletic performance: Better lighting means better visibility — which translates to better play, fewer errors, and reduced injury risk from visual misjudgments.

Member and community experience: A bright, modern, well-lit facility attracts and retains members (commercial gyms) and generates community pride (school and recreation facilities). Lighting is one of the most visible indicators of facility quality.

Extended usable hours: Instant-on and dimmable LED means the facility is ready for any activity at any time without warm-up delays or lighting limitations.

Reduced liability: Improved illumination reduces slip-and-fall risk, equipment-related injuries from poor visibility, and ball-impact injuries from glare-induced visual errors.

Typical Payback Period

Gymnasium LED conversions typically achieve payback in 2-4 years through combined energy and maintenance savings. Facilities with high operating hours (commercial gyms, recreation centers) often see payback in under 2 years. Utility rebates, available for most commercial LED conversions, can shorten payback by an additional 20-40%. School districts converting multiple gymnasiums district-wide achieve the most favorable economics through volume purchasing and cumulative energy savings.

Frequently Asked Questions About Gym and Sports Facility LED Lighting

What type of LED light is best for a gymnasium?

UFO high bay LEDs are the most popular choice for full-size gymnasiums with 20-40 foot ceilings. Specify 20,000-36,000 lumens per fixture at 5000K with CRI 80+, anti-glare optics, and polycarbonate lenses for ball impact resistance. For gymnasiums hosting competitive play, plan for 50-75 foot-candles average with a uniformity ratio of 2:1 or better.

How many lumens do I need for a gymnasium?

A standard 80' × 100' school gymnasium (8,000 sq ft) at 50 foot-candles needs approximately 520,000 total lumens — roughly 20 high bay fixtures at 26,000 lumens each. For recreational use at 30 foot-candles, approximately 12-15 fixtures may be sufficient. For college competition at 75+ foot-candles, 25-30+ fixtures may be required.

Will basketballs break LED high bay fixtures?

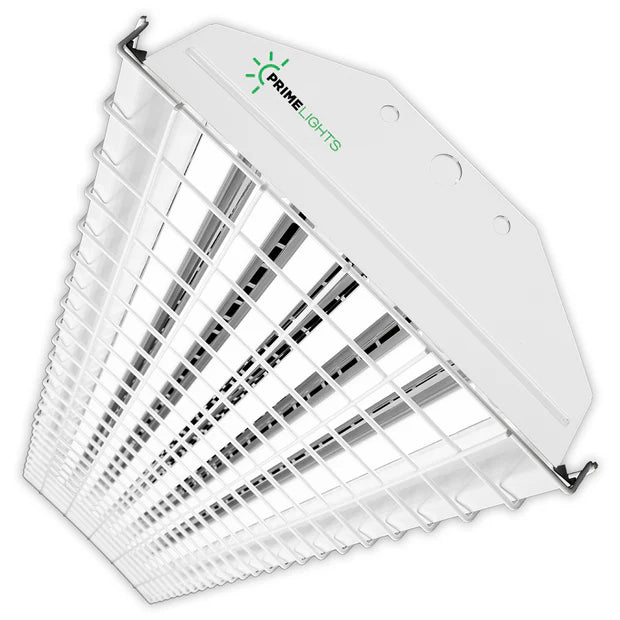

Quality LED high bays with polycarbonate lenses and optional wire guards resist ball impact without breaking. Unlike fluorescent tubes or metal halide glass envelopes, the solid-state LED and polycarbonate lens combination handles repeated impacts without shattering or showering the court with debris. Wire guards provide an additional layer of protection for facilities concerned about direct impact.

How do I reduce glare for athletes?

Choose fixtures with anti-glare optics, diffusion lenses, or prismatic covers that spread light evenly without creating visible bright spots. Position fixtures to minimize direct line-of-sight from typical playing positions to the fixture face. For sports with frequent upward gaze (basketball, volleyball, tennis), offset fixture placement and UGR < 22 specifications reduce glare-related visual disruption.

Can LED gym lights be dimmed?

Yes. Most commercial LED high bays offer 0-10V dimming, allowing output adjustment from 100% down to 10% or lower. Dimming is essential for multi-use gymnasiums that host competition, recreation, PE classes, assemblies, and events at different light levels. Wire for dimming during installation — adding dimming control wiring after the fact is significantly more expensive.

What about LED lighting for indoor swimming pools?

Natatoriums require vapor tight fixtures (IP65+) with housings specifically rated for chlorine-laden humid environments. Standard industrial fixtures — even IP65-rated ones — may not resist the corrosive atmosphere of an indoor pool facility. Specify natatorium-rated fixtures with marine-grade or chlorine-resistant housings and stainless steel hardware. All mounting and wiring connections must be sealed against humidity penetration.

How long do LED gymnasium lights last?

Quality LED high bays rated for 50,000 hours last approximately 14 years at 12 hours per day, 300 days per year. At less intensive use (8 hours/day), the same fixture lasts 20+ years. During that entire period, zero lamp changes — eliminating the expensive, disruptive, floor-damaging maintenance cycle that metal halide relamping requires.

How much can a school district save by converting gymnasiums to LED?

A single gymnasium conversion saves $3,000-$8,400+ per year in energy costs. A district with 10 gymnasiums saves $30,000-$84,000+ annually — plus maintenance savings of $2,000-$5,000 per gymnasium per relamping cycle. Over a 10-year period, a 10-gymnasium district saves $400,000-$900,000+ in combined energy and maintenance costs.

What color temperature is best for a gym?

5000K (daylight) is the standard for gymnasiums and active sports areas — it provides maximum visibility, contrast, and athlete alertness. For fitness studios (yoga, Pilates, spin), 3500K-4000K creates a warmer, more comfortable atmosphere. Selectable CCT fixtures give multi-use facilities the flexibility to adjust.

Do I need different lighting for different sports in the same gym?

Different sports have different recommended foot-candle levels, but a well-designed dimmable system can accommodate all of them. Install fixtures to meet the highest requirement (competition basketball/volleyball at 50-75 fc) and dim down for recreational use (30-40 fc) and non-athletic events (15-25 fc). This is far more practical and cost-effective than installing separate lighting systems.

Why Choose PrimeLights for Your Gym and Sports Facility LED Lighting

PrimeLights has been a trusted name in commercial and industrial LED lighting since 2010, with over 150,000 satisfied customers across every type of demanding environment — including school gymnasiums, recreation centers, fitness facilities, and sports complexes.

Built for Athletic Demands: Our high bay fixtures deliver the high output, impact resistance, glare control, and durability that athletic environments require. We understand the difference between lighting a warehouse and lighting a gymnasium — the specifications may overlap, but the application requirements are distinct.

Complete Facility Product Range: From gymnasium high bays to fitness floor panels, natatorium vapor lights, studio fixtures, locker room wraparounds, outdoor court floods, and emergency lighting — every fixture type a sports facility needs from a single trusted source.

Expert Athletic Facility Consultation: Our lighting specialists help school districts, recreation departments, gym owners, and facility designers calculate illumination levels, select the right fixtures for each zone, and plan layouts that meet IES athletic lighting standards.

Industry-Leading Warranties: We stand behind our products with comprehensive warranties that reflect our confidence in fixture quality under the demands of athletic facility operation.

Volume and District Pricing: School districts, municipal recreation departments, and multi-facility operators benefit from volume pricing that makes professional-grade LED lighting accessible for projects ranging from a single gymnasium to a district-wide conversion.

Get Started with PrimeLights Gym and Sports Facility LED Lighting

Ready to upgrade your gymnasium, fitness center, recreation facility, or sports complex with LED lighting that improves performance, safety, and the bottom line? Contact the PrimeLights team today for personalized recommendations based on your facility's dimensions, ceiling heights, sports requirements, and budget.

Our lighting experts can help you:

• Calculate illumination levels and fixture counts for each athletic and support space
• Select the right fixture type, output, CRI, and color temperature for each application
• Specify impact-resistant, anti-glare fixtures appropriate for court and gymnasium use
• Specify natatorium-rated fixtures for indoor pool environments
• Plan dimming and zoning for multi-use flexibility
• Estimate energy and maintenance cost savings versus your current lighting
• Provide photometric layouts for competition venues requiring verified uniformity
• Develop custom quotes for single-facility or multi-site/district-wide projects
• Identify available utility rebates and energy incentive programs

Contact us today to get started.
