Call for Bulk Pricing & Free Lighting Layouts!
512-843-1383FIXTURE MADE IN USA
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
Certifications: UL Listed (fixture/lamps), NSF, Damp Rated, Shatterproof, Contact for Rebate Info
Warranty: 5 years on complete fixture including LED lamps
Included Lamps: (2) flicker-free, shatterproof polycarbonate and aluminum (imported)
Specifications:

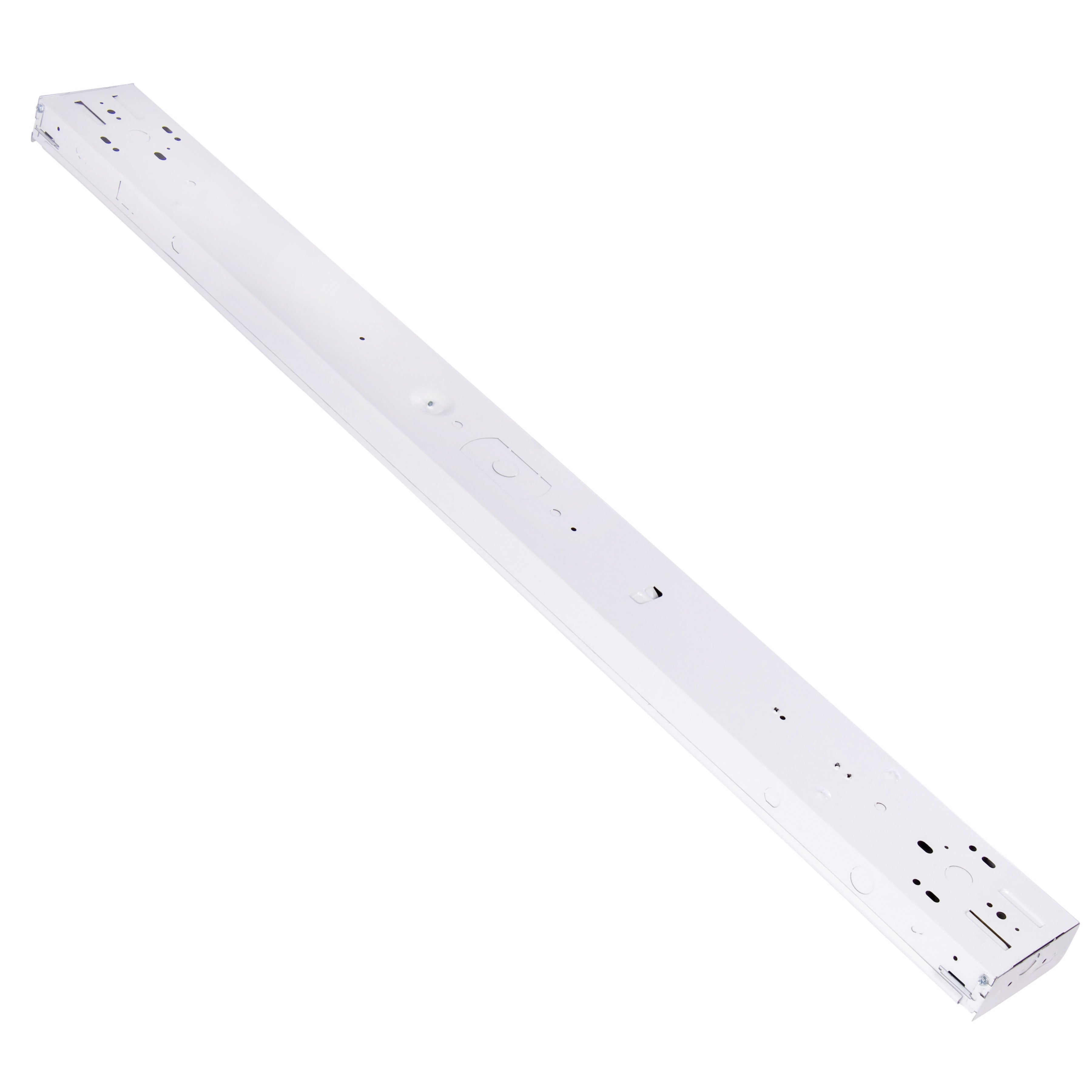

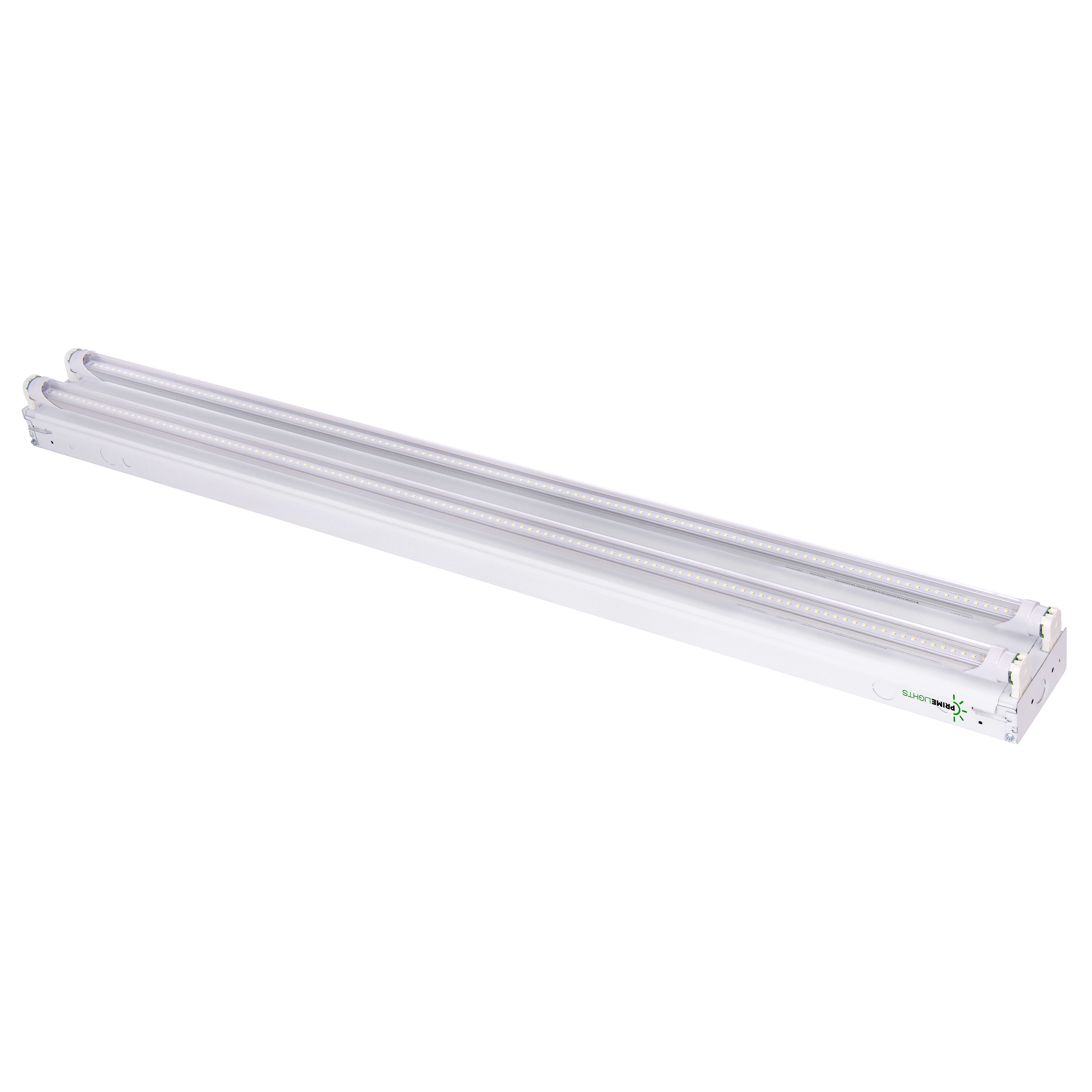

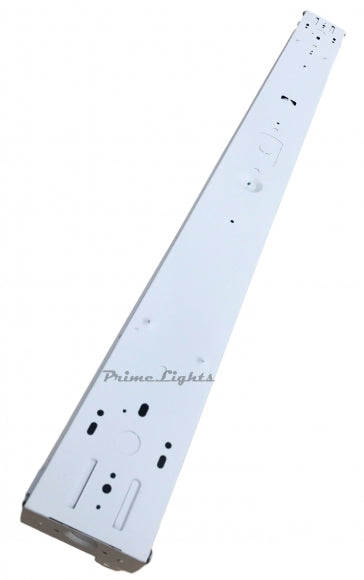

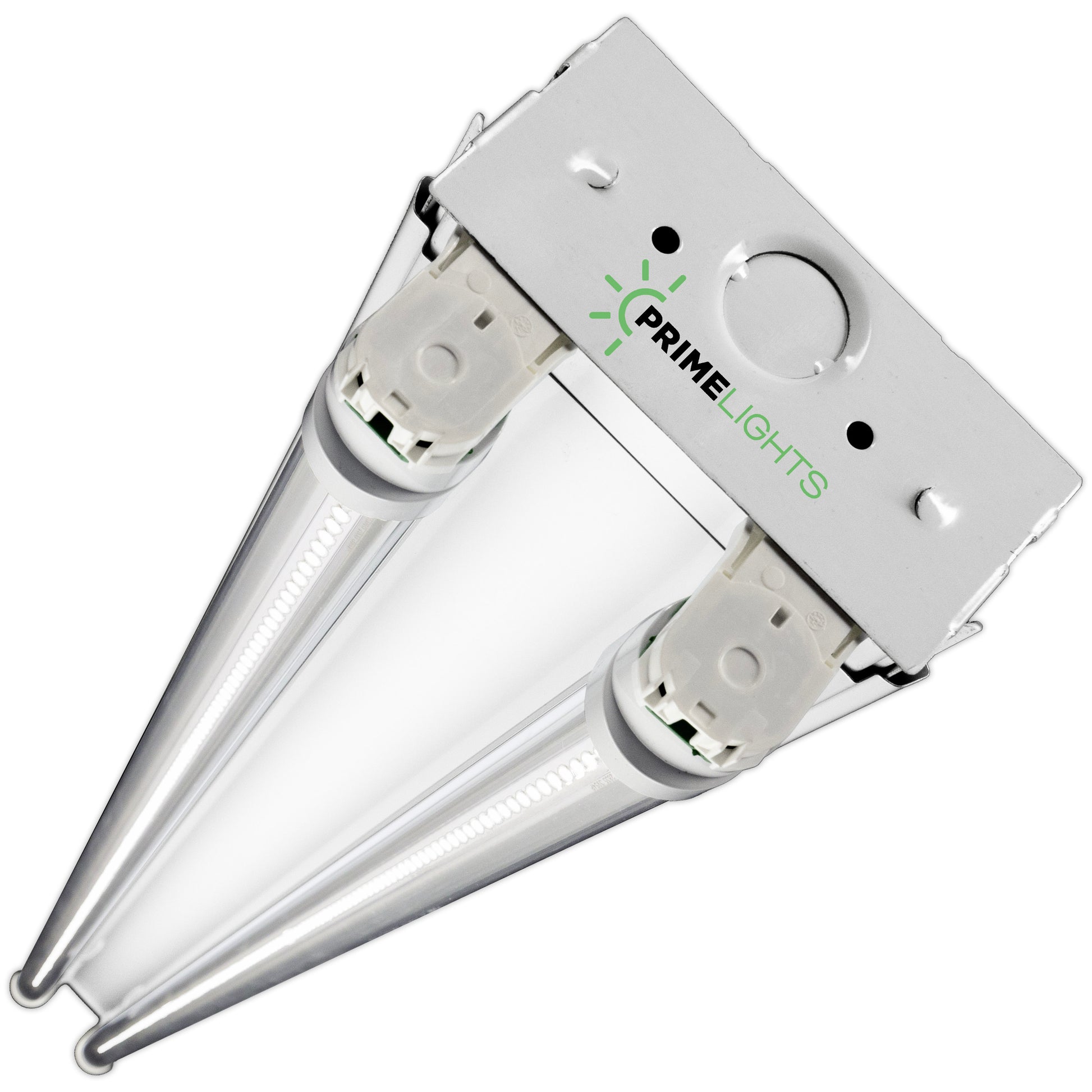

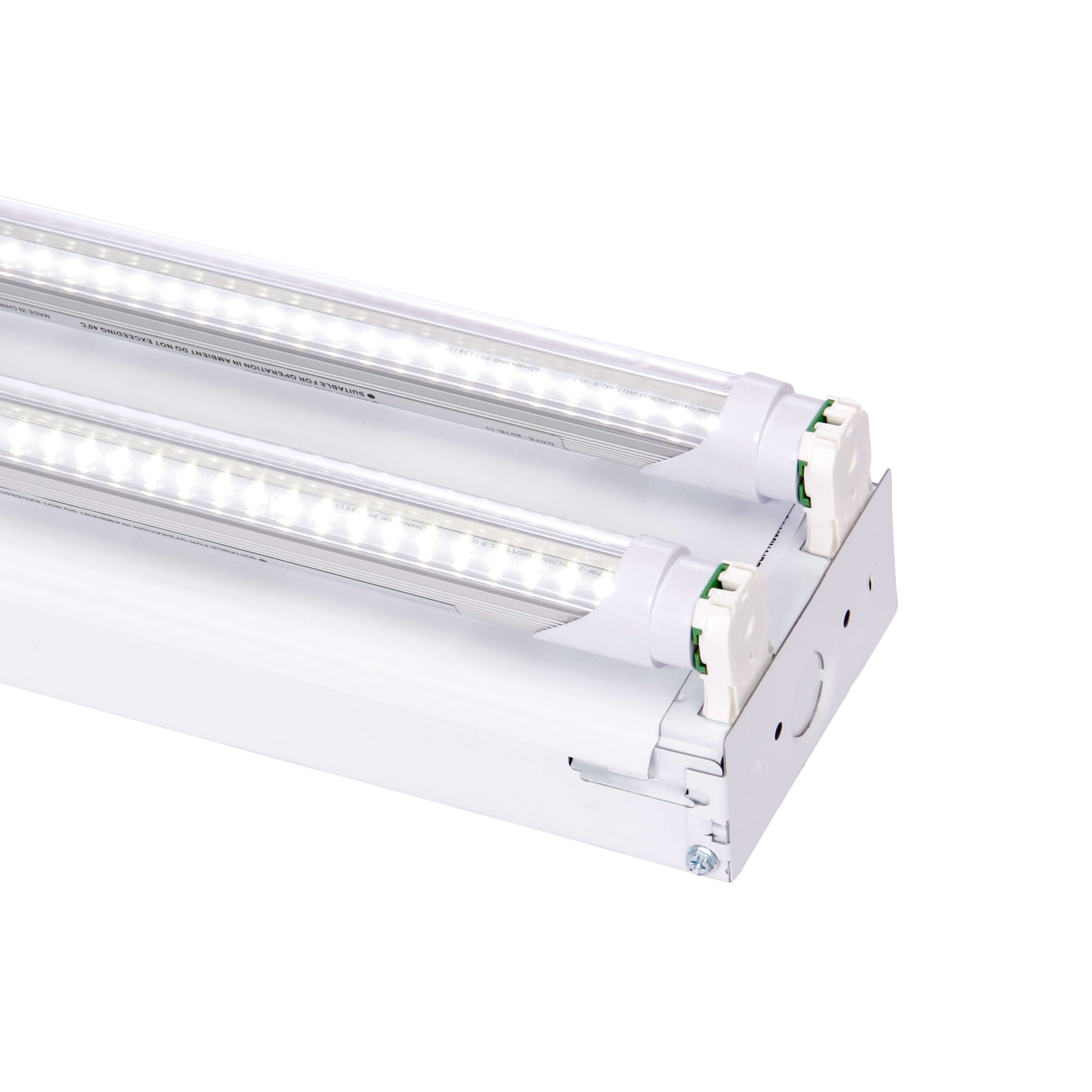

Wired lamp holders, hand removable center cover, luminaire disconnect with 4 connection points for easy daisy chain, 24-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and 3 on the back. Included replaceable T8 LED bulbs with internal drivers - no external drivers or ballasts to maintain. You will never have to change anything inside the fixture. Compatible voltage: 110v,120v, 240v, 277v. PrimeLights warranties every fixture and every bulb for 5 years.
Input Wattage: 44W
Voltage: 110-277V (please call for 480v)
LED Lumens: 5,720
Lumens per watt: 130+
Color Temperature: 5000K daylight white (call for others)
CRI: 83+
Life: >50,000 Hours
Beam Angle: 120°
Amperage @ 120V: 0.37A / Amperage @ 277V: 0.16A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 10,800 (fluorescent equivalent)
Lamp Lens: Clear
Dimming: No (LED with replaceable lamps cannot be installed with dimmer)
LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver.
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.0" Width: 4.5" Depth: 3.5"
Flush mount Install weight (without center cover and lamps): 3.25 lbs
Total weight: 5.5 lbs
Part Number: PL-BOLT4-44W2N
Mounting Options (Hardware not included)
-Surface mountable (most common): Use screws best for mounting material or toggle bolts
-Hang: Aircraft Cable Hangers available in accessories or use any chain with “s” hooks
*Energy Usage: Approx. 70% Less than T5 Fluorescent

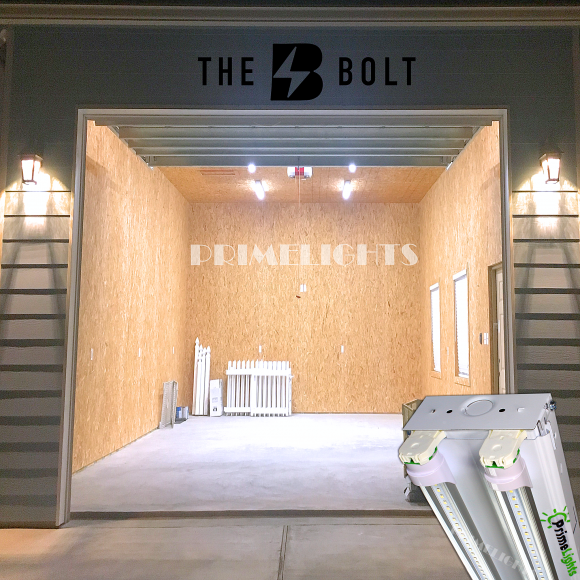

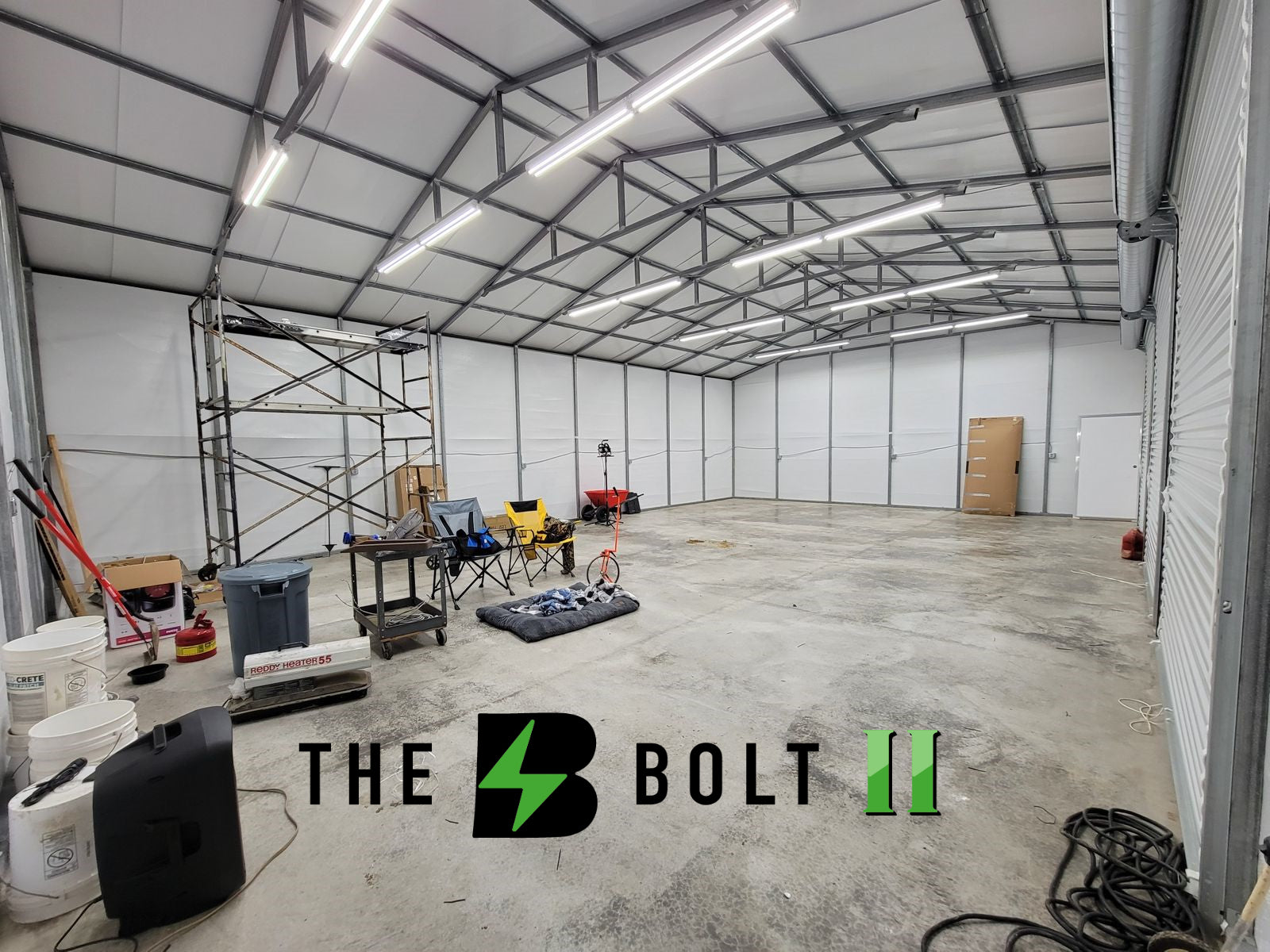

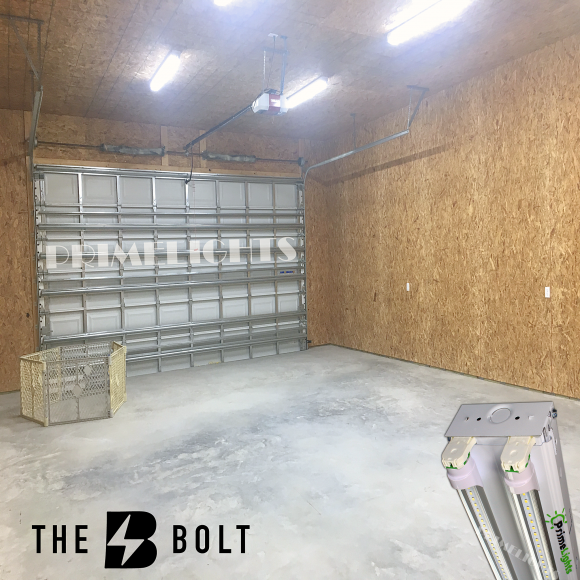

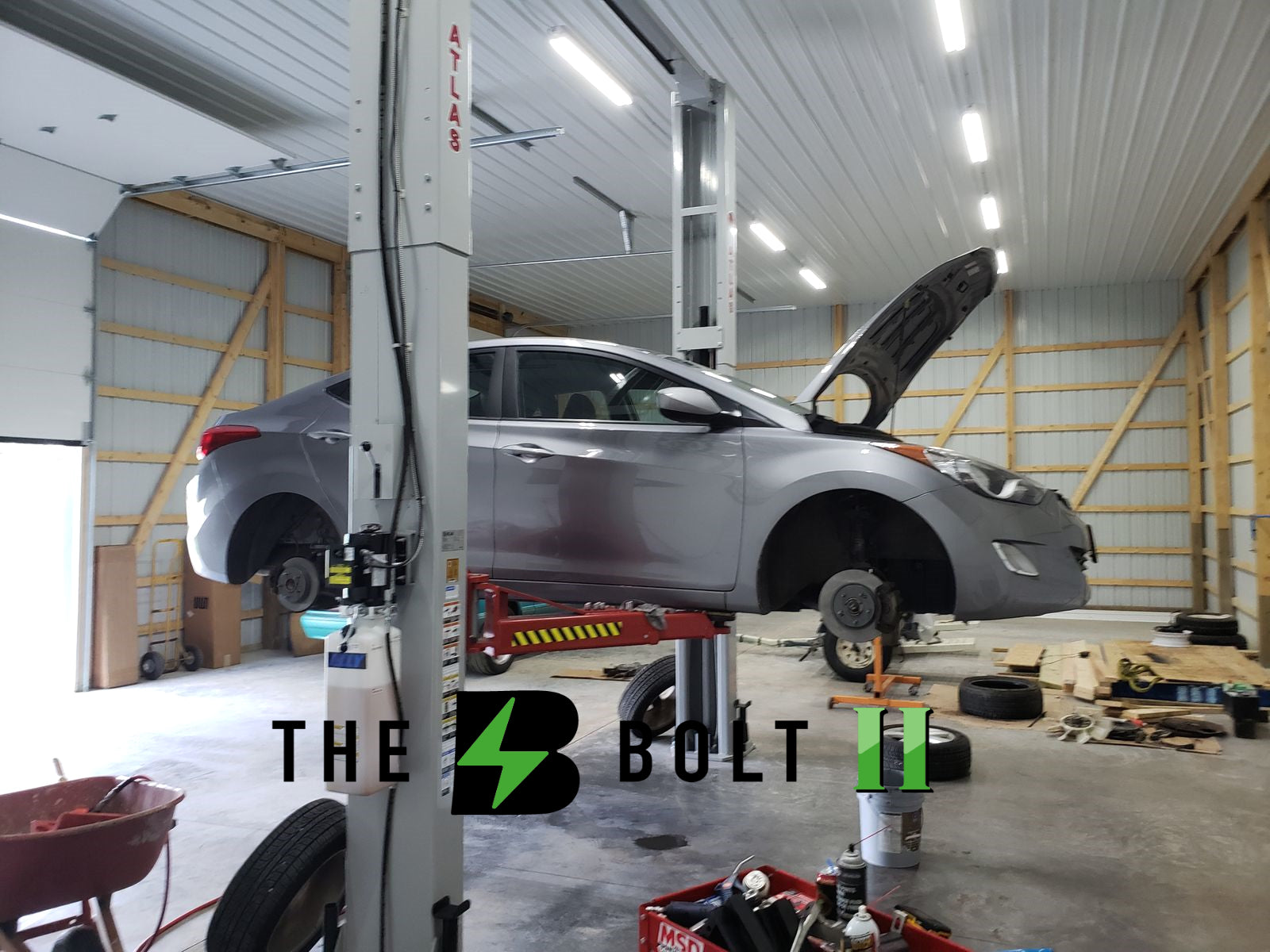

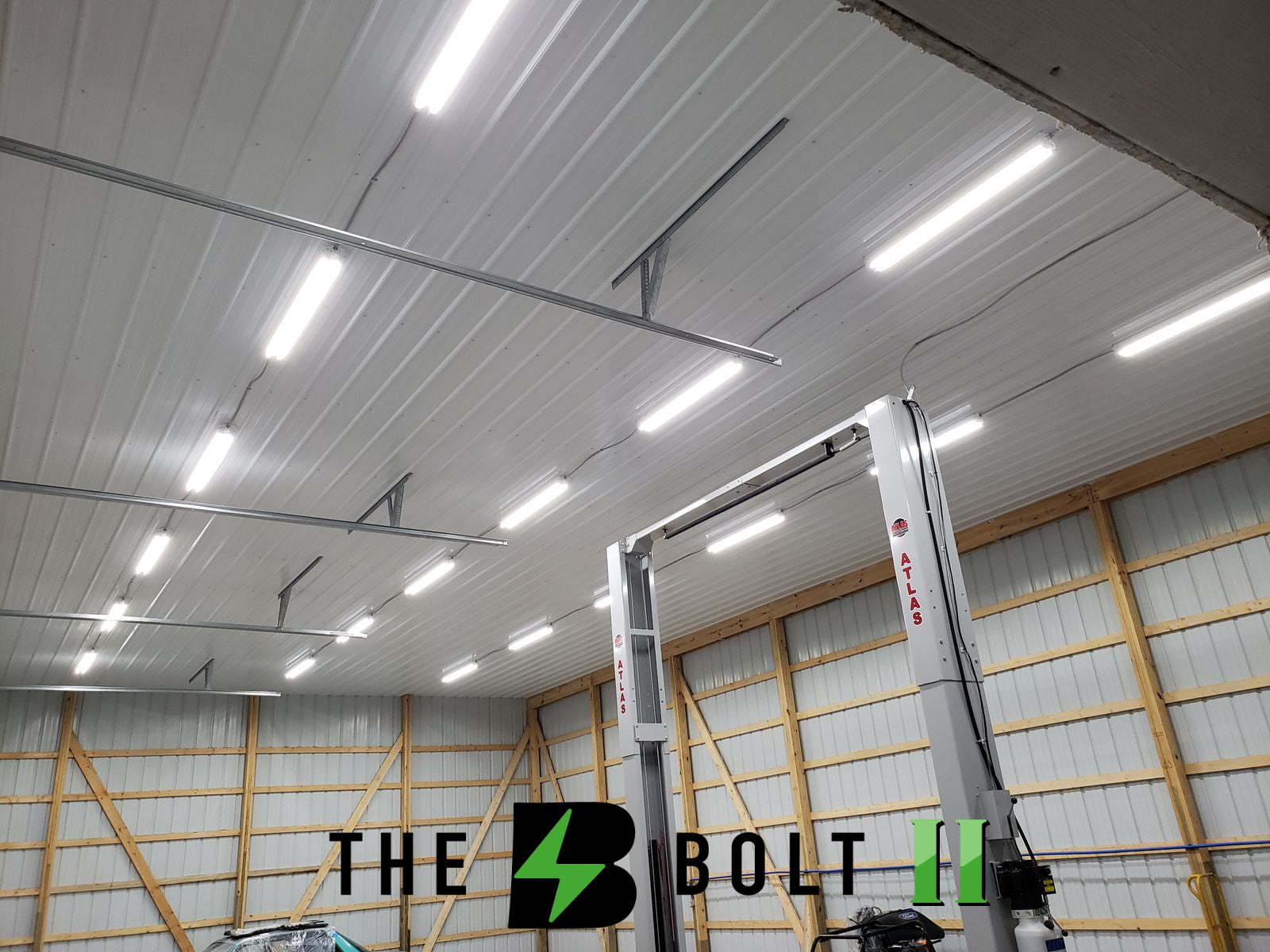

Applications: Replace 8' T12 and 4’ T8 and T5 fluorescent. Use in warehouses, machine shops, pole barns, farms, ranches, auto shops, workshops, airplane hangar, welding, automotive, task lighting, low ceilings, mezzanine, attic, lean to, storage room, above work bench, etc.
Lighting Layouts: Recommended for ceilings under 14’. For higher ceilings see the 3 lamp Bolt. Change these out 1 for 1 with fluorescent strips, or approx 1 fixture per 175sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
Unboxing Instructions
Cord & Plug Installation
Cable Hanger Installation
Occupancy Sensor Installation
