The STINGRAY® 4XL GEN 2.0 is a 4ft, 4-lamp commercial-grade LED fixture delivering an impressive 14,400 lumens at just 80 watts (180+ LPW). Designed in Texas and built tough, it features shatterproof, flicker-free bulbs, a mirrored aluminum reflector, and a no-maintenance internal driver system—no ballasts required. This damp-rated fixture installs easily with surface mount or hanging options and operates on 110–277V. Built from 20-gauge steel, it’s UL/ETL/DLC compliant and backed by a full 5-year warranty on both fixture and lamps. Ideal for warehouses, garages, and shops, it’s the last light you’ll ever need. Made to last over 50,000 hours.
4.9/5 Stars - Over 150,000 Happy Customers Since 2010
Products are in-stock and ready to ship!
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

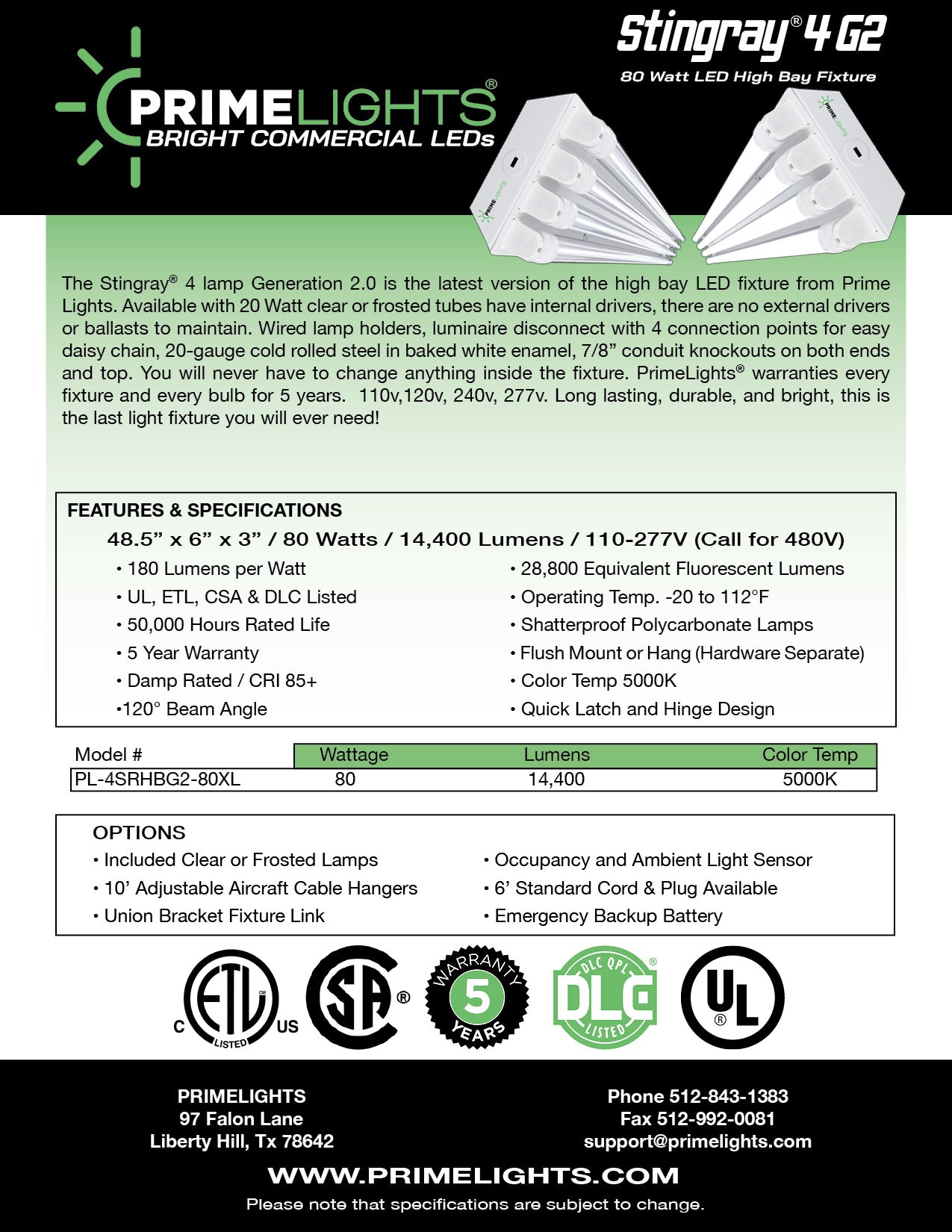

4ft. LED 4 Lamp T8 STINGRAY® 4XL GEN 2.0 - 80W Clear/Frosted LEDs 14,400 lumens
Best, Brighter, Stronger. Easy Install.
COMMERCIAL SPECIFICATION GRADE
Shipping:FREE,In Stock
3rd Party Testing: We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States. Contact for Rebate Info.
Warranty: 5 years on complete fixture including LED lamps.

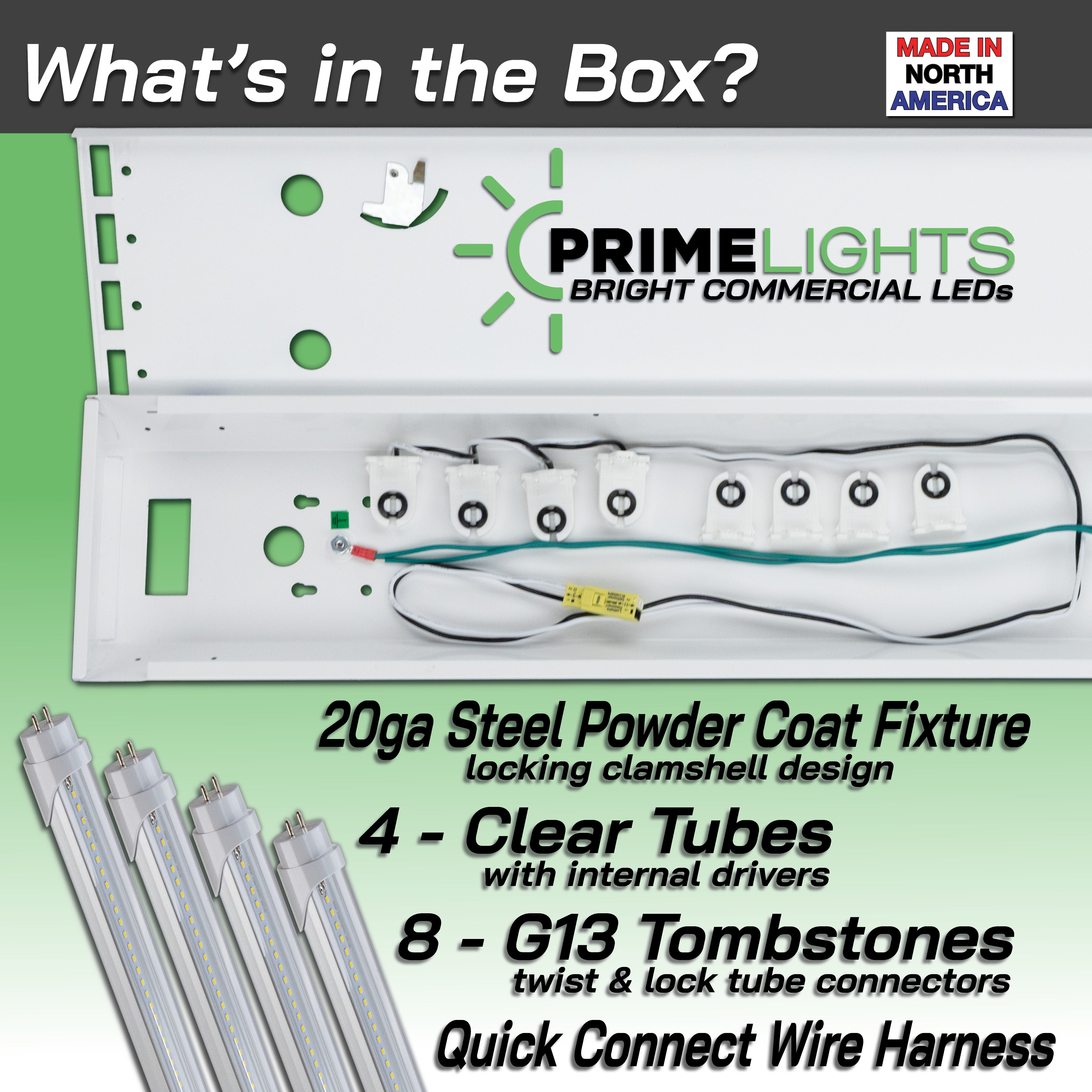

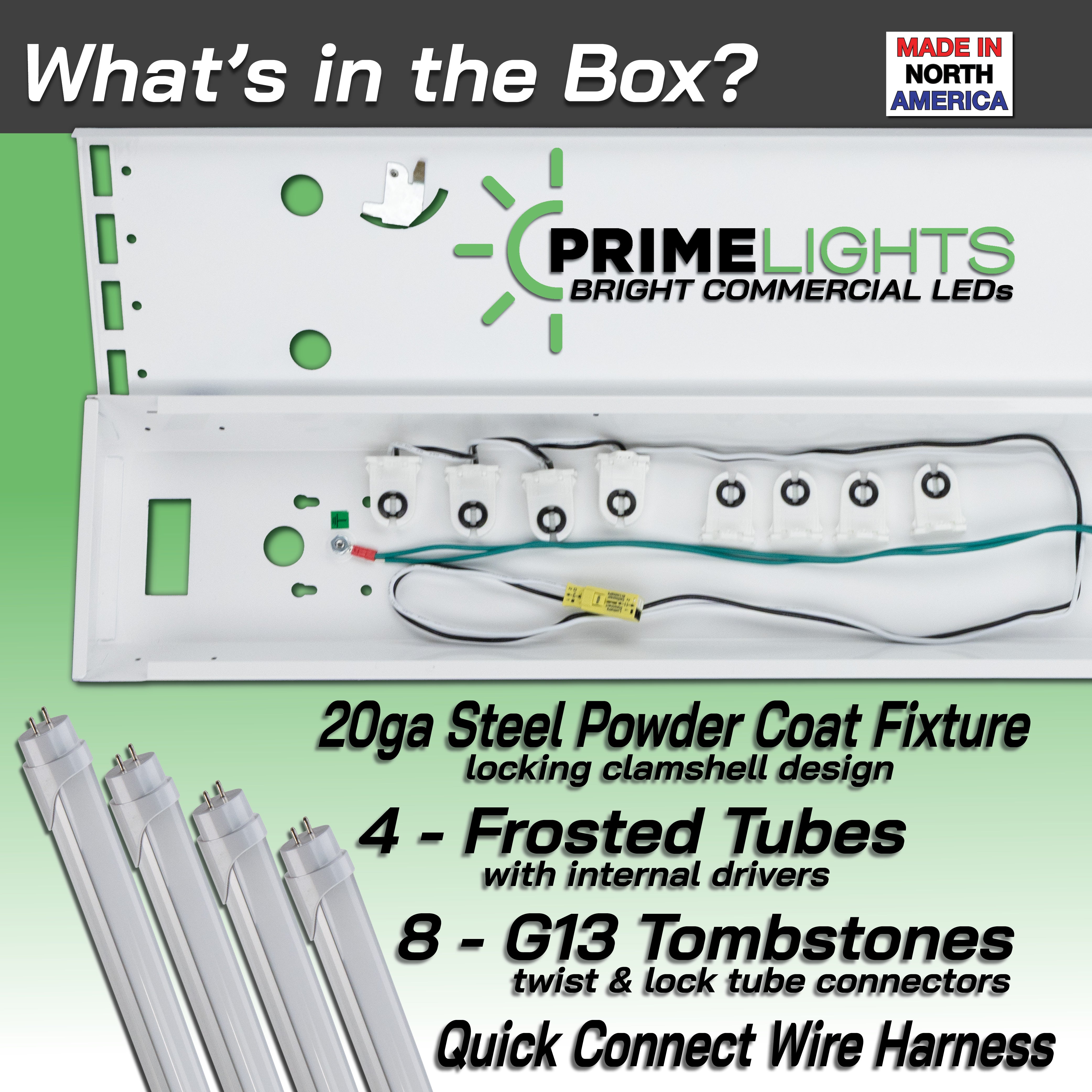

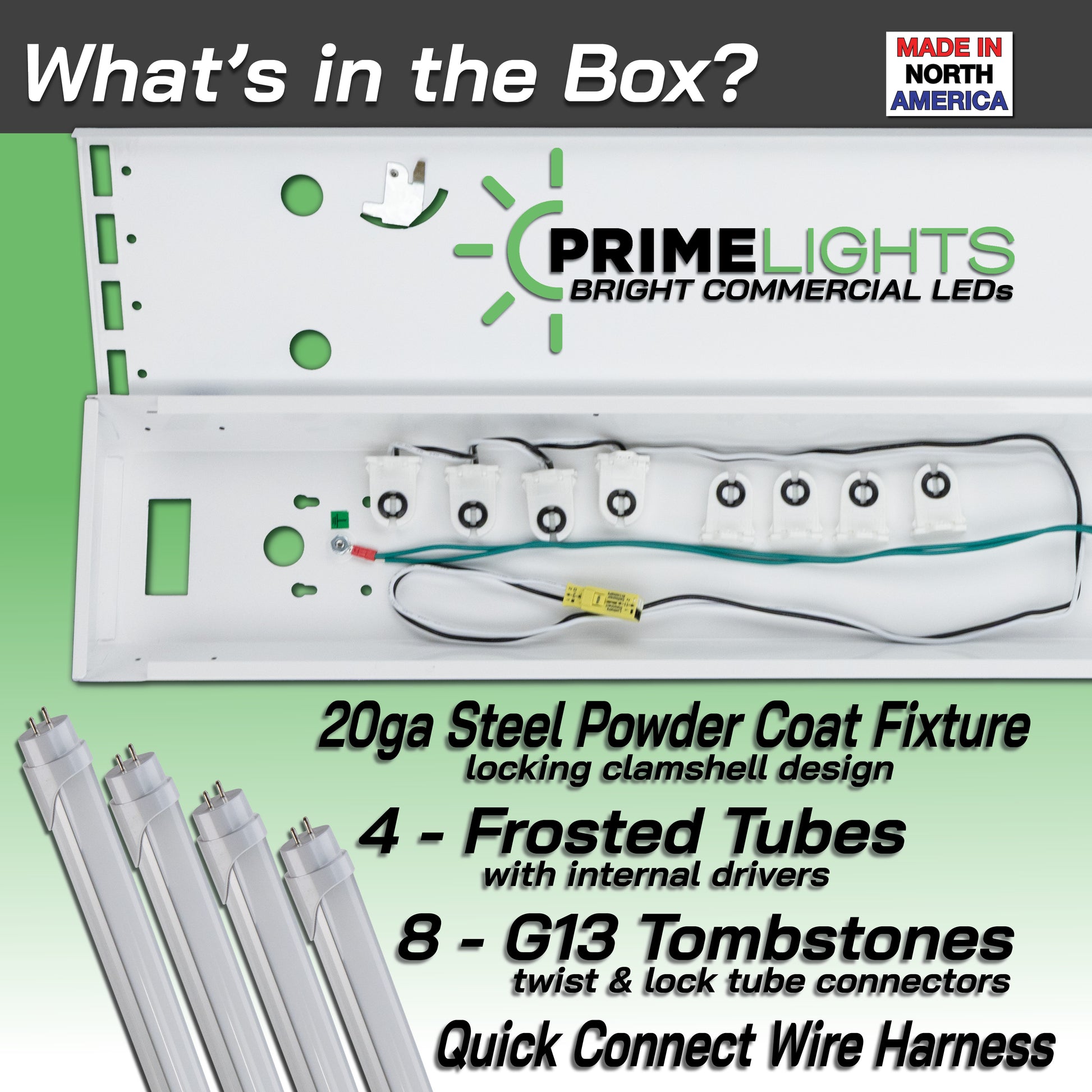

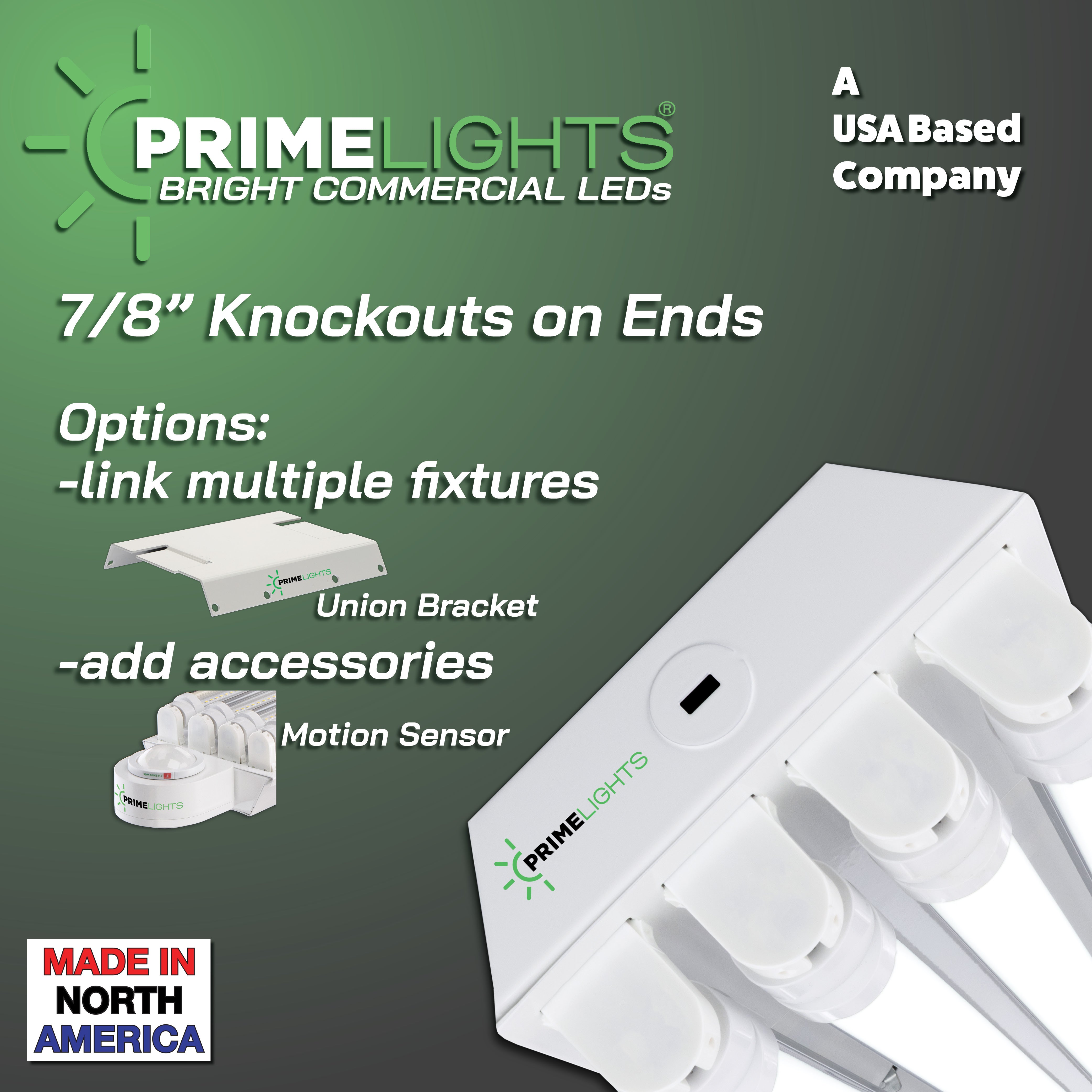

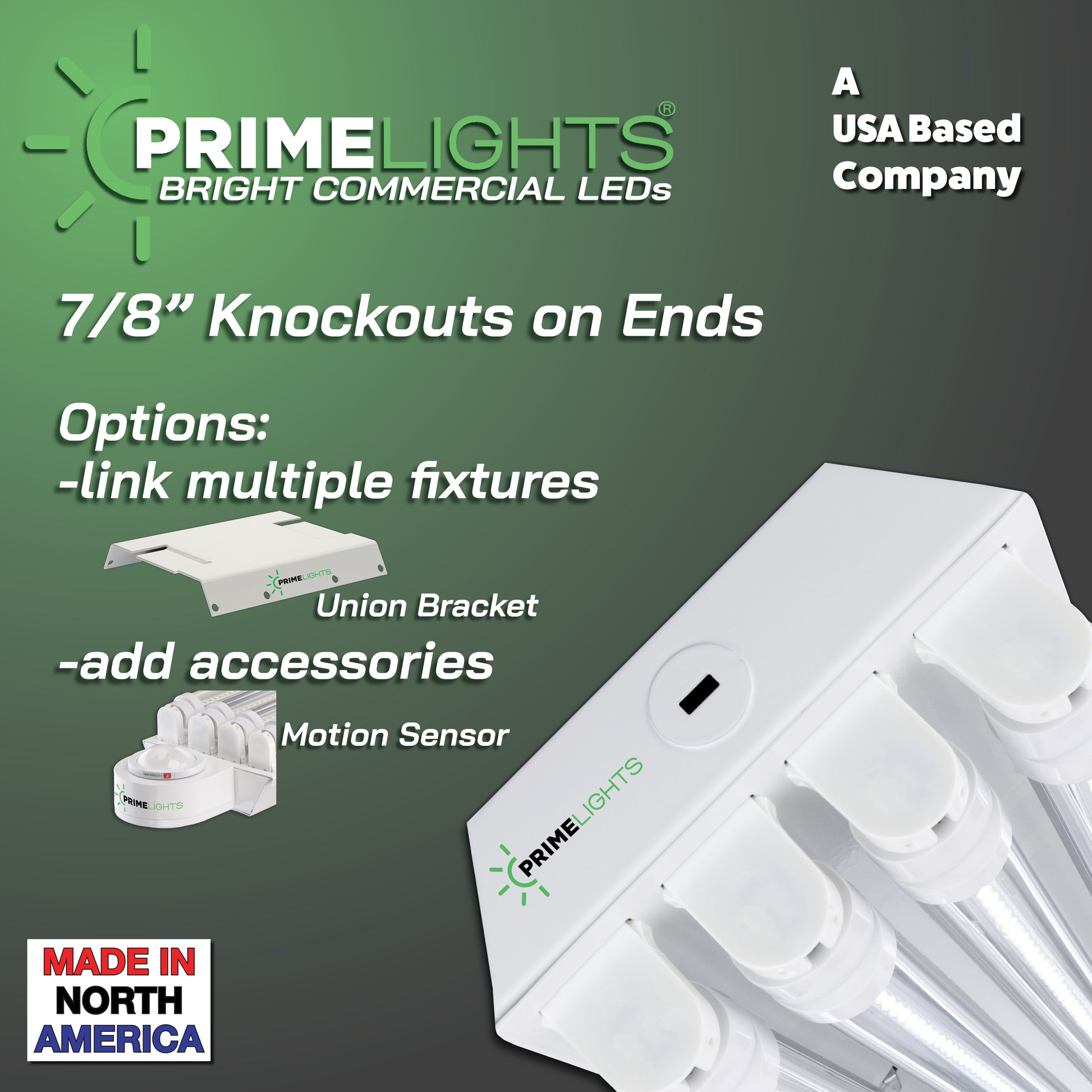

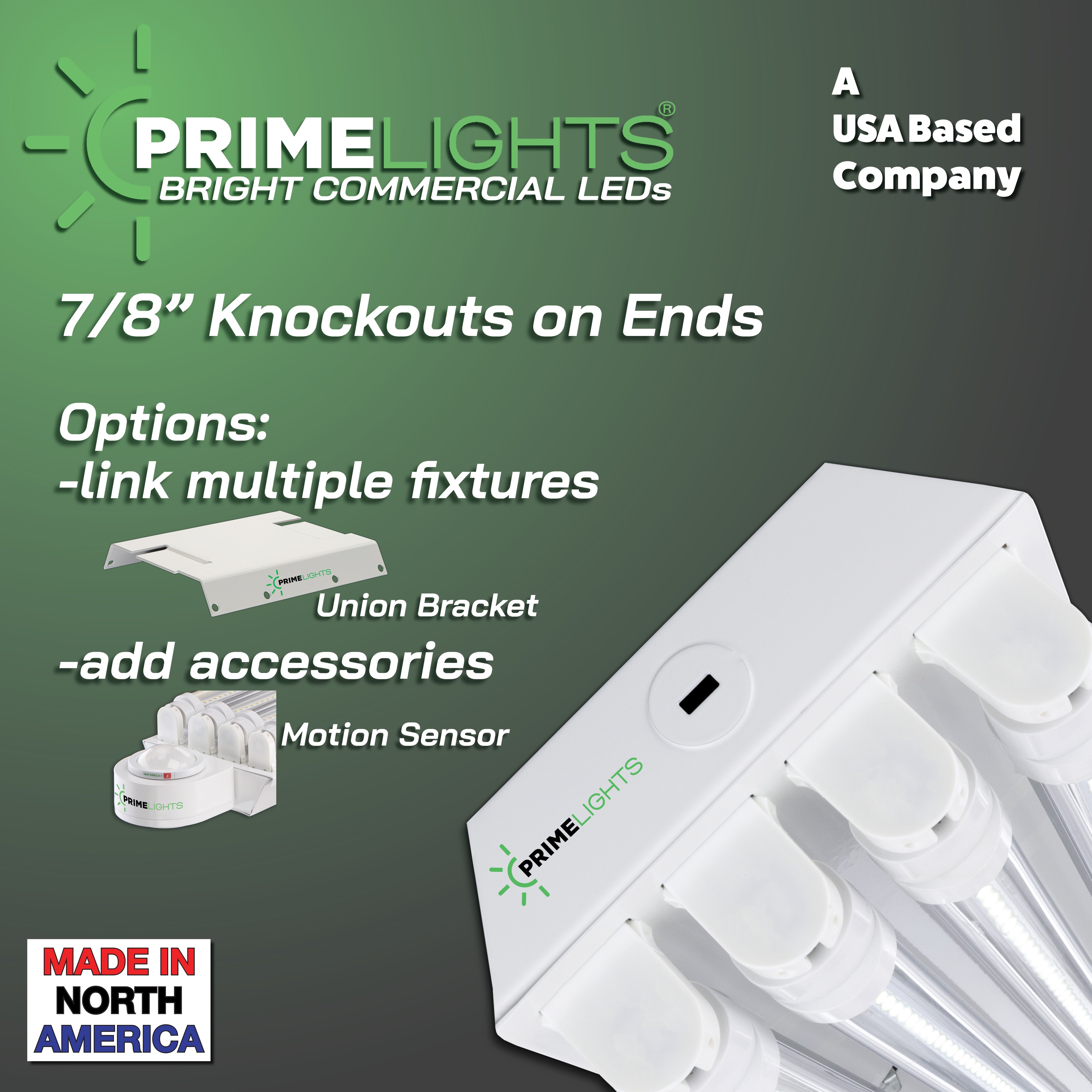

Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector. Clear/Frosted LED bulbs with internal drivers - no external drivers or ballasts to maintain. You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years. 110v,120v, 240v, 277v. Long lasting, durable, and bright, this is the last light fixture you will ever need!
Input Wattage: 80W
Voltage: 110-277V (call for 480V)

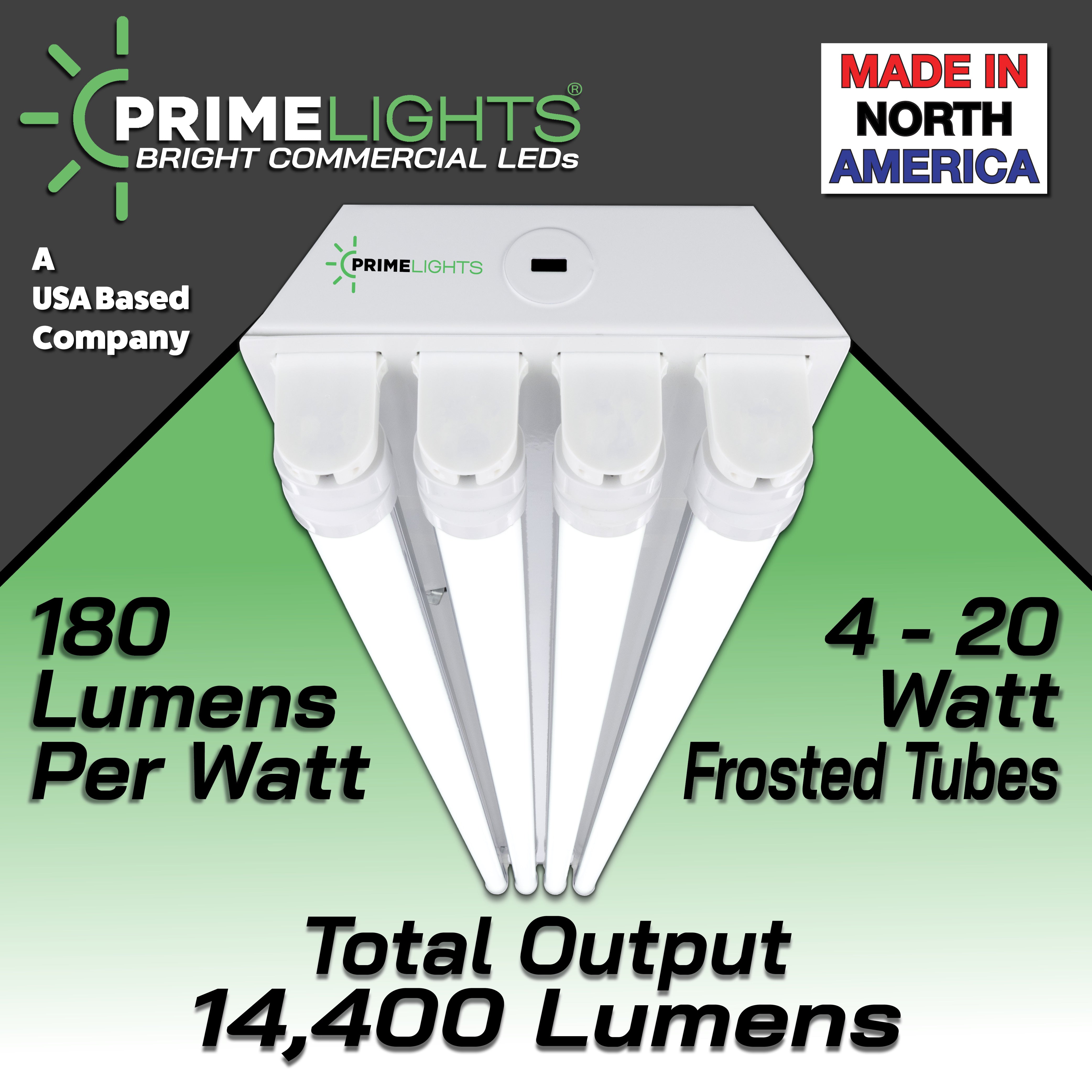

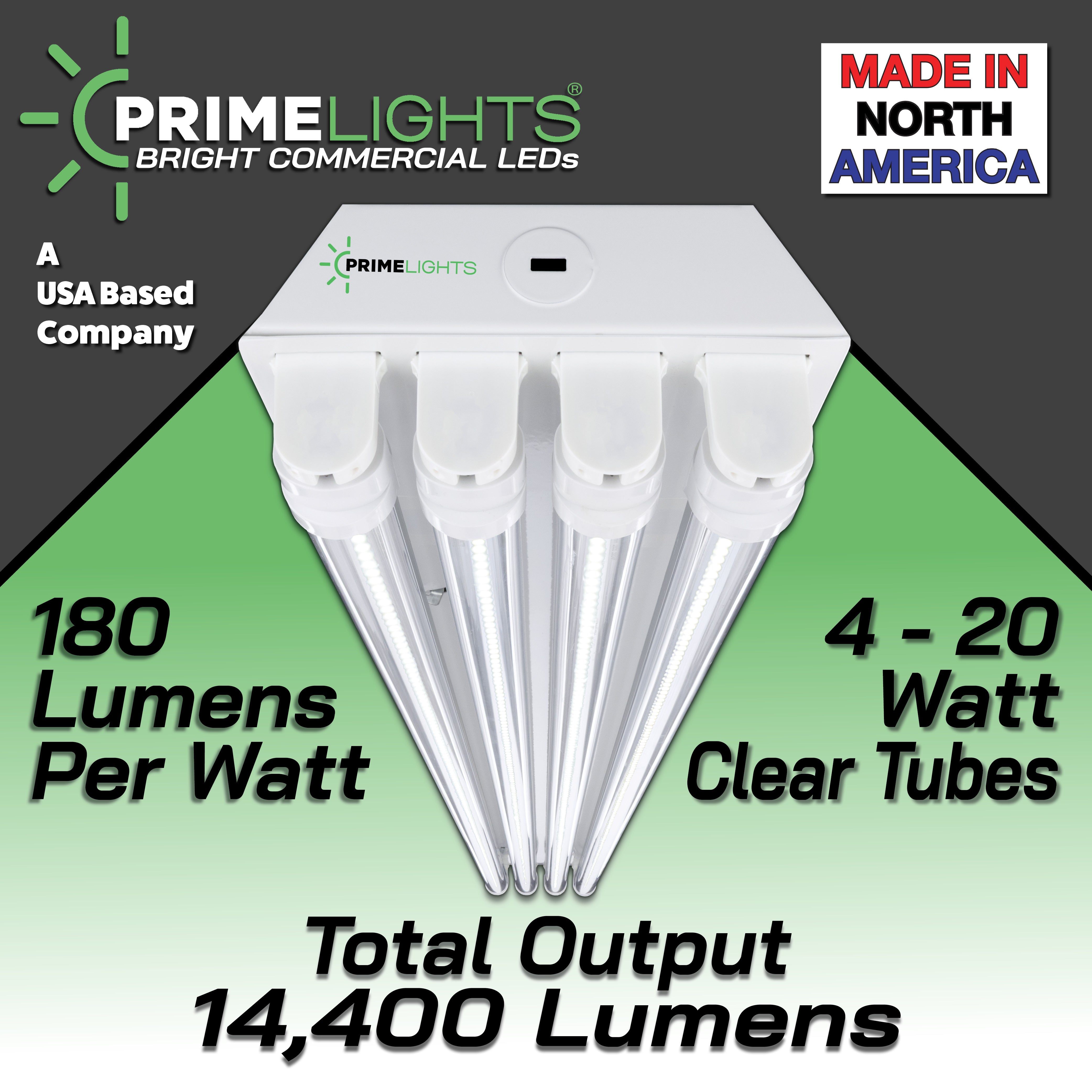

LED Lumens: 14,400
Lumens per watt: 180+
Color Temperature: 5000K (call for others)
CRI: 85+
L70 Life: >50,000 Hours
Beam Angle: 120°
Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 28,800 (fluorescent equiv.)
Lamp Lens: Clear/Frosted
Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)
Dimming: No (not to be used with a dimmer switch, please see Wildcats and UFOs if you need a dimmable fixture)
LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver
Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

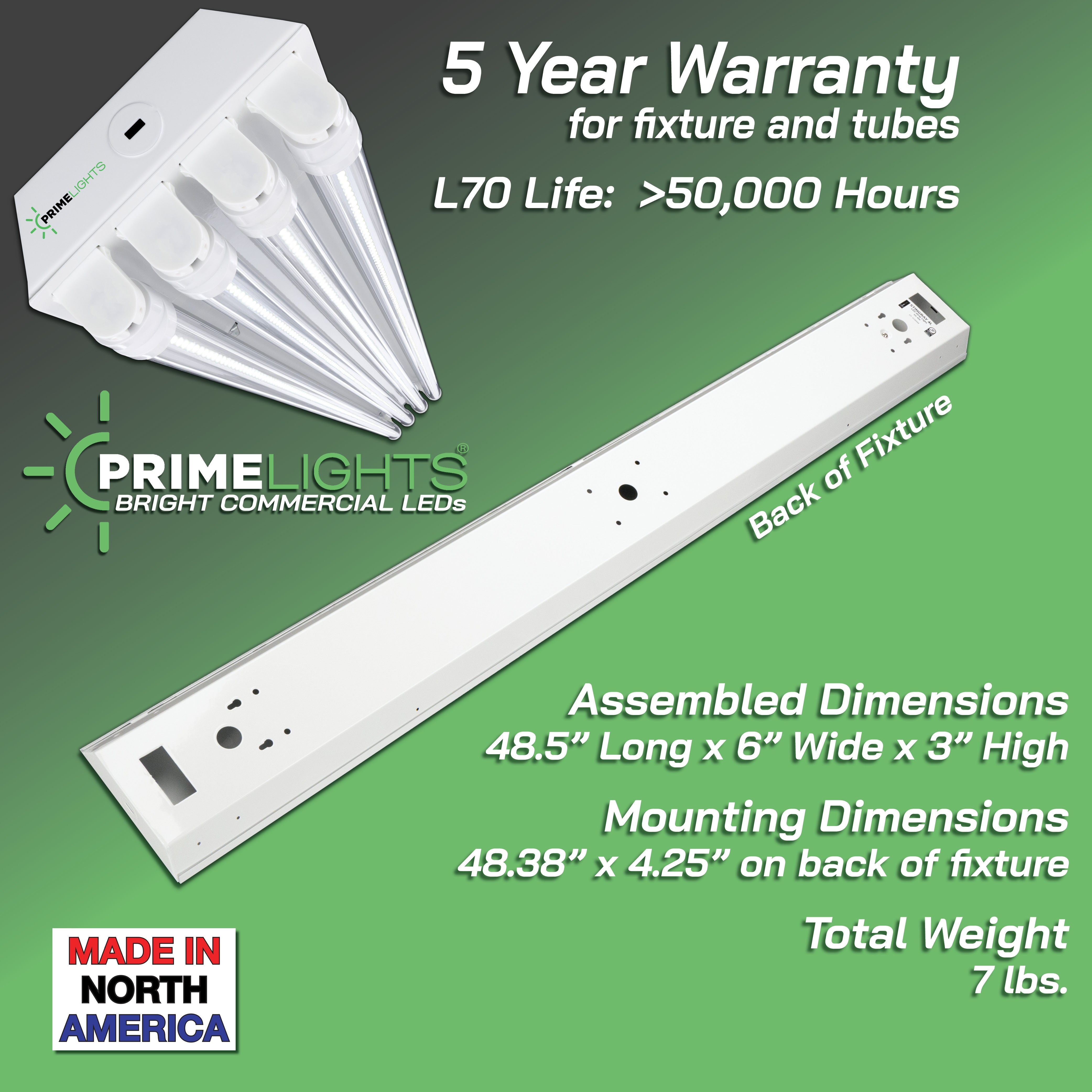

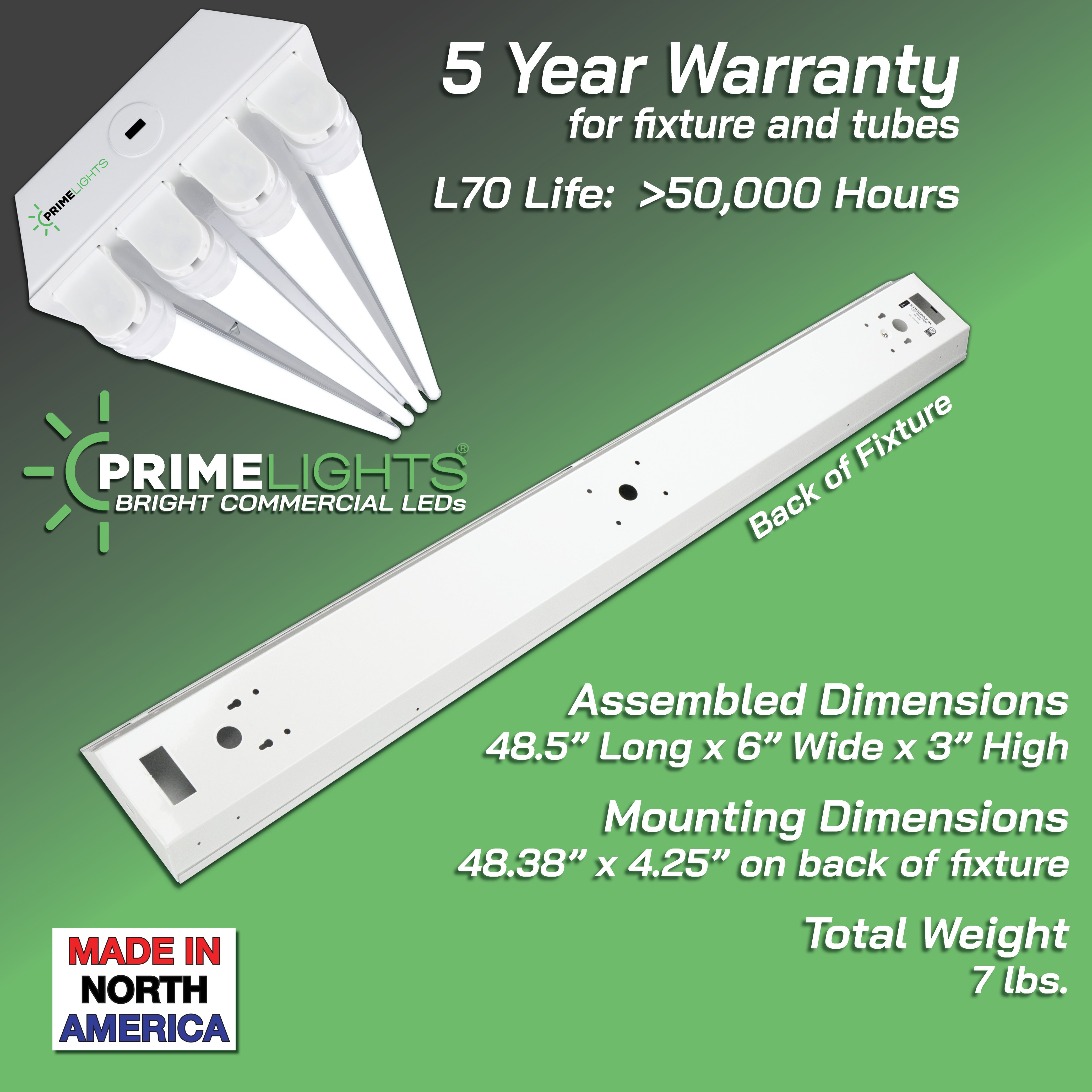

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High
Mounting Dimensions: 48.38" x 4.25" on back of fixture
Total weight: 7 lbs
Part Number: PL-4SRHBG2-80XLCL
Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)
Mounting Options: Hardware not included.
-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.
-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and "S" hooks.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
*Specifications are subject to change without notice.

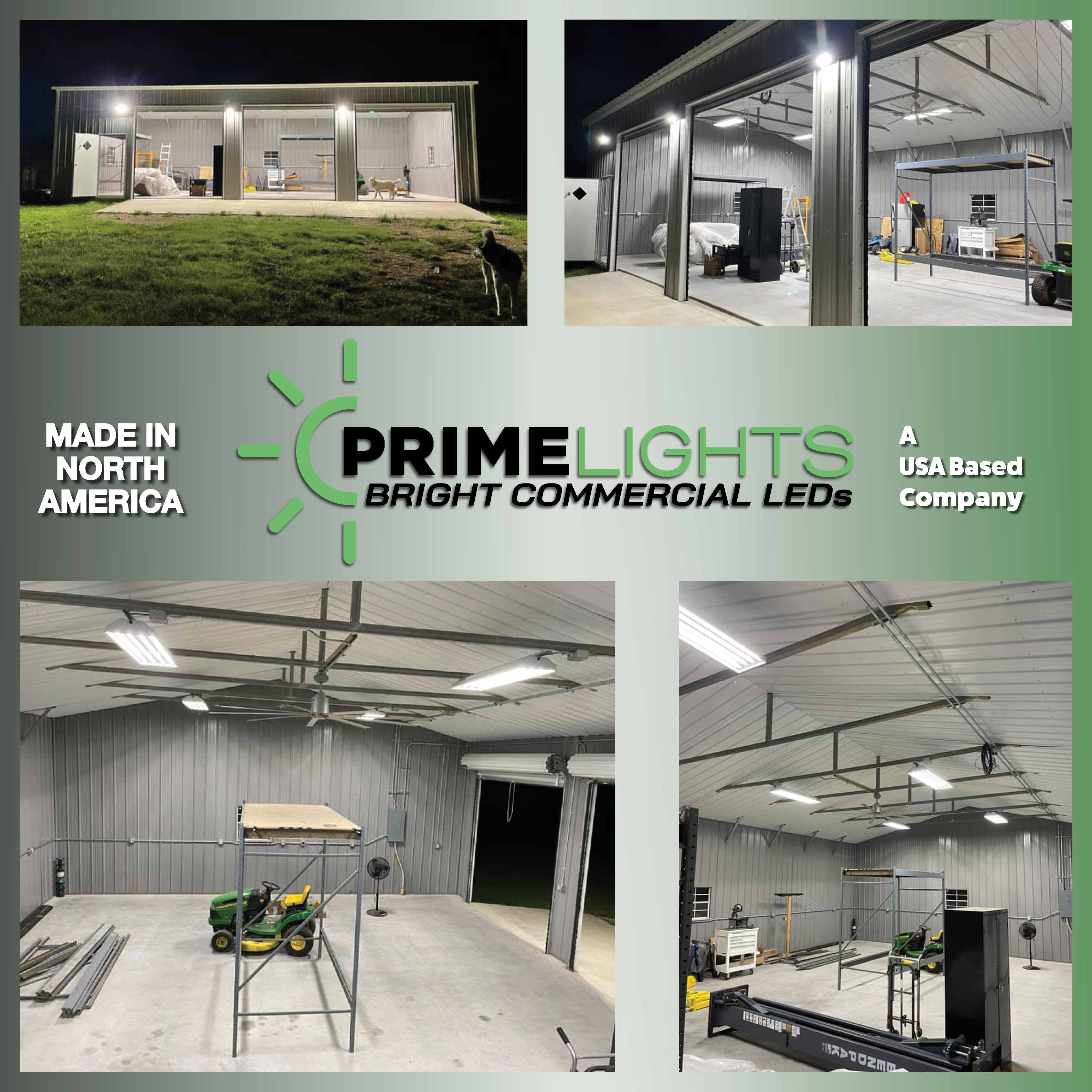

Applications: The PrimeLights® LED Stingray® 4 is the ideal fixture for ceiling heights ranging up to about 20’, depending on spacing and application. Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures. Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few. Frosted lamps provide reduced glare when compared to clear. For higher ceilings please see our PrimeLights® LED Stingray® 6 Series.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 250sf for basic lighting. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. In just a few minutes, receive your free custom professional lighting layout over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels. Call 512-843-1383.
THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®

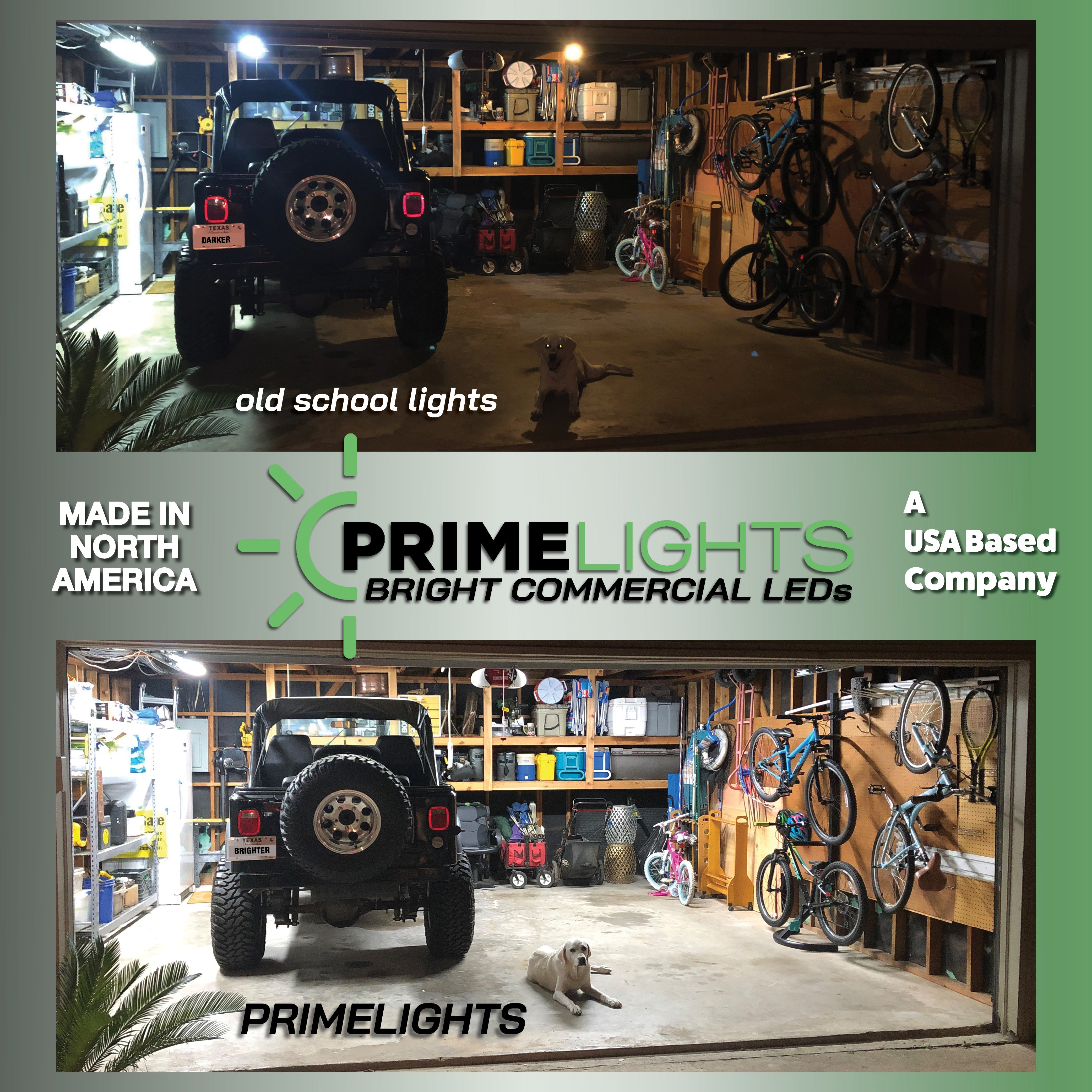

A significant improvement in lighting quality and brightness over the old fluorescent lights that I replaced. This is the third home garage I’ve converted over to Prime STINGRAY lights because I’ve been very pleased from the very start with their quality and great customer service from the company.
Good quality product and fast shipping. I called and the customer service team was very knowledgeable on the product. It was late in the day and they were still able to ship out the lights that day. I needed fast because I had my electrician scheduled to install. Would definitely purchase from again! 5 star service!
I want to start off by saying I came here from obsessed garage. I’ve done tons of research on proper garage lighting to replace my dying Amazon lighting finds. I settled on buying the lighting kit from obsessed garage to support Matt and the team (also worth nothing even on sale the price was comparable). Shipping was quick and the installation process straight forward. I will note the lights come with a quick connector you push the wires into. I did daisy chain a couple and it didn’t seem to make a difference how they were plugged in they just worked.
I would recommend using the obsessed garage website as they provide the best layout plan per lighting kit.
My only critique is a couple of the housings don’t seem to close with the latching mechanism leaving a small gap. Otherwise will see how the product holds up over time. So far very impressed with the brightness.
