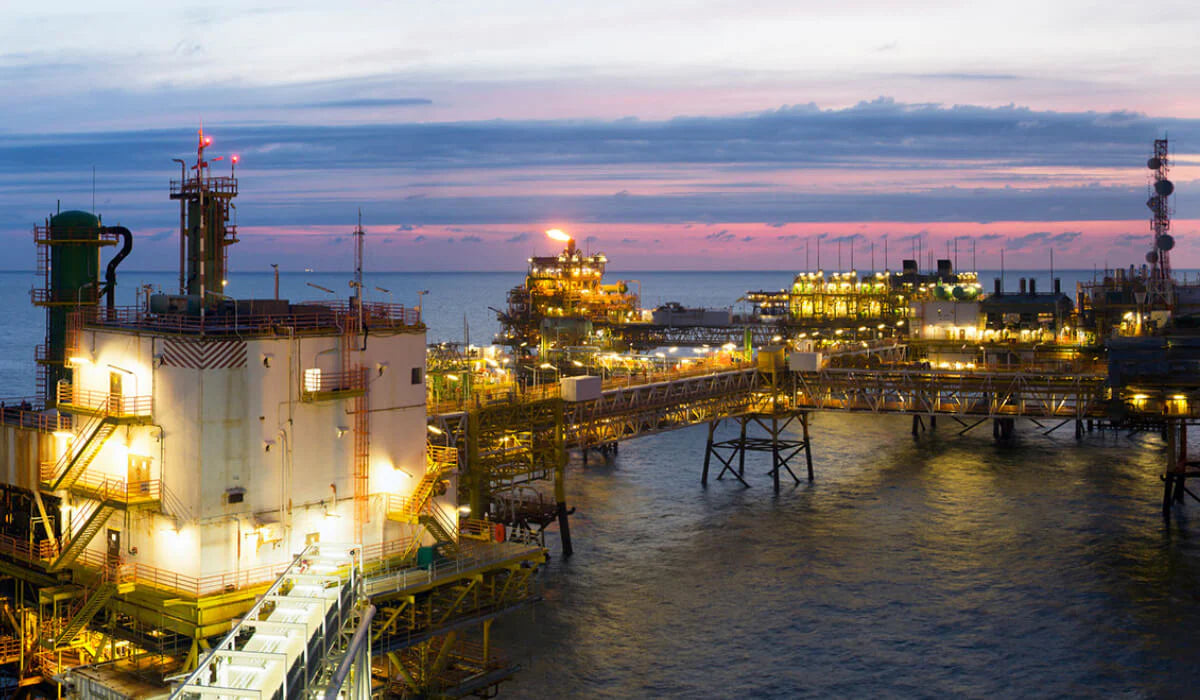

What Is Oil, Gas & Marine LED Lighting?

Oil, gas, and marine LED lighting encompasses the specialized, industrial-grade fixtures engineered for the most demanding and dangerous operating environments on earth — refineries, offshore platforms, petrochemical plants, gas processing facilities, LNG terminals, marine vessels, shipyards, and the sprawling infrastructure that supports global energy production and maritime operations.

This isn't commercial lighting with a tougher housing. These are purpose-built systems designed to operate safely in atmospheres where a single ignition source — a spark from a failing ballast, a hot surface from an overdriven lamp, an arc from a cracked fixture — can trigger an explosion that kills workers and destroys facilities. Every fixture must be classified, tested, and certified for the specific hazardous conditions present at its installation location. There is no margin for error, no "close enough," and no acceptable substitute for properly rated equipment.

At the same time, these environments demand exceptional lighting performance. Refineries and offshore platforms run 24/7, 365 days a year, with maintenance crews, operators, and inspectors working around the clock across intricate networks of pipelines, compressors, pressure vessels, electrical systems, and rotating equipment. Marine vessels navigate, load, and operate in darkness and extreme weather. Every area must be reliably illuminated for safe operations, accurate inspections, emergency response, and regulatory compliance — in conditions that include salt spray, chemical exposure, extreme temperatures, constant vibration, and relentless humidity.

PrimeLights offers a complete range of explosion proof and hazardous location LED fixtures certified for the classifications and conditions that oil, gas, and marine operations require. Our fixtures are trusted by refinery managers, platform operators, marine engineers, and facility safety teams who understand that in these environments, the lighting isn't just equipment — it's life safety infrastructure.

Understanding Hazardous Location Classifications

Before selecting any fixture for an oil, gas, or marine environment, you must understand the hazardous location classification system defined by the National Electrical Code (NEC). This system categorizes environments based on the type of hazard present and the likelihood of that hazard occurring during normal operations.

Getting the classification right isn't optional. Installing a fixture rated for the wrong classification violates NEC, OSHA, and insurance requirements — and puts lives at risk.

NEC Class System: What's in the Air?

Class I — Flammable Gases and Vapors

Class I locations contain — or may contain — concentrations of flammable gases or vapors sufficient to produce explosive or ignitable mixtures. This is the primary classification for the vast majority of oil, gas, and petrochemical environments.

Examples: refineries, gas processing plants, offshore production platforms, LNG terminals, fuel storage and dispensing facilities, pipeline compressor stations, tank farms, marine fuel tanks and pump rooms, chemical plants handling volatile solvents.

Class II — Combustible Dusts

Class II locations contain — or may contain — combustible dust in quantities sufficient to produce explosive or ignitable mixtures. While less common in traditional oil and gas operations, Class II applies to certain processing and handling environments.

Examples: grain handling facilities at port terminals, coal dust environments, certain chemical processing operations, metal dust in fabrication areas adjacent to oil and gas facilities.

Class III — Ignitable Fibers and Flyings

Class III locations contain easily ignitable fibers or materials that produce combustible flyings. Less common in oil and gas but relevant to certain marine and industrial applications.

Examples: textile processing, woodworking operations on marine vessels, certain material handling operations.

NEC Division System: How Likely Is the Hazard?

Within each Class, locations are further categorized by the probability that a hazardous atmosphere will be present:

Division 1 — Hazardous Conditions Exist Under Normal Operations

The hazardous atmosphere is present continuously, intermittently, or periodically during normal operations. Equipment failure or maintenance activities may also release hazardous concentrations.

Examples: areas near open process vessels, pump seals that routinely leak, spaces adjacent to relief valves that regularly vent, the interior of fuel tanks and vessels, poorly ventilated spaces where gases accumulate during normal operations.

Division 1 requires the highest level of fixture protection. Fixtures must be designed so that any internal fault — arcing, sparking, or heat generation — is fully contained within the fixture housing and cannot ignite the surrounding atmosphere.

Division 2 — Hazardous Conditions Exist Only Under Abnormal Conditions

The hazardous atmosphere is not normally present during routine operations but may occur due to equipment failure, rupture, maintenance activities, or abnormal operating conditions.

Examples: areas adjacent to Division 1 locations, spaces where adequate ventilation normally prevents hazardous accumulation but could fail, storage areas for sealed containers of flammable materials, pipeline corridors during maintenance.

Division 2 allows some fixture types that would not be acceptable in Division 1, because the hazardous atmosphere is not expected under normal conditions. However, fixtures must still prevent ignition in the event that an abnormal release creates a hazardous atmosphere.

NEC Zone System: The International Alternative

Some facilities — particularly those designed by international engineering firms or operating under global standards — use the IEC Zone classification system instead of the Division system:

ZoneEquivalentHazard PresenceZone 0More restrictive than Division 1Hazardous atmosphere present continuously or for long periodsZone 1Similar to Division 1Hazardous atmosphere likely during normal operationsZone 2Similar to Division 2Hazardous atmosphere not normally present; only under abnormal conditionsZone 20Class II, Division 1Combustible dust present continuouslyZone 21Class II, Division 1Combustible dust likely during normal operationsZone 22Class II, Division 2Combustible dust not normally present

When specifying fixtures, verify which classification system your facility uses — NEC Division or IEC Zone — and ensure fixtures are certified accordingly.

Temperature Class (T-Code): The Invisible Hazard

Every flammable gas and vapor has an auto-ignition temperature — the temperature at which it ignites without a spark or flame. Fixtures in hazardous locations must be rated to ensure their maximum surface temperature never reaches the auto-ignition temperature of the gases present.

Temperature class ratings define the maximum surface temperature a fixture will reach under worst-case operating conditions:

T-CodeMax Surface TemperatureCommon Gases Below This ThresholdT1450°C (842°F)Hydrogen, methane, acetyleneT2300°C (572°F)Ethanol, butaneT2A280°C (536°F)—T2B260°C (500°F)—T2C230°C (446°F)—T2D215°C (419°F)—T3200°C (392°F)Gasoline, hexane, petroleum naphthaT3A180°C (356°F)—T3B165°C (329°F)—T3C160°C (320°F)—T4135°C (275°F)Acetaldehyde, diethyl etherT4A120°C (248°F)—T5100°C (212°F)Carbon disulfideT685°C (185°F)—

Critical point: The fixture's T-code must be equal to or lower than the auto-ignition temperature of any gas or vapor present at the installation location. A T3-rated fixture is safe for gasoline vapor environments (auto-ignition 280°C) but NOT safe for carbon disulfide environments (auto-ignition 90°C, requiring T5 or T6).

LED fixtures have a significant inherent advantage here. Because LEDs operate at dramatically lower temperatures than HID, incandescent, and halogen fixtures, they naturally achieve lower T-code ratings — expanding the range of hazardous environments where they can be safely deployed.

What Are Explosion Proof LED Lights?

Explosion proof lights are engineered fixtures designed to operate safely in atmospheres where flammable gases, vapors, or combustible dusts are present. The term "explosion proof" is frequently misunderstood — it does not mean the fixture prevents explosions in the surrounding environment. It means the fixture is designed so that:

1. Internal containment: If flammable gases enter the fixture housing and an internal ignition occurs (from arcing, sparking, or hot surfaces), the resulting explosion is fully contained within the fixture. The heavy-duty enclosure withstands the internal blast pressure without rupturing.

2. Flame path cooling: Hot gases from any internal explosion are cooled as they escape through precisely engineered flame paths (machined joints and threading in the fixture housing). By the time gases exit the fixture, they've cooled below the ignition temperature of the surrounding atmosphere — preventing the internal event from propagating externally.

3. Surface temperature control: The fixture's external surface temperature is maintained below the auto-ignition temperature of the surrounding hazardous atmosphere under all operating conditions, including fault conditions.

This is fundamentally different from sealed, vapor tight, or shatterproof fixtures:

Fixture TypeWhat It DoesWhat It Doesn't DoVapor Tight (IP65+)Seals against moisture and dust intrusionNOT rated for explosive atmospheresShatterproofResists lens/housing breakage from impact or heatNOT rated for explosive atmospheresExplosion ProofContains internal ignition, cools escaping gases, controls surface temperatureRated for classified hazardous locations

Never substitute a vapor tight or shatterproof fixture for an explosion proof fixture in a classified hazardous location. They serve entirely different purposes and a vapor tight fixture in a Division 1 location is a code violation and a life-threatening hazard.

Why LED Technology Is Transforming Hazardous Location Lighting

The transition from legacy HID (metal halide, high pressure sodium, mercury vapor) to LED in oil, gas, and marine applications represents more than an efficiency upgrade — it fundamentally improves safety, reliability, and operational performance in the most demanding environments on earth.

Legacy HID Hazardous Location Lighting: The Problems

Metal Halide and HPS in Hazardous Locations

ProblemOperational Impact5-15 minute warm-up / restrikeWorkers in darkness during power interruptions — critical safety hazard around heavy equipment, elevated platforms, and confined spacesExtreme operating temperaturesHigher T-code ratings required, limiting deployment in some environments; increased cooling load in enclosed spaces30-40% lumen depreciation over lifeProgressive dimming between expensive relamping cycles; areas gradually fall below minimum illumination standards6,000-15,000 hour lifespanFrequent relamping in hard-to-access locations — often requiring scaffolding, confined space entry, hot work permits, and production shutdownsFragile componentsGlass envelopes, filaments, and arc tubes vulnerable to vibration damage common on platforms, vessels, and processing facilitiesHigh energy consumption250-1000W per fixture; significant cumulative load across facilities with hundreds or thousands of fixturesMercury contentHazardous waste disposal requirements; environmental risk if fixture is damaged

LED Advantages in Hazardous Locations

Instant-On Performance — The #1 Safety Advantage

LED fixtures reach full brightness the instant power is applied. In hazardous environments where power interruptions are common — from storm-related outages on offshore platforms to load-shedding during process upsets to intentional shutdowns during emergency response — instant restrike means workers are never left in darkness. No 15-minute wait for metal halide to restrike while operators navigate pipe racks, compressor decks, or marine engine rooms blind.

This single advantage has prevented more accidents than any other LED benefit. When the lights go out in a refinery at 2 AM and come back 3 seconds later at full brightness instead of 15 minutes later at half output, the safety implications are enormous.

Dramatically Lower Operating Temperatures

LED fixtures operate at a fraction of the temperature of HID alternatives. This directly improves safety in hazardous locations by enabling lower T-code ratings (expanding where fixtures can be safely installed), reducing heat contribution to enclosed and confined spaces, decreasing the risk of thermal degradation to fixture seals and housings, and extending the life of all fixture components.

50,000-100,000+ Hour Lifespan — Eliminating Dangerous Maintenance

Relamping fixtures in oil, gas, and marine environments isn't routine maintenance — it's a complex operation that may require scaffolding erection in process areas, confined space entry permits and safety watch, hot work permits in hazardous zones, production shutdowns or area isolations, marine vessel scheduling around port availability, and specialized labor at premium rates.

Each relamping event represents a safety exposure for maintenance workers and an operational disruption for the facility. LED fixtures rated for 50,000-100,000+ hours reduce relamping frequency by 5-10x compared to HID — and in many installations, the fixture will outlast the operational life of the process unit or vessel it's installed on. Every avoided lamp change is a avoided safety exposure.

Superior Vibration Resistance

Oil and gas facilities and marine vessels are high-vibration environments. Compressors, pumps, rotating equipment, diesel engines, wave action, and process pulsation create constant vibration that destroys HID filaments and arc tubes. LED fixtures are solid-state — no filaments, no arc tubes, no glass envelopes. They handle continuous vibration without degradation, maintaining full performance in environments that would burn through HID lamps at accelerated rates.

50-75% Energy Reduction

Energy costs on offshore platforms, remote processing facilities, and marine vessels are far higher than typical commercial rates — often $0.25-$0.50+ per kWh when factoring in the cost of generating or transporting power. LED's 50-75% energy reduction at these rates produces dramatic savings, and in facilities with hundreds or thousands of fixtures, the financial impact is measured in hundreds of thousands of dollars annually.

Reduced Heat Load

In climate-controlled spaces — control rooms, switchgear rooms, analyzer houses, and living quarters on offshore platforms and marine vessels — the heat generated by lighting directly increases cooling load. LED's lower heat output reduces HVAC requirements, a particularly valuable benefit in offshore and marine environments where cooling capacity is constrained and expensive.

No Mercury

LED fixtures contain no mercury, eliminating the hazardous waste disposal requirements associated with HID lamps and reducing environmental risk in the event of fixture damage — a meaningful consideration on offshore platforms and marine vessels where environmental compliance is heavily regulated.

Types of LED Fixtures for Oil, Gas & Marine Applications

Explosion Proof LED High Bay and Low Bay Fixtures

Best For: Process areas, compressor buildings, pump rooms, tank farms, offshore platform decks, marine engine rooms, any Class I/Division 1 or 2 location requiring area illumination

The workhorse of hazardous location lighting. Explosion proof high bay and low bay fixtures provide general area illumination in the classified zones where the majority of oil, gas, and marine operations take place. Available in output ranges from 5,000 to 50,000+ lumens, these fixtures mount at heights from 10 to 40+ feet and are rated for the Class, Division, and temperature code of the specific installation.

Cast aluminum or stainless steel housings withstand the corrosive atmospheres of coastal, offshore, and chemical processing environments. Marine-grade coatings and hardware resist salt spray degradation. Tempered glass or polycarbonate lenses handle impact and thermal cycling.

Explosion Proof LED Linear Fixtures

Best For: Pipe racks, walkways, access corridors, trench lighting, module interiors, below-deck marine spaces, confined area access

Linear explosion proof fixtures provide elongated illumination along pipe racks, walkways, and corridors — the connective tissue of any refinery, gas plant, or offshore platform. Their rectangular light pattern covers narrow areas more efficiently than round fixtures, reducing fixture count along long runs.

These are critical for the areas where workers transit between operating zones, perform pipe inspections, and access equipment. Proper illumination along these paths is both a safety requirement and a regulatory mandate.

Explosion Proof LED Flood Lights

Best For: Tank farms, loading racks, marine docks, drilling derricks, flare stacks, perimeter security, offshore platform exteriors, helidecks

High-output flood lights illuminate large outdoor areas where powerful, directed illumination is needed across expansive distances. Explosion proof flood fixtures rated for Class I environments provide the combination of massive output, tight beam control, and hazardous location certification needed for the vast outdoor spaces of refineries, terminals, and offshore facilities.

Multiple beam angles — narrow spot to wide flood — allow precise targeting of illumination to specific areas, structures, or operational zones. Adjustable mounting yokes provide field-adjustable aiming.

Explosion Proof LED Jelly Jar and Bulkhead Fixtures

Best For: Confined spaces, small enclosures, electrical rooms, instrumentation cabinets, vessel entries, marine bulkhead mounting, stairwells

Compact explosion proof fixtures for smaller spaces and localized illumination. Jelly jar fixtures — named for their dome-shaped glass globes — provide basic area lighting in enclosed spaces, equipment rooms, and access points. Bulkhead-mounted fixtures are the standard for marine vessel interiors, stairwells, and passageways where wall or ceiling-mounted compact fixtures are needed.

These fixtures often serve as the last line of lighting before workers enter confined spaces — vessels, columns, tanks, and other enclosed areas where illumination is critical for safe work and emergency egress.

Explosion Proof LED Emergency and Exit Lighting

Best For: All classified areas — required by code in occupied hazardous locations

Emergency egress lighting and illuminated exit signage in hazardous locations must be explosion proof rated for the specific classification of the zone. Standard commercial emergency fixtures are not acceptable in classified areas. Explosion proof emergency fixtures with integral battery backup provide automatic illumination during power failures — a critical safety requirement in environments where disorientation in darkness can be fatal.

Offshore platforms and marine vessels have particularly stringent emergency lighting requirements, with illumination standards for escape routes, muster stations, and lifeboat embarkation areas defined by regulatory bodies including USCG, BSEE, ABS, DNV, and Lloyd's Register.

Explosion Proof LED Portable and Temporary Lighting

Best For: Turnaround and maintenance activities, confined space entry, inspection, temporary work areas during shutdowns

Maintenance shutdowns (turnarounds) require temporary lighting throughout the facility as workers access areas not normally occupied. Explosion proof portable LED lights — including hand lamps, string lights, and tripod-mounted work lights — provide classified-area-safe illumination for these temporary operations. LED's instant-on, cool-running, vibration-resistant characteristics are particularly valuable in portable applications where fixtures are handled, moved, and operated in demanding conditions.

Non-Classified Area Fixtures for Oil, Gas & Marine Facilities

Not every area of an oil, gas, or marine facility is classified as hazardous. Control rooms, administrative buildings, warehouses, maintenance shops, living quarters, and other non-classified areas use standard commercial and industrial LED fixtures — selected for the environmental conditions (corrosion, humidity, vibration, temperature) without the explosion proof requirement.

LED High Bay and Shop Lights: For non-classified maintenance shops, warehouses, and fabrication areas within the facility. Standard commercial high bays and shop lights provide bright, efficient illumination at significantly lower cost than explosion proof fixtures.

LED Flat Panels and Troffers: For control rooms, offices, laboratories, and administrative spaces. Climate-controlled interiors use the same office-grade fixtures as any commercial building.

LED Vapor Tight Fixtures: For non-classified areas with moisture, washdown, or corrosive atmosphere exposure — utility rooms, pump rooms not classified as hazardous, marine deck areas outside classified zones.

LED Outdoor Area Lights and Wall Packs: For non-classified exterior areas — parking lots, administrative building perimeters, roadways within the facility, and security lighting outside the process area fence line.

LED Canopy Lights: For non-classified covered areas — loading docks, covered walkways, vehicle shelters, and guard stations.

How to Choose the Right Fixture: Technical Specifications for Oil, Gas & Marine

Step 1: Determine the Area Classification

Before any other specification, the installation location must be classified by a qualified engineer per NEC Article 500 (Division system) or NEC Article 505 (Zone system). The classification defines which fixtures are legally and safely permissible.

Required information for each installation location:

• Class (I, II, or III) — what type of hazard is present
• Division (1 or 2) or Zone (0, 1, 2, 20, 21, 22) — how likely the hazard is to be present
• Gas Group (A, B, C, or D for Class I) — which specific gases or vapors are present
• Temperature Code (T1 through T6) — maximum allowable surface temperature

This information is typically documented on the facility's area classification drawings — engineering documents that map every zone of the facility with its specific classification. These drawings are the starting point for any lighting specification.

Step 2: Match the Fixture Certification to the Classification

The fixture must be certified (by UL, CSA, ATEX, IECEx, or equivalent body) for the specific Class, Division/Zone, Gas Group, and Temperature Code of the installation location. Certifications are stamped directly on the fixture nameplate and documented in the manufacturer's specifications.

A fixture rated for Class I, Division 2, Group D, T3 is NOT acceptable in a Class I, Division 1, Group B, T4 location. Every parameter must match or exceed the classification requirements.

Step 3: Select Output and Distribution

Once the safety classification is established, select the fixture's performance specifications based on the installation's lighting requirements:

Lumen output must be sufficient to achieve the required illumination levels at the work surface. Oil and gas facilities typically specify illumination in lux (metric) or foot-candles (imperial):

Facility AreaRecommended IlluminationProcess areas — general50-100 lux (5-10 fc)Process areas — operating equipment100-200 lux (10-20 fc)Pipe racks and walkways50-100 lux (5-10 fc)Control rooms300-500 lux (30-50 fc)Electrical and instrument rooms200-300 lux (20-30 fc)Loading racks and marine docks100-200 lux (10-20 fc)Tank farm access roads20-50 lux (2-5 fc)Offshore platform — open decks50-100 lux (5-10 fc)Offshore platform — process modules100-200 lux (10-20 fc)Marine engine rooms200-300 lux (20-30 fc)Marine deck areas50-100 lux (5-10 fc)Helidecks100+ lux (10+ fc) — per aviation authority requirementsEmergency egress routesMinimum 10 lux (1 fc) per code

Beam angle and distribution should match the application — narrow beams for tall-mounted flood lights targeting specific areas, wide distributions for general area high bays, and elongated patterns for linear fixtures along corridors and pipe racks.

Step 4: Specify Environmental Ratings

Beyond the hazardous classification, fixtures in oil, gas, and marine environments must withstand extreme environmental conditions:

Corrosion resistance: Coastal, offshore, and marine environments expose fixtures to salt spray, hydrogen sulfide (H₂S), sulfur dioxide, and other corrosive agents. Specify marine-grade aluminum, stainless steel (316L for severe marine exposure), or high-grade powder-coated housings. Hardware should be stainless steel — carbon steel fasteners will corrode within months in marine environments.

IP rating: Even explosion proof fixtures have IP ratings indicating their environmental sealing beyond the hazardous classification:

IP RatingProtectionApplicationIP65Dust-tight, water jet resistantMost onshore refinery and gas plant locationsIP66Dust-tight, powerful water jet resistantOffshore platforms, marine decks, washdown areasIP67Dust-tight, temporary immersion resistantSplash zones, below-deck marine areas subject to floodingIP68Dust-tight, continuous immersionSubmerged or regularly flooded locations

Operating temperature range: Specify fixtures rated for the full temperature range of the installation — from -40°F (-40°C) or colder for Arctic and northern operations to 130°F (55°C) or higher for desert, equatorial, and enclosed process area environments.

Vibration rating: For platforms, vessels, and locations near rotating equipment, specify fixtures tested and rated for the vibration levels expected at the installation point.

UV resistance: Outdoor fixtures in tropical and equatorial locations must resist UV degradation of lenses, gaskets, and housing coatings over the fixture's service life.

Step 5: Consider Operational Requirements

Instant restrike: Verify the fixture provides full-brightness instant-on — a fundamental LED advantage that should be confirmed in the specification, especially if replacing HID fixtures with restrike delays.

Dimming capability: Some applications — helidecks, living quarters, marine bridge instrumentation areas — benefit from dimming. Verify dimming compatibility and protocol if required.

Emergency battery backup: Where required by code or operational safety policy, specify integral or remote emergency battery packs rated for the required duration (typically 90 minutes per NEC/NFPA, but offshore and marine regulations may require longer).

Surge protection: Oil, gas, and marine electrical systems are subject to voltage surges from switching events, lightning, and generator load changes. Specify fixtures with integral surge protection rated to at least 6kV/3kA — higher for facilities with known surge exposure.

Regulatory and Compliance Framework

NEC (National Electrical Code)

Article 500-503: Classification of hazardous locations and requirements for electrical equipment (including lighting) in each classification. This is the foundational code for all U.S. oil, gas, and marine facility electrical design.

Article 505: Zone classification system (alternative to Division system), aligned with international IEC standards.

Article 516: Spray application, dipping, coating, and printing processes — relevant for facilities with painting or coating operations.

NFPA Standards

NFPA 30: Flammable and Combustible Liquids Code — defines storage and handling requirements that determine area classifications around tanks, loading racks, and process equipment.

NFPA 70 (NEC): The National Electrical Code itself, published by NFPA.

NFPA 497: Recommended Practice for Classification of Flammable Liquids, Gases, or Vapors and of Hazardous Locations — guidance for determining area classifications.

API (American Petroleum Institute)

API RP 500: Recommended Practice for Classification of Locations for Electrical Installations at Petroleum Facilities — the petroleum industry's primary classification reference.

API RP 505: Recommended Practice for Classification of Locations for Electrical Installations at Petroleum Facilities Classified as Class I, Zone 0, Zone 1, or Zone 2.

OSHA

OSHA's electrical safety standards (29 CFR 1910 Subpart S) require compliance with NEC for hazardous location installations. OSHA enforcement ensures that fixtures installed in classified areas carry the appropriate certifications.

Marine and Offshore Regulatory Bodies

USCG (U.S. Coast Guard): Regulations for lighting on U.S.-flagged vessels and in U.S. waters, including SOLAS compliance requirements.

BSEE (Bureau of Safety and Environmental Enforcement): Regulations for offshore oil and gas operations on the U.S. Outer Continental Shelf.

Classification Societies (ABS, DNV, Lloyd's Register, Bureau Veritas): Independent organizations that certify marine vessels and offshore installations, including electrical and lighting systems. Fixtures on classified vessels must meet the applicable classification society standards.

ATEX (EU) and IECEx (International): Certification standards for equipment used in explosive atmospheres. Relevant for facilities operating under international standards or exporting equipment to non-U.S. jurisdictions.

Installation Considerations for Oil, Gas & Marine

Access and Logistics

Installing lighting in oil, gas, and marine environments involves challenges far beyond standard commercial or industrial projects:

Offshore platforms: Materials must be transported by supply vessel or helicopter. Installation may require crane lifts, scaffolding on congested decks, and coordination with simultaneous operations (SIMOPS). Weather windows may limit installation periods.

Refineries during operation: Hot work permits, area isolations, and confined space protocols may be required. Installation must be coordinated with operations to avoid triggering safety shutdowns or interfering with production.

Turnaround installations: Major maintenance shutdowns (turnarounds) are the most common window for large-scale lighting upgrades in operating facilities. These high-intensity, time-limited events require detailed pre-planning, pre-staged materials, and experienced crews.

Marine vessels: Drydock or port-side installation, depending on the scope. Vessel scheduling, classification society survey coordination, and compliance with marine electrical standards add complexity.

Wiring and Conduit

Wiring in classified hazardous locations must comply with NEC requirements for the specific classification:

Division 1 areas typically require rigid metal conduit (RMC), intermediate metal conduit (IMC), or Type MI (mineral-insulated) cable with explosion proof fittings at every connection point. All conduit joints, boxes, and fittings must be explosion proof rated.

Division 2 areas allow additional wiring methods including Type MC-HL cable and some flexible connections, depending on the specific application.

Sealing fittings are required at specific points in conduit runs to prevent gases from migrating through the conduit system between classified and non-classified areas.

All wiring methods and fittings must match the area classification. The conduit and connection system is as important as the fixture itself — a perfectly rated explosion proof fixture connected with improper fittings is a code violation and a hazard.

Marine-Specific Considerations

Marine lighting installations must account for vessel motion (pitch, roll, and vibration), salt spray exposure on all exterior and many interior fixtures, potential flooding in below-deck locations, classification society survey and approval requirements, compatibility with the vessel's electrical system (which may operate at non-standard voltages or frequencies), and the need for fixtures to maintain performance through the vessel's 20-30+ year operational life.

The ROI of LED Conversion in Oil, Gas & Marine

Energy Savings at Premium Rates

Energy costs in oil, gas, and marine environments are often 2-4x typical commercial rates:

EnvironmentTypical Effective Energy CostOnshore refinery / gas plant$0.08-$0.15/kWhRemote onshore facility (gen-set powered)$0.20-$0.40/kWhOffshore platform$0.25-$0.50+/kWhMarine vessel$0.30-$0.60+/kWh

At these rates, the 50-75% energy reduction from LED conversion produces savings that dwarf typical commercial projects:

Example: Offshore platform with 500 explosion proof fixtures

MetricHID (400W avg)LED (150W avg)SavingsTotal connected load200 kW75 kW125 kWAnnual energy (24/7 operation)1,752,000 kWh657,000 kWh1,095,000 kWhAnnual cost @ $0.35/kWh$613,200$229,950$383,250/year

Maintenance Cost Avoidance

Maintenance savings in oil, gas, and marine are disproportionately large because every fixture service event involves significantly higher costs than commercial environments:

Scaffold erection and dismantling at $2,000-$10,000+ per setup in process areas.

Confined space entry costs including safety watch, atmospheric monitoring, rescue standby, and permitting — $1,000-$5,000+ per entry.

Hot work permits with fire watch, gas testing, and area isolation — $500-$2,000+ per event.

Production deferral when lighting maintenance requires area shutdown — potentially $50,000-$500,000+ per event in lost production depending on the affected unit.

Marine vessel scheduling around port availability and classification society surveys.

LED's 50,000-100,000+ hour lifespan reduces these high-cost maintenance events by 80-90%, and in many installations, the fixture will never require relamping during the remaining operational life of the facility or vessel.

Total Cost of Ownership

When energy savings, maintenance avoidance, and operational benefits are combined, the total cost of ownership for LED explosion proof fixtures is dramatically lower than HID — despite higher initial fixture costs. Payback periods of 12-24 months are typical for offshore and marine applications; 18-36 months for onshore facilities.

Frequently Asked Questions About Oil, Gas & Marine LED Lighting

What is the difference between explosion proof and vapor tight?

Explosion proof fixtures are designed and certified to operate safely in atmospheres where flammable gases, vapors, or combustible dusts are present. They contain internal ignition events and prevent external propagation. Vapor tight fixtures are simply sealed against moisture and dust — they are NOT rated for explosive atmospheres. Never substitute vapor tight for explosion proof in a classified hazardous location.

Can I use standard LED fixtures in a refinery?

Only in areas classified as non-hazardous (unclassified). Process areas, tank farms, loading racks, and other classified zones require fixtures rated for the specific Class, Division/Zone, Gas Group, and Temperature Code of the installation location. Using unrated fixtures in classified areas violates NEC, OSHA, and insurance requirements.

How do I know what classification my installation requires?

Your facility's area classification drawings — prepared by qualified electrical engineers per API RP 500 or 505 — map every zone with its specific classification. If area classification drawings don't exist or are outdated, they must be prepared before fixture selection can proceed.

Do LED explosion proof fixtures really last 50,000+ hours?

Yes. LED is solid-state technology with no filaments, arc tubes, or consumable components. The primary failure mode is gradual lumen depreciation — output slowly decreases over time. At 50,000 hours, quality LED fixtures still produce 70%+ of original output (L70 rating). At 24/7 operation, 50,000 hours equals approximately 5.7 years — compared to 1-2 years for HID lamps in the same service.

What certifications should I look for?

At minimum: UL 844 (Luminaires for Hazardous Locations) listing with the specific Class, Division, Gas Group, and T-code matching your installation classification. For marine and offshore: applicable classification society approval (ABS, DNV, Lloyd's Register). For international installations: ATEX and/or IECEx certification.

Can explosion proof LED fixtures operate in extreme cold?

Yes. LED performance actually improves in cold temperatures. Most explosion proof LED fixtures are rated for operation down to -40°F (-40°C) or colder, making them suitable for Arctic operations, cold-climate refineries, and cold-storage marine vessels. Verify the fixture's rated operating temperature range in the specification.

What about salt spray corrosion in offshore and marine applications?

Specify fixtures with marine-grade aluminum or 316L stainless steel housings, marine-grade powder coating or anodizing, stainless steel hardware, and silicone or fluoroelastomer gaskets rated for salt spray exposure. Ask for salt spray (ASTM B117) test data to verify the fixture's corrosion resistance claims.

How do I handle emergency lighting in classified areas?

Emergency lighting in hazardous locations must be explosion proof rated for the area classification — just like the primary lighting. Specify explosion proof fixtures with integral battery backup rated for the required emergency duration (90 minutes per NEC/NFPA; longer per offshore and marine regulations). Ensure battery packs are also rated for the temperature range of the installation.

Can I retrofit existing HID explosion proof fixtures with LED?

LED retrofit kits are available for some existing explosion proof housings, but this approach requires caution. The retrofit kit must be certified for the same hazardous classification as the original fixture, and the combination of existing housing + retrofit kit must maintain the explosion proof integrity of the assembly. Consult the retrofit kit manufacturer for specific compatibility and certification data. In many cases, complete fixture replacement is preferred for the most reliable and fully-certified result.

What voltage options are available?

Explosion proof LED fixtures are available in the full range of industrial voltages — 120V, 208V, 240V, 277V, 347V, 480V, and marine-specific voltages. Many fixtures accept universal voltage input (120-277V or 120-480V), simplifying specification across facilities with mixed electrical systems. Verify voltage compatibility with your facility's distribution system before specifying.

Why Choose PrimeLights for Your Oil, Gas & Marine LED Lighting

PrimeLights has been a trusted name in commercial and industrial LED lighting since 2010, with over 150,000 satisfied customers across every type of demanding work environment — including oil refineries, gas processing facilities, petrochemical plants, offshore operations, and marine applications.

Certified for the Environments That Matter: Our explosion proof fixtures carry the UL, CSA, and industry-specific certifications required for classified hazardous locations. Every fixture meets the construction, testing, and performance standards that oil, gas, and marine operations demand.

Built for Extreme Conditions: Marine-grade housings, corrosion-resistant coatings, wide-temperature operation, and vibration resistance designed for the real-world conditions of refineries, platforms, and vessels — not laboratory environments.

Complete Hazardous and Non-Hazardous Product Range: From Class I, Division 1 explosion proof high bays to standard commercial fixtures for control rooms and offices — every fixture type an oil, gas, or marine facility needs from a single trusted source.

Expert Hazardous Location Consultation: Our lighting specialists understand area classifications, NEC requirements, and the operational realities of oil, gas, and marine environments. We work with your engineering team to match the right fixture to the right classification for every installation location.

5-Year Warranty on All Explosion Proof Fixtures: We stand behind our hazardous location fixtures with a comprehensive warranty that reflects our confidence in fixture quality and real-world durability.

Custom Project Support: Oil, gas, and marine lighting projects often involve hundreds of fixtures across multiple classifications, areas, and environmental conditions. We provide project-level support including detailed specification assistance, classification-matched fixture schedules, and competitive project pricing.

Get Started with PrimeLights Oil, Gas & Marine LED Lighting

Hazardous location lighting is too important to guess. Contact the PrimeLights team for a consultation based on your facility's area classification drawings, environmental conditions, and operational requirements.

Our lighting specialists can help you:

• Match explosion proof fixtures to the specific Class, Division, Gas Group, and Temperature Code of each installation zone
• Select the appropriate environmental ratings (IP, corrosion resistance, temperature range) for your operating conditions
• Calculate illumination levels and fixture counts for each area of your facility
• Specify emergency and portable lighting for classified locations
• Identify standard commercial fixtures for non-classified areas within the facility
• Develop fixture schedules covering every area of multi-zone facilities
• Provide project-level pricing for single-facility or multi-site operations
• Coordinate with your engineering and safety teams on specification and compliance requirements

Contact us today to get started.
