SKU: PL-6BTG2-120XCL-2
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

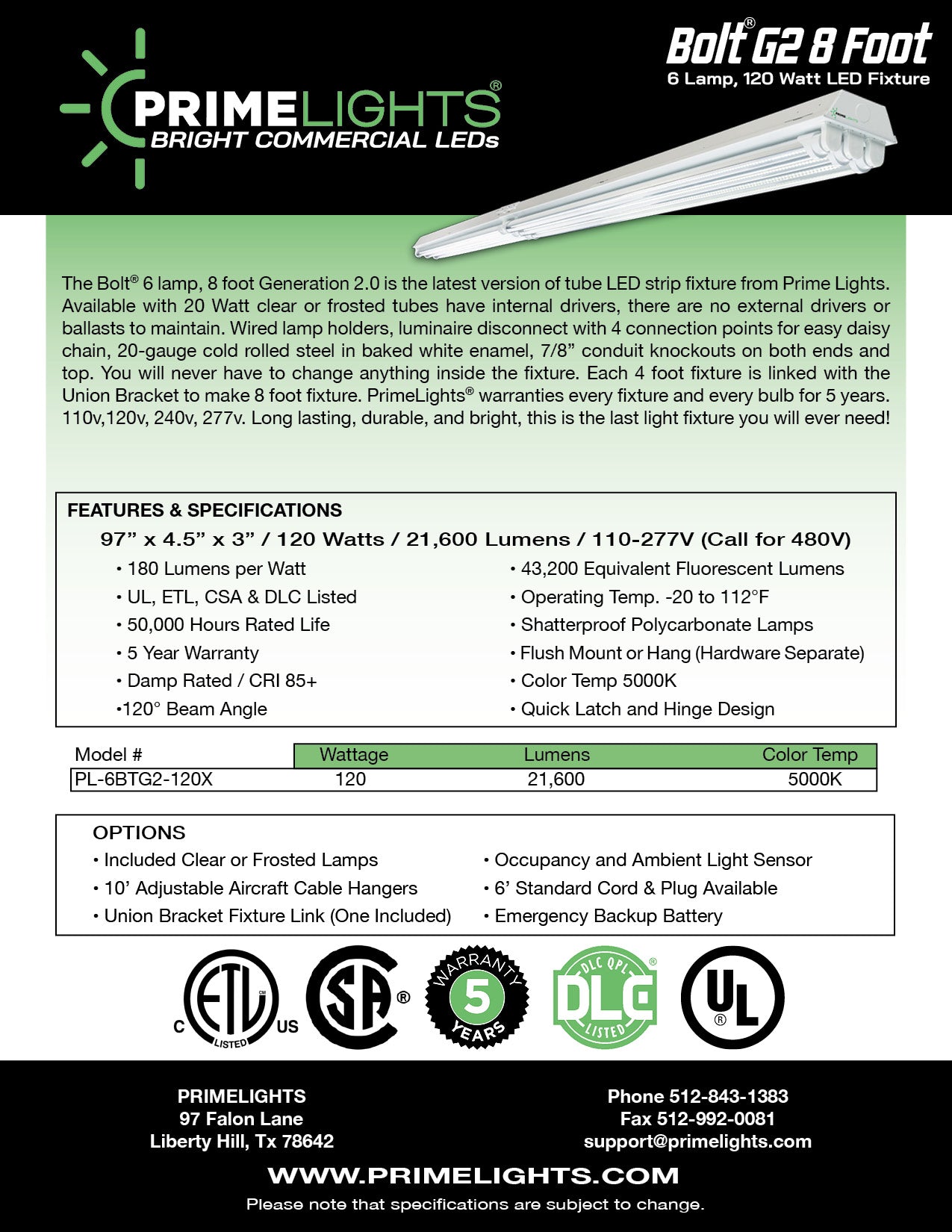

Best, Brighter, Stronger. Easy Install.
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
3rd Party Testing: We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States. Contact for Rebate Info.
Included Lamps: (6) ETL Sanitation & DLC Listed Clear flicker-free, shatterproof polycarbonate 180 LPW (imported)
Fixture Designed in TEXAS, Made in Mexico.
Warranty: 5 years on complete fixture including LED lamps.
Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector. Clear LED bulbs with internal drivers - no external drivers or ballasts to maintain. You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years. 110v,120v, 240v, 277v. Long lasting, durable, and bright.
Input Wattage: 120W
Voltage: 110-277V (call for 480V)
LED Lumens: 21,600
Lumens per watt: 180+
Color Temperature: 5000K (call for others)
CRI: 80+
L70 Life: >50,000 Hours
Beam Angle: 120°
Amperage @ 120V: 1.0A / Amperage @ 277V: 0.44A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 43,200 (fluorescent equiv.)
Lamp Lens: Clear
Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)
Dimming: No (not to be used with a dimmer switch, please see Wildcats and UFOs if you need a dimmable fixture)
CLICK HERE for dimmable fixtures.
LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver
Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)
Assembled Dimensions: 97" Long x 4.5" Wide x 3" High
Mounting Dimensions: 96.76" x 2.75" on back of fixture
Total weight: 12 lbs
Part Number: PL-6BTG2-120XCL
Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)
Mounting Options: Hardware not included.
-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.
-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and "S" hooks.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
*Specifications are subject to change without notice.

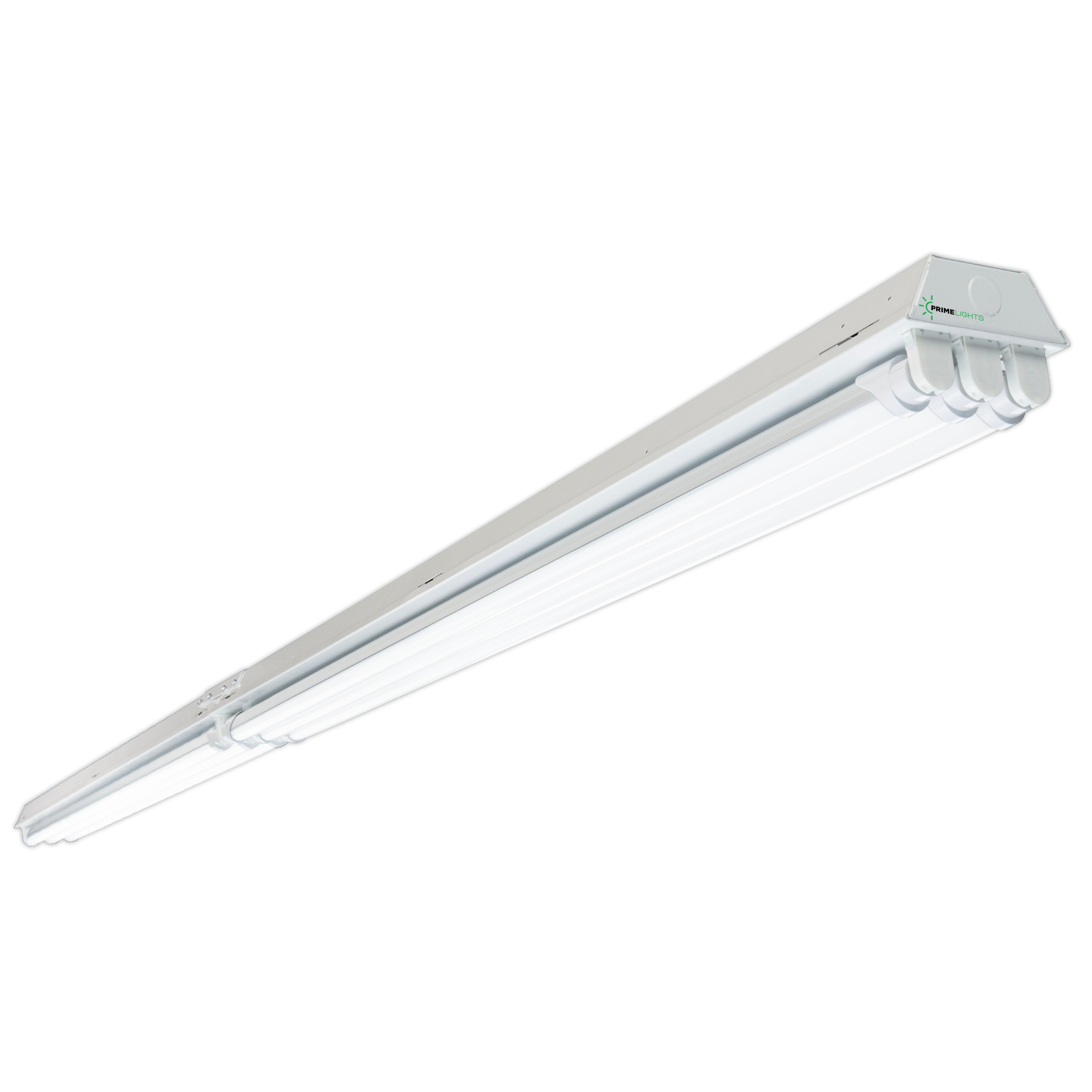

Applications: The PrimeLights® LED Bolt® 8' 6 lamp is the ideal fixture for ceiling heights ranging 8' to 20', depending on spacing and application. Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures. Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few. Frosted lamps provide reduced glare when compared to clear. For higher ceilings please see our Stingray® 6 Series (up to 20' & 35').
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 8' 3 lamp T8 or T5 fixture, or approx. 1 fixture per 450sf for basic lighting. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. In just a few minutes, receive your free custom professional lighting layout over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels. Call 512-843-1383.
THE LED BOLT® ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®
Bolt Union Bracket Installation
Cable Hanger Installation
Cord & Plug Installation
Occupancy Sensor Installation
Wire Guard Installation
| Quality |
Rated 4 out of 5
|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|

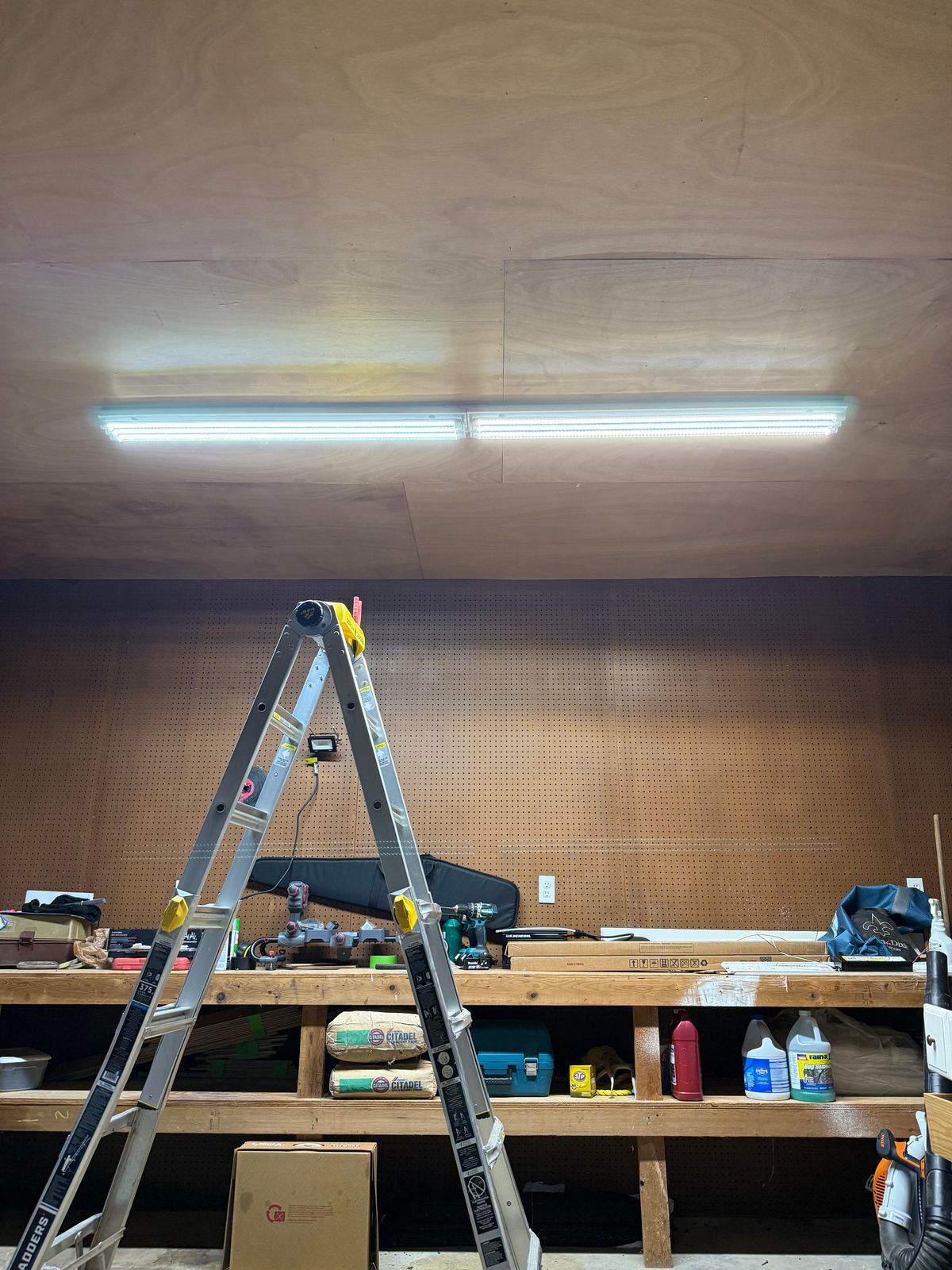

I have installed 7 Prime Lights in my garage workshop and they have all worked great.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
WOW! These lights are absolutely outstanding! Wish I would have changed years ago. I did the 3 bulb 21,600 Lumes and couldn’t be happier. Excellent product. Tks
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
I really wanted more light than the 8ft fluorescent, this worked great
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Great product. Super easy to install. Going to buy 2 more for the garage as soon as I can afford it!
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|

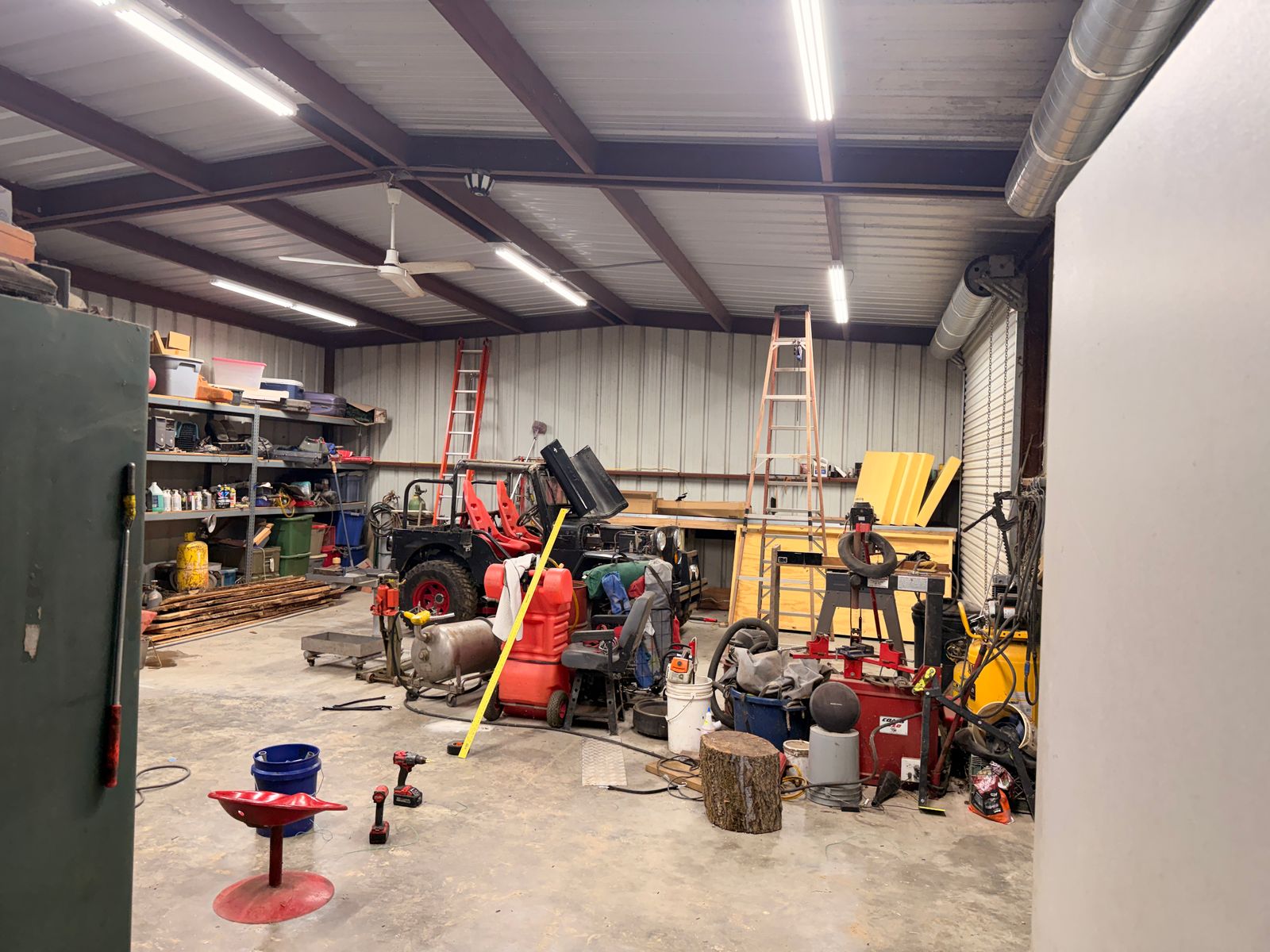

I’m genuinely pleased with the overall outcome in the shop’s lighting upgrade. There is a remarkable difference in all (4) corners of shop as well as areas I would have typically needed an other light source.
Installation for the most part, was without issues. However, two packages containing the necessary hardware to join two 4ft fixtures were incomplete. Only (7 of 8) screws were provided in the two packages. Not a show stopper, just want to be transparent about the complete installation.
Another obscure but relevant issue is “The Place of Manufacture”. I did ask and was told that the units were “Made in the USA”. My mistake for not asking if the fixtures as well as the LED tubes were made in America. I see that the tubes were made by our neighbors down south.
And one additional note, I would like to give Phillip a shout out of appreciation for his salesmanship in this process.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
There isn't a shadow or dark spot in the shop! These are lights are amazing! I highly recommend them.
The new lights in this 50,000 square foot arena are fantastic! The staff at PrimeLights has been great to work with.
Just what we needed for a challenging job. Amanda delivered on schedule as promised.
No shadows and no more dragging cords and lights around, and there is absolutely minimal power consumption!
