Pattern A15 Prismatic Lens (Qty 8)
Click to enlarge

Pattern A15 Prismatic Lens (Qty 8)

SKU: LI15-A-C-24-.200

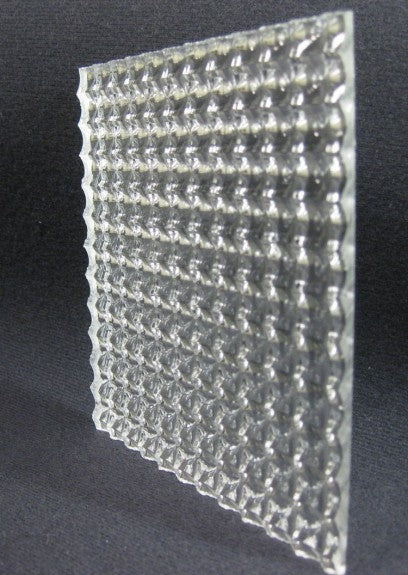

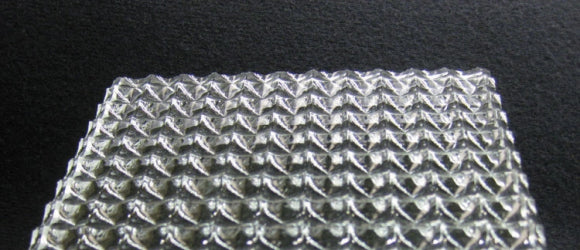

Prismatic Pattern A15 Bold Female Conical Prism Acrylic Lens Quantity (8) Lenses

Pattern 15 is a prismatic panel with bold 3/8" square based recessed female conical prisms that are placed parallel and perpendicular to the length and width of the panel.  This panel has excellent efficiency and glare control.  Acrylic does NOT yellow or become brittle!

Material: Acrylic


Size: 22 1/2" X 46 1/2" (Troffer Size) or 23.75" X 47.75" (Ceiling Grid Size)

Custom Size: Cut or Oversize (max 48" X 96") Please call

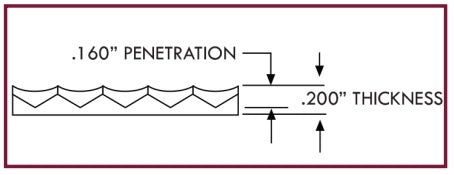

Thickness: 0.200"


There are two standard sizes that will fit most applications:

22.5" X 46.5" most troffer fixtures with door frames.

23.75" X 47.75" most acoustical ceiling grids.

Upon order, please check exact size by removing the existing lens and measuring the lens itself.  Custom sizes are available for special applications.


Shipping: UPS Ground Free
