LED 4 LAMP T8 - 88 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE
FIXTURE MADE IN USA

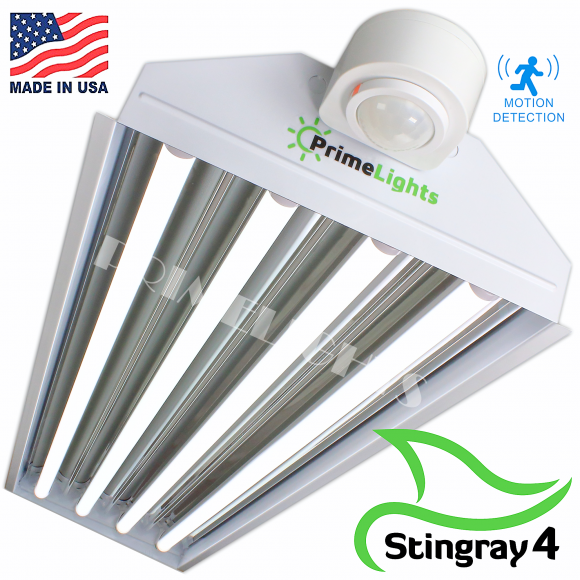

THE STINGRAY 4XL LED HIGHBAY
New, never used, in manufacturer packaging.
Shipping: FREE, In Stock
Certifications:UL Listed, CSA Certified, NSF, Shatterproof, Contact for Rebate Info
Warranty: 5 years on complete fixture including LED lamps
Specifications:
-110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector. LED Tubes have their own internal drivers - no external drivers or ballasts to worry about. You will never have to change anything inside the fixture. This is the last fixture you will ever have to buy or maintain.
Input Wattage: 88W
LED Lumens:12,400
Equivalent Lumens: 23,560
Lumens Per Watt: 155
Life: 50,000 Hours +
Color Temperature: 4000K or 5000k
CRI: 85+
Amperage @ 120V: 0.74A
Amperage @ 277V: 0.32A
Voltage: 120-277V
Base Type: G13 Medium B-Pin
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.0" Width: 14.0" Depth: 3.5"
Part Number: PL-4SRHBLD88FR-MA
Mounting Options:
-Surface mountable
-Chain hang (hardware not included)
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
Item #: PL-4SRHBLD88FR-MA
Unboxing Instructions
Cord & Plug Installation
Cable Hanger Installation
Occupancy Sensor Installation
Wire Guard Installation
Stingray Comparison
Shipping Policy
Same-day shipping on most orders before 2:00 p.m. All shipments are prepaid to the customer, freight is included in the price shown. PrimeLights guarantees product to arrive in brand new, undamaged condition. If shipping damages occur, please note with the shipper and contact our customer service immediately at support@primelights.com or 512-598-4961. PrimeLights will replace any product damaged in shipping with zero expense to the customer.
Return Policy
PrimeLights will accept returns within 30 days on unused stock products. Buyer will pay freight upon return if PrimeLights is not liable for miss-order. If PrimeLights is liable, PrimeLights will pay freight. If fixtures are used a restocking fee will be applied. Customer satisfaction is our priority and we’re happy to clear up any confusion and issues on the phone. No products will be accepted for return without prior authorization of seller.
100%
of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Poor
Excellent
Brightness
Rated 4 out of 5
Poor
Excellent
Ease of Installation
Rated 4 out of 5
Poor
Excellent
Customer photos and videos
8 Reviews
H
HNReviewed by HN, from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
Home Garage
Great lights
I called and asked a few question first and a very helpful gentlemen answered my queries and we went ahead a placed my order.
Bought 6 of these and once installed they provided a great amount of light. Not too bright but just right.
The motion censor works well and lights up pretty quickly when I enter it mover around the garage.
No humming or flickering that I noticed.
Packaging was great and delivered on time.
Would buy again ( may even upgrade them to the 6 bulb version later)
Loading...
Quality
Rated 4 out of 5
Poor
Excellent
Brightness
Rated 5 out of 5
Poor
Excellent
Ease of Installation
Rated 5 out of 5
Poor
Excellent
Was this helpful?
DS
Dan S.Reviewed by Dan S., from United States
Verified Reviewer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
Personal Hobby Shop
Home Garage
Perfect Solution for Garage
Residential garage project came out great with assist from PrimeLights! 4 LED bulb Stingray with motion sensor was easy to install & perfect light for 8' 2 car garage.
We didn't have electric switch so they added a plug to run power from ceiling outlet. Fast free shipping. 5 year warranty! Would order again from this site.
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Brightness
Rated 5 out of 5
Poor
Excellent
Ease of Installation
Rated 5 out of 5
Poor
Excellent
Was this helpful?
JB
John B.Reviewed by John B., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
Automotive Garage
Excellent lights, fast delivery.
..
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Brightness
Rated 5 out of 5
Poor
Excellent
Ease of Installation
Rated 4 out of 5
Poor
Excellent
Was this helpful?
EM
Elisabeth M.Reviewed by Elisabeth M., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
Home Garage
Amazing
Love, love, 💘 love perfect for man cave
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Brightness
Rated 5 out of 5
Poor
Excellent
Ease of Installation
Rated 3 out of 5
Poor
Excellent
Was this helpful?
SC
steve c.Reviewed by steve c., from United States
Verified Buyer
Review posted
I recommend this product
Rated 5 out of 5
Where did you install your PrimeLights products?
Other
Personal Hobby Shop
I can see!
I needed more light for my table saw so I got this and now it is much safer to use.great product!
Loading...
Quality
Rated 5 out of 5
Poor
Excellent
Brightness
Rated 5 out of 5
Poor
Excellent
Ease of Installation
Rated 5 out of 5
Poor
Excellent
Was this helpful?
