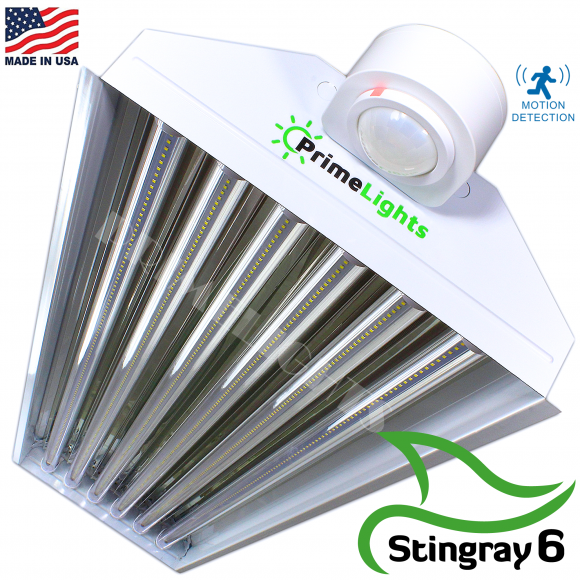

4ft. LED STINGRAY® 6 XL Highbay MOTION ACTIVATED Shop Light 108W Clear 19,440 Lumens

Rated 5.0 out of 5
Based on 7 reviews
SKU: PL-6SRHBLD132XLFM-MA
$200.00

FIXTURE MADE IN USA!

COMMERCIAL SPECIFICATION GRADE

WITH Programable Motion Activation Sensor with 35' Range

Shipping: FREE, In Stock

3rd Party Testing:  We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States.  Contact for Rebate Info.

Included Lamps: (6) ETL Sanitation & DLC Listed Clear flicker-free, shatterproof polycarbonate 180 LPW (imported)

Warranty: 5 years on complete fixture including LED lamps.

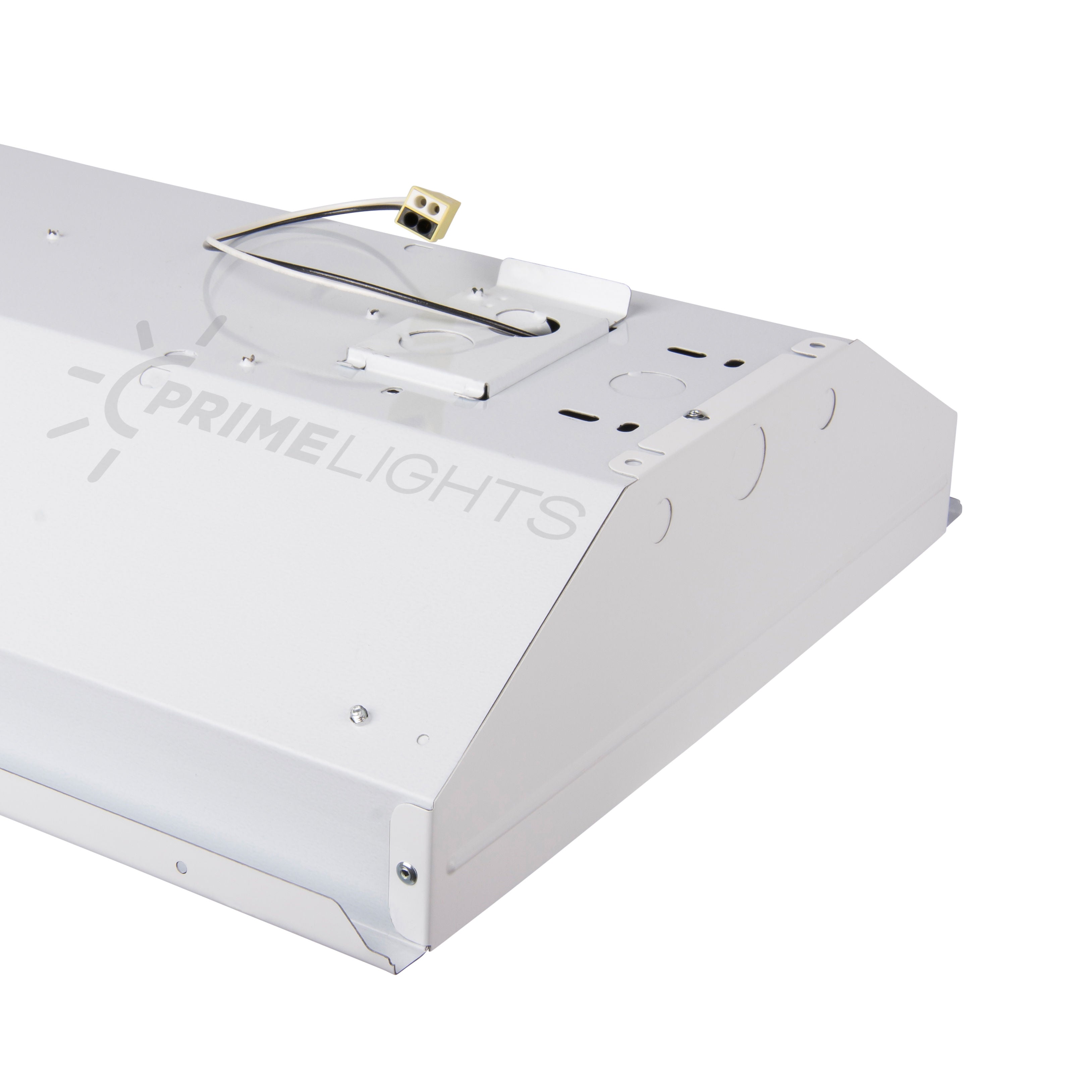

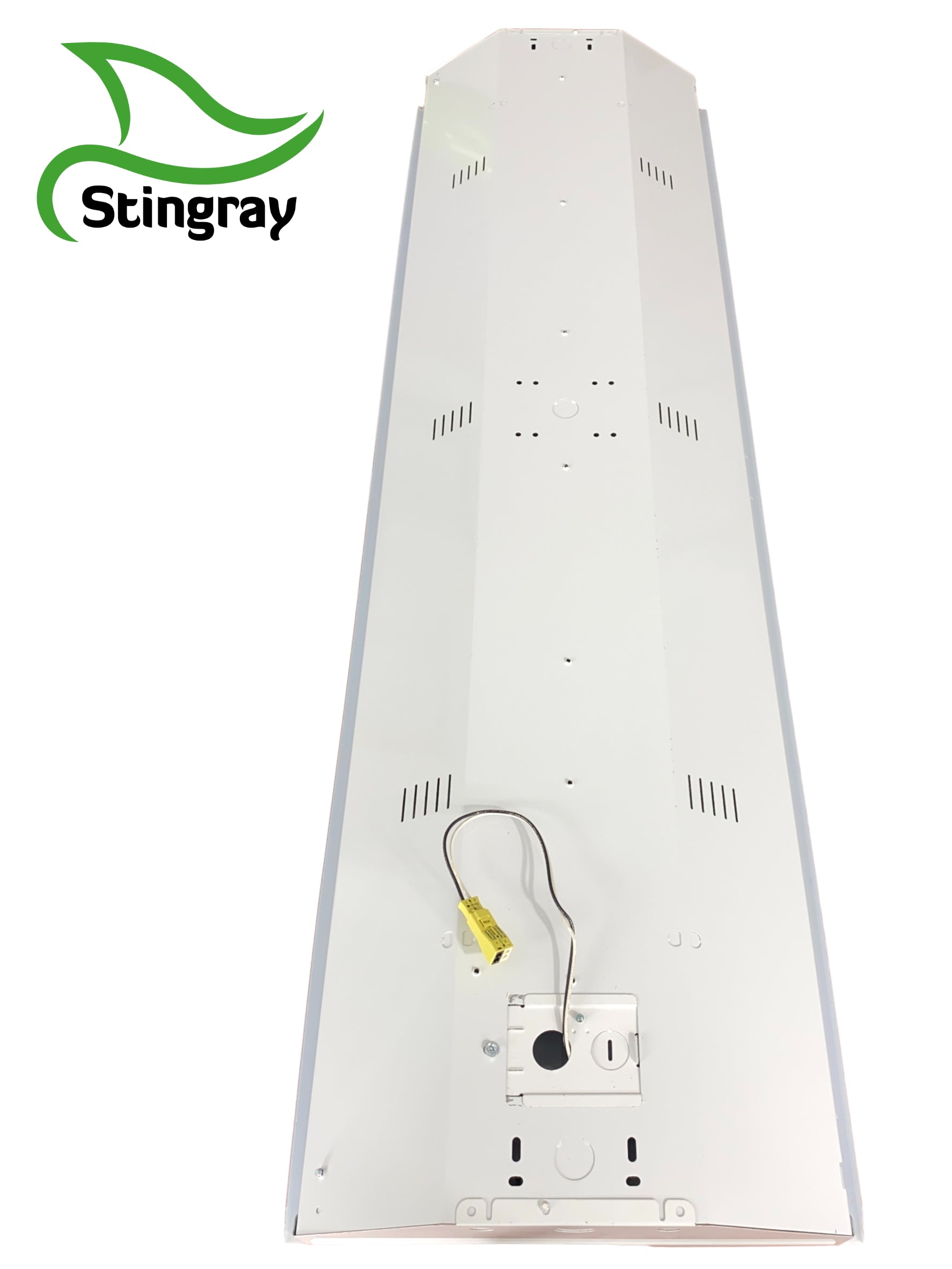

Specifications:  Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

Input Wattage: 108W

Voltage: 110-277V (call for 480V)

LED Lumens: 19,440

Lumens per watt: 180+

Color Temperature: 5000K (call for others)

CRI: 85+

Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.9A / Amperage @ 277V: 0.39A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 38,880 (fluorescent equiv.)

Lamp Lens: Clear

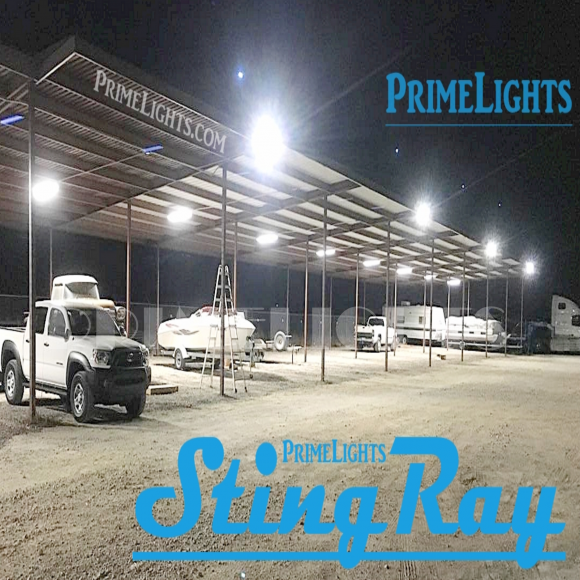

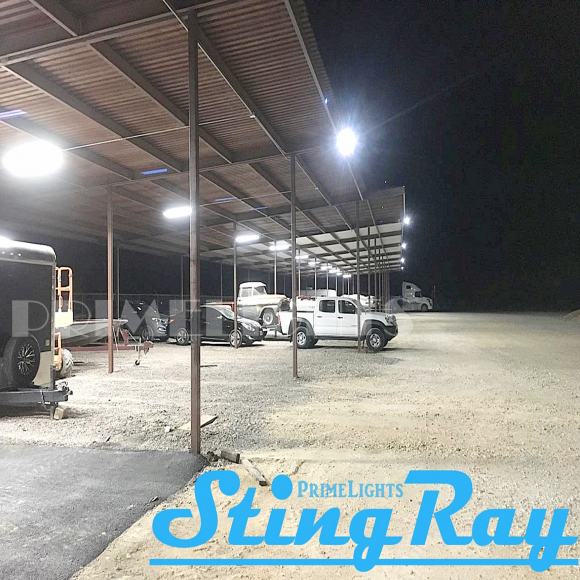

Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)

Dimming: No (not to be used with a dimmer switch, call for dimmable Stingray® options)

Click here for dimmable selections

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Total weight: 11.25 lbs

Part Number: PL-6SRHBLD132XLFM-MA

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)

Mounting Options: Hardware not included.

-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.

-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and “s” hooks.

*Energy Usage: Approx. 40% Less than T8 Fluorescent

*Specifications are subject to change without notice.

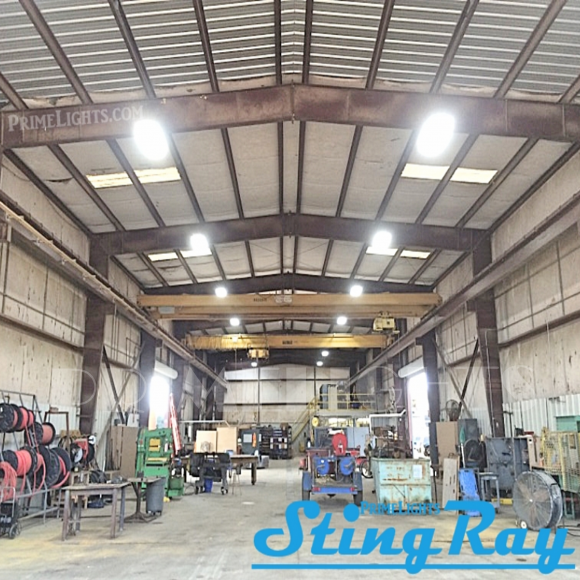

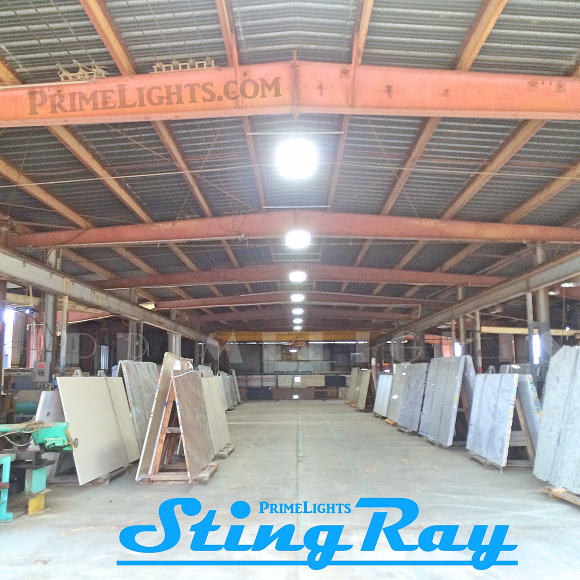

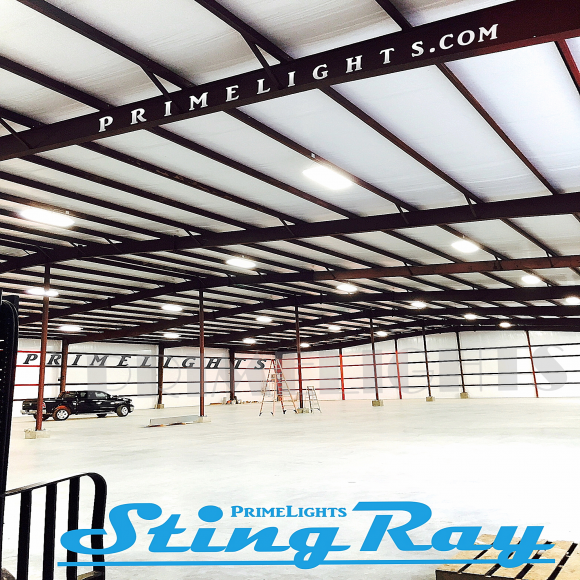

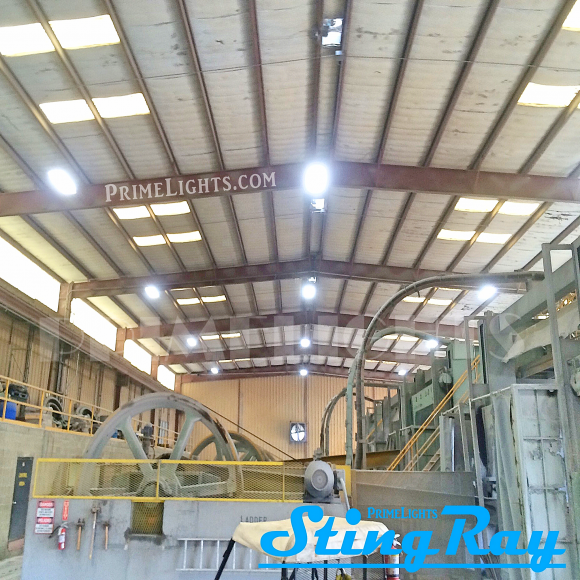

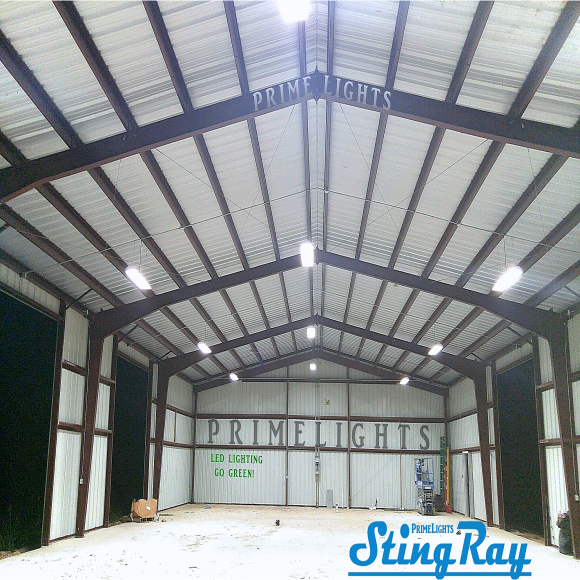

Applications:  The PrimeLights® LED Stingray® 6 is the ideal fixture for ceiling heights ranging up to about 35’, depending on spacing and application.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamps provide reduced glare when compared to clear.  For lower ceilings please see our PrimeLights® LED Stingray® 4 Series.

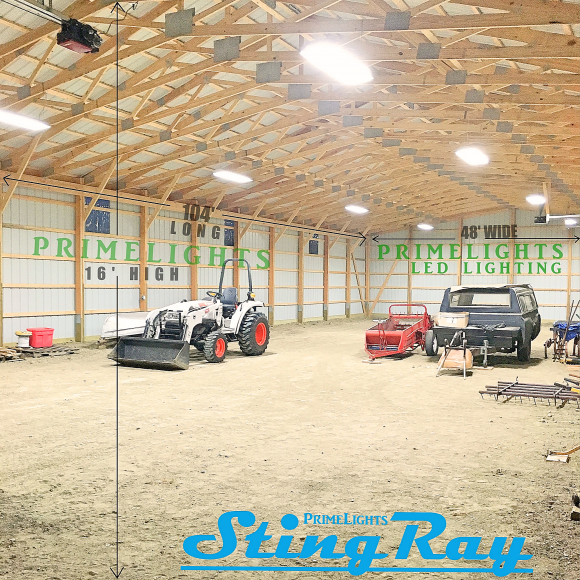

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 400W metal halides, or approx. 1 fixture per 400sf for basic lighting.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  In just a few minutes, receive your free custom professional lighting layout over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels.  Call 512-843-1383.



THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®

Cable Hanger Installation

 Cord & Plug Installation

 Occupancy Sensor Installation

 Wire Guard Installation

Shipping Policy

Same-day shipping on most orders before 2:00 p.m. All shipments are prepaid to the customer, freight is included in the price shown. PrimeLights guarantees product to arrive in brand new, undamaged condition. If shipping damages occur, please note with the shipper and contact our customer service immediately at support@primelights.com or 512-598-4961. PrimeLights will replace any product damaged in shipping with zero expense to the customer.

Return Policy

PrimeLights will accept returns within 30 days on unused stock products. Buyer will pay freight upon return if PrimeLights is not liable for miss-order. If PrimeLights is liable, PrimeLights will pay freight. If fixtures are used a restocking fee will be applied. Customer satisfaction is our priority and we’re happy to clear up any confusion and issues on the phone. No products will be accepted for return without prior authorization of seller.

We appreciate your business!
