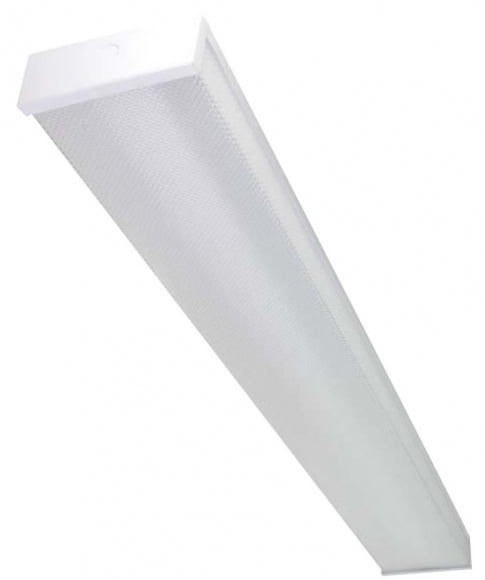

MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture
Click to enlarge

MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture

SKU: LSU4806SU50DV50

MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture

120V/277V Commercial Specification Grade Lighting

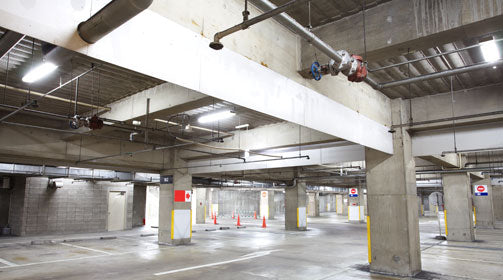

This cost effective LED Utility Wrap Fixture, features full length U Wrap Acrylic lens, one piece fabricated steel body. Designed to meet or exceed 7-10Fc at 8’ installed heights for parking drive lane compliance. For uses as utility lighting, parking garage and stairwell lighting where meets applicable building and safety codes.


New, never used, in manufacturer packaging.

Shipping: FREE, In Stock

Certifications: cULus Listed, DLC Approved, Damp Location, FCC Compliant, LM79, LM80, RoHS, Title 24

Warranty: 5 years on complete fixture




Length: 48"  Width: 6.75"  Height: 2.50"



  • Lumens: 4923
  • Efficacy: 97.3
  • Color Temp: 5000K
  • Wattage: 50
  • Voltage: 120-277V
  • CRI: > 83
  • Operating Temp: 00 C (32°F) to 40°C (104°F), 50-60Hz
  • Thermal/Lumen balanced light engine
  • Steel Construction
  • Back and End Knockouts
  • Class II driver, with 0-10V dimming
  • Low power consumption
  • Ceiling or wall mounted
  • For covered use only – damp rated *

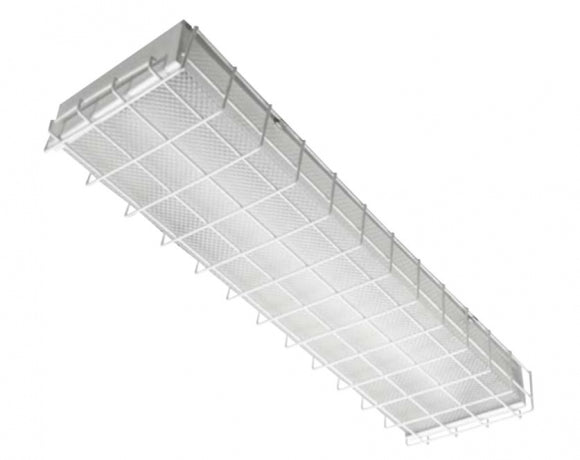

  • Wire Guard available
  • White Finish standard
  • Optional Occupancy Sensor available
  • Assembled in USA available upon request


  • 20 Ga. Steel body and end caps
  • Clear Acrylic Prismatic Lens
  • Electrostatic Paint pre-assembly
  • Universal voltage 120-277v


  • Omni-directional quad element infrared sensor
  • 3 Daylight Harvesting setting
  • 0-10V selectable output for low dim control
  • Walk test and sensor operation LED indicator
  • Direct lead wires for easy wiring connections
  • 8 rotary DIP switch selectable control modes
  • 7 low dim levels changeable via Accu-Set


  • PIR on/off control
  • 360 degree lens
  • selectable sensitivity and time delays
  • Non-dimming

Lighting Layouts: There are many factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.
