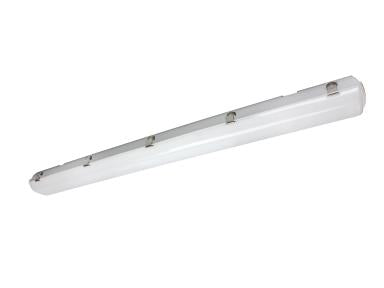

Maxlite 4FT VAPOR TIGHT 120-277V WATTAGE SELECT 23W, 35W, 48W AND CCT SELECTABLE - CONTROL READY - LSV4U23WCSCR
Maxlite 4FT VAPOR TIGHT 120-277V WATTAGE SELECT 23W, 35W, 48W AND CCT SELECTABLE - CONTROL READY - LSV4U23WCSCR
SKU: LSV4U23WCSCR
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information
FREE SHIPPING
Product Description:
A cost-effective vapor tight fixture with tremendous flexibility, the LSV Series is both wattage and CCT selectable, controls ready, and provides an emergency battery backup option. This durable, IP65 rated linear fixture with stainless steel clips is ideal for commercial and industrial environments where water, humidity, and dust may occur, including stairwells, parking garages, utility areas and agricultural applications.
Features:
• CCT and Wattage selectable (9 possible combinations with each fixture)
• Select 23/35/48 Watts
• 2990/4550/6240 Lumens
• 3500K/4000K/5000K CCT Selectable
• Optional Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• 10 Year Warranty
• Beam angle: 130°
• Operating Ambient Temp -40 to 122°F (Not for EM option)
• Polycarbonate (PC) housing with stainless steel clips and lens hermetically sealed for IP65 rating
• ETL sanitation listed to NSF/ANSI2 standards
• On EM mode, the fixture CCT will be set to 5000K
• On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
• Default setting for WCS models is set to lower wattage and 4000K
• Fixture may be surface mounted or pendant/rod mounted (accessories sold separately)
Optional Controls Available: (Call for options)
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth
• Energy Monitoring when used with Avi-On nodes
Controls Ready:
MaxLite’s new Controls Ready (CR) fixtures have integrated USB-C sensor receptacle, and allows for quick and easy in-field installation (plug and play) of controls. CR fixtures are compatible with c-Max sensors. Simply purchase any CR fixture and the required c-Max Controls Node and you’re all set! See the accessory table for all controls options available.
Listings:
• DLC# PR3W2QV2, PEP289GP, PMCIH8UZ, P1306VO3, PBUK0J7D, P3GLKFTX, PP082BP9
