LED 6 Lamp T5HO Highbay Fixture 180 Watts
Click to enlarge

LED 6 Lamp T5HO Highbay Fixture 180 Watts

SKU: PL-6HBLD180
$233.00

FREE SHIPPING

FREE SHIPPING ON ALL QUANTITIES

LED 6 LAMP T5HO LED - 180 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE

New, never used, in manufacturer packaging.

Shipping: FREE, In Stock

Certifications: UL Listed, DLC Approved

Warranty: 5 years on complete fixture including LED lamps

MADE IN USA

Specifications:

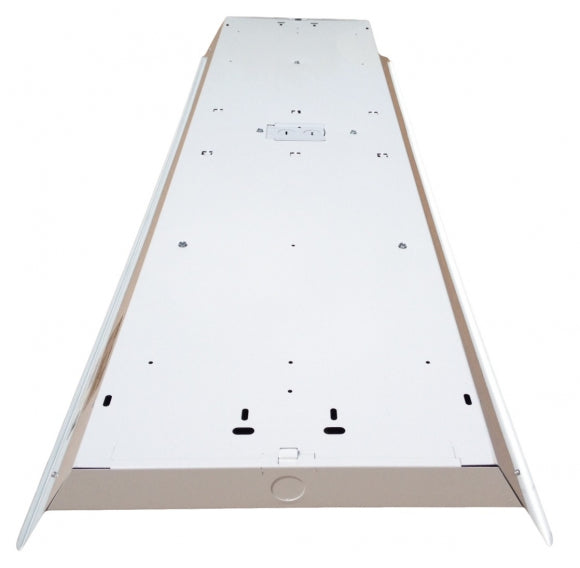

-0° Electronic Ballast/Driver, 110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector.

Input Wattage: 180W

Lumens: 19,200 (brighter than fluorescent T5HO)

Life: 50,000 Hours +

Color Temperature: 4000K (call for others)

CRI: 80+

Amperage @ 120V: 1.55A

Amperage @ 277V: 0.68A

Voltage: 120-277V

Base Type: Miniature B-Pin

Type: Outdoor type 1 HL

Sound Rating: A

Class: P

Lens: Frosted, no hot spots

Minimum Start Temp: -0° F

Maximum Start Temp: 140° F

Length: 48.0"  Width: 15.0"  Depth: 3.5"

Mounting Options:

-Surface mountable

-Chain hang (hardware not included)





Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.



Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.
