LED WILDCAT Gen2.0 400/355/300 BAY LIGHT - Shop Lighting - 120V-277V COMMERCIAL SPECIFICATION GRADE
Certifications: UL Listed, TAA Certified, DLC Listed, FCC Compliant, RoHS Compliant, Qualified for most rebate programs (call for details)
Specifications:
Wattage: 400/355/300 Watts
Input: AC 120-277V - 50/60Hz
Dimming: YES 0-10V LED dimming Capable
LED Lumens: Up to 59,200
Equivalent Lumens: 118,400 (when compared to HID and Fluorescent)
Life: 50,000 Hours +
Warranty: 5 years on complete fixture
Color Temperature: 3500K, Warm White, 4000K Medium White or 5000K Daylight White
CRI: 80+
Type: Integrated LED
Optimal Minimum Temp: -22° F
Ambient Operating Temperature Range : -40° F to 122° F (Life span lowered when operated outside optimal temp ranges)

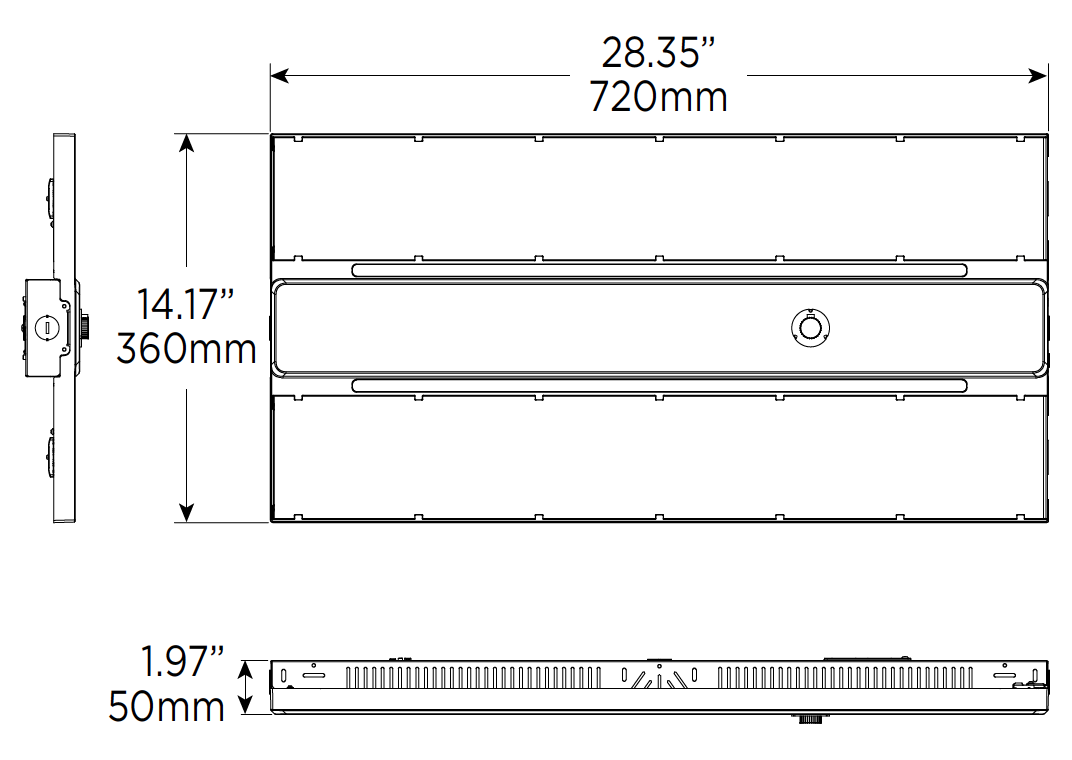

Length: 28.35" Width: 14.17" Depth: 1.97" Fixture Only
Weight: 12.4 lbs.
Part Number:PL-WCHBLD-400M
Mounting Options:
-Chain hang - V-hooks and 40” knotted chain included in standard model (hardware included)
-Surface Mount Kit (Option Added)
*Energy Usage: Approx. 68% Less than T5 Fluorescent
Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
