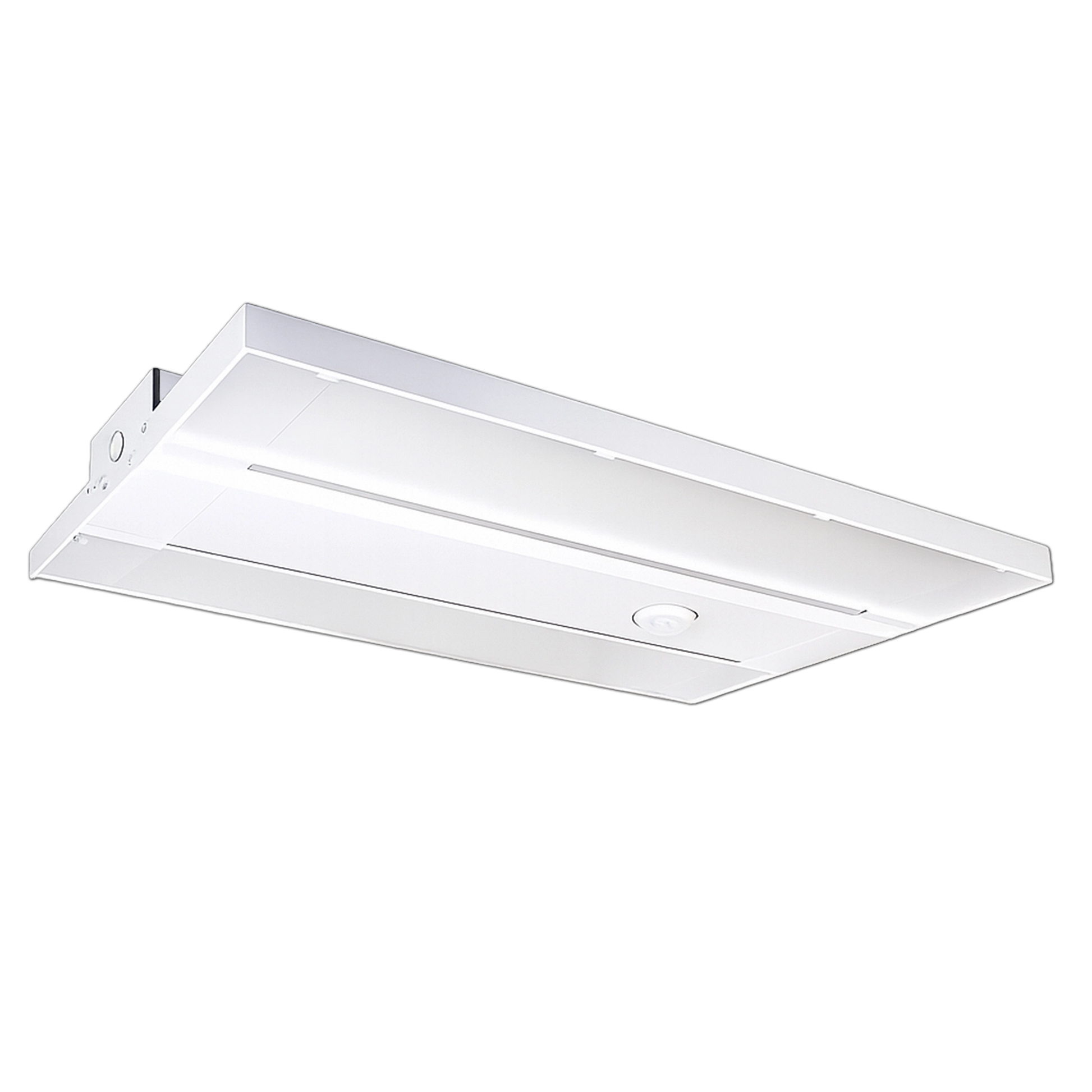

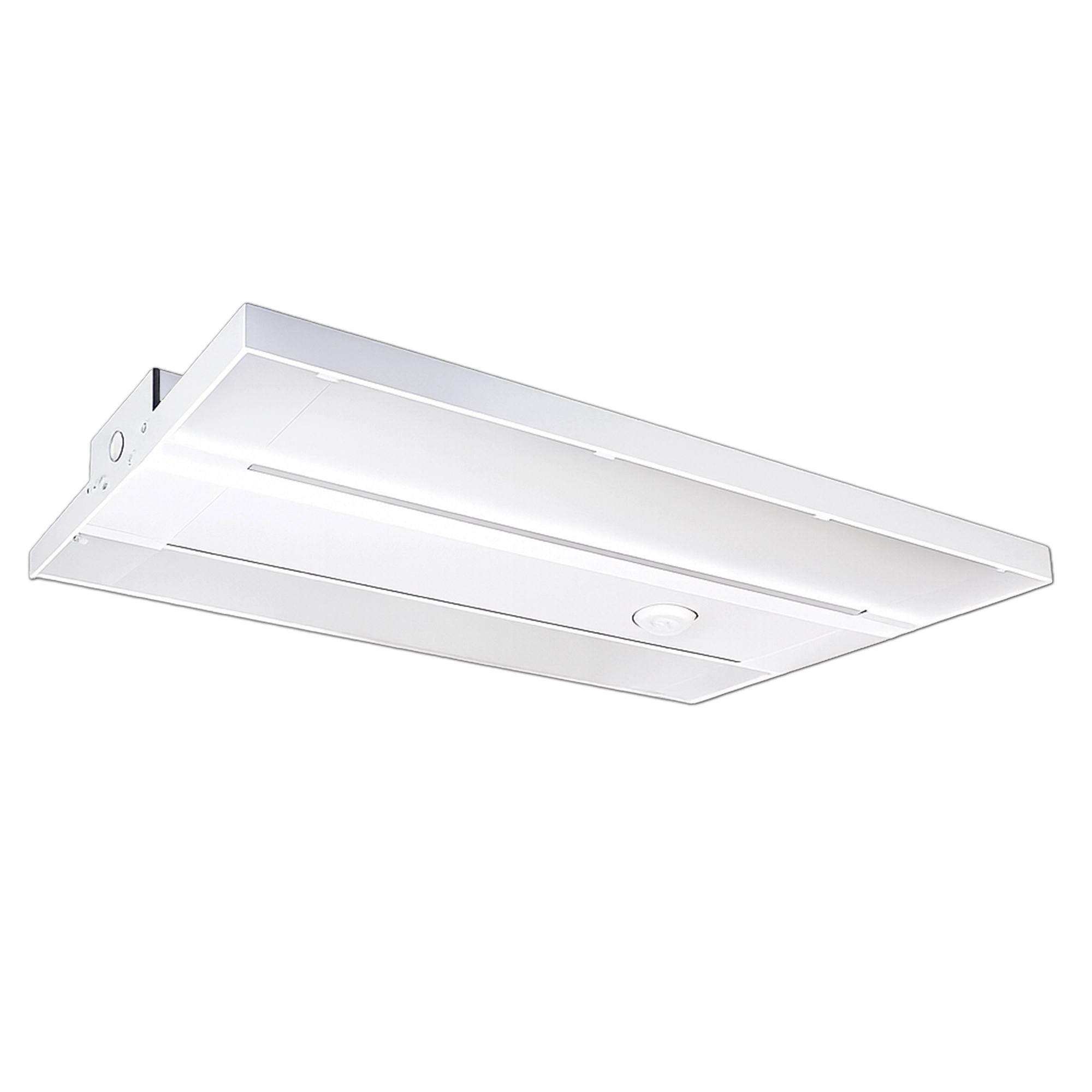

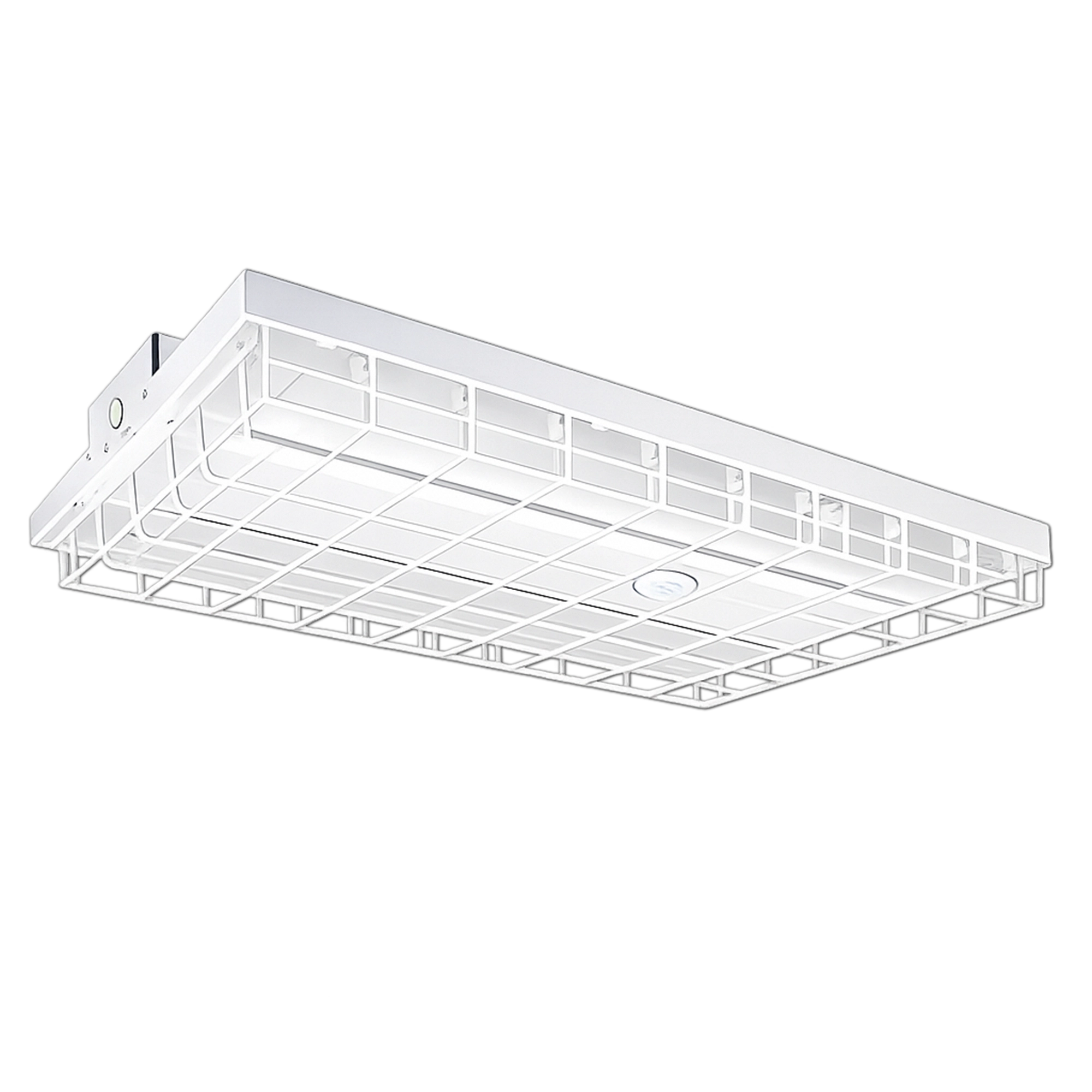

LED 1.5' WILDCAT Gen2.0 195/165/135 Watt TAA Certified Bay Shop Light Up to 29,000 Lumens
LED 1.5' WILDCAT Gen2.0 195/165/135 Watt TAA Certified Bay Shop Light Up to 29,000 Lumens
SKU: PL-WCHBLD-195M-5K
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information
FREE SHIPPING ON ALL QUANTITIES
LED WILDCAT Gen2.0 195/165/135 BAY LIGHT - Shop Lighting - 120V-277V COMMERCIAL SPECIFICATION GRADE
Certifications: UL Listed, TAA Certified, DLC Listed, FCC Compliant, RoHS Compliant, Qualified for most rebate programs (call for details)
Specifications:
Wattage: 195/165/135 Watts
Input: AC 120-277V - 50/60Hz
Dimming: YES 0-10V LED dimming Capable
LED Lumens: Up to 29,000
Equivalent Lumens: 58,000 (when compared to HID and Fluorescent)
Life: 50,000 Hours +
Warranty: 5 years on complete fixture
Color Temperature: 3500K, Warm White, 4000K Medium White or 5000K Daylight White
CRI: 80+
Type: Integrated LED
Optimal Minimum Temp: -22° F
Ambient Operating Temperature Range : -40° F to 122° F (Life span lowered when operated outside optimal temp ranges)

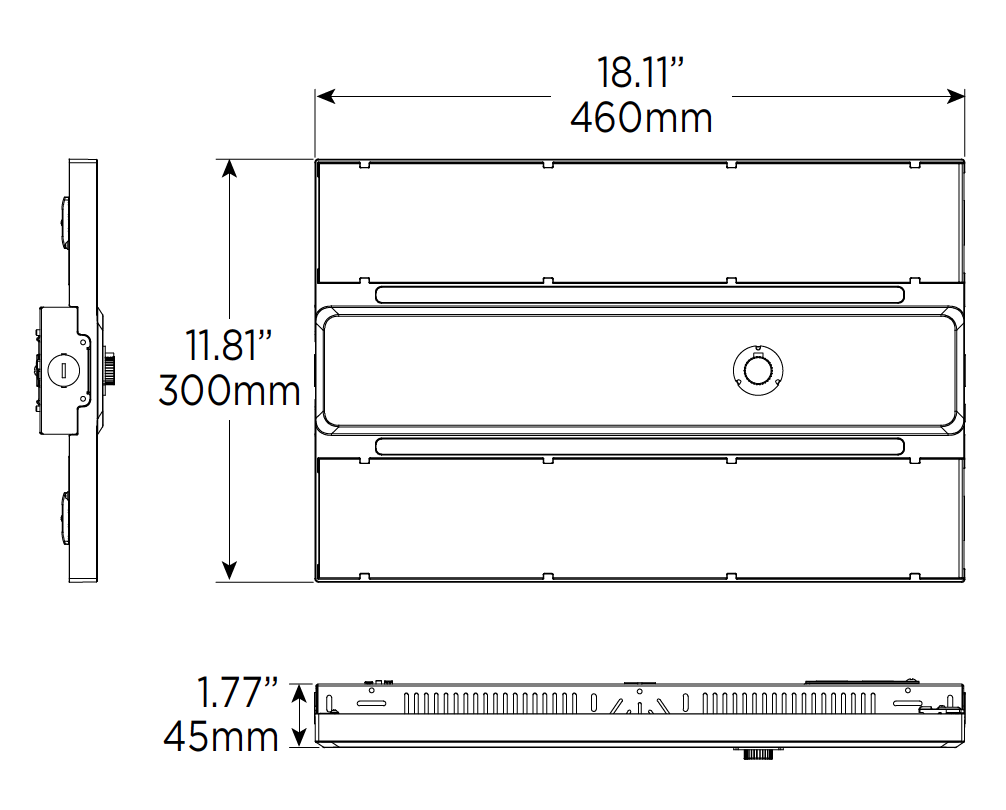

Length: 18.11" Width: 11.81" Depth: 1.77" Fixture Only
Weight: 6.2 lbs.
Part Number:PL-WCHBLD-195M
Mounting Options:
-Chain hang - V-hooks and 40” knotted chain included in standard model (hardware included)
-Surface Mount Kit (Option Added)
*Energy Usage: Approx. 68% Less than T5 Fluorescent
Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
- Item #:PL-WCHBLD-195M
