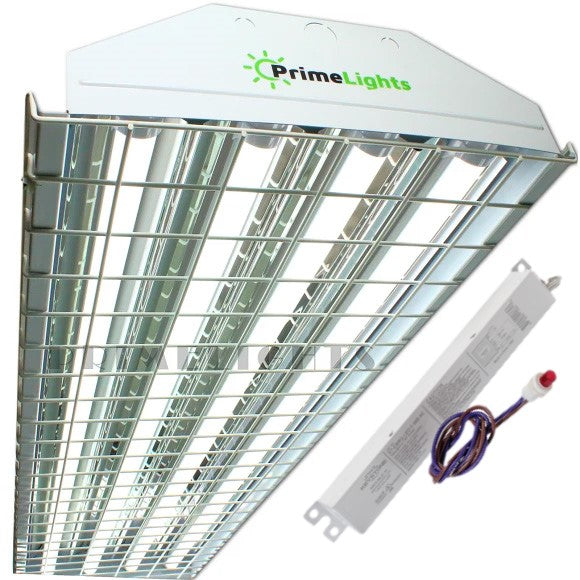

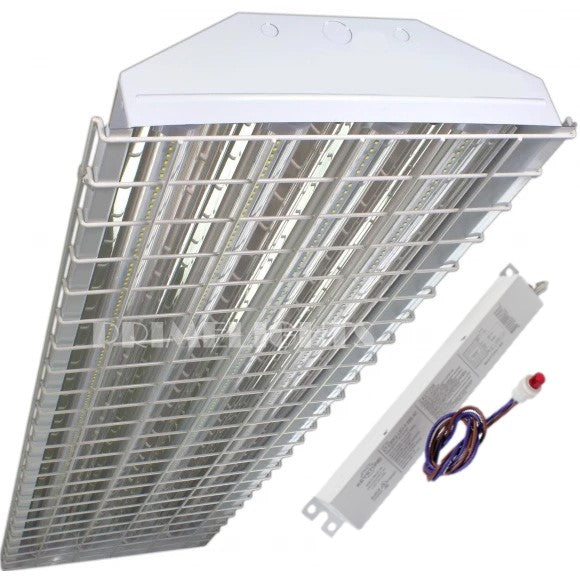

LED 4 Lamp T8 STINGRAY 4XL Highbay Light With 90 Minute Emergency Battery Backup & Wire Guard

SKU: PL-EBB-4SRHBLD88CL
$250.00
Color:
clear-led-tubes
frosted-led-tubes

FIXTURE MADE IN USA!

Buy American Compliant

COMMERCIAL SPECIFICATION GRADE COMPLAINT WITH ANY CODE REQUIRING EMERGENCY BACKUP BATTERY LIGHTS.  THIS USA MADE LIGHT IS IDEAL FOR STORES, WAREHOUSES, BUSINESS'S AND SHOPS THAT REQUIRE A BATTERY BACKUP.

This light comes with an installed emergency battery pack that will kick on in the event of loss of power.  The light will run for and additional 90minutes after power outage.  UL listed and tested thoroughly so you can count on it when you need it most.

If you are needing the regular version to purchase as well with the Battery version see link for details:

https://www.primelights.com/collections/stingray

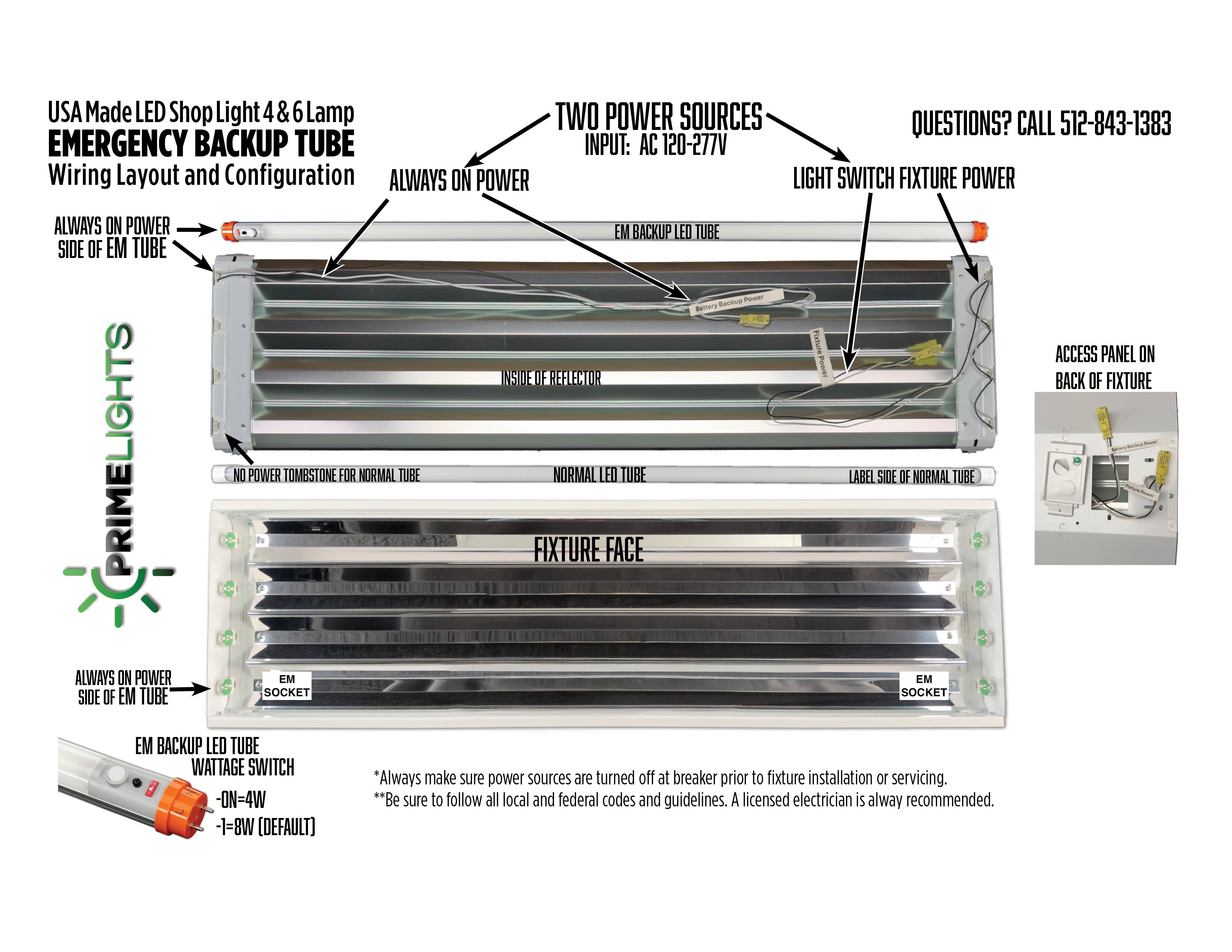

All Lights will come with a battery backup installed.  We do ask that you have a professional or electrician install the lights as the battery will need its own independent power to always remain charged.

Shipping: FREE, In Stock

Certifications: UL Listed (fixture and lamps), NSF, Shatterproof, Contact for Rebate Info

Warranty: 5 years on complete fixture including LED lamps

Included Lamps: (4) Clear flicker-free, shatterproof polycarbonate (imported)

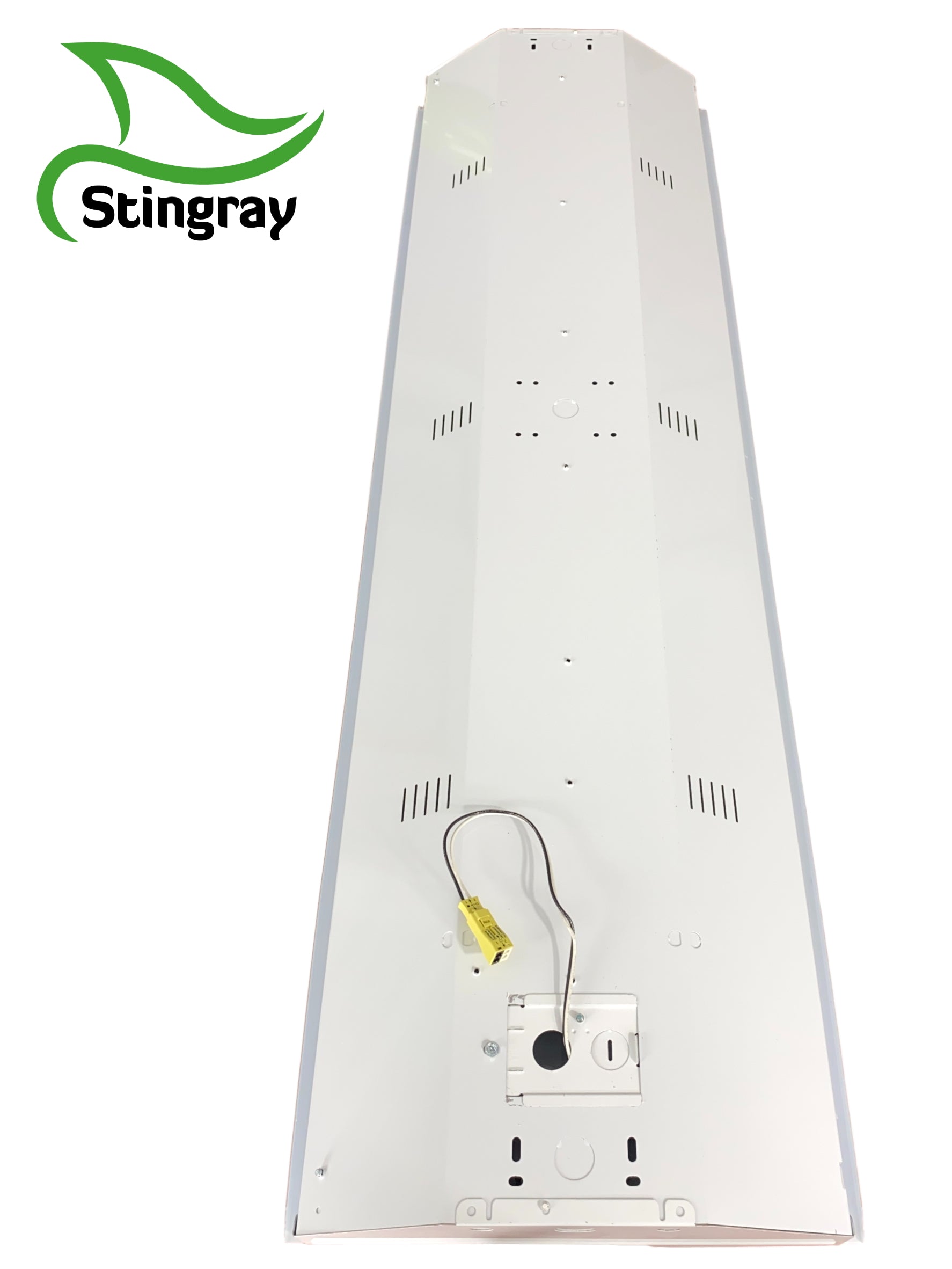

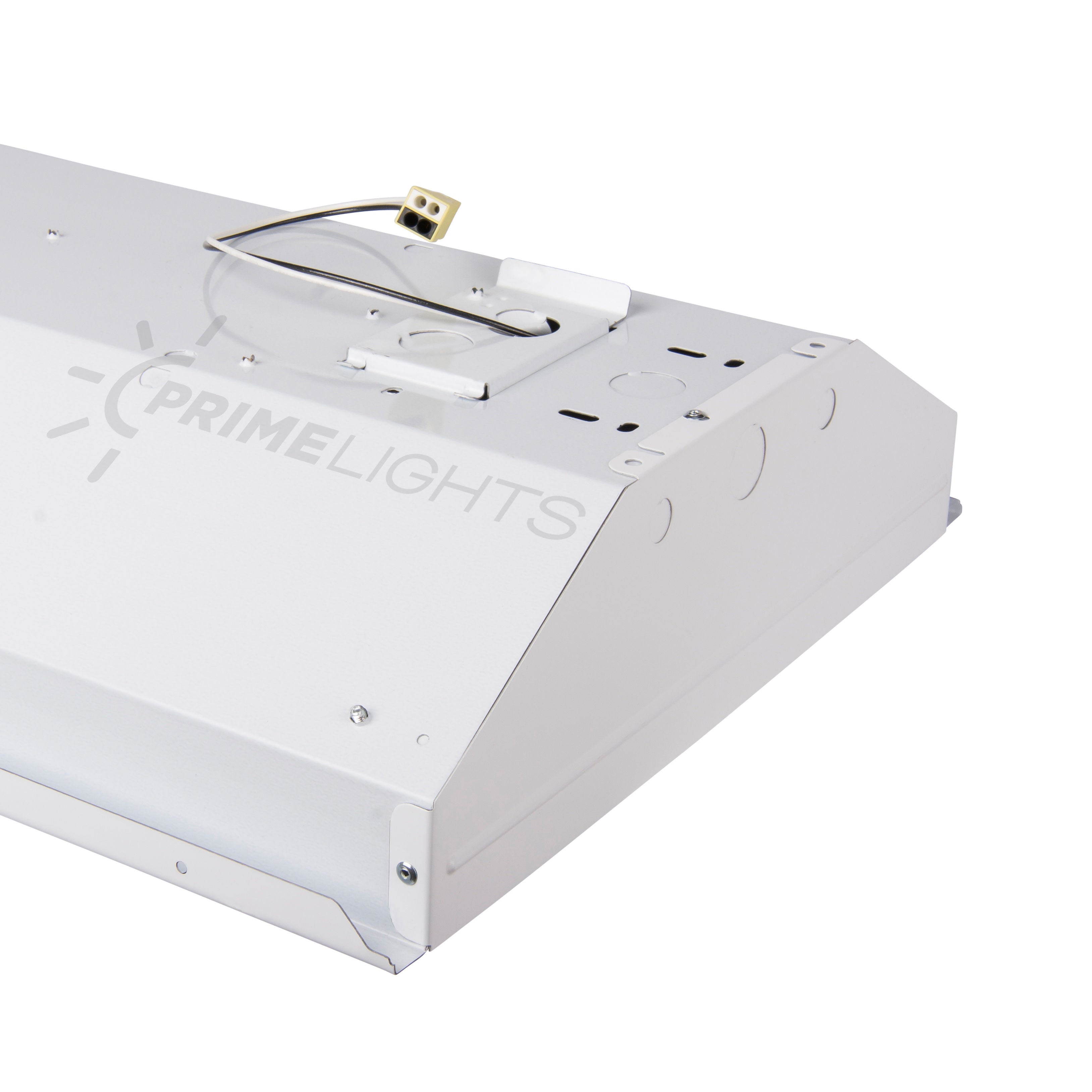

Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

See Product Spec Sheet

Input Wattage: 88W

Voltage: 110-277V (please call for 480v)

LED Lumens: 12,400

Lumens per watt: 155

Color Temperature: 5000K daylight white (call for others)

CRI: 85+

Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 23,660 (fluorescent equiv.)

Lamp Lens: Clear

Install Location: Damp Rated – Indoor/Outdoor Covered (no direct water)

Dimming: No (LED with replaceable lamps cannot be installed with dimmer)

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Flush mount Install weight (without reflector and lamps): 7.5 lbs

Total weight: 11.25 lbs

Part Number: PL-4SRHBLD88FM

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available in accessories)

Mounting Options (Hardware not included)

-Surface mountable (most common): Use screws best for mounting material or toggle bolts

-Hang: Aircraft Cable Hangers available in accessories or use any chain with “s” hooks

*Energy Usage: Approx. 40% Less than T8 Fluorescent

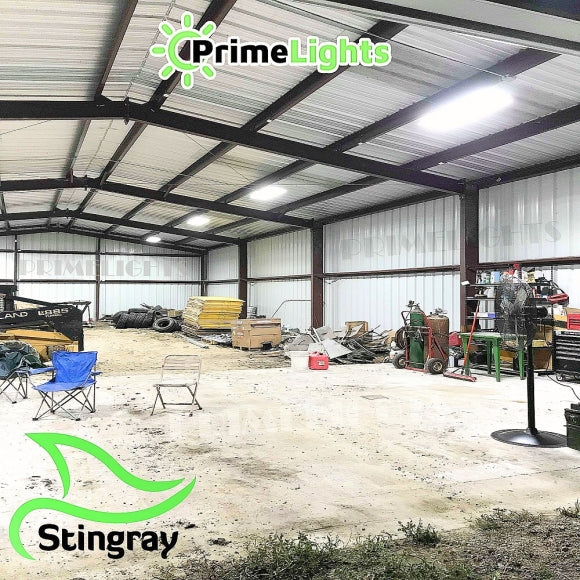

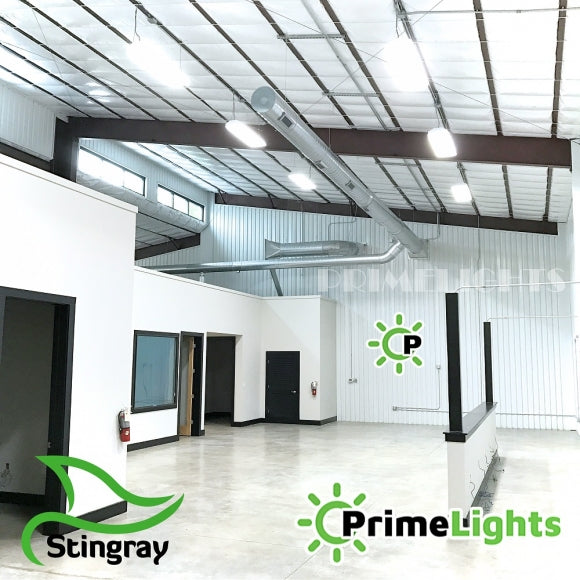

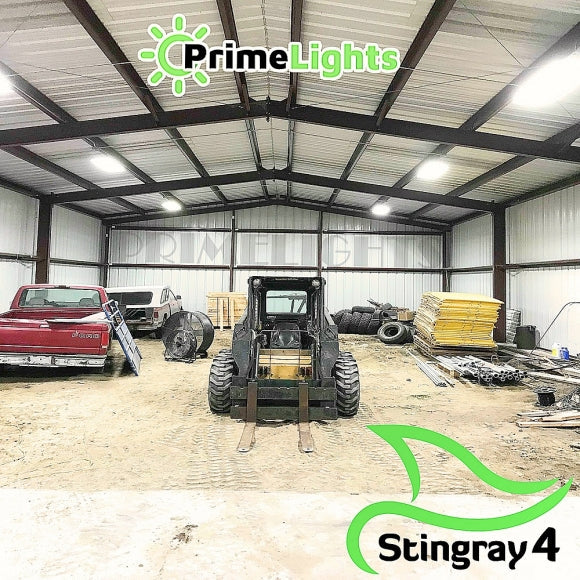

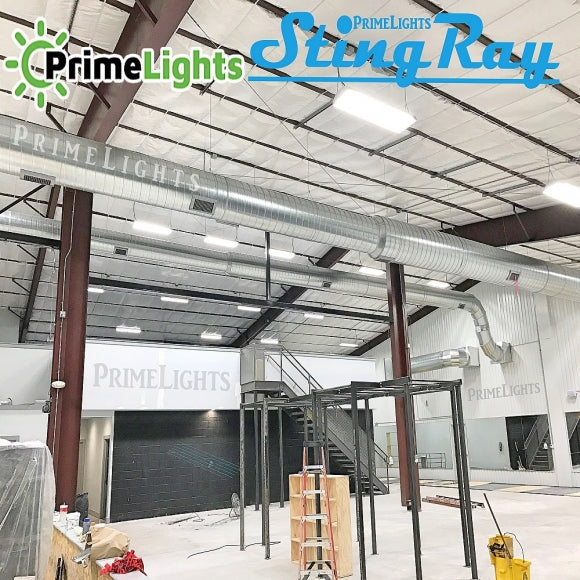

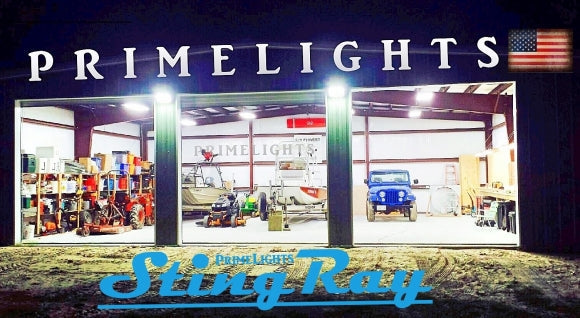

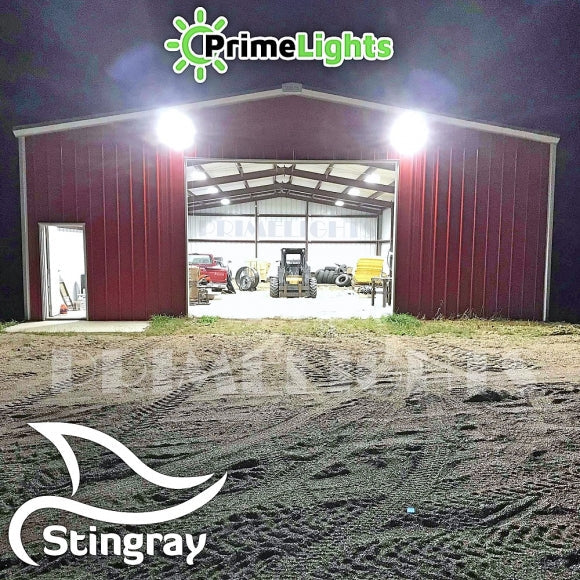

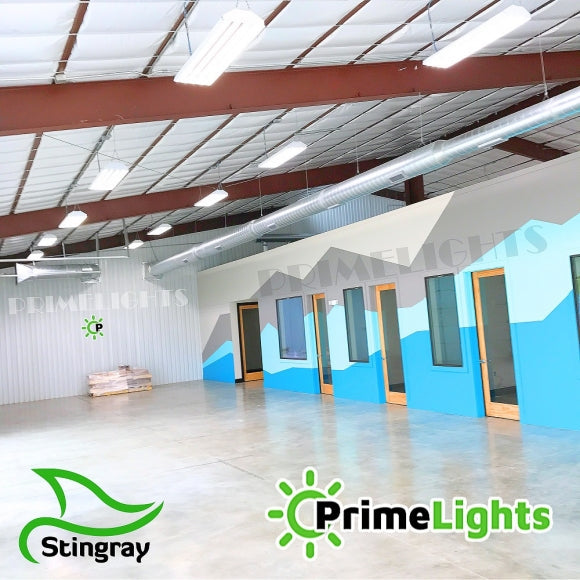

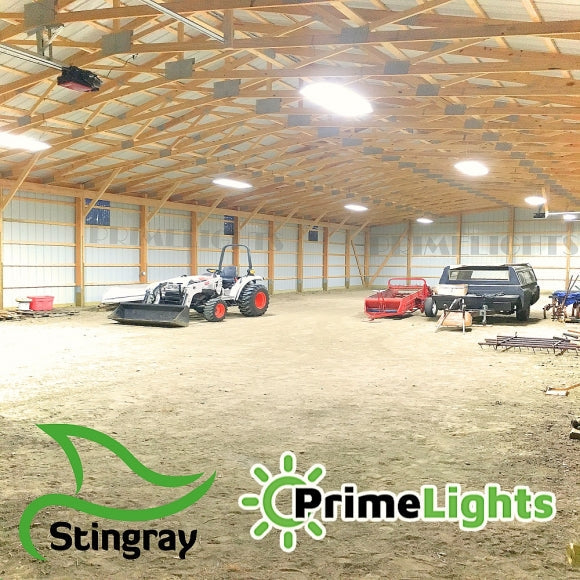

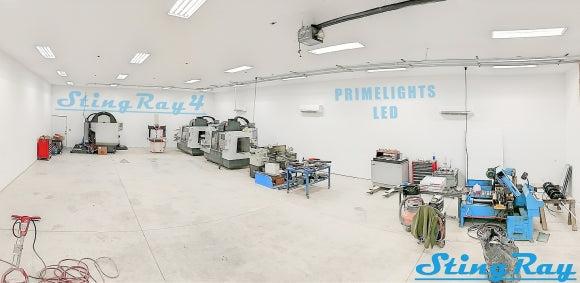

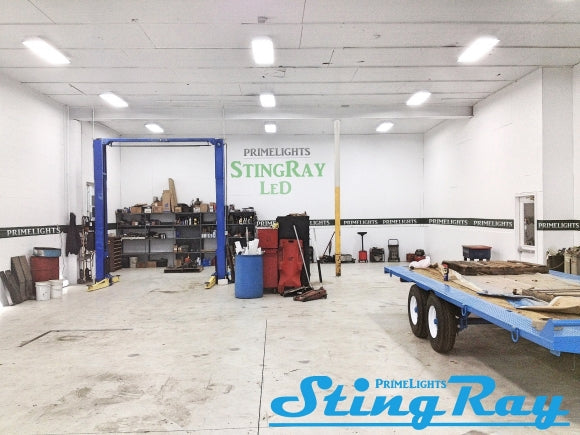

Applications:  The PrimeLights® LED Stingray® 4 in clear is the ideal fixture for ceiling heights ranging up to about 15’.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Clear LEDs for maximum light.  For higher ceilings please see our LED Stingray® 6.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 225sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.

  •  Item #: PL-4SRHBLD88FM

 THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD SOLELY BY PRIMELIGHTS®
