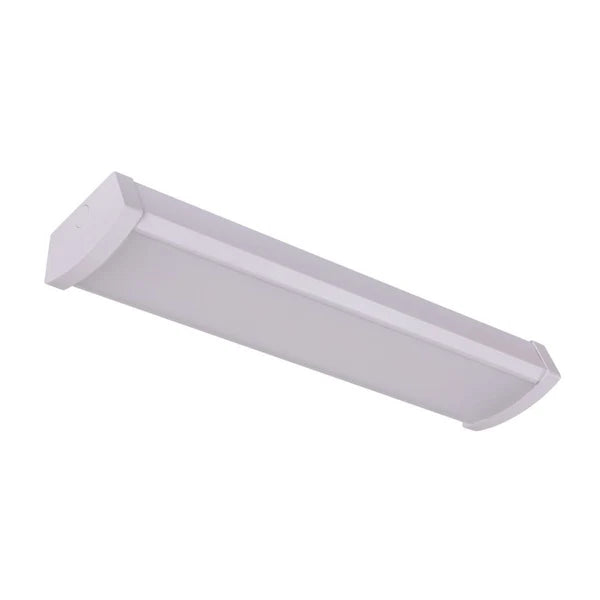

Energetic Lighting’s WRA2 series of LED surface mount wraps showcase a simple yet elegant fixture form factor while delivering up to 2631 lumens in a 2-ft length profile. Dimmable with standard 0-10v dc low voltage systems. These versatile lights can be used for general room lighting, or as functional work area lights with an all-white appearance. Installation is quick and simple when mounting into standard ceiling junction boxes where access to interior wiring compartment only involves removing the front diffuser using an included suction cup tool. A simple housing core design uses less material for weight reduction, yet maintaining a durable steel body to retain a rugged overall construction. These versatile wrap light fixtures can be used in just about any type of installation location including, hallways, offices, schools, hospitals, and commercial warehouses.

FEATURES

 • CCT Selectable 3500K, 4000K, 5000K

 • Two housing profiles in either 2-ft or 4-ft lengths

 • 3 available standard 1/2-inch trade-sized knockouts available on the back of the fixture housing

 • Suitable for dry or damp location installations

• Easy wiring compartment access using the supplied suction cup, included in every unit package

 • Pass-through single-wall wiring with integrated wire hold-down points provide easy and quick wiring as well as clean wire routing within the interior compartment

 • Dimmable with standard 0-10v low voltage DC systems

Specifications

Model Number: WRA2NS26E83550-DF

Configuration: 2-ft

Body Color/Finish: White

Beam Angle: 100

Lumens: 2631 LM

Luminous Efficacy: 129 lm/w

Input Power: 20 W

Input Voltage: 120-277V

Power Factor: 0.9

THD: 0.1

Color Temp (CCT): 3500K/4000K/5000K

Color Rend(CRI): 85

Lifetime Rating: 50000 hr

Warranty: 5 yr

Dimmability: 0-10v

Operating Temp: -13 to 104 °F

Environment: Damp locations

• Safety Listings:  ETL

Performance Listing(s): DLC5.1-P

Item Weight: 4.9 lbs

• Item Dimensions: 23.2 "L x 5.3 "W x 2.3 "H

Applications

• Suitable for damp locations

• Offices

• Hallways

• Schools

• Hospitals

• Commercial Buildings





average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
1 Review
Reviewed by Tom M., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Home Garage
Rated 5 out of 5
Review posted

Great little light!

Bought this for a garage closet about 4x8 and a ceiling about 12'. The original light was a standard, single bulb incandescent that was pretty much useless on a bright day with the garage door open and both doors to the closet open. Put this light in using four drywall anchors and ran the house wires into the fixture to make it easier working on the connections overhead at that height. No issues with wiring, no issues mounting the fixture. It has two safety cables to keep the light module safely dangling while the housing is screwed in to the ceiling. Interesting suction cup/hook tool used to take the lens off and the light module out that came with the fixture. It has drywall hardware and wire nuts in the kit too. I used the self-tapping type that hold 50 lbs. each (overkill) as they are just easier to work with and I keep a bulk box of them in my tool bag. Overall, very satisfied with the light, the brightness, and the nice features it has for operation and installation. There are two additional wires (pink and purple) that I did not need for my set up and are optional if you are using a dimming switch according to the wiring diagram. I just capped them, taped them, and taped them to the inside of the fixture to keep them out of the way. I did not see any instructions or way of removing them from the fixture without a great deal of alteration. Another great light from the good people at Prime Lights!
