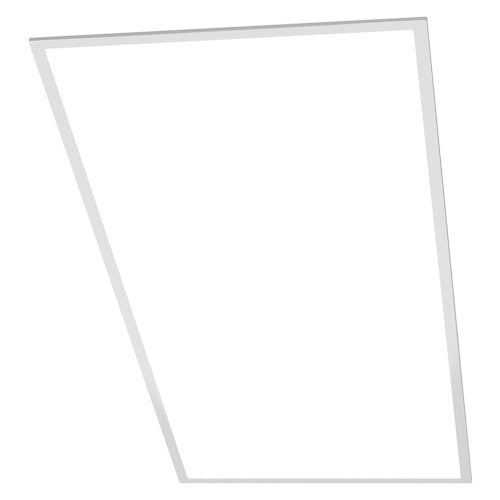

Energetic Lighting E2BPL4-H3645D-83550 Flat Panel 2x4, 36-45W Dimmable Color Selectable
Energetic Lighting E2BPL4-H3645D-83550 Flat Panel 2x4, 36-45W Dimmable Color Selectable
SKU: E2BPL4-H3645D-83550
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information
FREE SHIPPING
Energetic Lighting’s E2BPL series is suitable for use in a broad range of commercial applications. Utilizing today’s latest innovative LED solutions and technologies paired with world class manufacturing practices, the E2BPL provides customers an affordable LED back-lit panel offering with the perfect blend of design, performance, value and reliability. An extremely versatile product thanks to its low-profile design that is as shallow as many other higher priced edge-lit panels available today. As a result the E2BPL is well suited for installations with shallow plenum access. With our integral ezCCT field-selectable CCT along with ezWATT field-selectable wattage, these panels extend use to a broad range of commercial and industrial applications. The E2BPL is a great choice for renovation opportunities replacing existing fluorescent luminaires or for new construction projects that require code compliant energy saving LED solutions. Ideally suited for office spaces, schools, retail, hospitality and healthcare applications, the E2BPL provides high quality illumination with optimal energy savings.
Features:
- ezCCT field-selectable CCT - 3500K, 4000K & 5000K >80 CRI
- ezWATT field-selectable Wattage - 3 steps
- Acrylic over-optics with polymer diffusing lens creates an extremely uniform visual aesthetic and provides target uniform illumination.
- 125+ LPW provides 40-60% in energy savings vs. fluorescent
- Die-formed steel housing won’t flex during installation
- Reduced weight design makes for easier installation (as much as 50% weight reduction compared to edge-lit equivalents)
- 88% lumen maintenance @ 60,000 hours – L88/60,000 (per IES TM21)
- Projected L70 @ 174,000 hours = maintenance free illumination (per IES TM21)
Applications:
- Indoor, Industrial, and Commercial
- Office, Healthcare, and Educational
- Hospitality and Grocery
- Retail, and Hallways
Specifications:
- Model Number: E2BPL4-H3645D-83550
- Configuration: 2x4
- Body Color/Finish: White
- Beam Angle: 100
- Lumens(lm): 4500 | 5000 | 5625
- Luminous Efficacy: 125
- Input Power: 36W | 40W | 45W
- Input Voltage: 120-347V
- Power Factor: 0.9
- THD: <20%
- Color Temp (CCT): 3500K | 4000K | 5000K
- Color Rend (CRI):
- Ra80
- Lifetime Rating: >54000
- Warranty: 5yr Limited
- Dimmability: 0-10V
- Operating Temp: -13 to 113
- Environment: Damp
- Safety Listing: UL
- Performance Listing: DLC5.1-P
- Weight: 4.9
- Dimensions: 47.8 x 23.8 x 2
