Product Information

FREE SHIPPING ON ALL QUANTITIES

Certifications: UL Listed, IP 65 Rated, ROHS Compliant

Warranty: 5 years on ballast, 1 year on all other components.

Specifications:

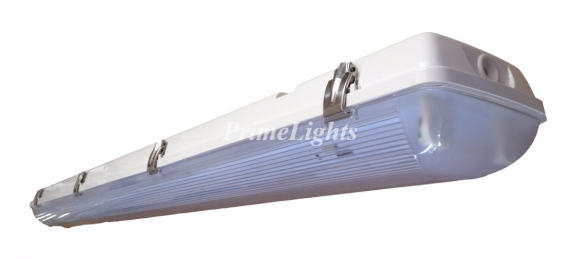

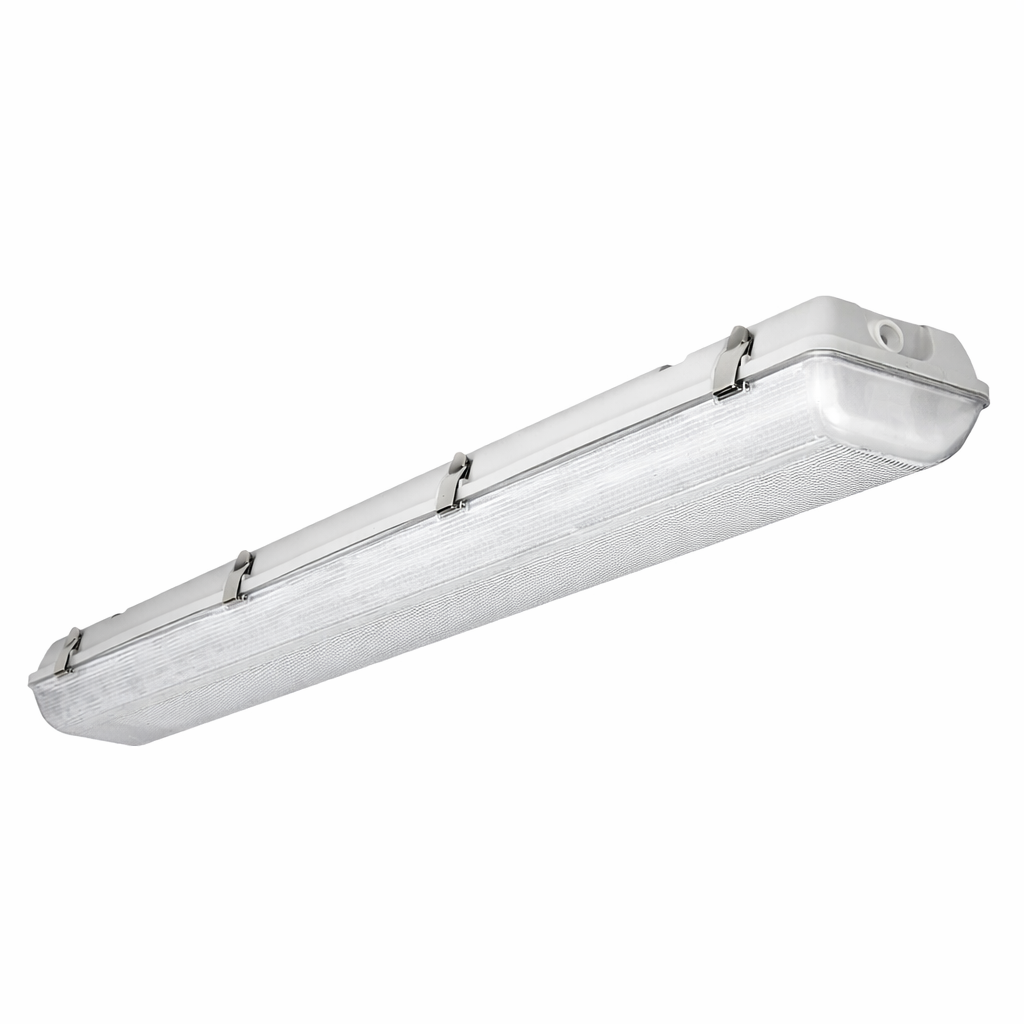

Philips Advance ballast, (1) 120-277multi-volt electronic ballast (2 lamp T5 High Output), lampholders wired, Ideal luminaire quick disconnects, unbreakable polycarbonate lens and housing, cold rolled steel gear tray in baked white reflective enamel, 13/16'' plugged conduit knockouts on both ends, stainless steel latches and mounting brackets.

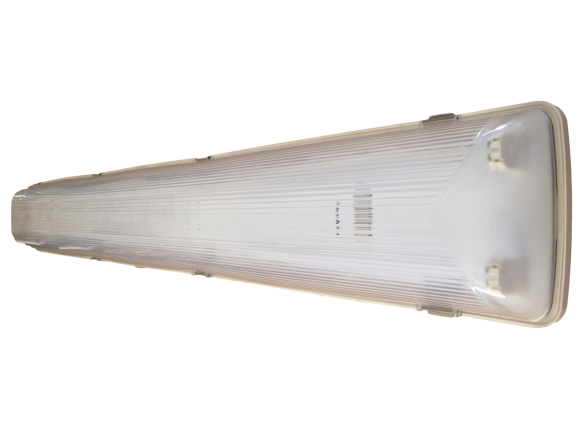

Enclosed and gasketed to keep weather, dust, bugs, and vapors out.  Lens has a clear linear pattern to diffuse light evenly.

Total Wattage: 108W

Voltage: 120v -277v

Ballast Type: Electronic Program Start, 50/60Hz

Min Start Temperature: -20° F

Length: 50”  Width: 6.25”  Depth: 4.25”

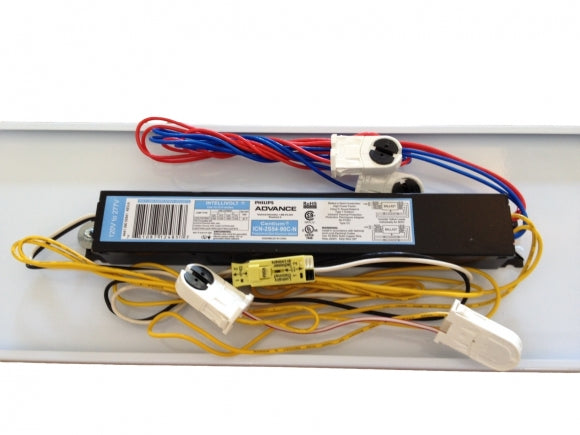

Ballast:

-Advance (Philips) -20 degree ballast 120/277v - Advance Part# ICN-2S54-90C@120

Mounting Options:

-Surface mountable

-Clips included for chain hanging

Uses (2) F54 T5 High Output lamps (not included).  See related items below for cartons of (50) lamps in all color temperatures.
