1300 Lumen Fluorescent Emergency Ballast T5/T5HO (Case of 4)
Click to enlarge

1300 Lumen Fluorescent Emergency Ballast T5/T5HO (Case of 4)

SKU: PL-1300-T5FL


Certifications: UL listed for Retrofit/Field Installation. Meets UL924 damp location, Life safety NFPA101, NEC, OSHA, Meets most Local and State Codes.

Warranty: 5 years

Lamp Compatibility: (Also see chart in above photos)

-T5 14-28w, 8w / T5HO 39w, 54w

-Compatible with 1-lamp, 2-lamp, 3-lamp, and 4-lamp fixtures with many ballast types including standard, rapid-start, slimline, energy saving, dimming, and electronic AC ballast.  Contact customer service regarding specific applications.


-Works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into unobtrusive emergency lighting

-Provides a minimum of 90 minutes of emergency illumination

-AC Output ensures compatibility with newer lamp technologies and helps prolong lamp life

-Time delay enhancement to overcome end-of-life circuit protection

-Selectable lamp leads for optimizing light output for desired lamp type

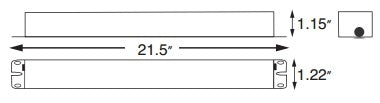

-Low profile galvanized steel housing (see photos for dimensions)

-Can be installed inside, on top or in remote of the fixture

-Can be used in both switched and unswitched fixtures


-Operates one or two lamps in the emergency mode for a minimum of 90 minutes

-Provides a maximum initial lumen output of 1300 Lumens


-Dual Voltage Input 120V/277VAC, 60Hz

-Solid-state charger circuit

-Test Switch/Power Indicator light

-Temperature Rating (Ambient): 0ºC to 50ºC [32ºF to 122ºF]

-Maintenance-free, long life, Sealed Nickel Cadmium Battery

-Maximum battery recharge time: 24 hours

-AC Output in emergency mode
