USA Made 4ft. Bolt LED Shop Light | 60W | 10,800 Lumens - Clear/Frosted
Commercial Specification Grade | Free Shipping | In Stock
Built in America. Built to Last.
This 4-foot LED fixture is manufactured in the USA from American steel. It delivers 10,800 lumens of clean, 5000K daylight while consuming just 60 watts—roughly 40% less energy than traditional T8 fluorescents.

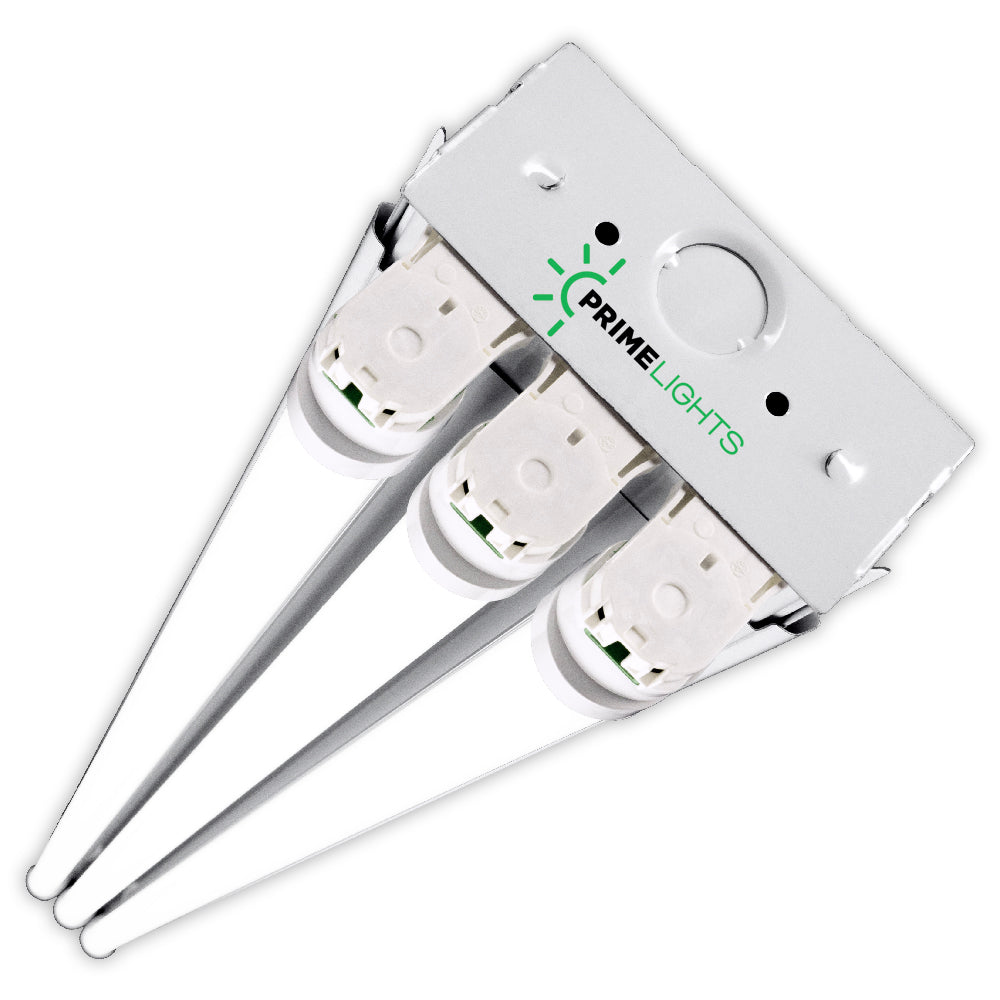

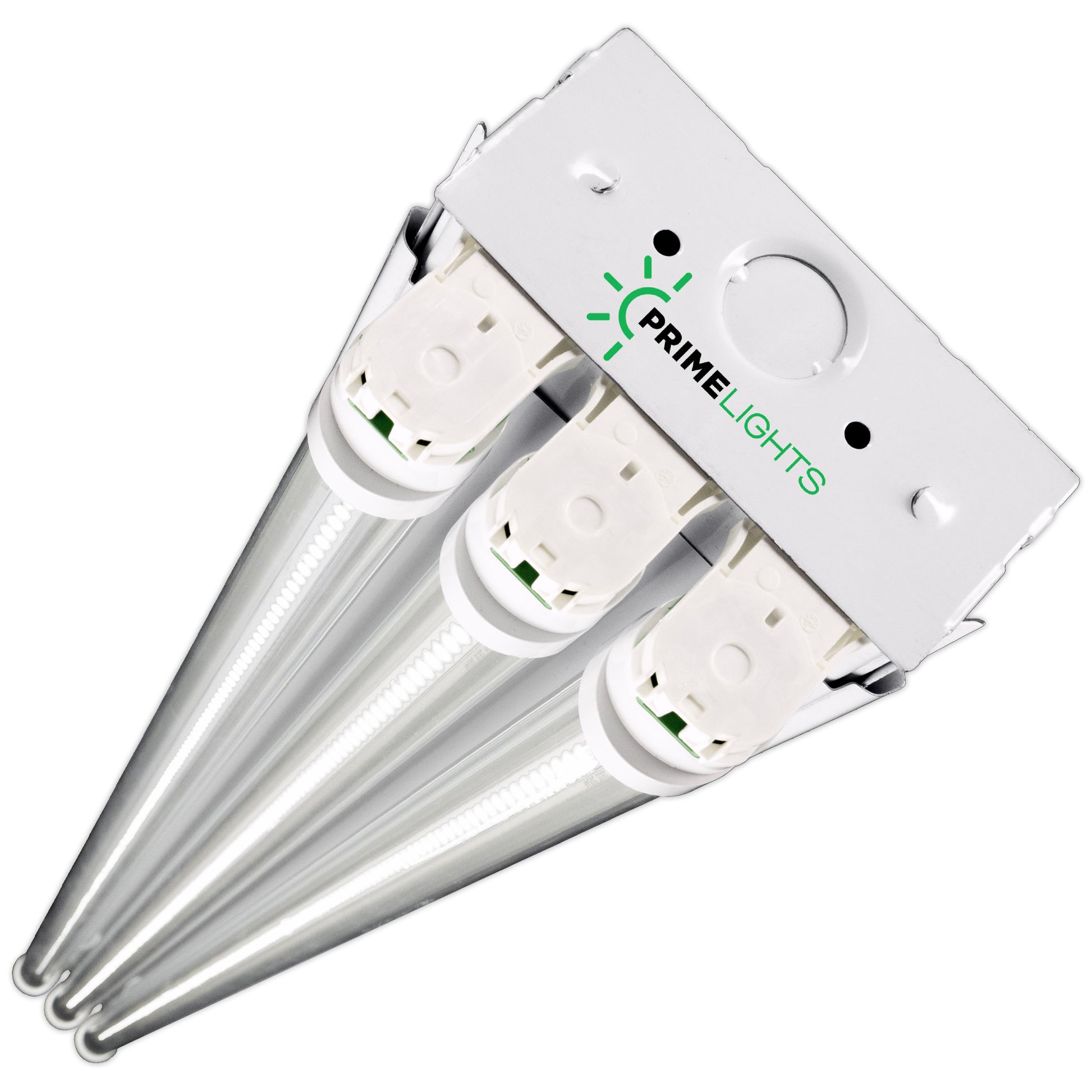

Three clear, shatterproof polycarbonate lamps produce an industry-leading 180 lumens per watt with maximum light output. No ballasts. No external drivers. Nothing to maintain inside the fixture. Wire it up and forget about it.
This is the last shop light you'll ever need.
Specifications
|
|
| Input Wattage |
60W |
| Lumens |
10,800 (21,600 fluorescent equivalent) |
| Efficiency |
180+ lumens per watt |
| Color Temperature |
5000K (others available) |
| CRI |
85+ |
| Voltage |
110-277V (480V available) |
| Beam Angle |
120° |
| Life |
50,000+ hours |
| Operating Temp |
-20°F to 112°F |
| Dimensions |
48"L × 4.75"W × 3.25"H |
| Weight |
6.5 lbs |
| Rating |
Damp Rated (indoor, covered outdoor) |
Construction
- 20-gauge cold rolled American steel with baked white enamel finish
- Mirrored aluminum reflector
- 7/8" conduit knockouts on both ends and top
- Luminaire disconnect with 4 connection points for easy daisy chaining
- Wired lamp holders with G13 medium bi-pin base
- Quick disconnect wire harness included
Certifications & Warranty
ETL Sanitation and DLC Listed. We work with UL, ETL, or CSA in conjunction with DLC to ensure every fixture meets or exceeds U.S. safety standards and electrical codes.
5-year warranty covers the complete fixture including all LED lamps. Contact us for utility rebate information.
Installation Options
Surface Mount (most common): Multiple predrilled holes accommodate screws or bolts. Hardware not included.
Suspended: Compatible with aircraft cable hangers, jack chain, or S-hooks. Cable hangers available at checkout.
Plug-in: Cord and plug kit available at checkout or in accessories.
Accessories: Occupancy sensors and wire guards also available.
Applications

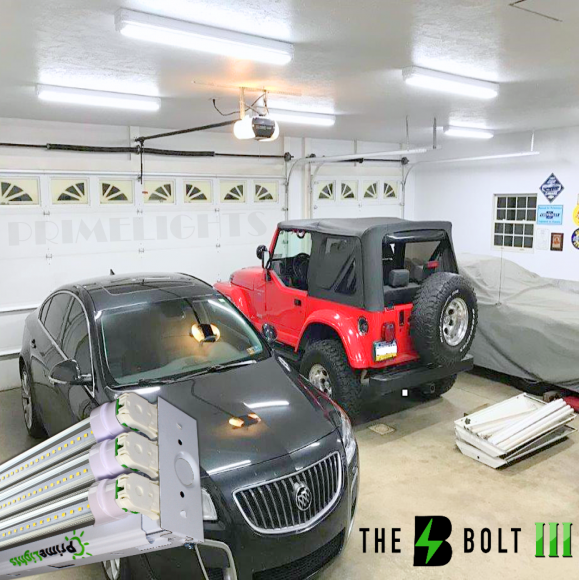

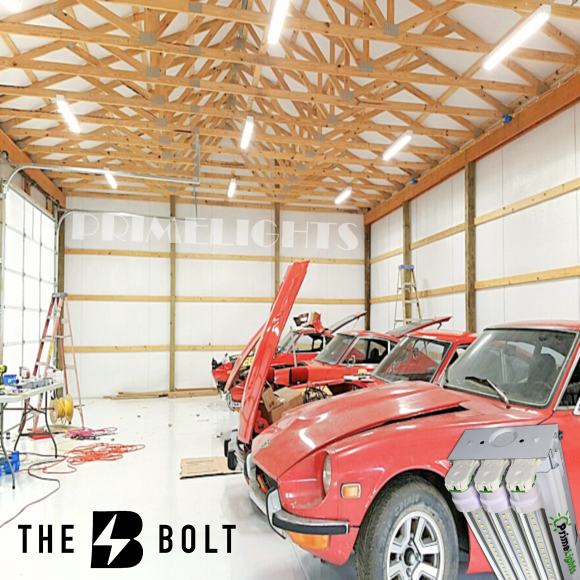

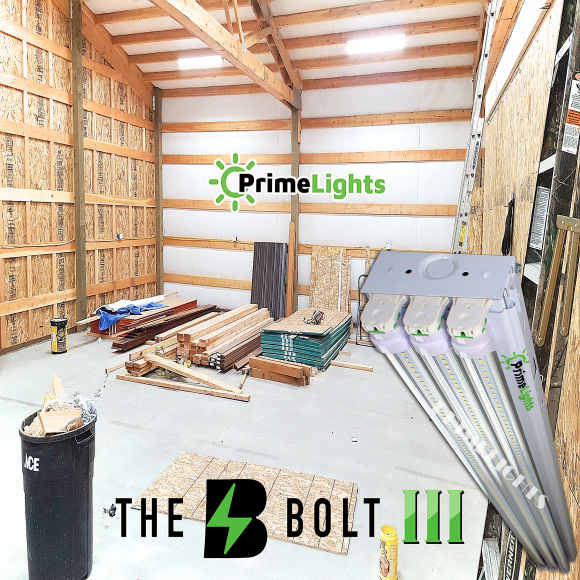

Ideal for ceiling heights up to 12 feet. Perfect for metal buildings, warehouses, fabrication shops, garages, barns, hobby shops, automotive restoration, showrooms, and manufacturing facilities.
Quick Layout Guide: Replace 3-lamp T8 or T5 fixtures one-for-one, or plan approximately one fixture per 225 square feet for general lighting.
For a free professional lighting layout, call 512-843-1383. Have your ceiling height, room dimensions, surface reflectivity, and intended use ready—we'll design your layout over the phone in minutes.
Dimming Note
This fixture is not dimmable. For dimming capability, see our Wildcat and UFO product lines.
Part Number: PL-BLT66WCL & PL-BLT66WFR
Specifications subject to change without notice.
