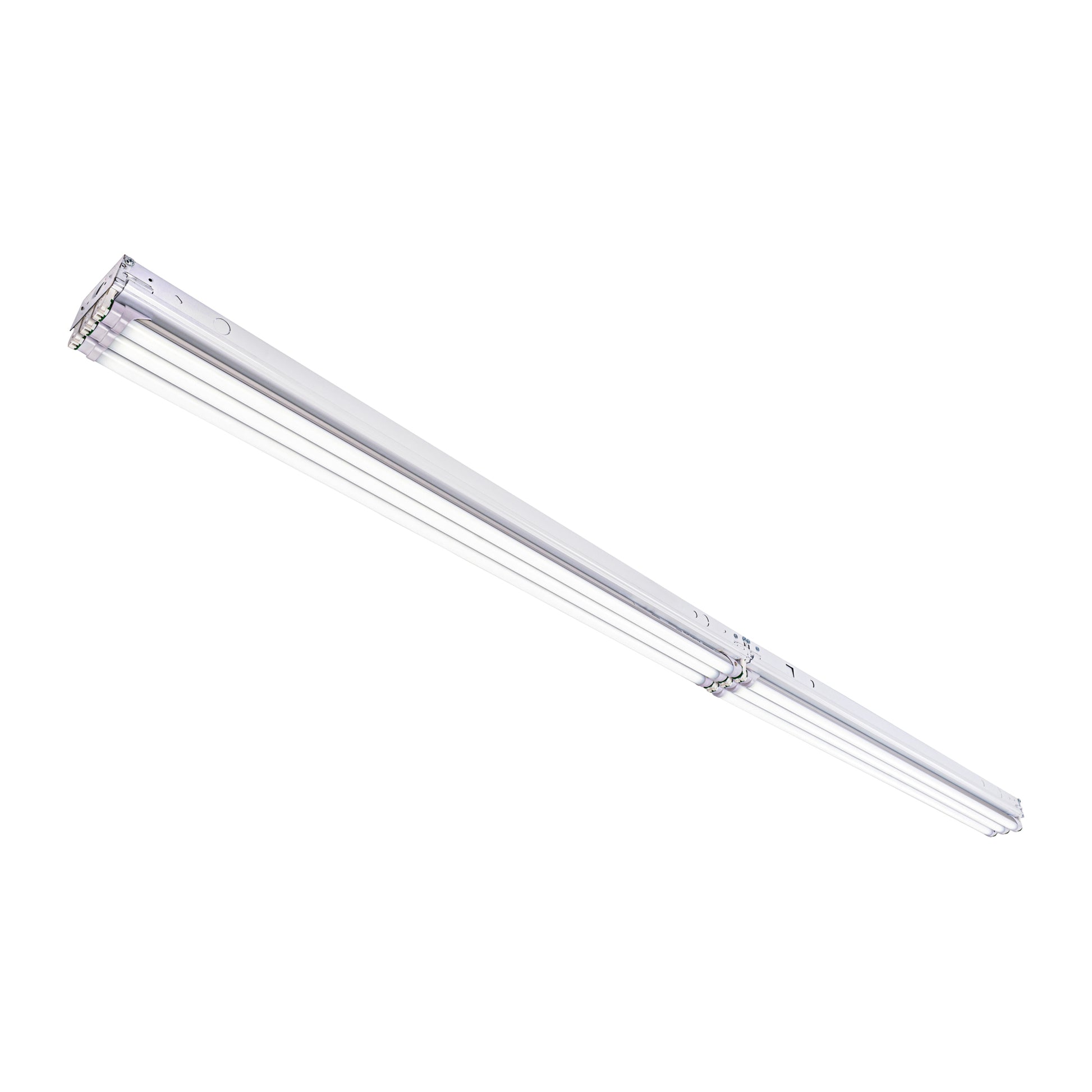

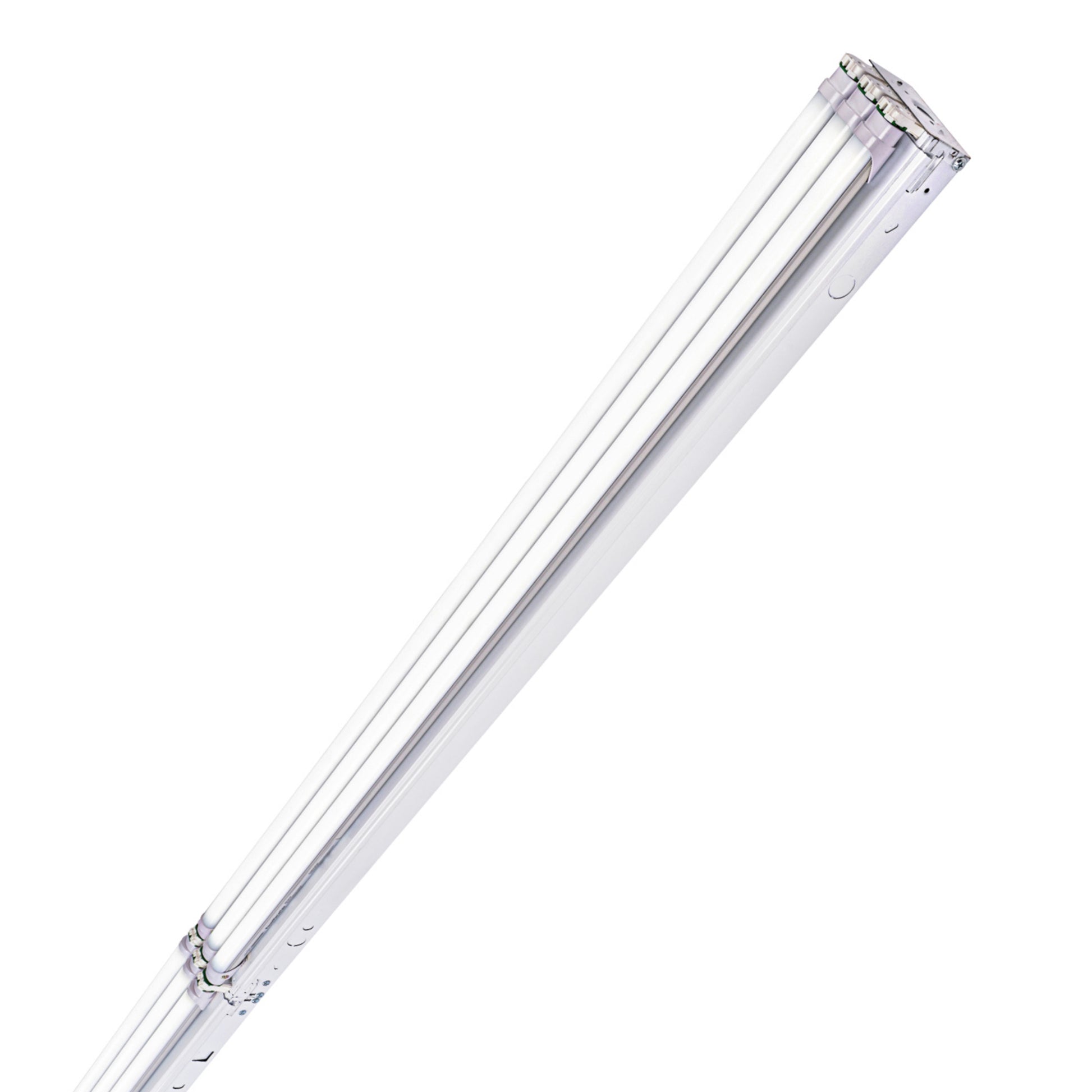

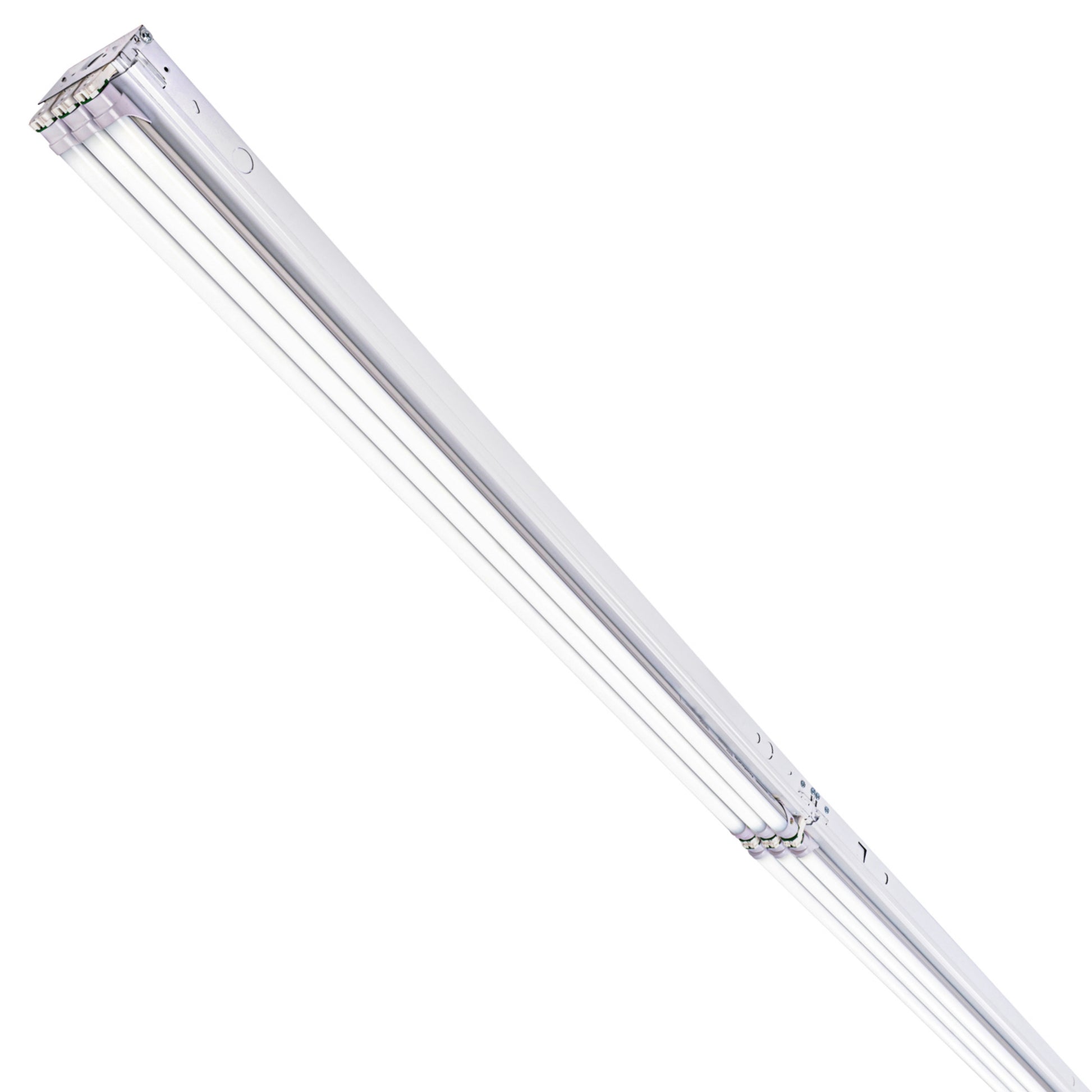

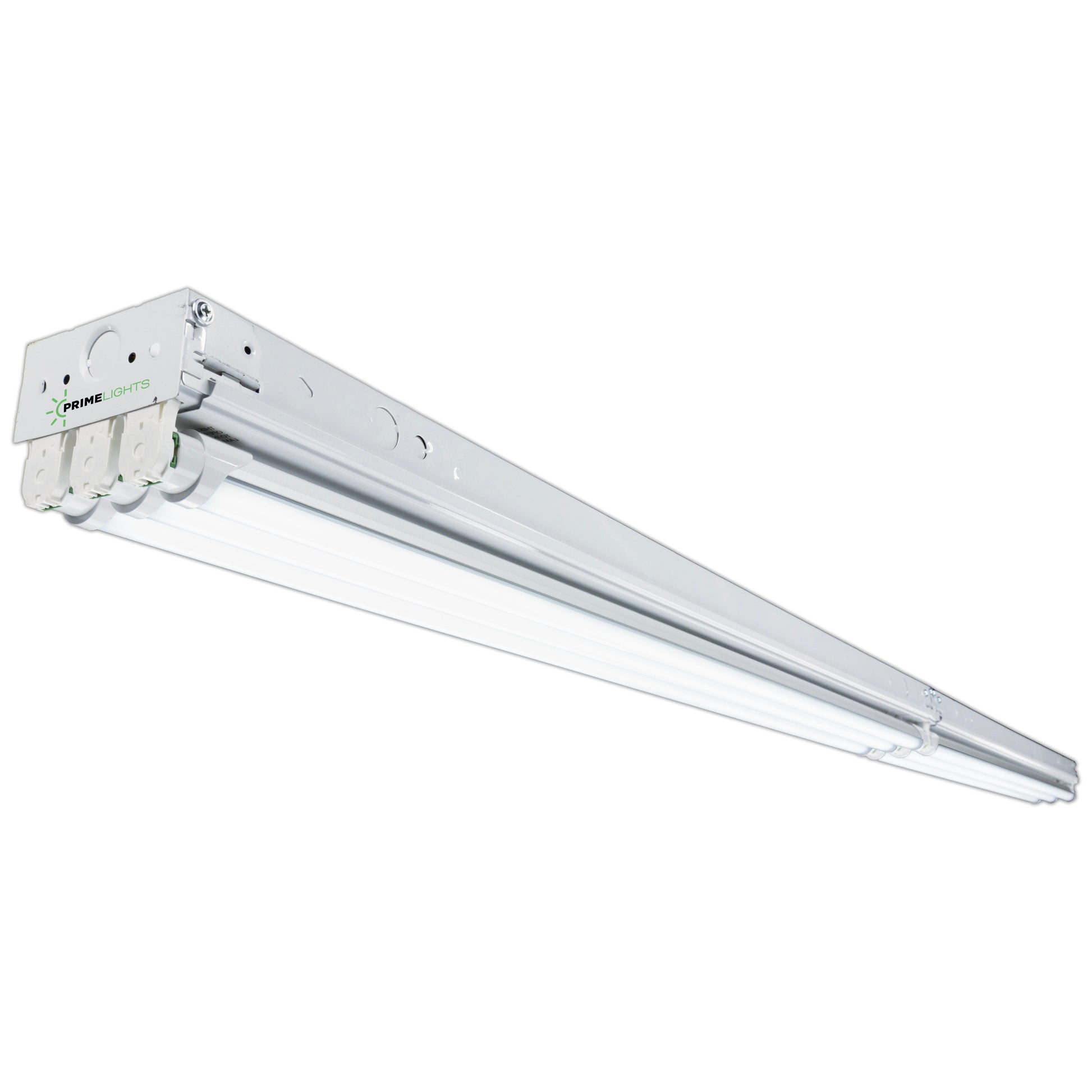

The BOLT 8' – 6 Lamp LED Shop Light – 16,840 Lumens FROSTED
Click to enlarge

The BOLT 8' – 6 Lamp LED Shop Light – 16,840 Lumens FROSTED

Rated 5.0 out of 5
1 Review

New 8 Foot Version of the 3 Lamp Bolt uses 4 Foot Lamps!

Fixture Made in the USA



Shipping: FREE, In Stock

Certifications: UL Listed, NSF Certified, Damp Rated

Warranty: 5 years on complete fixture including LED lamps

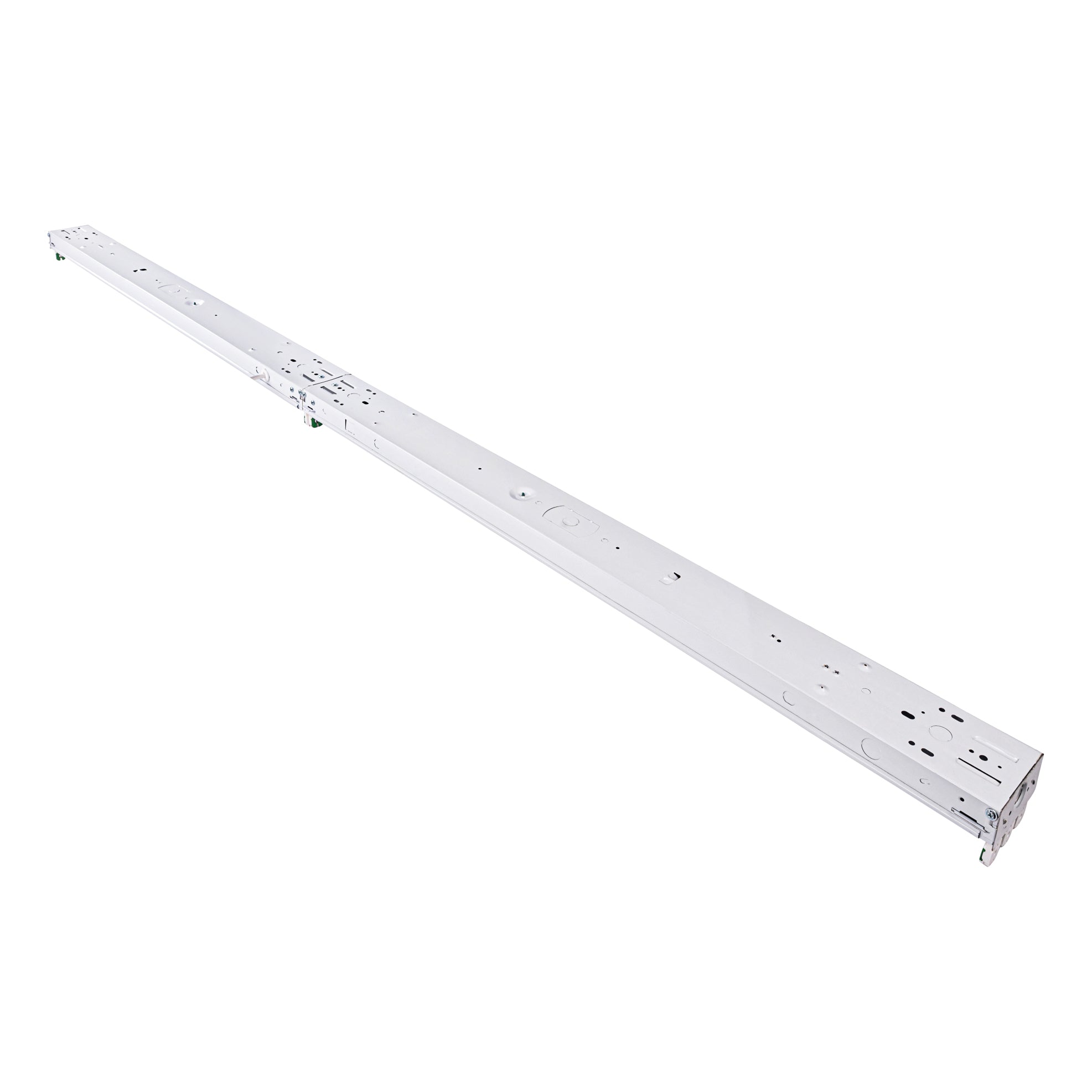

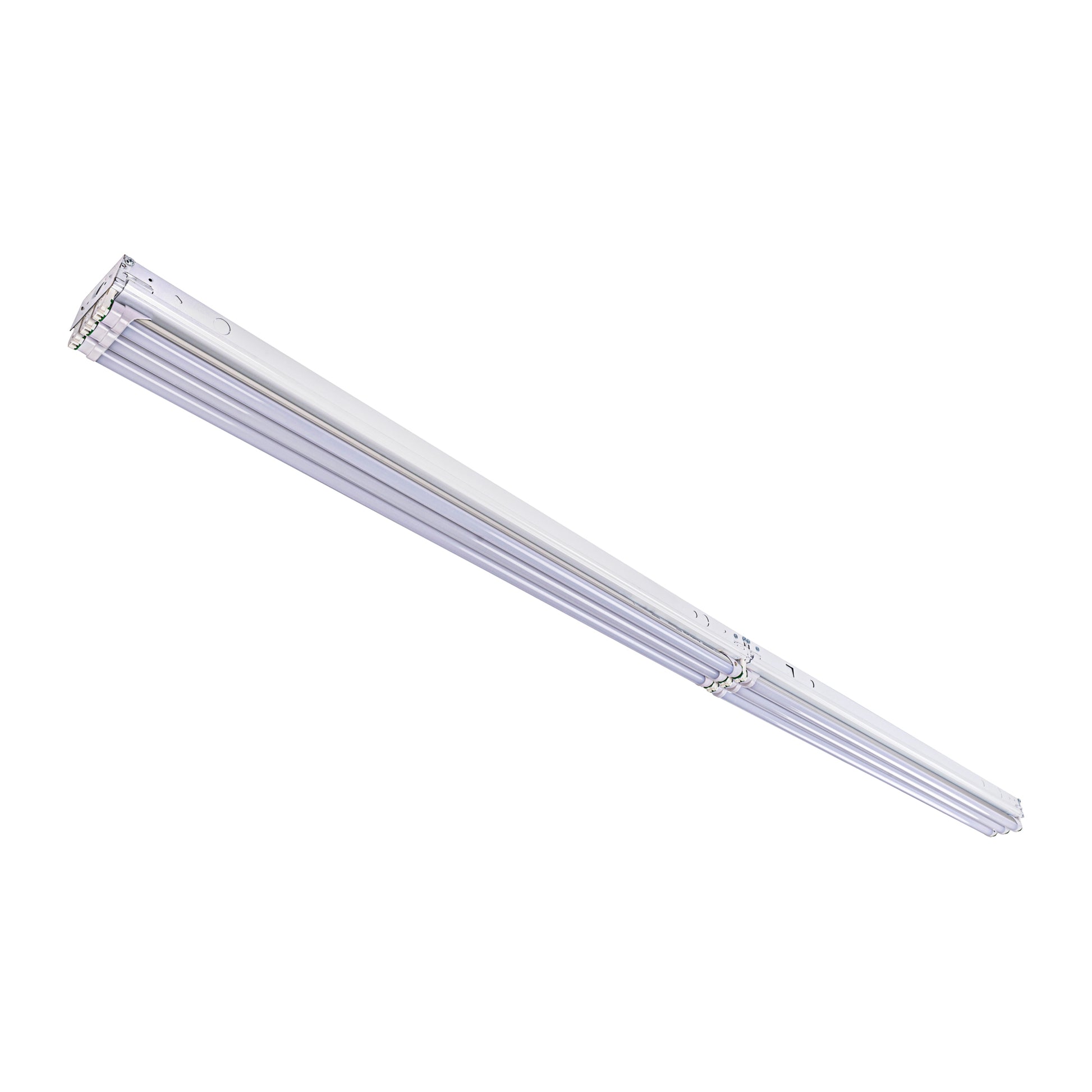

The 8 foot Bolt uses 4 foot lamps bringing you the best of both worlds.  After a quick assembly using the simple extension plate, the 8' fixture is ready for a single point of wiring.  Double rows of 4' lamps alleviates the cost, hassle, and fragility that comes with 8' technology.  Not to mention that 8' lamps cannot match the brightness, efficiency, and longevity of the ever popular PrimeLights 4' LED lamp.

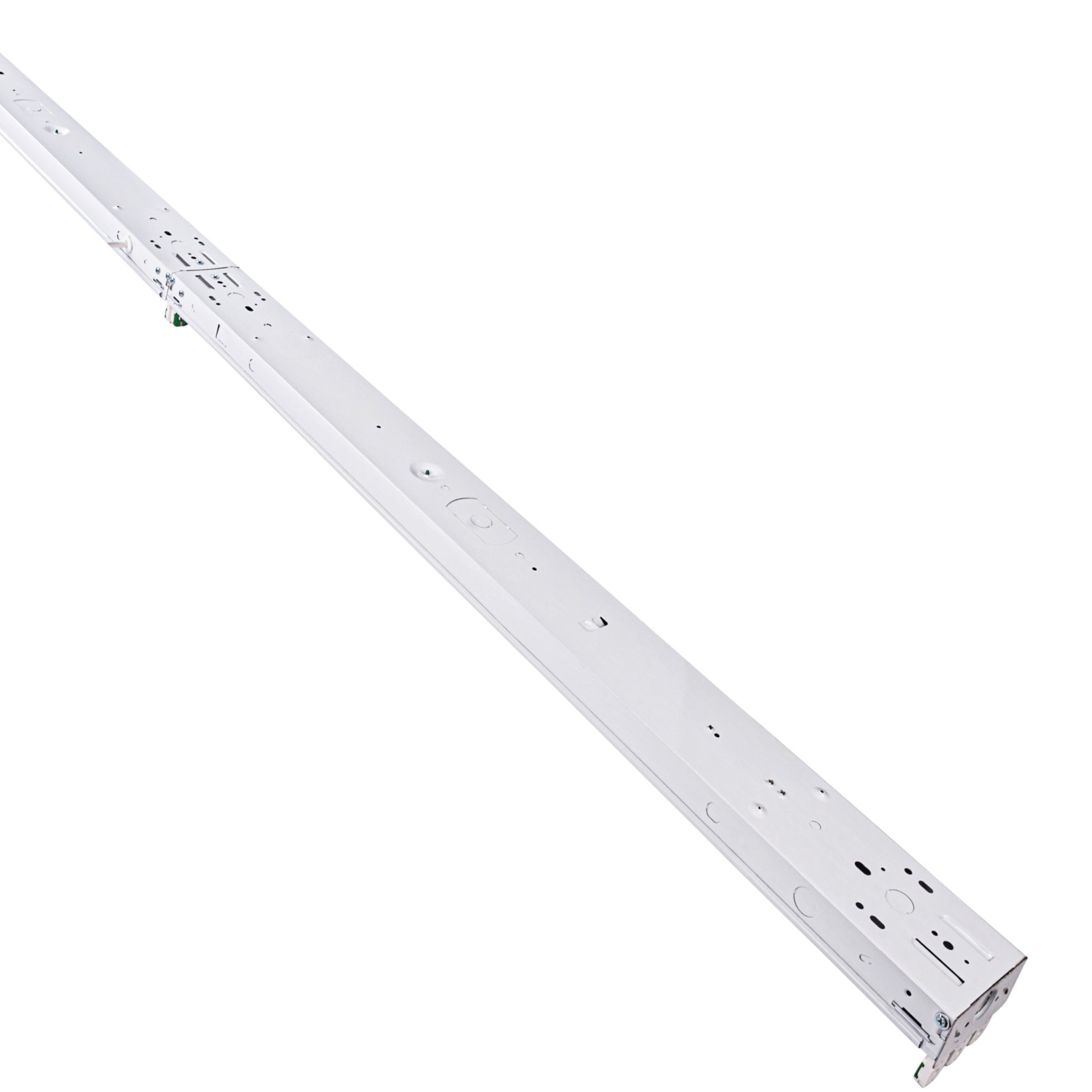

This commercial grade 8' fixture is made of heavy duty 24 gauge steel and finished with a white post painted baked on enamel. There is no ballast to maintain and LED bulbs have a life expectancy of 40+ years (running 4 hours/day). With Damp listed certification, long lasting durability, and unmatched brightness these lights are perfect for garages, storage sheds, warehouses, game rooms, barns, recreational spaces, workshops, and any area that would benefit from professional grade lighting without the maintenance.  Containing no glass or mercury, these LED bulbs are environmentally friendly and virtually unbreakable. Rest assured that when you purchase a Bolt you are getting one of the pound for pound brightest lights on the market!

Input Wattage: 120W

Voltage: 110-277V

LED Lumens: 16,840

Lumens per watt: 134+

Equivalent Lumens: 30,740

Life: 50,000 Hours +

Color Temperature: 5000K daylight white (call for others)

CRI: 83+

Beam Angle: 120°

Amperage @ 120V: 1A

Amperage @ 277V: 0.43A

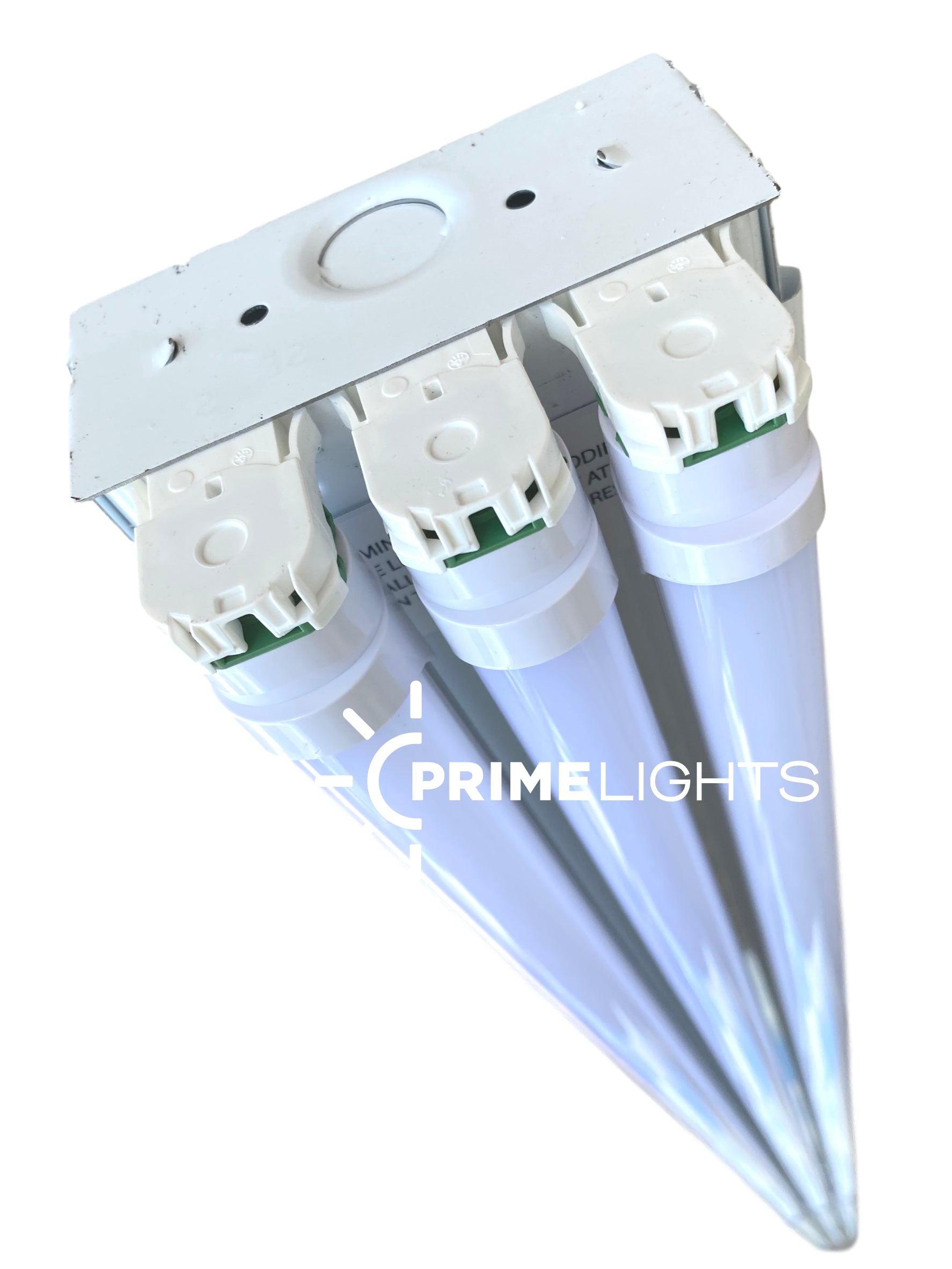

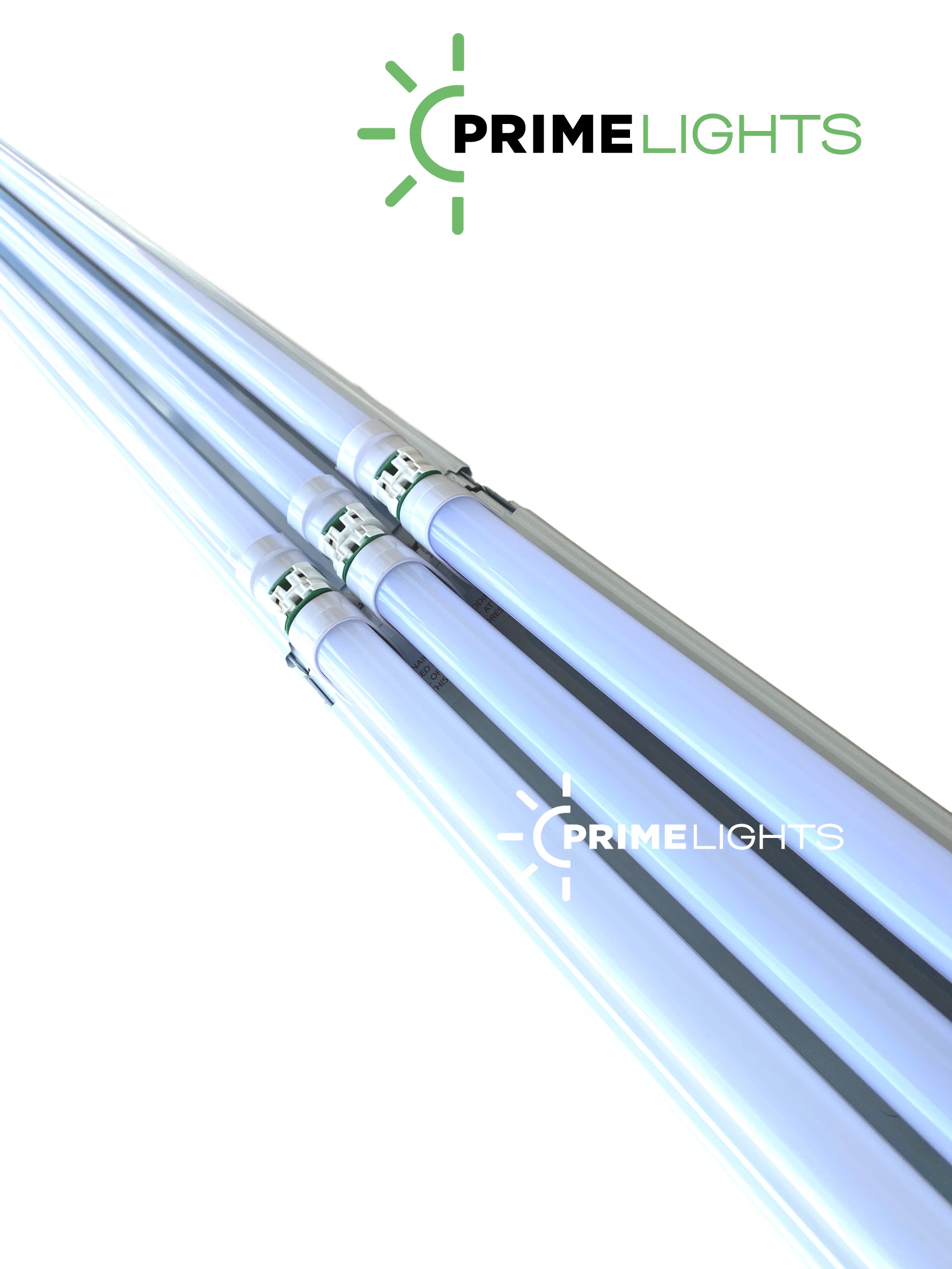

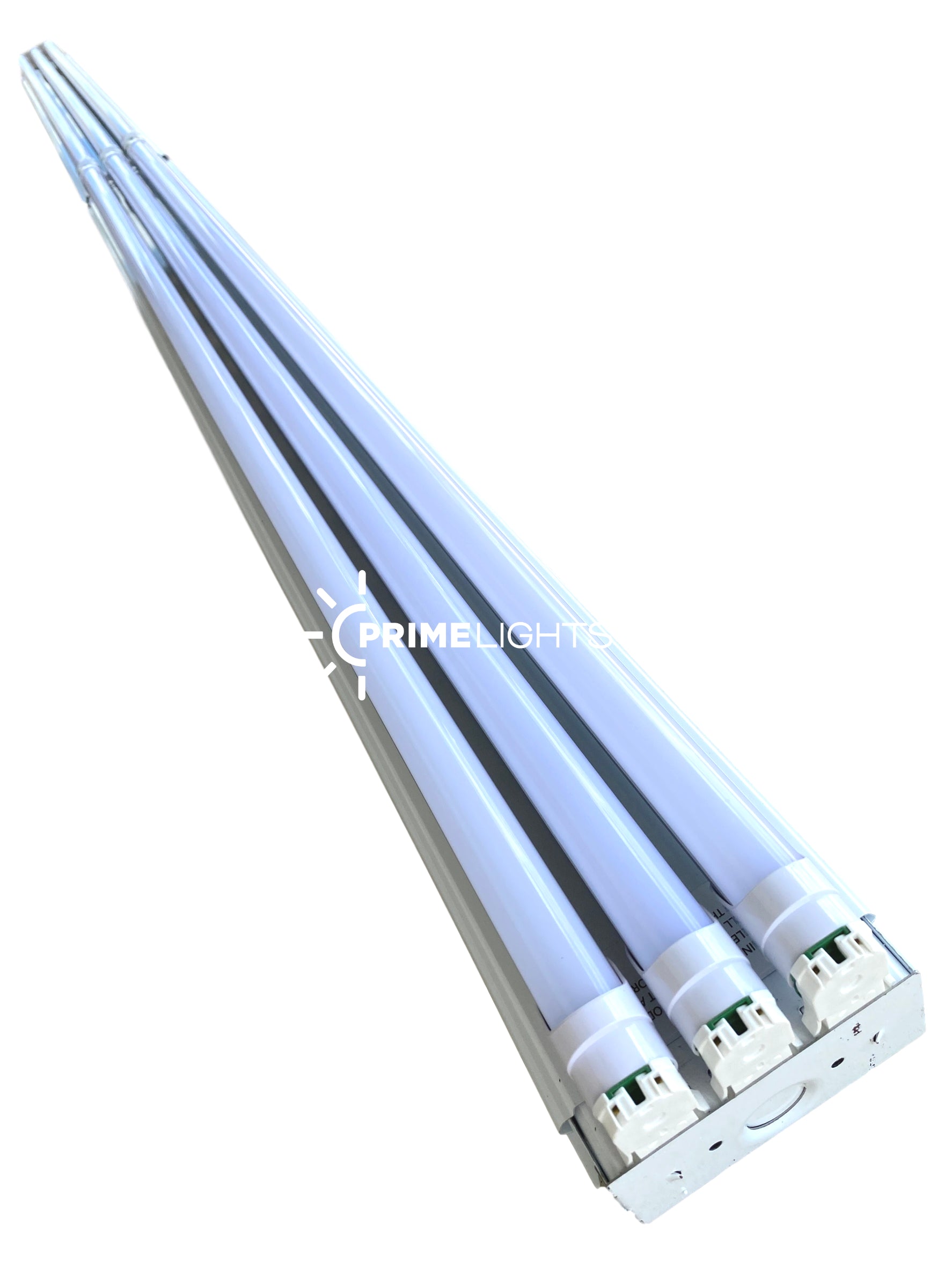

Included Lamps: (6) 4' flicker-free, shatterproof polycarbonate (imported)

Base Type: G13 Medium B-Pin

Lamp Lens: Frosted

Minimum Start Temp: -30° C

Maximum Start Temp: 50° C

Length: 96 Width: 4.5"  Depth: 3.5"

Mounting Options:

-Surface mountable

-Chain hang (cable hangers sold in accessories)

-This fixture is ready for hard wire install - please see accessories for items such as plug and cord and occupancy sensors.

*Energy Usage: Approx. 40% Less than T8 Fluorescent

 Applications: 8' Fluorescent Replacement, Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, airplane hanger, etc.

 Lighting Layouts: As a rough estimate, change these out 1 for 1 with any 8' technology to really brighten things us.  For new applications, recommended mounting heights are 8' - 20'  and approx 1 fixture per 450 sf as a rough guide.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: length, width, height and application of the building.  Call 512-746-7428.  Our layouts our guaranteed to satisfy!
