Fixture Made in the USA

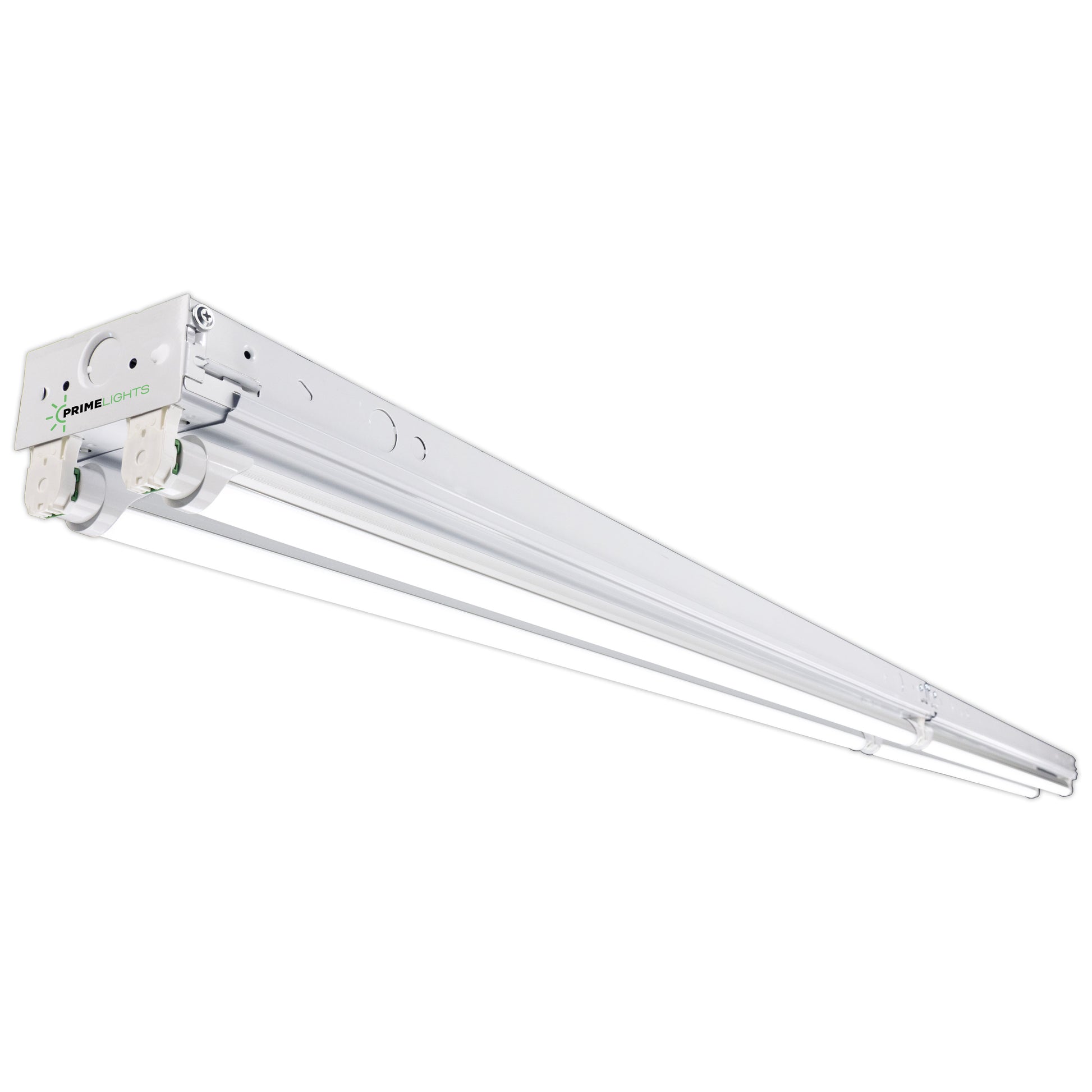

120 WATT 8 FT. LED STRIP FIXTURE
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
Certifications: UL Listed, NSF Certified, Damp Rated
Warranty: 5 years on complete fixture including LED lamps

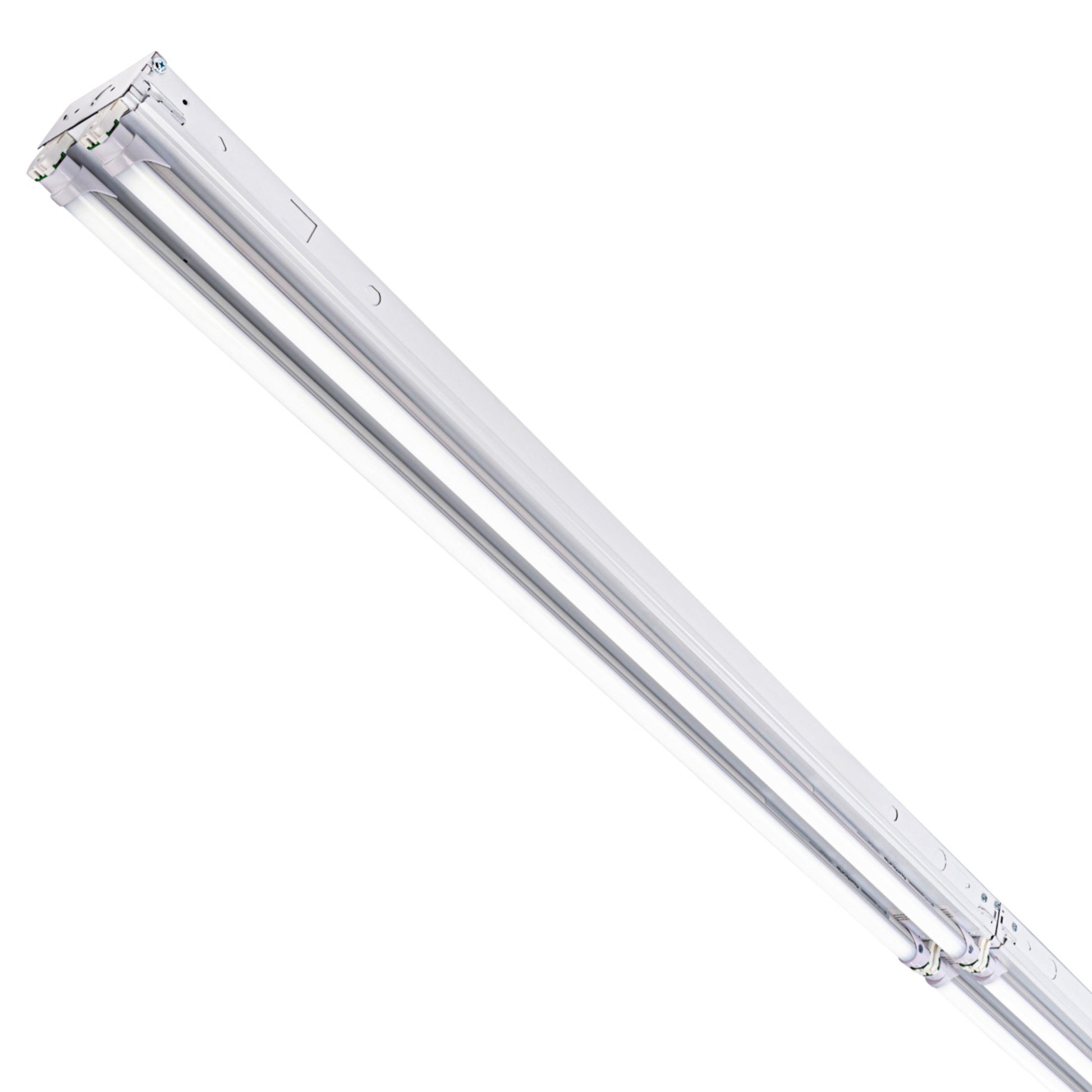

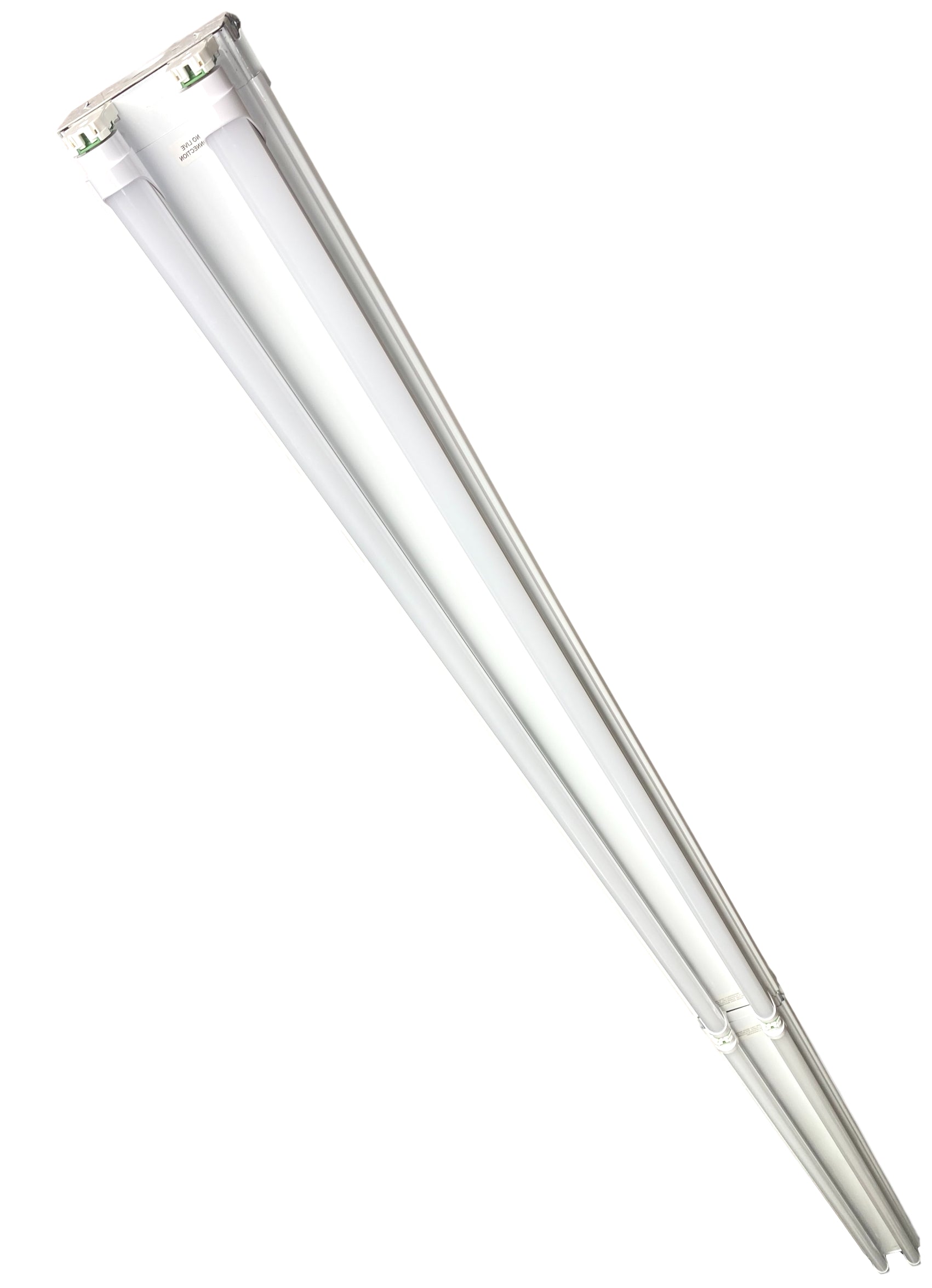

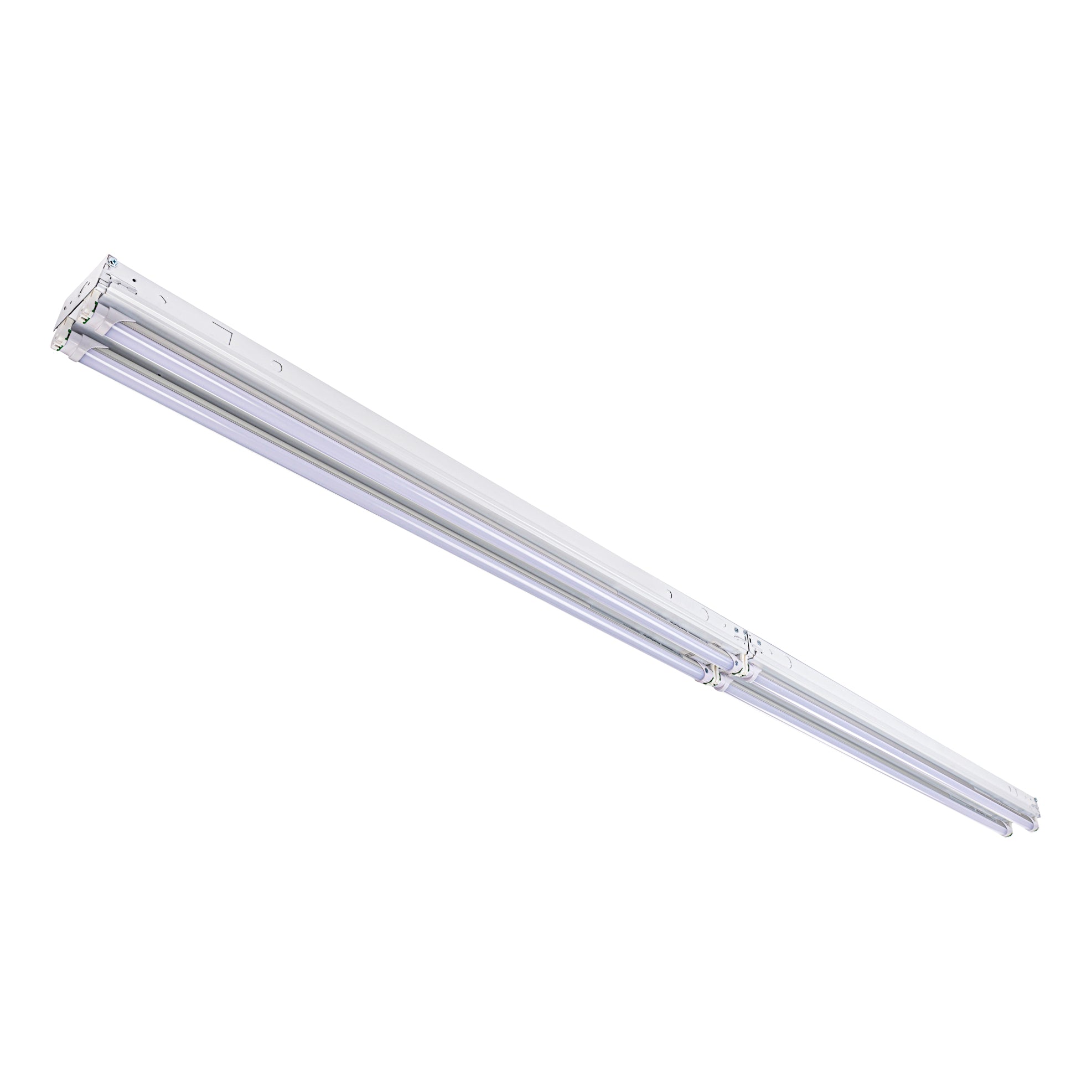

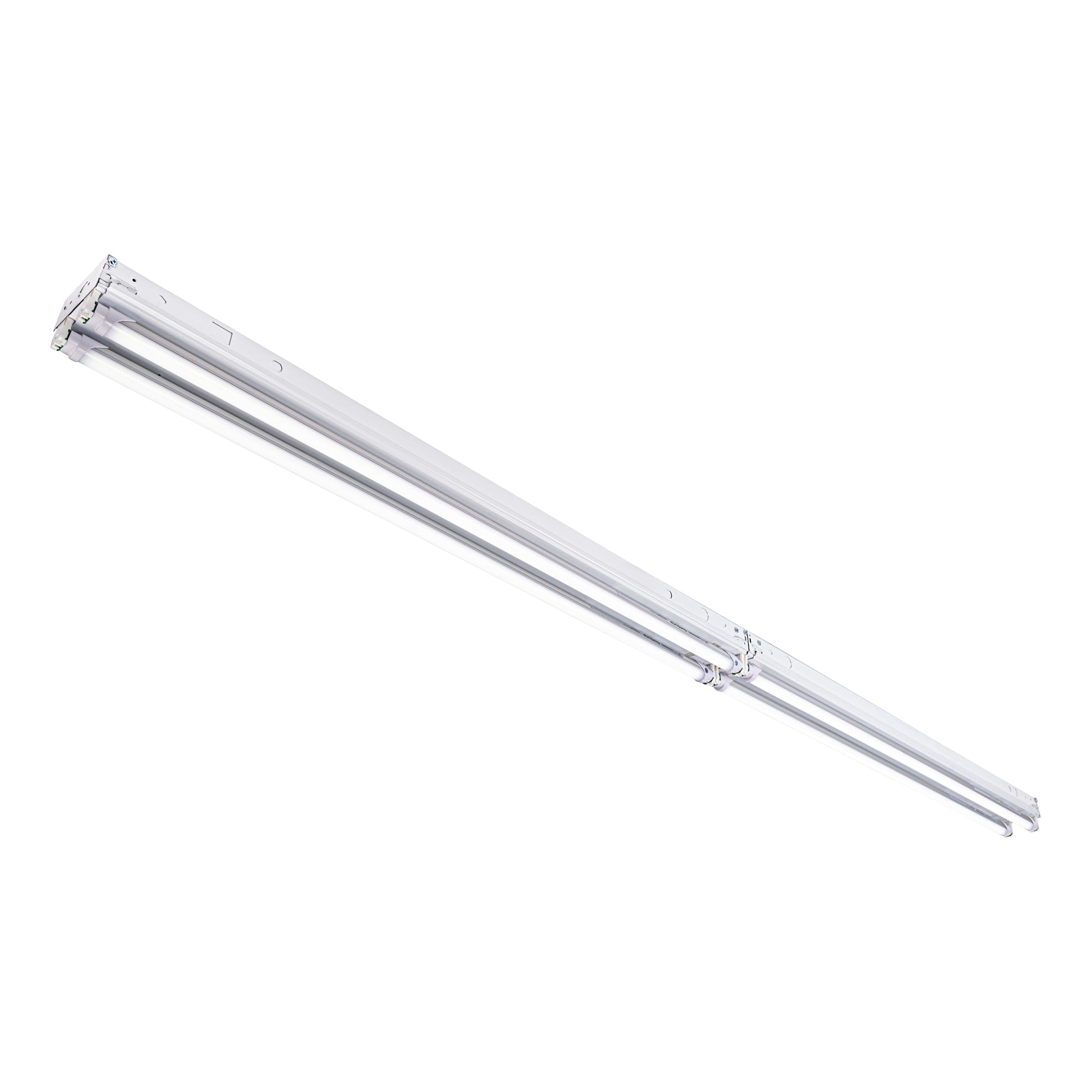

The 8 foot Bolt uses 4 foot lamps bringing you the best of both worlds. After a quick assembly using the simple extension plate, the 8' fixture is ready for a single point of wiring. Double rows of 4' lamps alleviates the cost, hassle, and fragility that comes with 8' technology. Not to mention that 8' lamps cannot match the brightness, efficiency, and longevity of the ever popular PrimeLights 4' LED lamp.

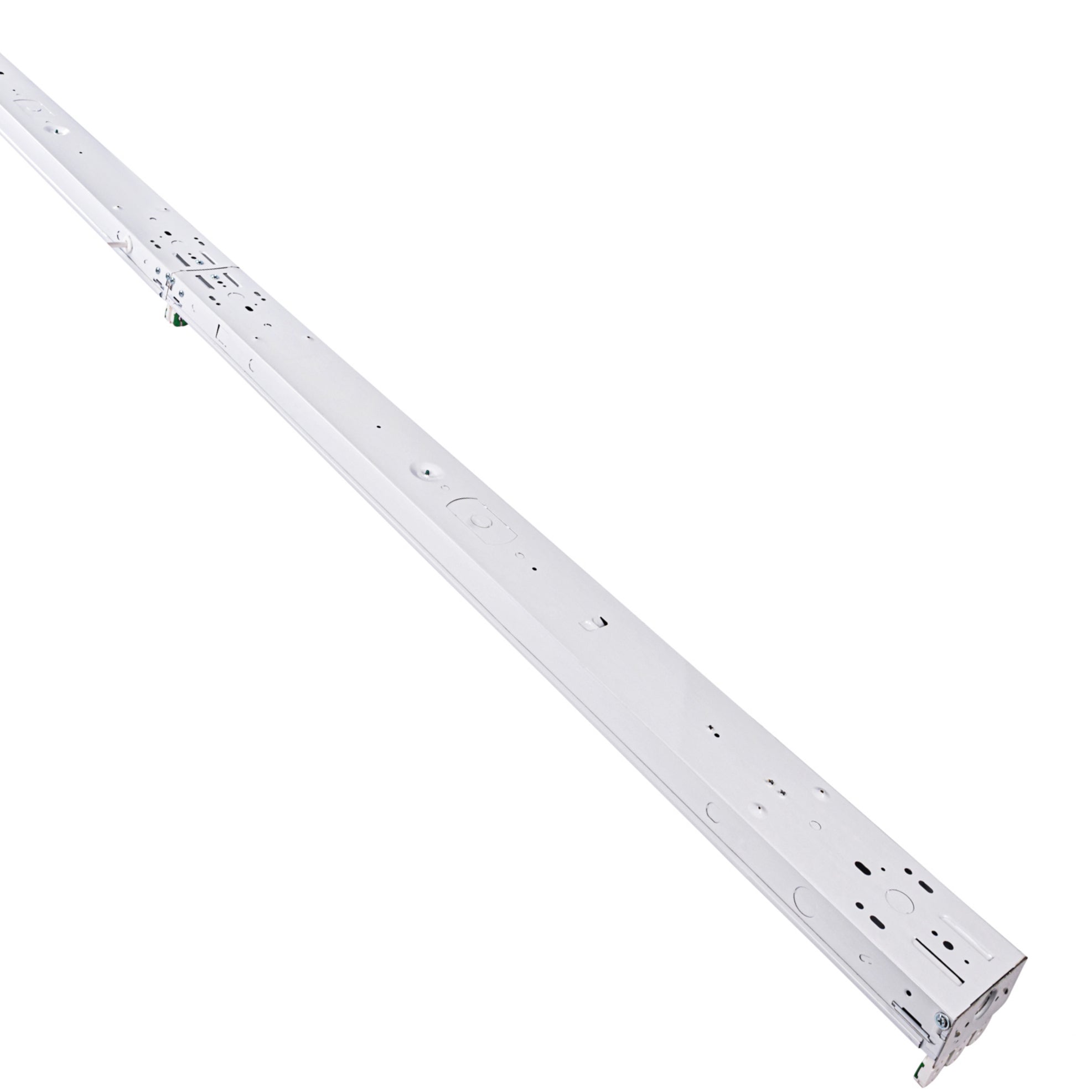

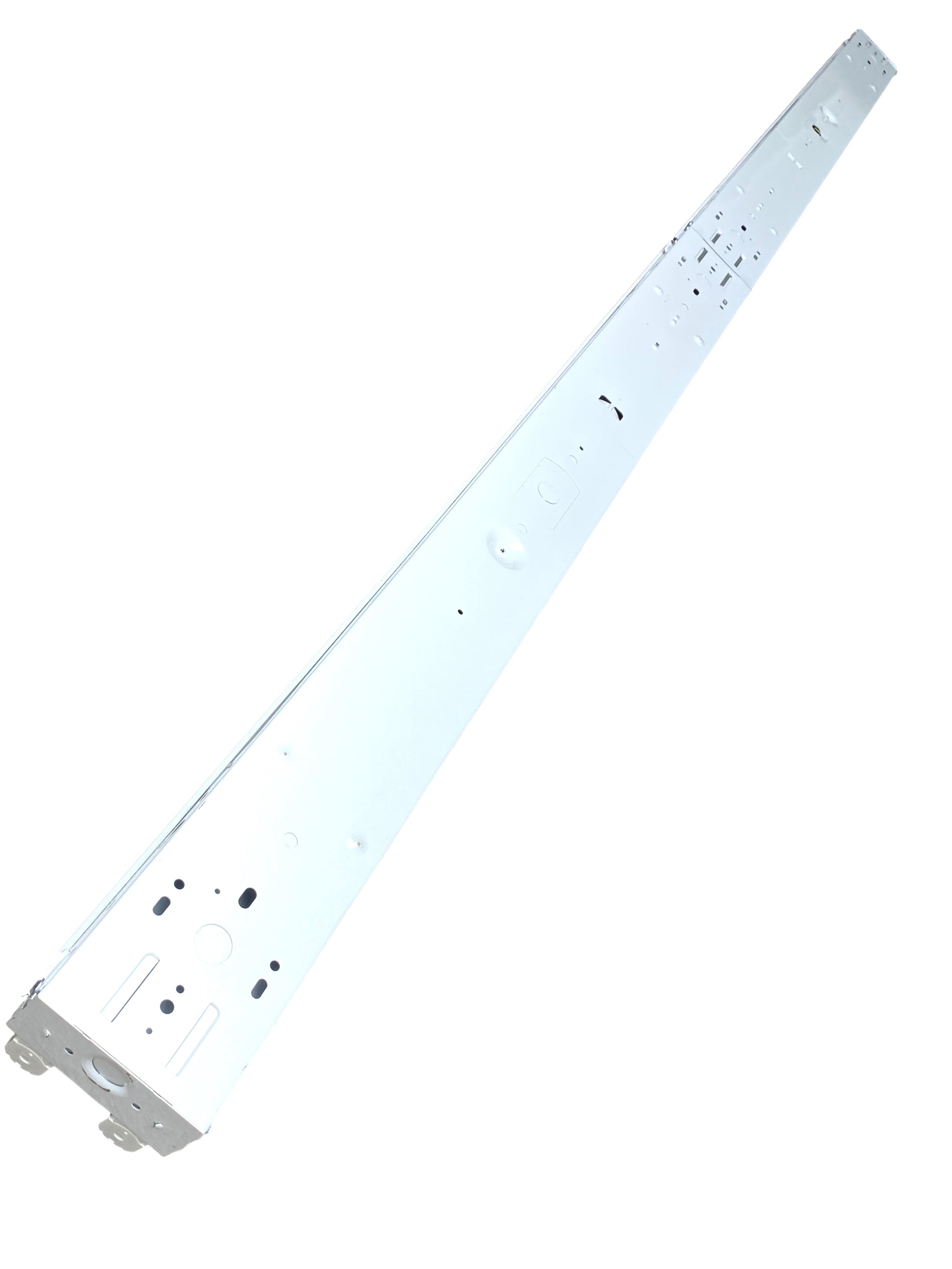

This commercial grade 8' fixture is made of heavy duty 24 gauge steel and finished with a white post painted baked on enamel. There is no ballast to maintain and LED bulbs have a life expectancy of 40+ years (running 4 hours/day). With Damp listed certification, long lasting durability, and unmatched brightness these lights are perfect for garages, storage sheds, warehouses, game rooms, barns, recreational spaces, workshops, and any area that would benefit from professional grade lighting without the maintenance. Containing no glass or mercury, these LED bulbs are environmentally friendly and virtually unbreakable. Rest assured that when you purchase a Bolt you are getting one of the pound for pound brightest lights on the market!
Input Wattage: 80W
LED Lumens: 11,226
Lumens per watt: 134+
Equivalent Lumens: 21,300
Life: 50,000 Hours +
Color Temperature: 5000K daylight white (call for others)
Beam Angle: 120°
Amperage @ 120V: .67A
Amperage @ 277V: 0.29A

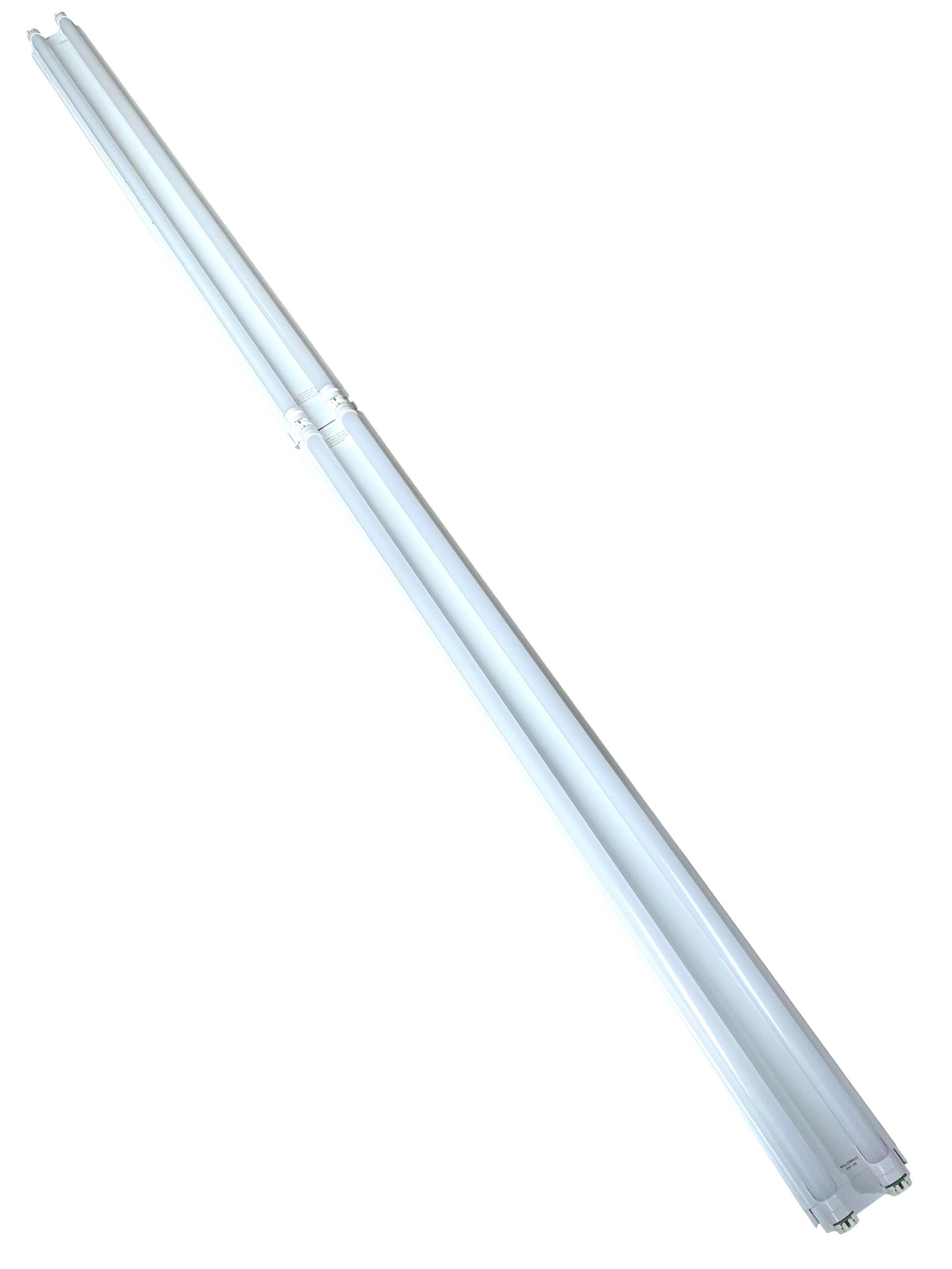

Included Lamps: (4) 4' flicker-free, shatterproof polycarbonate (imported)

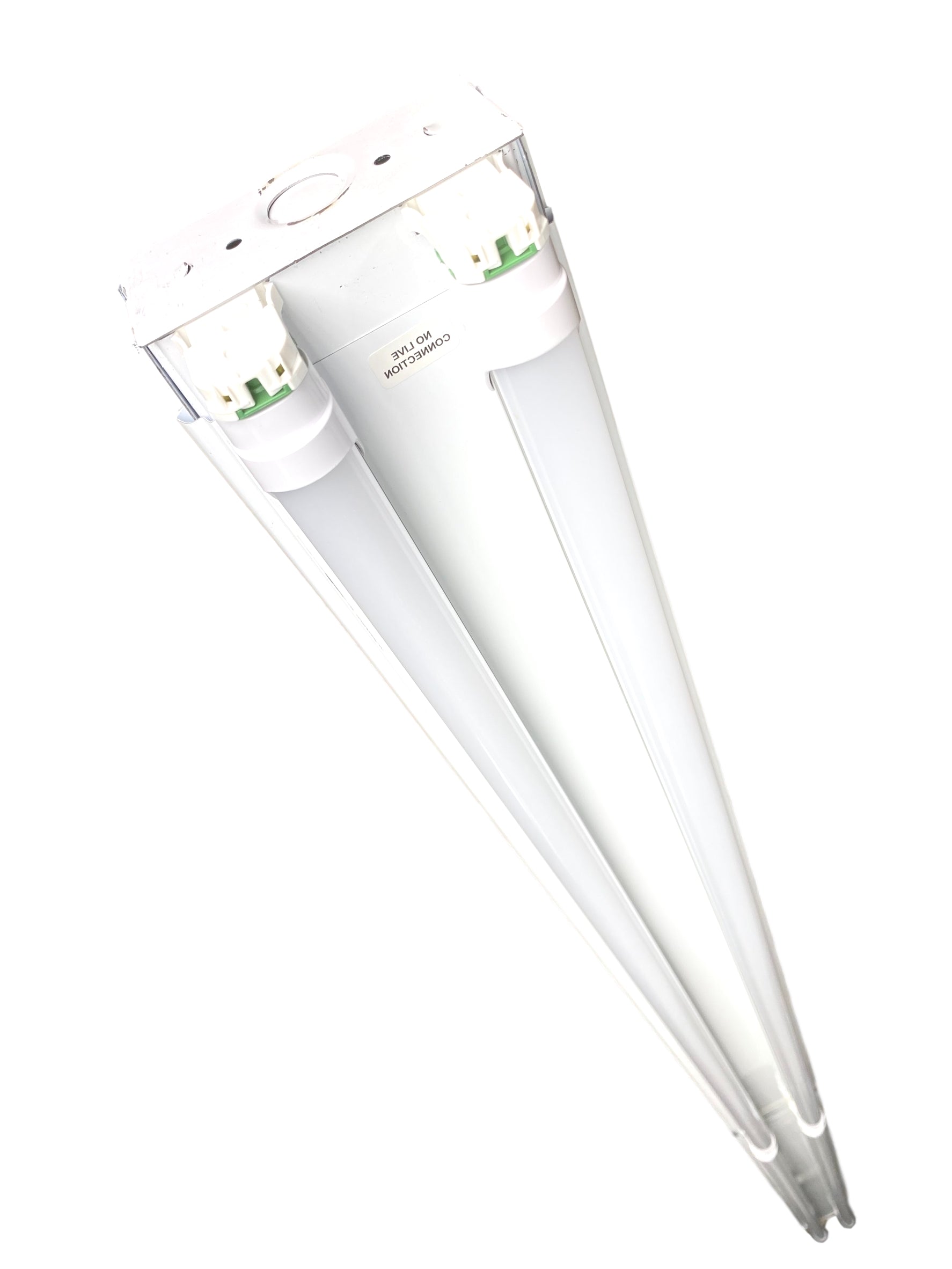

Base Type: G13 Medium B-Pin
Lamp Lens: Frosted
Minimum Start Temp: -30° C
Maximum Start Temp: 50° C
Length: 96" Width: 4.5" Depth: 3.5"
-Chain hang (cable hangers sold in accessories)
-This fixture is ready for hard wire install - please see accessories for items such as plug and cord and occupancy sensors.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: 8' Fluorescent Replacement, Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, airplane hangar, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with any 8' technology to really brighten things us. For new applications, recommended mounting heights are 8' - 20' and approx 1 fixture per 450 sf as a rough guide. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: length, width, height and application of the building. Call 512-746-7428. Our layouts our guaranteed to satisfy!
