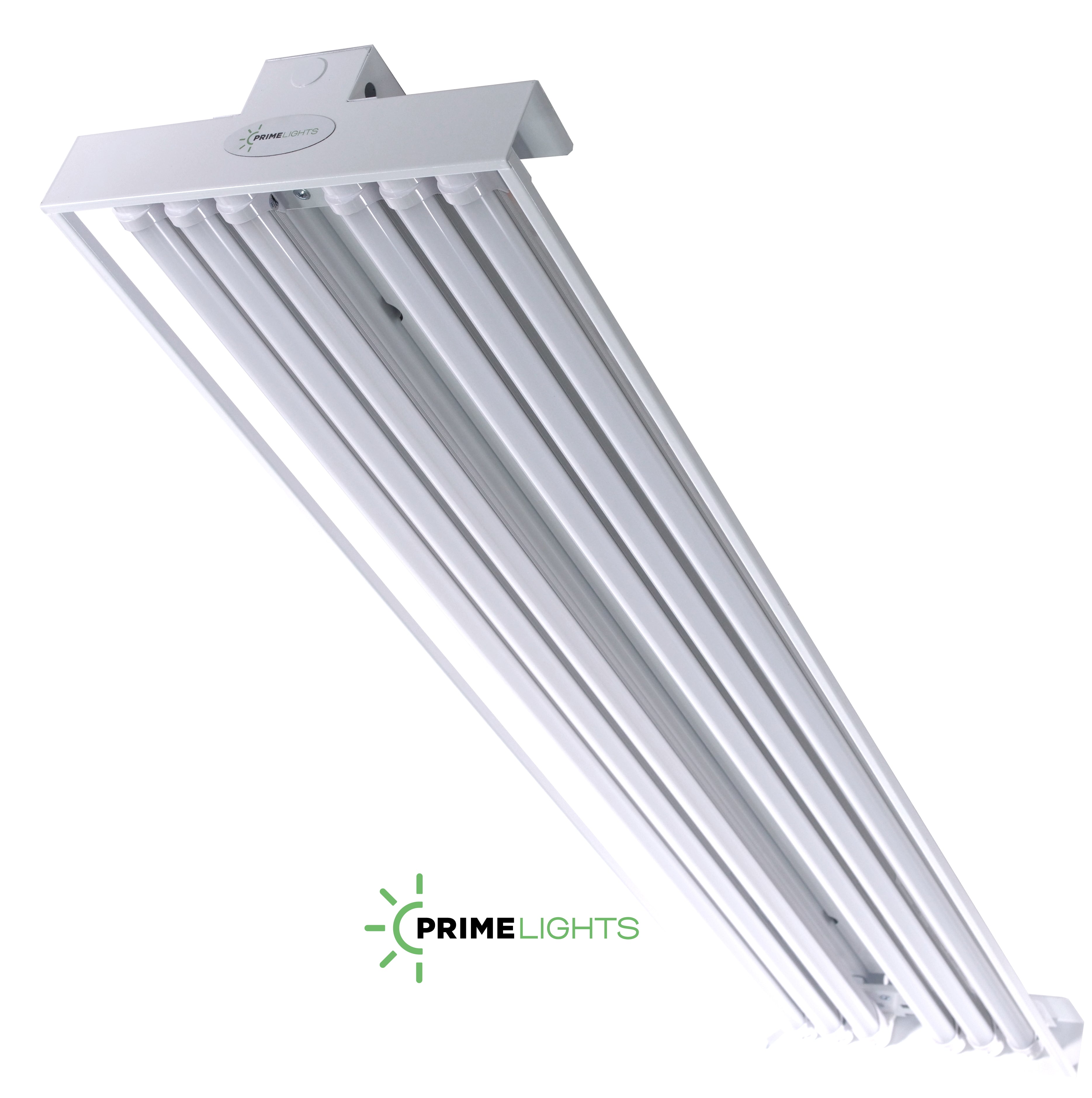

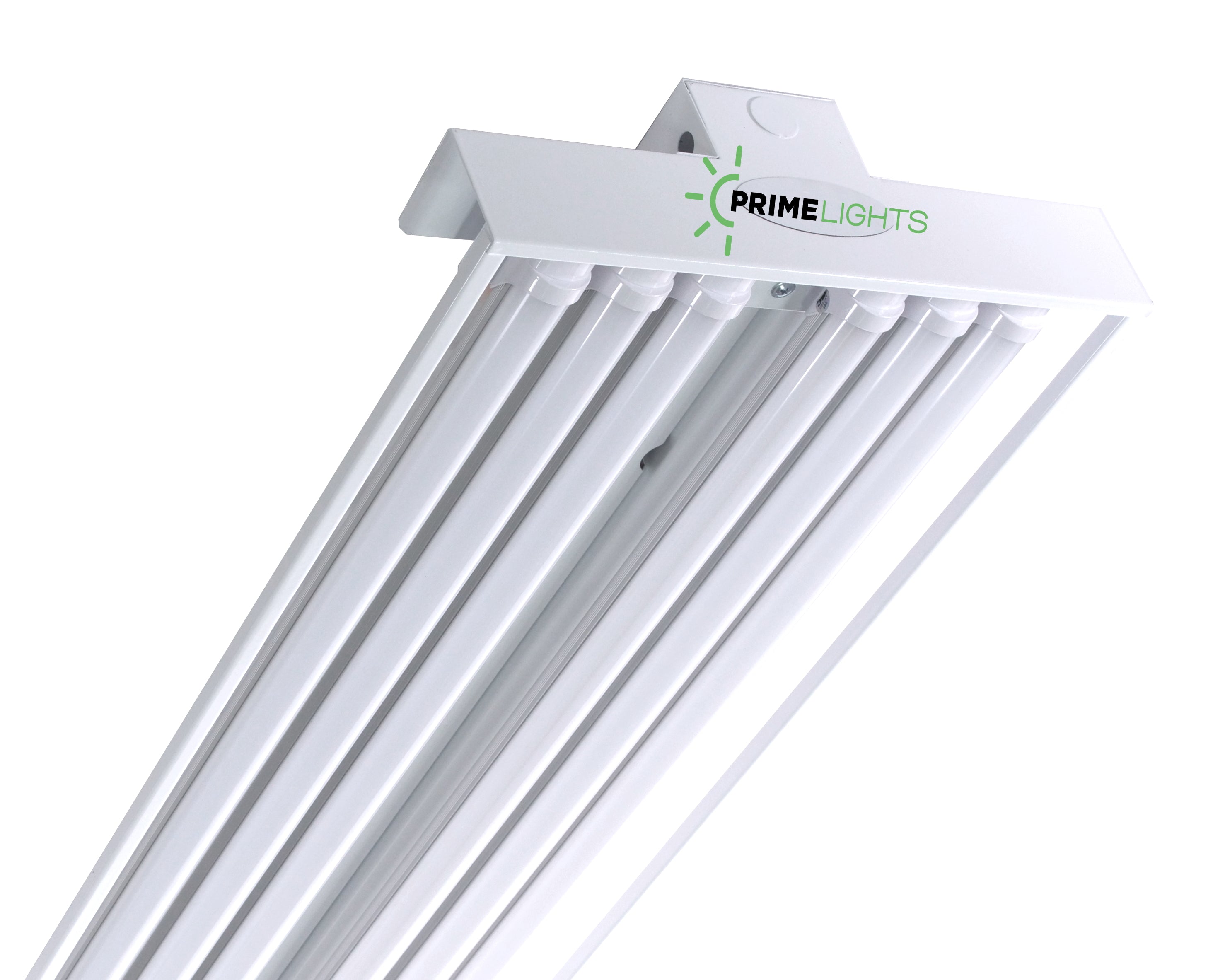

LED 6 LAMP T8 - 120 WATT LED HIGH BAY FIXTURE
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
Certifications: UL Listed, NSF Certified, FCC, RoHS, Damp Rated
Warranty: 5 years on complete fixture including LED lamps
Included Lamps: (6) flicker-free, shatterproof polycarbonate (imported)
Fixture Made in Mexico - Final assembly at PrimeLights, Austin, TX
Specifications:

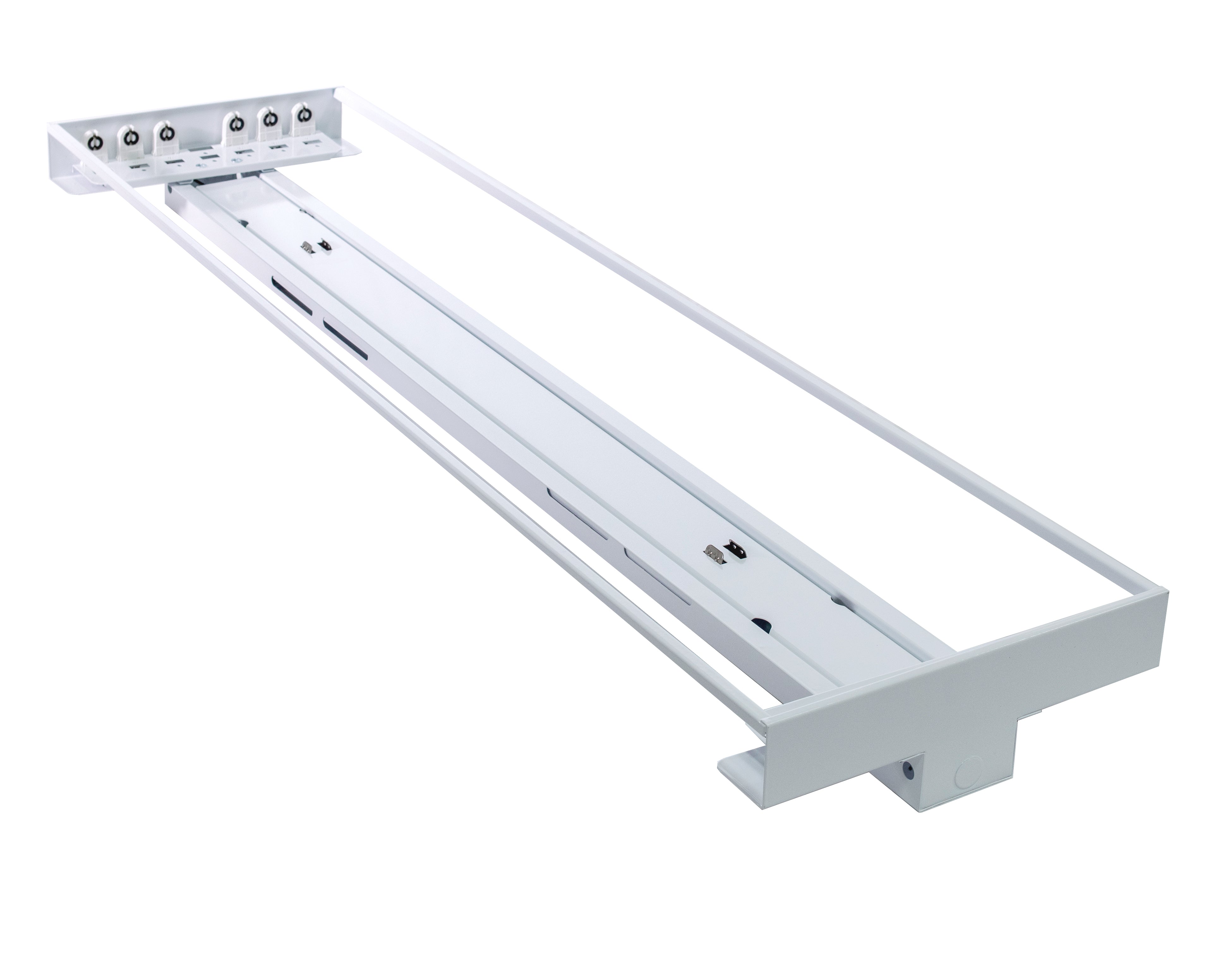

Developed by PrimeLights as the first fixture designed specifically for use with LED replaceable lamps. The Stingray® Air delivers all of the features you need and nothing you don't for a quick install with the legendary brightness the Stingray® is known for. Featuring the new "quick cover", install is a snap as no tools are required to access the inside of the fixture. The open "air" design allows for unparalleled heat dissipation to increase longevity while reducing places for dust and debris to settle making it virtually maintenance free. Made of 18 gauge steel and finished with an ultra durable white powder coat, the Stingray® Air will last for decades to come.
Input Wattage: 120W
Voltage: 100-277V
LED Lumens: 16,182
Lumens per watt: 134+
Life: 50,000 Hours +
Color Temperature: 5000k
CRI: 83+
Beam Angle: 120°
Amperage @ 120V: 1A
Amperage @ 277V: 0.43A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 31,350 (fluorescent equiv.)
Lamp Lens: Frosted (diffused for less glare)
LED Driver: Operates without ballast - Each lamp contains an individual driver
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.5" Width: 12.75" Depth: 4.125"
Mounting Options:
-Surface mountable
-Chain hang (cable hangers sold in accessories)

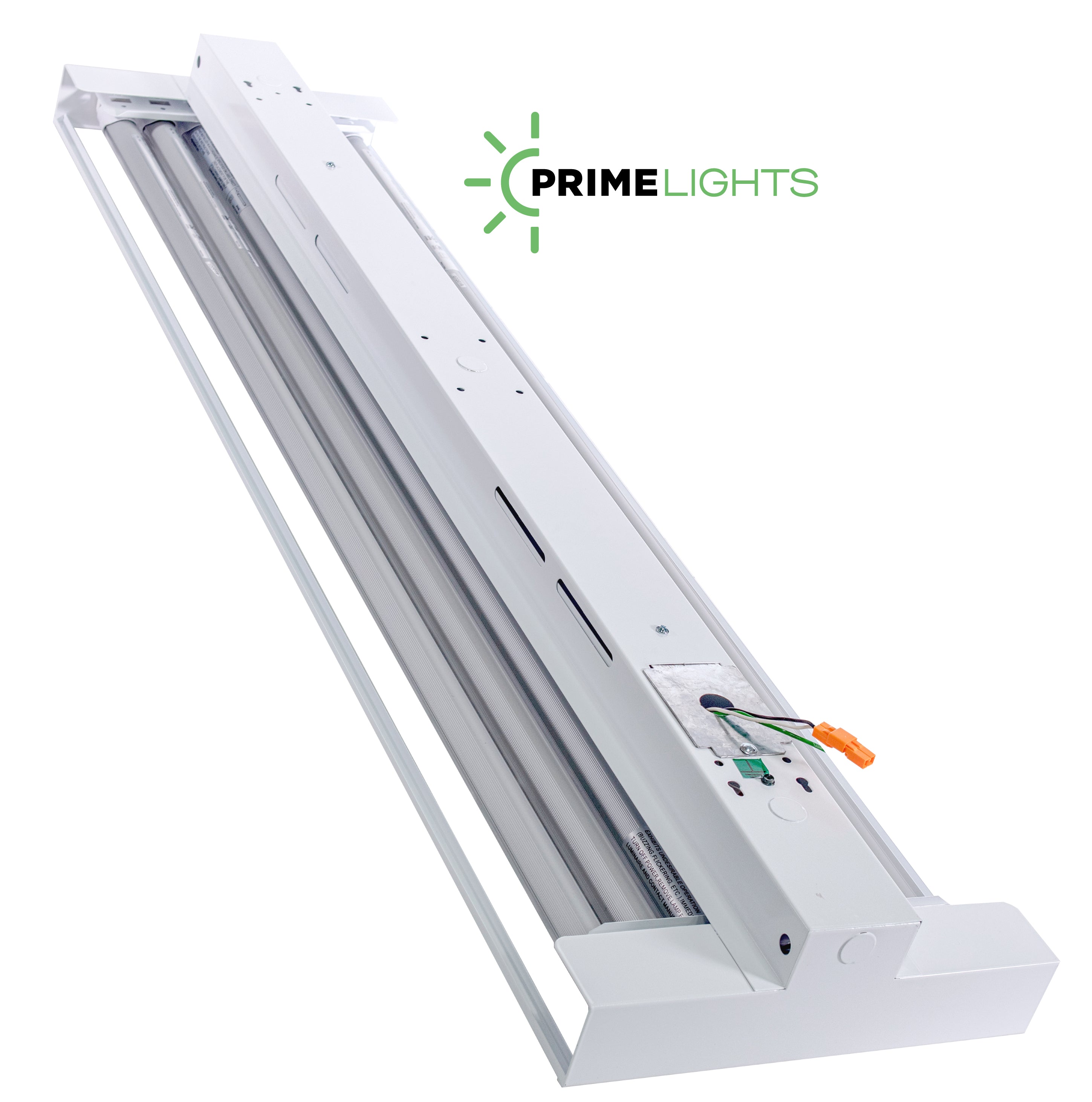

-This fixture is ready for hard wire install - please see parts & accessories for additional options including plug and cord, hangers, and occupancy sensors.
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: Warehouse, machine shop, pole barn, farm, ranch, auto shop, work shop, home garage, welding shop, airplane hangar, just to name a few!
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 400W metal halides and drastically improve lighting when replacing: 8' 2 Lamp T12's, or any 4 or 6 lamp fluorescent. For new applications, recommended mounting heights are 10' - 25' and approx. 1 fixture per 300sf as a rough guide. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: length, width, height and application of the building. Call 512-843-1383. Our layouts our guaranteed to satisfy!
* All sales are final. However, a 1-year warranty is provided for exchanges of defective products with a similar fixture.
| Quality |
Rated 5 out of 5
|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
Very bright. Great people to work with nd great products
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
I have a small DIY shop in my basement that I am putting together (25x20 w/9 1/2' ceiling). It is a new construction home with six builder grade 60-watt equivalent single LED bulbs. As soon as we moved in, I replaced all six builder fixtures with Prime Lights Bolt 3 lamp fixtures; they are great. However, I needed a bit more light for detail work. I added two of the Stingray Air 6 Lamp fixtures in between two Bolt fixtures and it was exactly what I was looking for. It is very bright, almost too bright. However, it removed all of the shadows I had that made it difficult to see accurately when I was applying finishes.
The only complaint I had was the connector attached to the fixture wires. I installed these lights in sequence with the bolt lights but the wire connector only allowed for a two wire install (supply and fixture). In other words, the supply wire had to dead end at the light; I could not continue wire to another fixture without modification. All of the Bolt 3 bulb lights I received had a three wire connector so I had the option to continue wire to another light. These lights are a solid five plus rating. I would only suggest Prime Lights use the three wire connector to simplify installation of multiple lights; it made the Bolt light install for me flawless without modification.
I am also getting ready to purchase six more fixtures to replace the builder fixtures in my three car garage. I will be staying with the Stingray Air 6 bulb lights for that…
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
