Illimination!

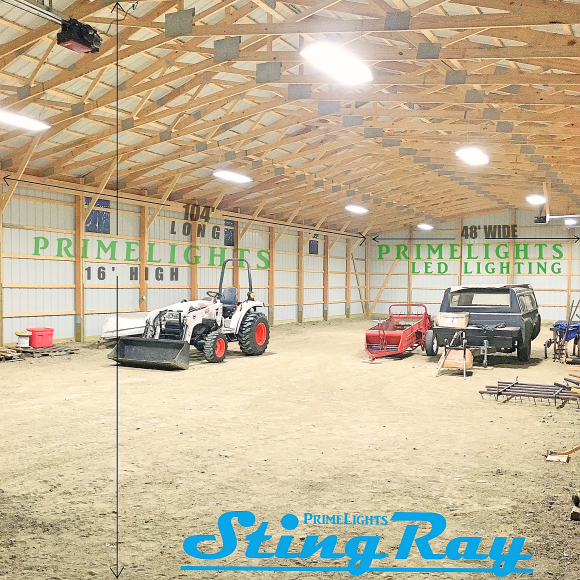

Nice bright shop lighting for our 3 car garage, best of all they are made in the states!
Quality |
Rated 5 out of 5
|
---|---|
Brightness |
Rated 5 out of 5
|
Ease of Installation |
Rated 5 out of 5
|
Call For Free Lighting Layouts!
512-843-1383FREE SHIPPING ON ALL QUANTITIES
LED 6 LAMP T8 - 132 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE
MADE IN USA
THE STINGRAY 6XL 132W LED HIGHBAY MOTION ACTIVATED SHOP LIGHT
New, never used, in manufacturer packaging.
Shipping: FREE, In Stock
Certifications: UL Listed, CSA Certified, NSF, Shatterproof, Contact for Rebate Info
Warranty: 5 years on complete fixture including LED lamps
Specifications:
-110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector. LED Tubes have their own internal drivers - no external drivers or ballasts to worry about. You will never have to change anything inside the fixture. This is the last fixture you will ever have to buy or maintain.
Input Wattage: 132W
LED Lumens: 18,600
Lumens per watt: 155+
Equivalent Lumens: 35,340 (fluorescent equiv.)
CRI: 85+
Life: 50,000 Hours +
Color Temperature: 4000K or 5000k
Amperage @ 120V: 1.2A
Amperage @ 277V: 0.49A
Voltage: 120-277V
Base Type: G13 Medium B-Pin
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.0" Width: 14.0" Depth: 3.5"
Mounting Options:
-Surface mountable
-Chain hang (hardware not included)
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
Unboxing Instructions
Cord & Plug Installation
Cable Hanger Installation
Occupancy Sensor Installation
Wire Guard Installation
Stingray Comparison
