FIXTURE MADE IN USA!
COMMERCIAL SPECIFICATION GRADE
Shipping: FREE, In Stock
Certifications: UL Listed (fixture and lamps), NSF, Shatterproof, Contact for Rebate Info
Warranty: 5 years on complete fixture including LED lamps

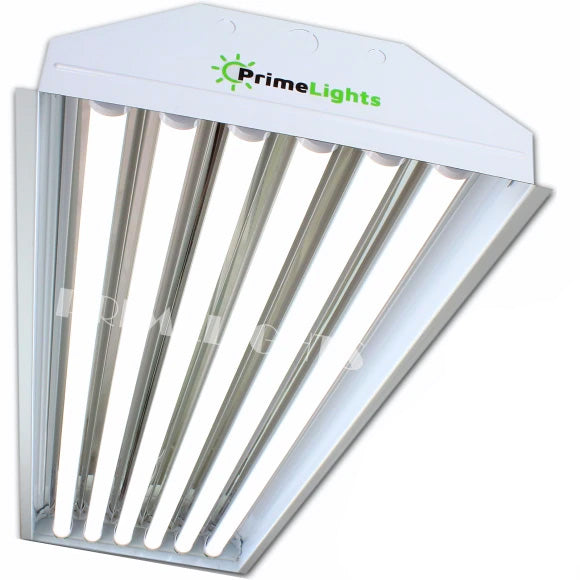

Included Lamps: (6) Frosted flicker-free, shatterproof polycarbonate (imported)

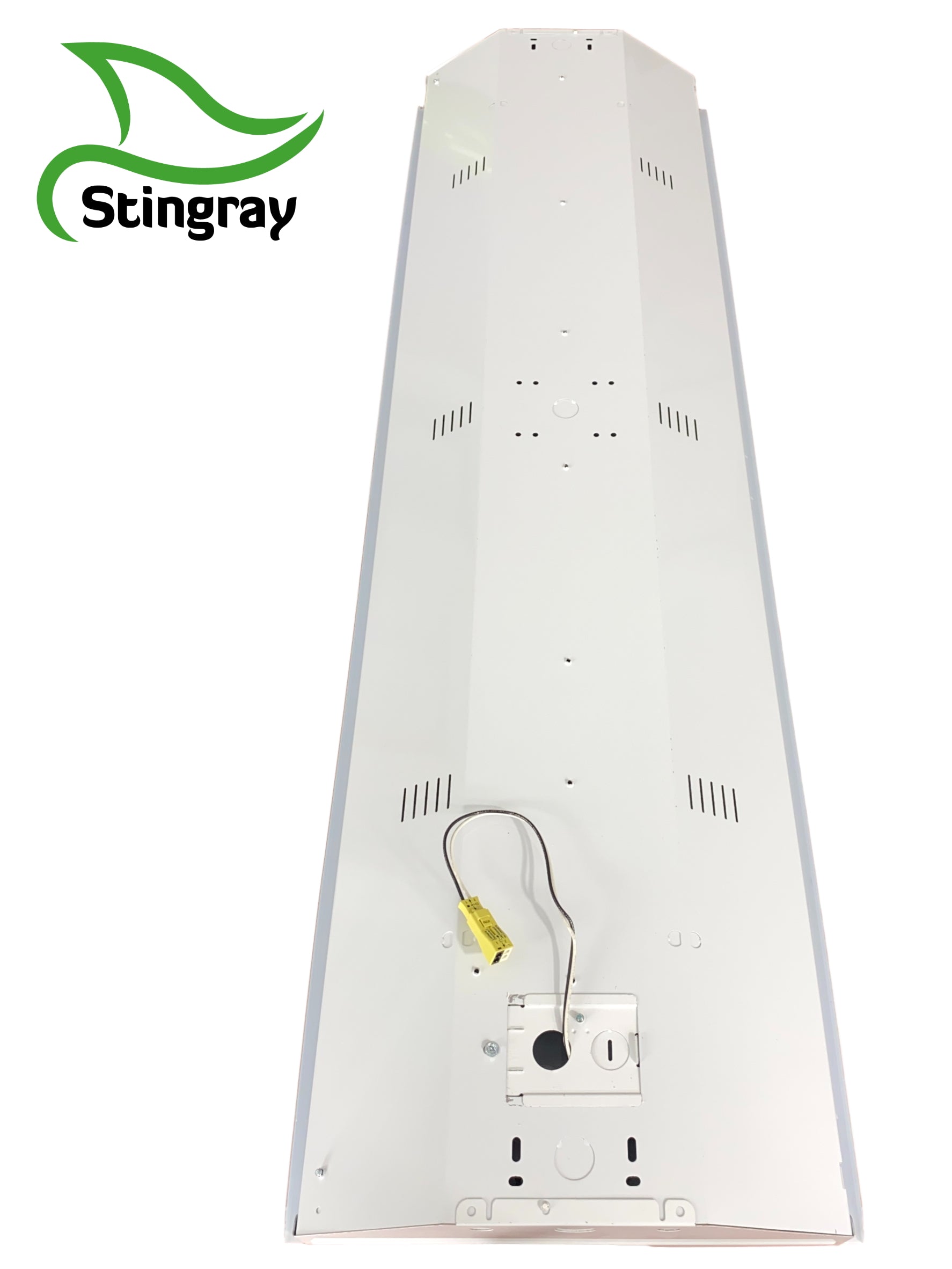

Specifications: Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector. 6 frosted T8 LED bulbs with internal drivers - no external drivers or ballasts to maintain. You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years. 110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!
Input Wattage: 132W
Voltage: 110-277V (please call for 480v)
LED Lumens: 17,100
Lumens per watt: 130+
Color Temperature: 4000k or 5000K daylight white (call for others)
CRI: 83+
Life: >50,000 Hours
Beam Angle: 120°
Amperage @ 120V: 1.1A / Amperage @ 277V: 0.48A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 34,100 (fluorescent equiv.)
Lamp Lens: Frosted
Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)
Dimming: No (LED with replaceable lamps cannot be installed with dimmer)
LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver
Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)
Length: 48.0" Width: 14.0" Depth: 3.5"
Flush mount Install weight (without reflector and lamps): 7.5 lbs
Total weight: 12.5 lbs
Part Number: PL-6SRHBLD132XLFR
Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available in accessories)
Mounting Options (Hardware not included)
-Surface mountable (most common): Use screws best for mounting material or toggle bolts
-Hang: Aircraft Cable Hangers available in accessories or use any chain with “s” hooks
*Energy Usage: Approx. 40% Less than T8 Fluorescent
Applications: The PrimeLights® LED Stingray® 6 in clear is the ideal fixture for ceiling heights ranging up to about 35'. Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures. Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few. Frosted lamps provide reduced glare when compared to clear.
Lighting Layouts: As a rough estimate, change these out 1 for 1 with 400W metal halides, or approx. 1 fixture per 250sf. There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-746-7428.
THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD SOLELY BY PRIMELIGHTS®
Unboxing Instructions
Cord & Plug Installation
Cable Hanger Installation
Occupancy Sensor Installation
Wire Guard Installation
Stingray Comparison
| Quality |
Rated 5 out of 5
|
| Brightness |
Rated 4 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
I rented a lift and installed the lights myself saving thousands of dollars.
The staff at PrimeLights has been great to work with.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
After doing a lot of looking online, I came across Prime Lights and their 6 bulb LED fixture.
One of the things that I found was the level of service and answer questions was great, and the outstanding way things were packaged.
After installation in my bodywork area of my shop, it went from dungeon to daylight and not killing my eyes.
People joke about me wanting a tanning booth but man, these are some fantastic lights.
Another thing...it’s just like how these folks discuss the differences in quality on their light bulbs.
You can feel the weight and they don’t feel “cheap”.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
I’m running these lights in my shop with vaulted ceiling’s and they are mounted at roughly 12’. I did change the wiring around to allow independent 2 bulb and 4 bulb operation. Please do not compare to Chinese LEDs you can get from your local HF, not even close in my opinion. Highly Recommend.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
I have a new 24x32 garage with 12 ft ceilings and I wanted plenty of ample lighting. I'm tired of working in the dark and often worked outdoors because the lighting was soo much better. My lighting plan initially was to install 9 lights total. To start with, I ordered three of the Stingray 6XL's with the frosted bulbs (because I can't stand glare) and I mounted all three down the center of the garage. I couldn't wait till I got my electrical service ran to the garage so after hanging all three fixtures I had to light one of them up with an extension cord to see how they were going to do (first pic). I was amazed at how much light a single fixture put out. Now my electrical service is ran and all three lights are wired (2nd pic). It looks just like day light inside now. Great quality lights. No complaints. Honestly I will probably add much smaller lights own the outside walls anyway to make sure I can see on the other sides of cars without any issue.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
Ryan Renshaw at Prime Lights provided a service that was quite Stellar. His knowledge was crucial as it helped me make the right choice. He kept close contact during our transactions with Email and phone calls for the LED lights that I ordered. He went out of his way to find me aa awesome shipping rate. Mahalos Ryan......I will be returning to Prime Lights for my future lighting needs.
| Quality |
Rated 5 out of 5
|
|---|---|
| Brightness |
Rated 5 out of 5
|
| Ease of Installation |
Rated 5 out of 5
|
