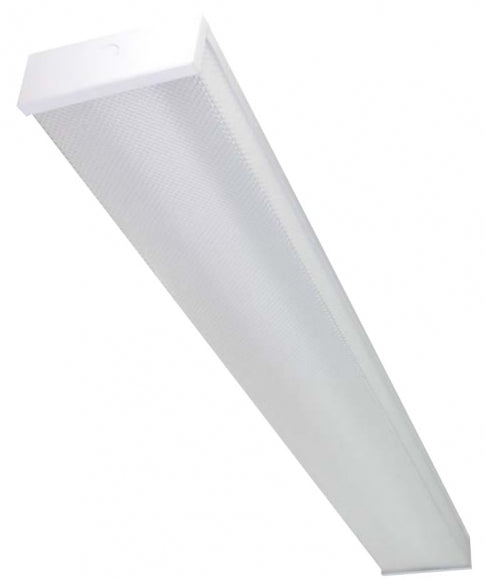

MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture
MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture
SKU: LSU4806SU50DV50
Out of stock
All of our products are fully stocked and ready to leave our warehouse. Whether you're on a tight project deadline or just don't want to wait, we've got you covered!
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Information
MaxLite LSU4806SU50DV50 4' LED Utility Wrap Fixture
120V/277V Commercial Specification Grade Lighting
FREE SHIPPING ON ALL QUANTITIES

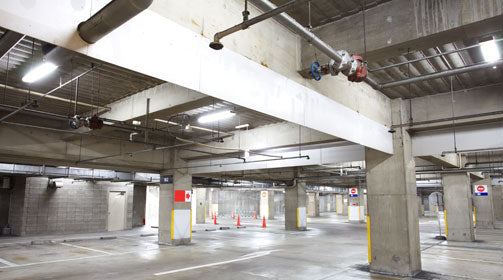

This cost effective LED Utility Wrap Fixture, features full length U Wrap Acrylic lens, one piece fabricated steel body. Designed to meet or exceed 7-10Fc at 8’ installed heights for parking drive lane compliance. For uses as utility lighting, parking garage and stairwell lighting where meets applicable building and safety codes.
New, never used, in manufacturer packaging.
Shipping: FREE, In Stock
Certifications: cULus Listed, DLC Approved, Damp Location, FCC Compliant, LM79, LM80, RoHS, Title 24
Warranty: 5 years on complete fixture
Specifications
Length: 48" Width: 6.75" Height: 2.50"
Features
- Lumens: 4923
- Efficacy: 97.3
- Color Temp: 5000K
- Wattage: 50
- Voltage: 120-277V
- CRI: > 83
- Operating Temp: 00 C (32°F) to 40°C (104°F), 50-60Hz
- Thermal/Lumen balanced light engine
- Steel Construction
- Back and End Knockouts
- Class II driver, with 0-10V dimming
- Low power consumption
- Ceiling or wall mounted
- For covered use only – damp rated *
- Wire Guard available
- White Finish standard
- Optional Occupancy Sensor available
- Assembled in USA available upon request
Construction
- 20 Ga. Steel body and end caps
- Clear Acrylic Prismatic Lens
- Electrostatic Paint pre-assembly
- Universal voltage 120-277v
Bi-Level
- Omni-directional quad element infrared sensor
- 3 Daylight Harvesting setting
- 0-10V selectable output for low dim control
- Walk test and sensor operation LED indicator
- Direct lead wires for easy wiring connections
- 8 rotary DIP switch selectable control modes
- 7 low dim levels changeable via Accu-Set
On/Off
- PIR on/off control
- 360 degree lens
- selectable sensitivity and time delays
- Non-dimming
Lighting Layouts: There are many factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc). For a professional lighting layout, please call customer service. These are no charge and only take a few minutes over the phone. Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels). Call 512-843-1383.
