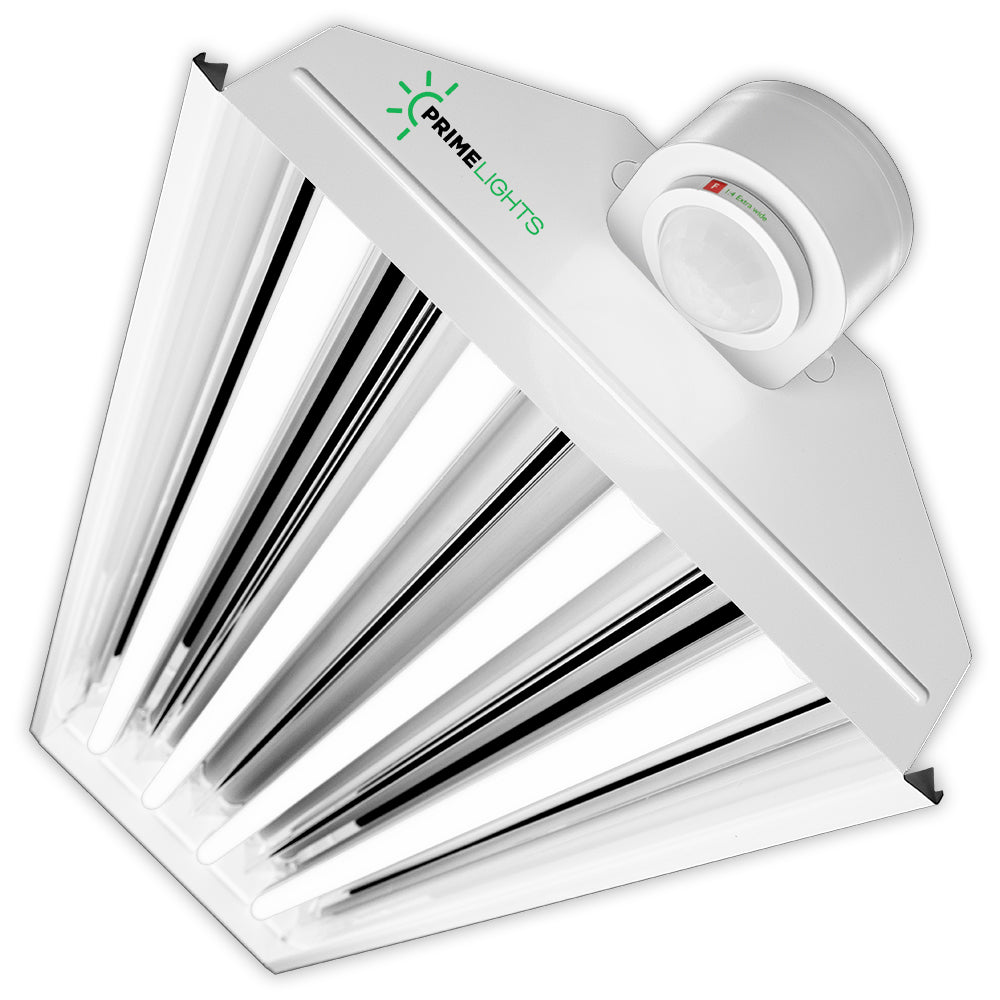

LED StingRay 4 XL MOTION ACTIVATED Shop Light (Frosted Diffuser)

Rated 4.9 out of 5
Based on 11 reviews
SKU: PL-4SRHBLD88FR-MA
$199.00 $170.00

FREE SHIPPING ON ALL QUANTITIES

LED 4 LAMP T8 - 88 WATT LED HIGH BAY FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE

FIXTURE MADE IN USA

THE STINGRAY 4XL LED HIGHBAY

New, never used, in manufacturer packaging.

Shipping: FREE, In Stock

Certifications: UL Listed, CSA Certified, NSF, Shatterproof, Contact for Rebate Info

Warranty: 5 years on complete fixture including LED lamps

Specifications:

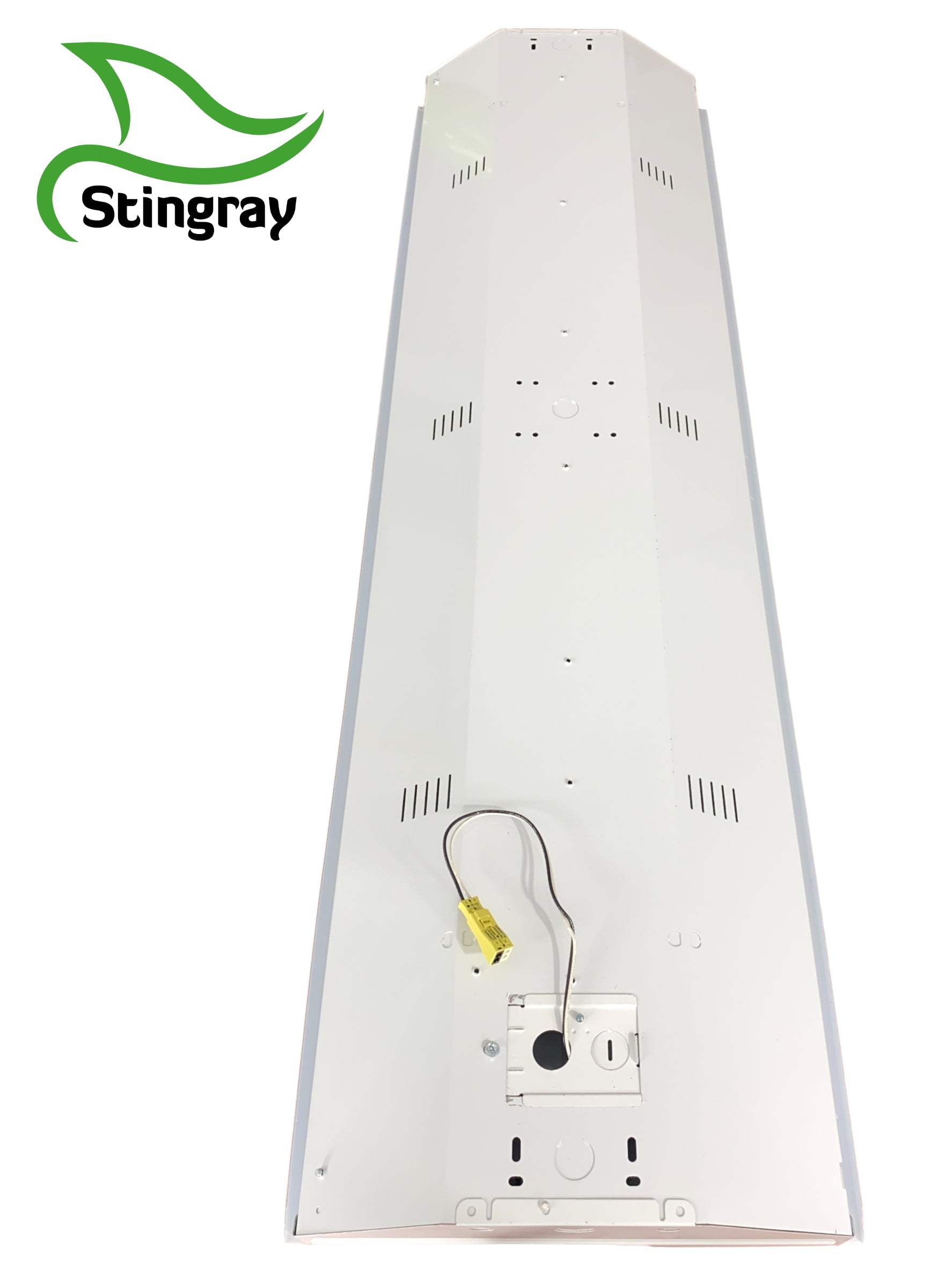

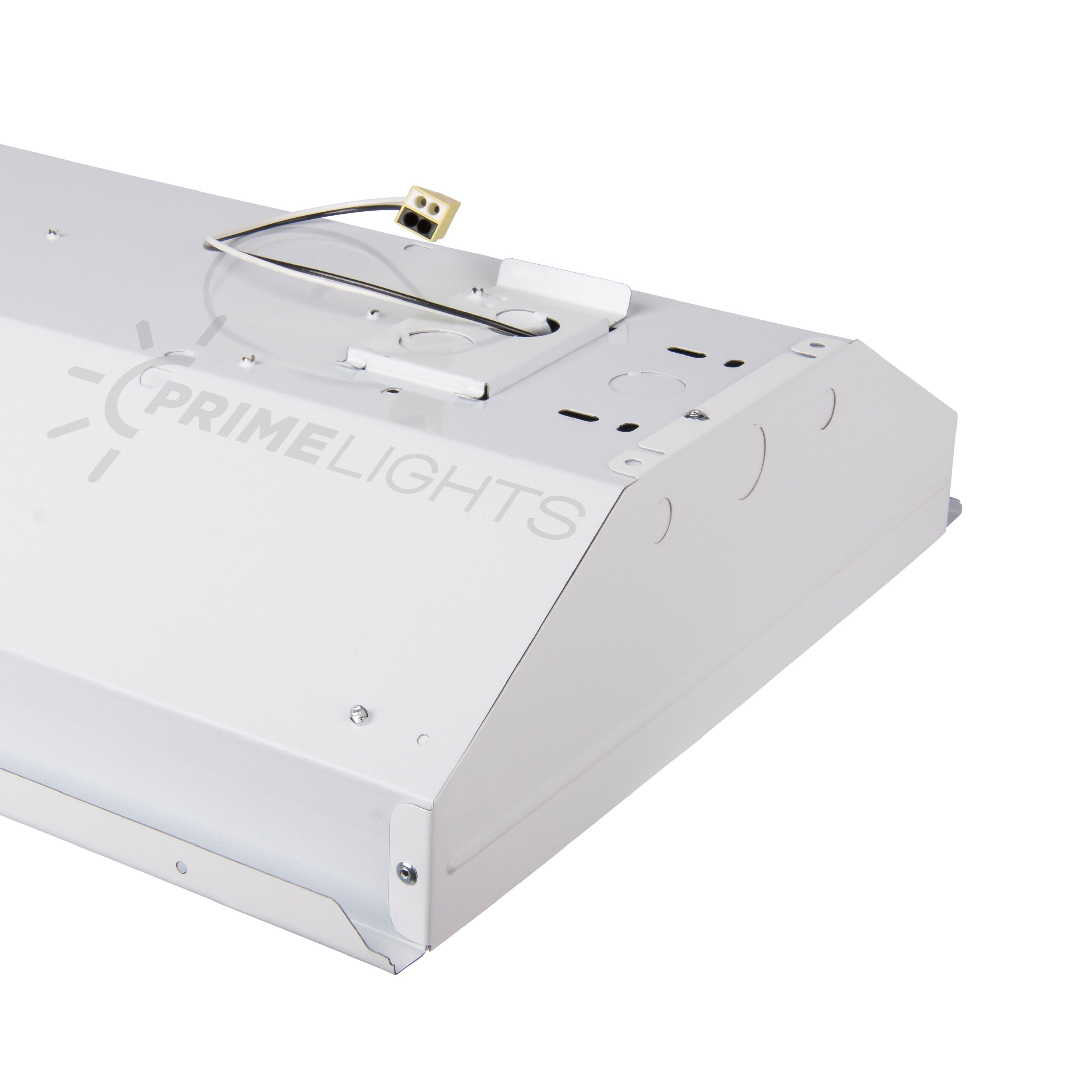

-110v/120V/277V 50/60Hz, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector.  LED Tubes have their own internal drivers - no external drivers or ballasts to worry about.  You will never have to change anything inside the fixture. This is the last fixture you will ever have to buy or maintain.


Input Wattage: 88W

LED Lumens: 12,400

Equivalent Lumens: 23,560

Lumens Per Watt:  155

Life: 50,000 Hours +

Color Temperature: 5000k

CRI: 85+

Amperage @ 120V: 0.74A

Amperage @ 277V: 0.32A

Voltage: 120-277V

Base Type: G13 Medium B-Pin

Temperature Range: -15° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Part Number: PL-4SRHBLD88FR-MA

Mounting Options:

-Surface mountable

-Chain hang (hardware not included)

*Energy Usage: Approx. 40% Less than T8 Fluorescent

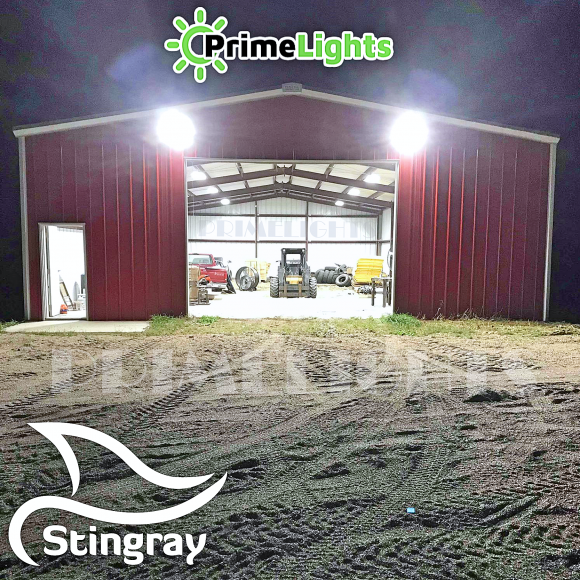

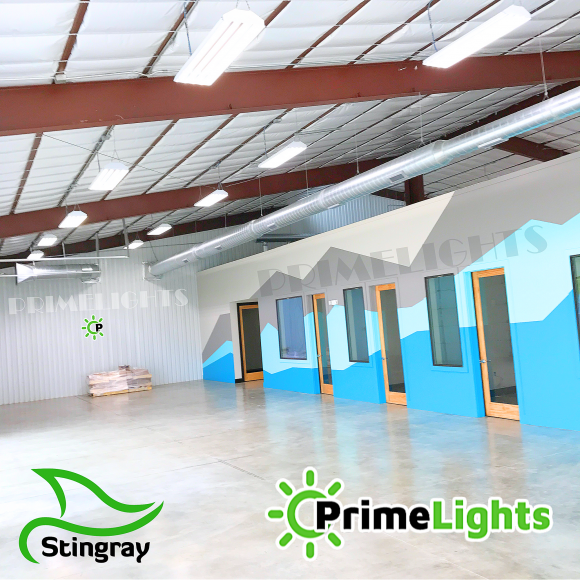

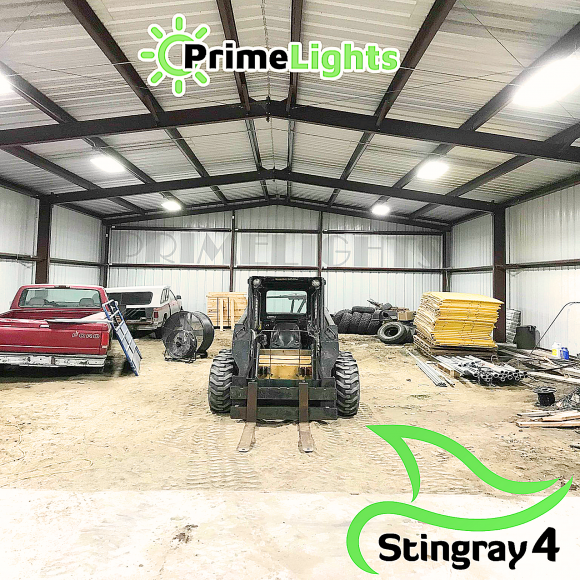

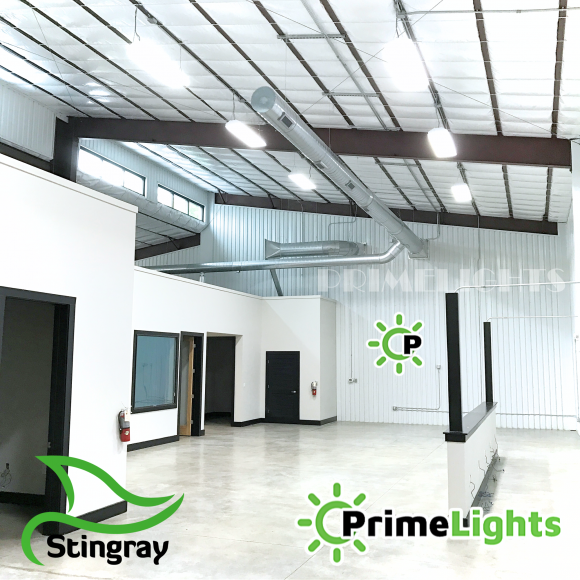

Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.



Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.

  • Item #: PL-4SRHBLD88FR-MA







Cable Hanger Installation

 Cord & Plug Installation

 Occupancy Sensor Installation

 Wire Guard Installation

Shipping Policy

Same-day shipping on most orders before 2:00 p.m. All shipments are prepaid to the customer, freight is included in the price shown. PrimeLights guarantees product to arrive in brand new, undamaged condition. If shipping damages occur, please note with the shipper and contact our customer service immediately at support@primelights.com or 512-598-4961. PrimeLights will replace any product damaged in shipping with zero expense to the customer.

Return Policy

PrimeLights will accept returns within 30 days on unused stock products. Buyer will pay freight upon return if PrimeLights is not liable for miss-order. If PrimeLights is liable, PrimeLights will pay freight. If fixtures are used a restocking fee will be applied. Customer satisfaction is our priority and we’re happy to clear up any confusion and issues on the phone. No products will be accepted for return without prior authorization of seller.

We appreciate your business!
average rating 4.9 out of 5
Based on 11 reviews
  • 5 Stars
    10 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 4 out of 5
Brightness
Rated 4 out of 5
Ease of Installation
Rated 4 out of 5
Customer photos and videos
11 Reviews
Reviewed by Gordon G., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Home Garage
Rated 5 out of 5
Review posted

Great Product, Great Service

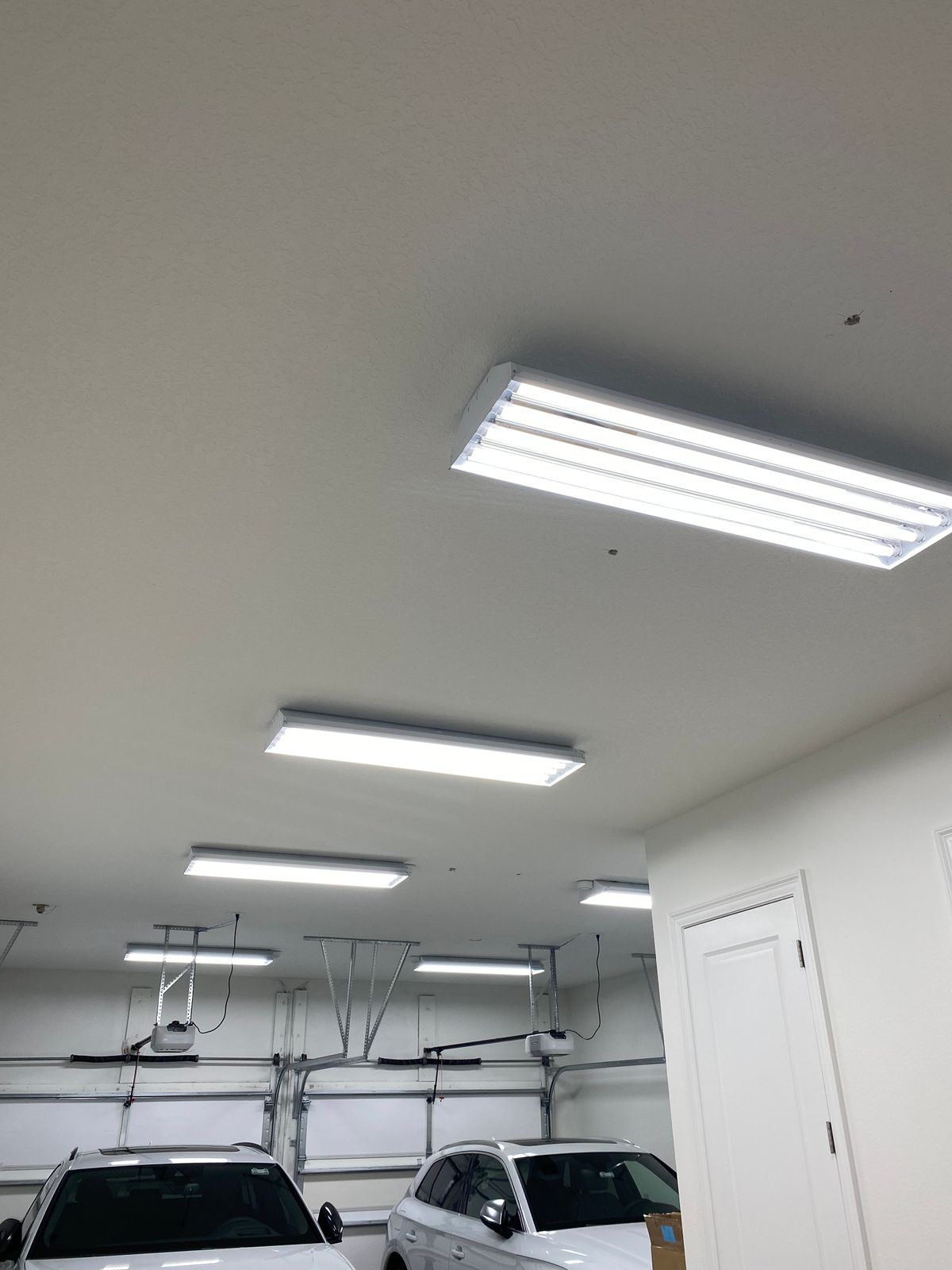

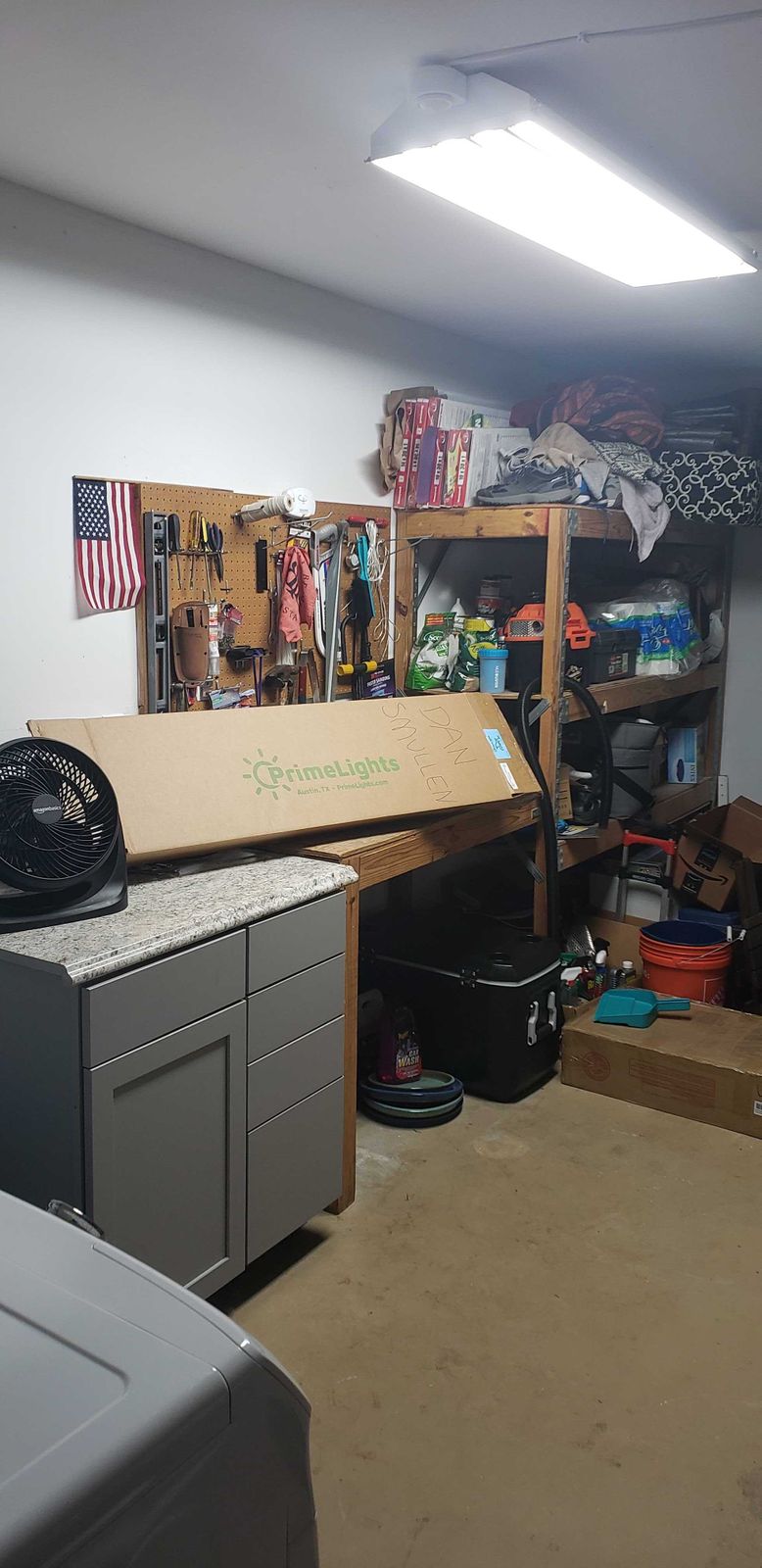

I purchased 3 StingRay 4XL lights for my 3 car garage. I had some questions before the purchase which I e-mailed to Prime Lights. Steve reached out the next day, answered all my questions, and facilitated my purchase. The lights were delivered in 2 days, were well packed, and are very sturdy.

The installation is best done with 2 people to hold the lights while installing and wiring. The panel on the lights where the house wiring enters the light was raised about 1/4 inch and I had to flatten it to make the light fit flush to the ceiling. I also added a rubber grommet to prevent chafing where the wiring came through the fixture.

The LED lights are much brighter and illuminate the whole garage more evenly than before! The motion detectors work great, turning the lights on whenever you enter the garage from the house or outside. You can program the ambient light level threshold to trigger the lights and the length of time the lights stay on without motion (10 sec, 1, 3, 5, 10, 20, 30 mins). The installation & use pamphlets could have been better written.

Overall, I am very happy with my purchase and the customer service I received and I would, and already have, recommended Prime Lights to my friends.

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 4 out of 5
Was this helpful?
Reviewed by jeffrey L., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Home Garage
Rated 5 out of 5
Review posted

amazing lights!

very pleased with these lights. I ordered 4 for my garage and the light output is awesome.

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
Was this helpful?
Reviewed by Aaron F., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Home Garage
Rated 5 out of 5
Review posted

They delivered the order as requested and packaged it well too.

They delivered the order as requested and packaged it well too.

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
Was this helpful?
Reviewed by Jeff O., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Farm/Barn/Ranch
Rated 5 out of 5
Review posted

Motion lights

Well built lights. Should last a long time. USA made quality is hard to find.

Loading...
Quality
Rated 5 out of 5
Brightness
Rated 5 out of 5
Ease of Installation
Rated 4 out of 5
Was this helpful?
Reviewed by Glen S., from United States
Verified Buyer
I recommend this product
Where did you install your PrimeLights products?
  • Automotive Garage
Rated 4 out of 5
Review posted

Good lights

I put 7 - 6 bulb stingray and 2 -4 bulb stingray in a 30x40x12 shop. The general lighting is good. They recommended only 6- 6 bulb stingray. Im glad I added more. Did the install alone. The lights are easy to install. What I didn't like is the top wiring plate that sticks up from the light frame and hinders a flush mount. I had to modify for flush mount. Also the factory holes didn't match for 16 inch center mount. Had to drill new ones. The lights also scratch easy when flipping the reflector up. All and all a good light for the money and the customer service is good.
