4ft. LED 4 Lamp T8 STINGRAY® Highbay Fixture 72W Clear W/ Wire Guard 12,960 Lumens

FIXTURE MADE IN USA!

COMMERCIAL SPECIFICATION GRADE

WITH WIRE GUARD - Bulb & Fixture Protector

Shipping: FREE, In Stock

3rd Party Testing:  We work with either UL, ETL, or CSA in conjunction with DLC to ensure fixtures meet or exceed safety and quality standards as well as electrical codes in the United States.  Contact for Rebate Info.

Included Lamps: (4) ETL Sanitation & DLC Listed Clear flicker-free, shatterproof polycarbonate 180 LPW (imported)

Warranty: 5 years on complete fixture including LED lamps.

Specifications:  Wired lamp holders, luminaire disconnect with 4 connection points for easy daisy chain, 20-gauge cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, mirrored aluminum reflector.  Clear LED bulbs with internal drivers - no external drivers or ballasts to maintain.  You will never have to change anything inside the fixture. PrimeLights® warranties every fixture and every bulb for 5 years.  110v,120v, 240v, 277v. Long lasting, durable, and bright. Made in the USA of American Steel, this is the last light fixture you will ever need!

Input Wattage: 72W

Voltage: 110-277V (call for 480V)

LED Lumens: 12,960

Lumens per watt: 180+

Color Temperature: 5000K (call for others)

CRI: 85+

L70 Life: >50,000 Hours

Beam Angle: 120°

Amperage @ 120V: 0.61A / Amperage @ 277V: 0.26A

Base Type: G13 Medium B-Pin

Equivalent Lumens: 25,920 (fluorescent equiv.)

Lamp Lens: Clear

Install Location: Damp Rated – Indoor, Outdoor Covered (no direct water)

Dimming: No (not to be used with a dimmer switch, call for dimmable Stingray® options)

Click here for dimmable selections

LED Driver: Fixture operates without ballast or driver - Each lamp contains an individual driver

Optimal Temperature Range: -20° F to 112° F (operation outside range may lower lifespan)

Length: 48.0"  Width: 14.0"  Depth: 3.5"

Total weight: 11.25 lbs

Part Number: PL-4HBLD88-CL-WG

Wiring: Ready for hard wire install, includes quick disconnect wire harness (plug and cord available as an add on at checkout or in accessories category)

Mounting Options: Hardware not included.

-Surface Mountable (most common): Multiple predrilled screw or bolt hole options. Use hardware best suited for your application.

-Hang: Aircraft Cable Hangers available as an add on at checkout or in accessories category. Also compatible with jack chain and "S" hooks.

*Energy Usage: Approx. 40% Less than T8 Fluorescent

*Specifications are subject to change without notice.

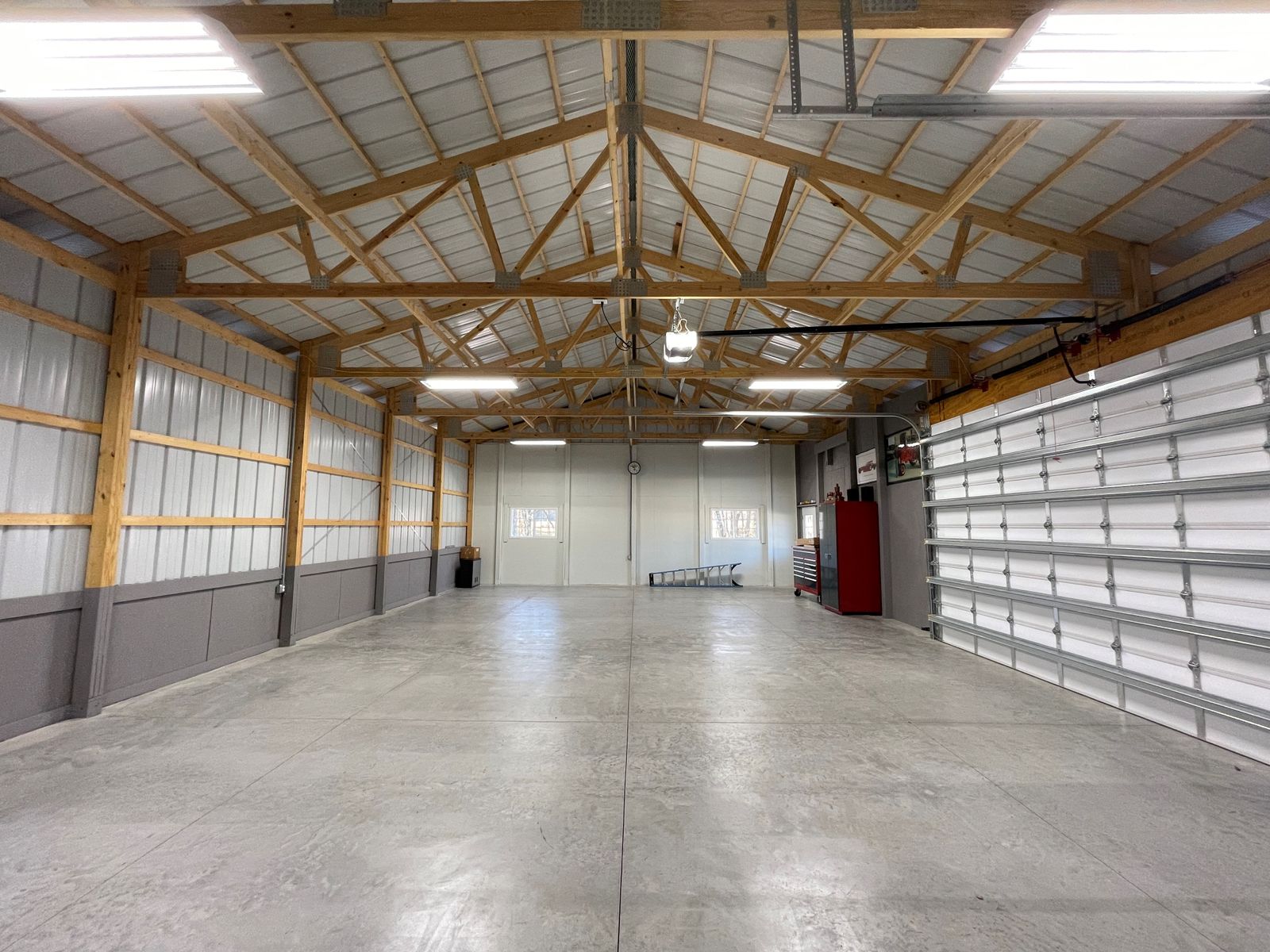

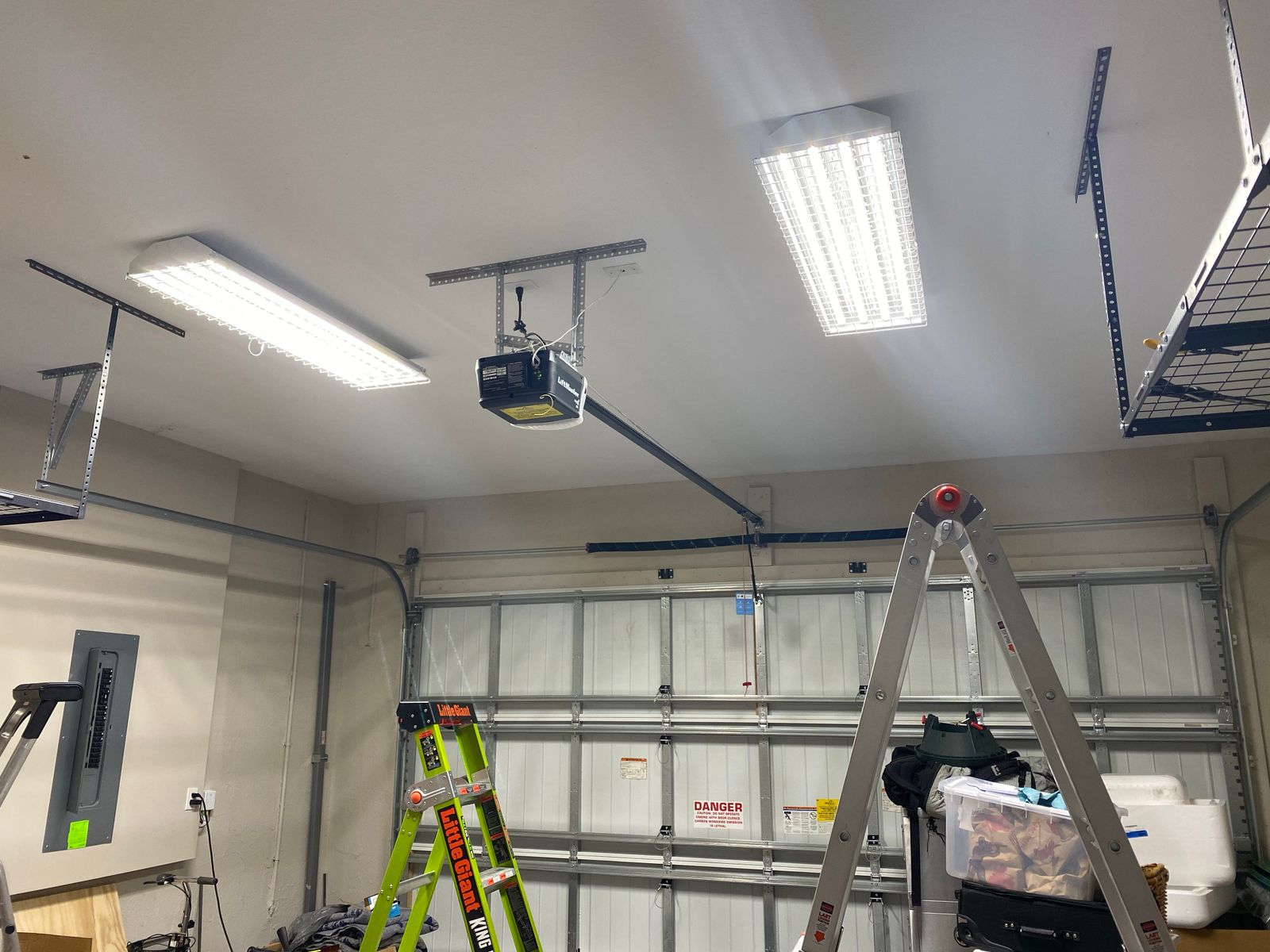

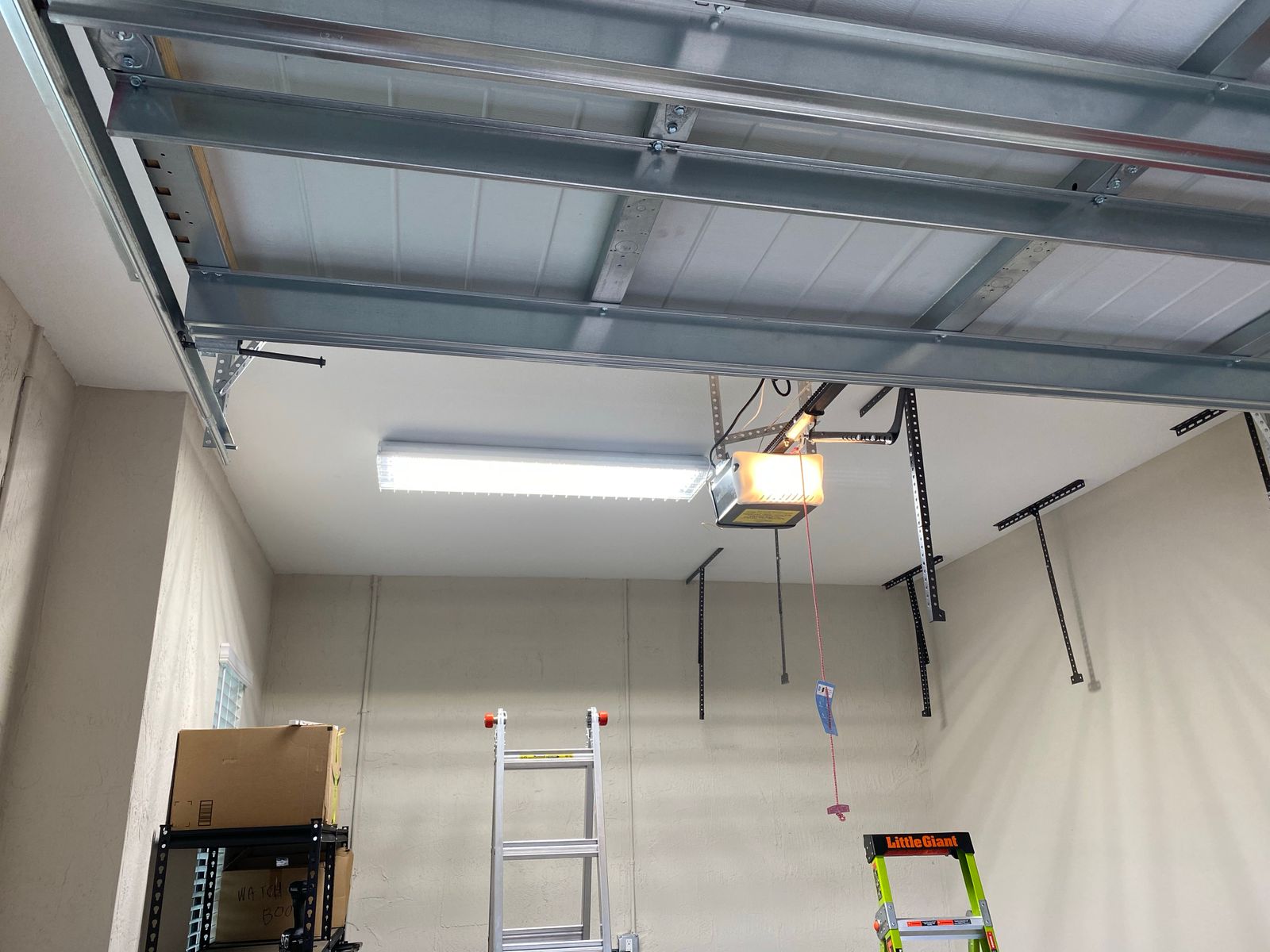

Applications:  The PrimeLights® LED Stingray® 4 is the ideal fixture for ceiling heights ranging up to about 20’, depending on spacing and application.  Transform your shop to picture perfect daylight with clean, energy efficient, cool running, bright LED four-foot fixtures.  Ideal for any size shop including metal buildings, warehouses, fab shops, garages, barns, hobby shops, car restoration, showrooms, and factories just to name a few.  Frosted lamps provide reduced glare when compared to clear.  For higher ceilings please see our PrimeLights® LED Stingray® 6 Series.

Lighting Layouts:  As a rough estimate, change these out 1 for 1 with 250W metal halides, or approx. 1 fixture per 250sf for basic lighting.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  In just a few minutes, receive your free custom professional lighting layout over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building to determine proper light levels.  Call 512-843-1383.

THE LED STINGRAY® 4 & 6 ARE MANUFACTURED AND SOLD ONLY BY PRIMELIGHTS®
