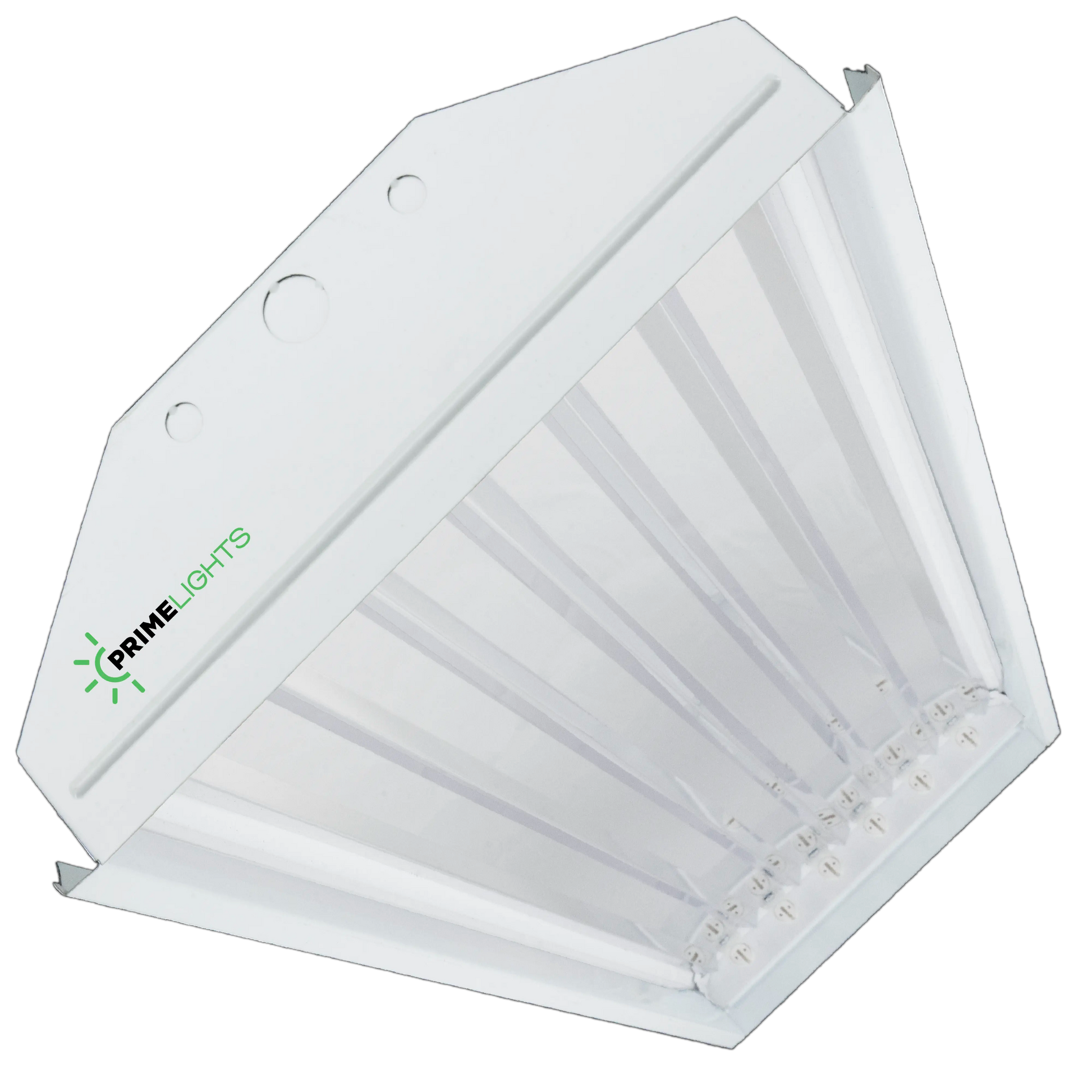

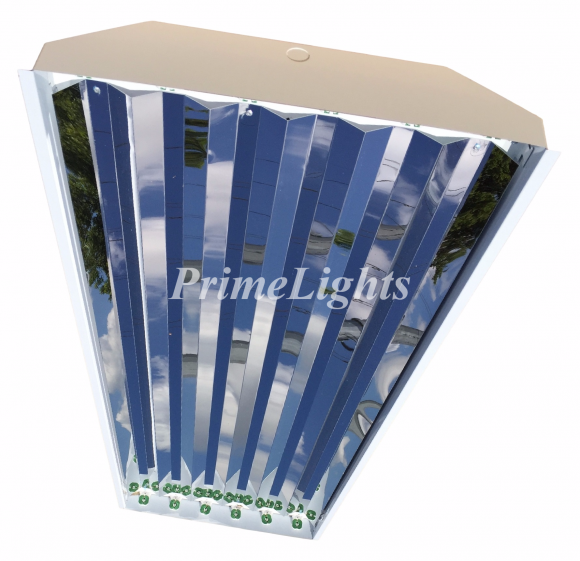

6 Lamp T5HO Highbay Fluorescent Fixture W/ Ballast Access Door
Click to enlarge

6 Lamp T5HO Highbay Fluorescent Fixture W/ Ballast Access Door

SKU: PL-654-HB
$118.00

FREE SHIPPING ON ALL QUANTITIES

6 LAMP T5HO - F54T5HO HIGH BAY FLUORESCENT FIXTURE - 110V/120V/277V COMMERCIAL SPECIFICATION GRADE

New, never used, in manufacturer packaging.

Shipping: FREE, In Stock

Certifications: UL Listed

Warranty: 5 years on complete fixture including ballast.

Specifications:

-10° Electronic ballasts, 110v/120V/277V 50/60Hz electronic ballasts, lampholders wired, 20 gauge full body steel housing, cold rolled steel in baked white enamel, 7/8'' conduit knockouts on both ends and top, Mirrored aluminum reflector, 3' chain hangers & "V" clips, quick luminaire disconnect, ballast access panels for easy maintenance.

-This fixture has (3) 2 lamp ballasts, so it can be wired on (3) different circuits to have 2,4, or 6 lamps on at the same time.  Default factory wiring has all 6 lamps illuminating at the same time.

Input Wattage: 324W

Lumens: 26,700

Amperage @ 120V: 3.00A

Amperage @ 277V: 1.29A

Ballast: Electronic Program Start

Ballast Factor: High

Type: Outdoor type 1 HL

Sound Rating: A

Class: P

Minimum Start Temp: -18° F

Maximum Start Temp: 167° F

Length: 48.5"  Width: 15.0"  Depth: 4.6"

Mounting Options:

-Surface mountable

-Chain hangers & "V" Clips included for chain hanging



Applications: Warehouse, machine shops, pole barns, farms, ranches, auto shops, work shops, welding shops, etc.



Lighting Layouts: As a rough estimate, change these out 1 for 1 with metal halides, or approx 1 fixture per 400sf.  There are many other factors in deciding the proper light level (mounting height, application / preferred light levels, building reflectivity, etc).  For a professional lighting layout, please call customer service.  These are no charge and only take a few minutes over the phone.  Please be prepared to tell us the following: Height, mounting height, width, depth, reflectivity, and application of the building (to determine proper light levels).  Call 512-843-1383.
